Sawstop

3 HP Professional Cabinet Saw - 230V 1-Phase - 36" Professional T-Glide Fence System

Item #847462 Model PCS31230-TGP236
$3,582.00
$3,582.00 $3,582.00

This item has an additional shipping charge

FREE Systainer with Cast-Iron Table Saw Purchase Through Mail-In Offer Now Through December 31, 2024!

1 2

Sawstop

3 HP Professional Cabinet Saw - 230V 1-Phase - 36" Professional T-Glide Fence System

Item #847462 Model PCS31230-TGP236
$3,582.00
$3,582.00 $3,582.00

This item has an additional shipping charge

FREE Systainer with Cast-Iron Table Saw Purchase Through Mail-In Offer Now Through December 31, 2024!

The SawStop® 3 HP 10" Professional Cabinet Saw offers unmatched fit and finish and superior cutting performance to avid hobbyists and small-s. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

In Stock

Shipping Info

Items you may need

  • Glue Line Rip Saw Blade - 10" x 5/8" Bore x 30T - TCG

    $69.59
    $69.59 $86.99
    Glue Line Rip Saw Blade - 10" x 5/8" Bore x 30T - TCG alt 0

  • Stacked Dado Set - 8" x 5/8" Bore x 24T - Hi ATB

    $167.99
    $167.99 $209.99
    Stacked Dado Set - 8" x 5/8" Bore x 24T - Hi ATB alt 0

  • Saw Gauge with Dial Indicator

    $99.99
    $99.99 $99.99
    Saw Gauge with Dial Indicator

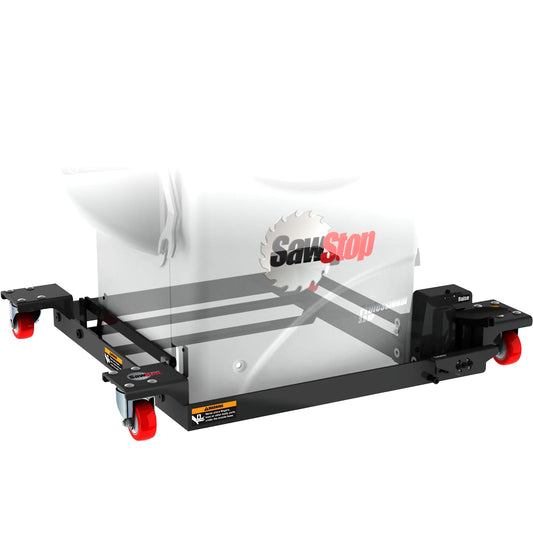

  • PCS Professional Saw Mobile Base

    $299.00
    $299.00 $299.00
    PCS Professional Saw Mobile Base alt 0

  • Over-Arm Dust Collection Assembly

    $299.00
    $299.00 $299.00
    Over-Arm Dust Collection Assembly alt 0

  • Align-A-Saw Gauge & Base

    $89.99
    $89.99 $89.99
    Align-A-Saw Gauge & Base

  • Align-A-Saw Plate

    $159.99
    $159.99 $159.99
    Align-A-Saw Plate

  • Spline Jig

    $159.99
    $159.99 $159.99
    Spline Jig

  • Thin Rip Guide

    $169.99
    $169.99 $169.99
    Thin Rip Guide

  • Dado Nut for SawStop Table Saws

    $44.99
    $44.99 $44.99
    Dado Nut for SawStop Table Saws

Details

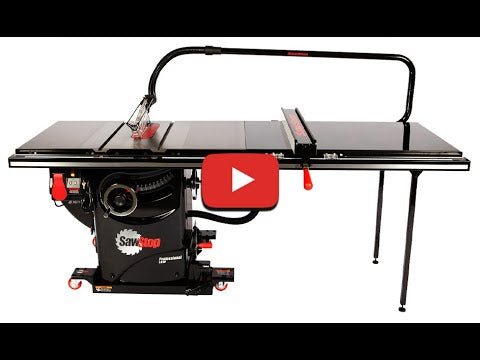

The SawStop® 3 HP 10" Professional Cabinet Saw offers unmatched fit and finish and superior cutting performance to avid hobbyists and small-shop pros. At 230V power, the optimized footprint makes this table saw ideal for the many challenges of a home shop. With SawStop's legendary safety system, uncompromising quality, and industry-leading dust collection, the PCS™ table saw is the cornerstone of a high-end home shop.

Features:

  • SawStop’s patented safety system
  • Riving knife reduces the risk of kickback
  • Tool-free quick-change blade guard mount
  • Diagnostic system ensures the saw is ready to respond
  • Dust-Collection Blade Guard

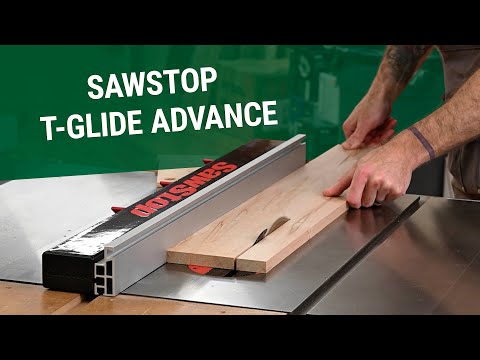

  • 36" Professional T-Glide Fence System provides smooth operation and precise measurement

Specifications:

  • Product Type: Cast Iron Table Saw
  • Overall Saw Dimensions (W x D x H): 69-1/8" x 33" x 34"
  • Cabinet Footprint (W x D): 19-3/8" x 19-3/8"
  • Cast-Iron Table (W x D): 20" w x 27" d
  • Cast-Iron Table Size with Extension Wings (W x D): 44" w x 27" d
  • Motor: 3 HP, 1-Phase, 230V, 13A
  • Weight: 426 lbs.
  • Blade: 40-tooth, professional grade, 5/8" arbor
  • Blade Diameter: 10"
  • Blade Tilt: left
  • Blade Kerf: 0.118" (3 mm)
  • Blade Plate Thickness: 0.078"
  • Maximum Depth of Cut - Blade at 0º: 3-1/8"
  • Maximum Depth of Cut - Blade at 45º: 2-1/4"
  • Maximum Rip - Left of the Blade: 12"
  • Dado Diameter: 8" (requires a separate brake cartridge and table insert)
  • Maximum Dado Width: 13/16"
  • Arbor Diameter at Blade: 5/8"
  • Table in Front of Blade - Maximum Elevation: 10-1/4"
  • Table Behind the Blade - Maximum Elevation: 7-1/2"
  • Table Flatness Measured Diagonally: 0.010" maximum gap
  • Miter Slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
  • Dust-Collection Port Diameter: 4"
  • Riving Knife/Splitter Thickness: 0.078" (2 mm)
  • Blade guard: polycarbonate, extends only 5/8" to right of blade
  • Insert: zero clearance, steel core, ABS surfaces
  • Belts: 2 V-ribbed belts – arbor belt is static dissipative

What's Included:

  • (1) SawStop PCS™ 3HP Table Saw Body
  • (1) Professional Series 36" Extension Table
  • (1) T-Glide Pro Fence
  • (1) T-Glide Pro 36" Rails
