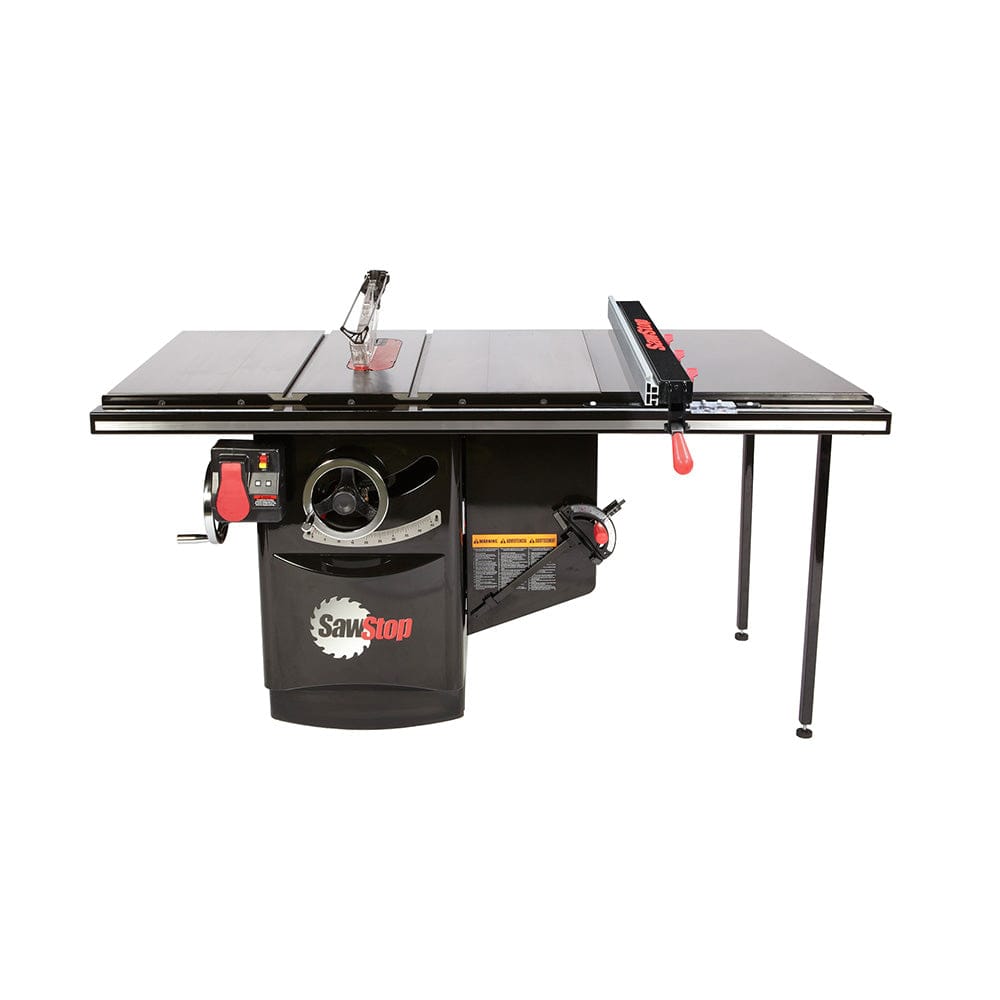

Designed for serious professionals, the SawStop 3 HP Industrial Cabinet Saw delivers unmatched precision, durability, and safety for high-demand woodworking environments. Built on a rugged frame with a heavy-duty trunnion and thick cast-iron table, this saw is engineered to maintain absolute accuracy and stability through the toughest cuts.
Powered by a 3 HP motor operating on 230V single-phase power, it offers the performance needed for production work and precision craftsmanship alike. The 36" Industrial T-Glide Advance Fence System ensures smooth, repeatable fence movement with rock-solid lockdown—essential for clean, consistent results.
What sets this saw apart is SawStop’s patented safety system. In less than 5 milliseconds, the blade stops on contact with skin, drops below the table, and minimizes injury—giving you peace of mind with every cut.
Features:
- SawStop’s patented safety system
- Riving knife reduces the risk of kickback
- Tool-free quick-change blade guard mount
- Diagnostic system ensures the saw is ready to respond
- Dust-Collection Blade Guard
- 36" Industrial T-Glide Advance Fence System
Specifications:
- Overall saw dimensions: 69-1/4" wide x 36-1/2" deep x 34" high
- Cabinet footprint: 20" x 25"
- Cast-iron table: 24" w x 30" d
- Cast-iron table size with extension wings: 44" w x 30" d
- Motor: 3 HP, 1-Phase, 230V 60 HZ
- Weight: 635 lbs.
- Blade: 60-tooth, professional grade, 5/8" arbor
- Blade diameter: 10"
- Blade tilt: left
- Blade kerf: 0.118" (3 mm)
- Blade plate thickness: 0.078"
- Max. depth of cut, blade at 0º: 3-1/8"
- Max. depth of cut, blade at 45º: 2-1/4"
- Max. rip, left of blade: 12-1/2"
- Dado diameter: 8" (requires a separate brake cartridge and table insert)
- Dado max. width: 13/16"
- Arbor diameter at blade: 5/8"
- Table in front of blade (max. elevation): 11"
- Table behind blade (max. elevation): 9-3/4"
- Table flatness measured diagonally: 0.010" maximum gap
- Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
- Dust-collection port diameter: 4"
- Riving knife/splitter thickness: 0.090" (2.3mm)
- Insert: zero clearance, phenolic core, melamine surfaces
- Belts: 2 V-ribbed belts
What's Included:
- (1) SawStop Industrial Cabinet Saw with 36" Industrial T-Glide Advance Fence System - 3 HP - 1PH - 230V
