Sawstop

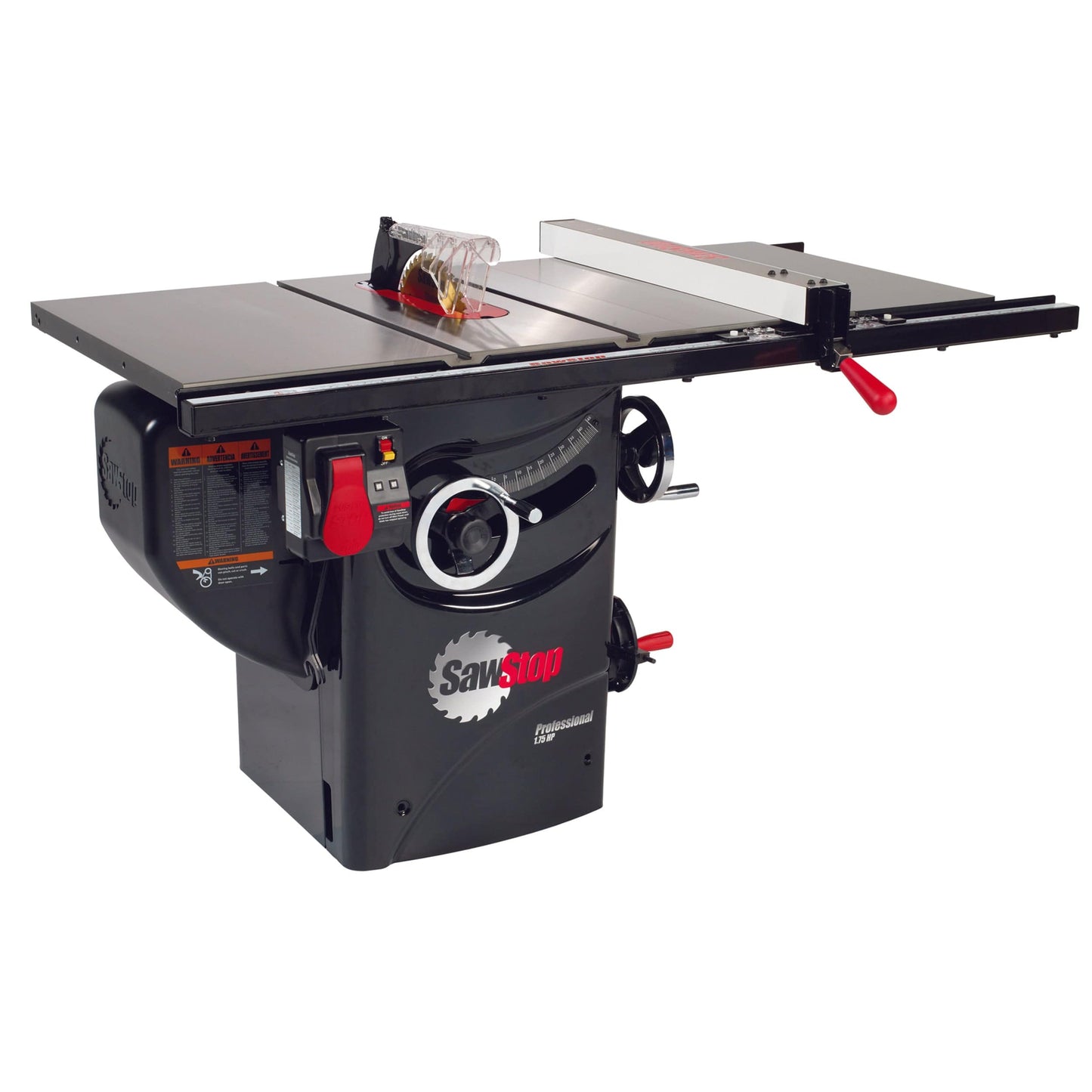

1-3/4HP 1PH 110V Professional Cabinet Saw with 30" Premium Fence System

Item 846918
Model PCS175-PFA30

$2,849.00

Shipping Fee of $325.00

Ships Today!
  • Will Only Ship to the Contiguous 48 States
  • Freight Shipments Deliver to Curbside Only
  • Not Available for Express and Overnight Shipping.
  • The SawStop 110V, 1-3/4 HP 10" Professional Cabinet Saw is engineered to fit the unique demands of the avid hobbyist in a home setting. Delivering the peerless fit and finish of the Professional Cabinet Saw, this saw’s 110V power and optimized footprint make it ideal for the many...

    This kit includes the following items:

    • PCS - Saw Body 1.75 HP
    • 30 in Premium Fence System

    Woodcraft Protection Program

    Learn More

    Items You May Need

    Details

    The SawStop 110V, 1-3/4 HP 10" Professional Cabinet Saw is engineered to fit the unique demands of the avid hobbyist in a home setting. Delivering the peerless fit and finish of the Professional Cabinet Saw, this saw’s 110V power and optimized footprint make it ideal for the many challenges of a home shop. With SawStop’s legendary safety system, uncompromising quality and industry-leading dust collection, the 110V Professional Cabinet Saw is engineered to be the cornerstone of a high-end home shop.
    Features:
    • SawStop’s patented safety system
    • Riving knife reduces the risk of kickback
    • Tool-free quick-change blade guard mount
    • Diagnostic system ensures the saw is ready to respond
    • Micro Blade Guard
    • 30" Premium T-style fence system
    • 1-3/4 HP motor 1-phase, 120V 14A
    Table Saw Specifications:




    • Overall saw dimensions: 61-3/4" x 31-1/8" x 34"
    • Cabinet footprint: 19-3/8" x 19-3/8"
    • Cast-iron table: 20" w x 27" d
    • Cast-iron table size with extension wings: 44" w x 27" d
    • Motor: 1-3/4 HP, 1-phase, 110V, 14A
    • Weight: 367 lbs.
    • Blade: 40-tooth, professional grade, 5/8" arbor
    • Blade diameter: 10"
    • Blade tilt: left
    • Blade kerf: 0.118" (3mm)
    • Blade plate thickness: 0.078"
    • Max. depth of cut, blade at 0º: 3-1/8"
    • Max. depth of cut, blade at 45º: 2-1/4"
    • Max. rip, left of blade: 12"
    • Dado diameter: 8" (requires a separate brake cartridge and table insert)
    • Dado max. width: 13/16"
    • Arbor diameter at blade: 5/8"
    • Table in front of blade (max. elevation): 10-1/4"
    • Table behind blade (max. elevation): 7-1/2"
    • Table flatness measured diagonally: 0.010" maximum gap
    • Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
    • Dust-collection port diameter: 4"
    • Riving knife/splitter thickness: 0.078" (2mm)
    • Blade guard: polycarbonate, extends only 5/8" to right of blade
    • Insert: zero clearance, steel core, ABS surfaces
    • Belts: 2 V-ribbed belts – arbor belt is static dissipative
