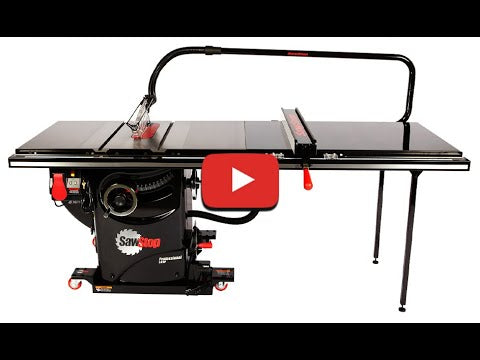

Experience the unmatched combination of power, precision, and safety with the SawStop 1.75 HP Professional Cabinet Saw. Engineered for serious woodworkers and advanced hobbyists, this saw features SawStop’s revolutionary safety system that stops the blade on skin contact—protecting you from life-changing injuries in under five milliseconds.

With a powerful 1.75 HP motor running on a standard 110V circuit, this saw delivers consistent performance without requiring special electrical setup. The 52" Professional T-Glide Fence System provides smooth, accurate fence movement and long-term alignment for repeatable precision. Built with cast iron and steel, the saw is rock solid and vibration-free for superior cut quality.

Features:

• SawStop’s patented safety system
• Riving knife reduces the risk of kickback
• Tool-free quick-change blade guard mount
• Diagnostic system ensures the saw is ready to respond
• Micro Blade Guard

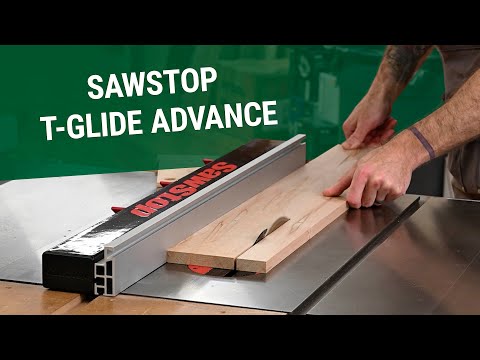

• 52" Professional T-Glide Fence System provides smooth operation and precise measurement

Specifications:

• Product Type: Cast Iron Table Saw
• Overall Saw Dimensions (W x D x H): 85-1/4" x 33" x 34"
• Cabinet Footprint (W x D): 19-3/8" x 19-3/8"
• Cast-Iron Table (W x D): 20" x 27"
• Cast-Iron Table Size with Extension Wings (W x D): 44" x 27"
• Motor: 1-3/4 HP, 1-phase, 110V, 14A
• Weight: 449 lbs.
• Blade: 40-tooth, professional-grade, 5/8" arbor
• Blade Diameter: 10"
• Blade Tilt: left
• Blade Kerf: 0.118" (3 mm)
• Blade Plate Thickness: 0.078"
• Maximum Depth of Cut - Blade at 0º: 3-1/8"
• Maximum Depth of Cut - Blade at 45º: 2-1/4"
• Maximum Rip - Left of the Blade: 12"
• Dado Diameter: 8" (requires a separate brake cartridge and table insert)
• Maximum Dado Width: 13/16"
• Arbor Diameter at Blade: 5/8"
• Table in Front of Blade - Maximum Elevation: 10-1/4"
• Table Behind the Blade - Maximum Elevation: 7-1/2"
• Table Flatness Measured Diagonally: 0.010" maximum gap
• Miter Slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
• Dust-Collection Port Diameter: 4"
• Riving Knife/Splitter Thickness: 0.078" (2 mm)
• Blade Guard: polycarbonate, extends only 5/8" to right of blade
• Insert: zero clearance, steel core, ABS surfaces
• Belts: 2 V-ribbed belts – arbor belt is static dissipative

What's Included:

• (1) SawStop 1.75 HP PCS™ Table Saw Body
• (1) T-Glide Pro 52" Table
• (1) T-Glide Pro 52" Rails
• (1) T-Glide Pro Fence
