Sawstop

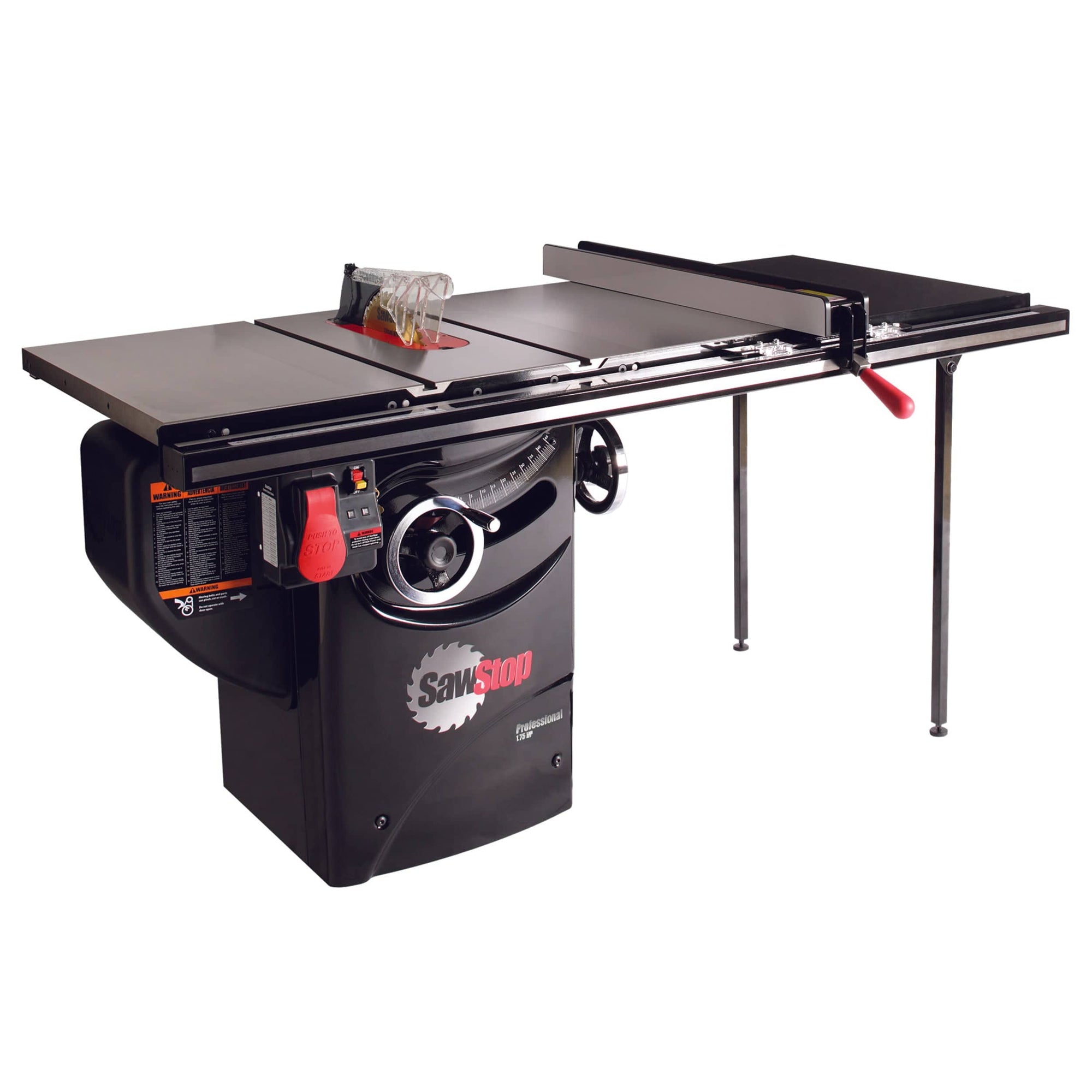

1.75 HP Professional Cabinet Saw - 110V 1-Phase - 36" Professional T-Glide Fence System

Item #846919 Model PCS175-TGP236
Regular price $3,073.00
Sale price $3,073.00 Regular price $3,073.00

This item has an additional shipping charge

The SawStop® 1. 75 HP 10" Professional Cabinet Saw offers unmatched fit and finish and superior cutting performance to avid hobbyists and smal. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

In Stock

Shipping Info

Items you may need

  • Over-Arm Dust Collection Assembly

    Regular price $299.00
    Sale price $299.00 Regular price $299.00
    846909.0
  • Glue Line Rip Saw Blade - 10" x 5/8" Bore x 30T - TCG

    Regular price $69.59
    Sale price $69.59 Regular price $86.99
    171602.0
  • Stacked Dado Set - 8" x 5/8" Bore x 24T - Hi ATB

    Regular price $167.99
    Sale price $167.99 Regular price $209.99
    171605.0
  • PCS Professional Saw Mobile Base

    Regular price $299.00
    Sale price $299.00 Regular price $299.00
    843878.0

Details

The SawStop® 1.75 HP 10" Professional Cabinet Saw offers unmatched fit and finish and superior cutting performance to avid hobbyists and small-shop pros. At 110V power, the optimized footprint makes this table saw ideal for the many challenges of a home shop. With SawStop's legendary safety system, uncompromising quality, and industry-leading dust collection, the PCS™ table saw is the cornerstone of a high-end home shop.

Features:


  • SawStop’s patented safety system
  • Riving knife reduces the risk of kickback
  • Tool-free quick-change blade guard mount
  • Diagnostic system ensures the saw is ready to respond

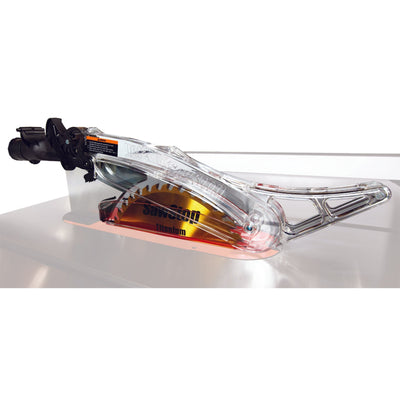

  • Micro Blade Guard
  • 36" Professional T-Glide Fence System provides smooth operation and precise measurement

Specifications:

  • Product Type: Cast Iron Table Saw
  • Overall Saw Dimensions (W x D x H): 69-1/8" x 33" x 34"
  • Cabinet Footprint (W x D): 19-3/8" x 19-3/8"
  • Cast-Iron Table (W x D): 20" x 27"
  • Cast-Iron Table Size with Extension Wings (W x D): 44" x 27"
  • Motor: 1 3/4 HP, 1-phase, 110V, 14A
  • Weight: 408 lbs.
  • Blade: 40-tooth, professional-grade, 5/8" arbor
  • Blade Diameter: 10"
  • Blade Tilt: left
  • Blade Kerf: 0.118" (3mm)
  • Blade Plate Thickness: 0.078"
  • Maximum Depth of Cut - Blade at 0º: 3-1/8"
  • Maximum Depth of Cut - Blade at 45º: 2-1/4"
  • Maximum Rip - Left of the Blade: 12"
  • Dado Diameter: 8" (requires a separate brake cartridge and table insert)
  • Maximum Dado Width: 13/16"
  • Arbor Diameter at Blade: 5/8"
  • Table in Front of Blade - Maximum Elevation: 10-1/4"
  • Table Behind the Blade - Maximum Elevation: 7-1/2"
  • Table Flatness Measured Diagonally: 0.010" maximum gap
  • Miter Slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
  • Dust-Collection Port Diameter: 4"
  • Riving Knife/Splitter Thickness: 0.078" (2 mm)
  • Blade Guard: polycarbonate, extends only 5/8" to right of blade
  • Insert: zero clearance, steel core, ABS surfaces
  • Belts: 2 V-ribbed belts – arbor belt is static dissipative

What's Included:

  • (1) SawStop 1.75 HP PCS™ Table Saw Body
  • (1) Professional Series 36" Extension Table
  • (1) T-Glide Pro Fence
  • (1) T-Glide Pro 36" Rails
