RIKON

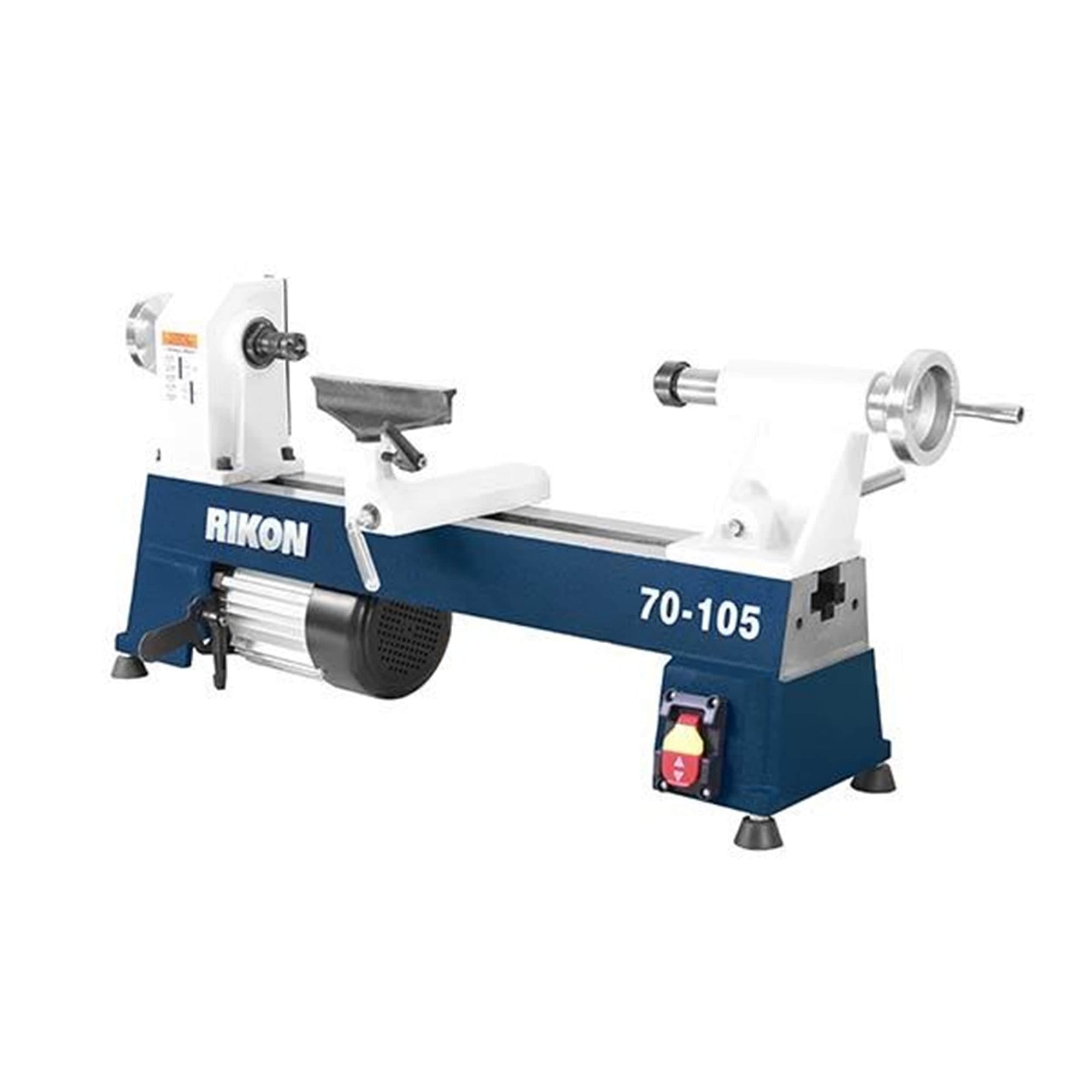

10" x 18" Pen Lathe - 1/2 HP 1 Ph 120V

Item #863667 Model 70-105
Regular price $529.99
Sale price $529.99 Regular price $529.99
Skip to product information
1 of 4

RIKON

10" x 18" Pen Lathe - 1/2 HP 1 Ph 120V

Item #863667 Model 70-105
Regular price $529.99
Sale price $529.99 Regular price $529.99
Rikon's , was designed specifically at the request of pen turners who need a sturdy, dedicated machine for their craft. This lathe is constructed of c. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Deluxe Self Centering Pen and Bottle Stopper Drilling Vise

    Regular price $99.99
    Sale price $99.99 Regular price $99.99
    Deluxe Self Centering Pen and Bottle Stopper Drilling Vise alt 0
  • Pro Pen Mandrel #2 MT

    Regular price $49.99
    Sale price $49.99 Regular price $49.99
    Pro Pen Mandrel #2 MT alt 0
  • Mini Carbide Turning Tool

    Regular price $96.99
    Sale price $96.99 Regular price $96.99
    Mini Easy Detailer alt 0

Details

Rikon's , was designed specifically at the request of pen turners who need a sturdy, dedicated machine for their craft. This lathe is constructed of cast iron so vibration is not a factor, unlike lathes made of aluminum. Five speed ranges cover the bases for boring barrel holes, roughing out pen billets, turning to shape and finishing. The Rikon® 70-105 Pen Lathe is compact and lightweight, making it ideal for use in small workshops or at home.

Features:


  • Designed specifically to meet the requirements of pen turners
  • Easy adjust handle allows up to 1-3/4" of RAM travel
  • 1" x 8 TPI headstock spindle has #2 MT for pen mandrels
  • 10″ swing with 18″ between centers
  • Easy access speed change
  • Nylon face plate washer

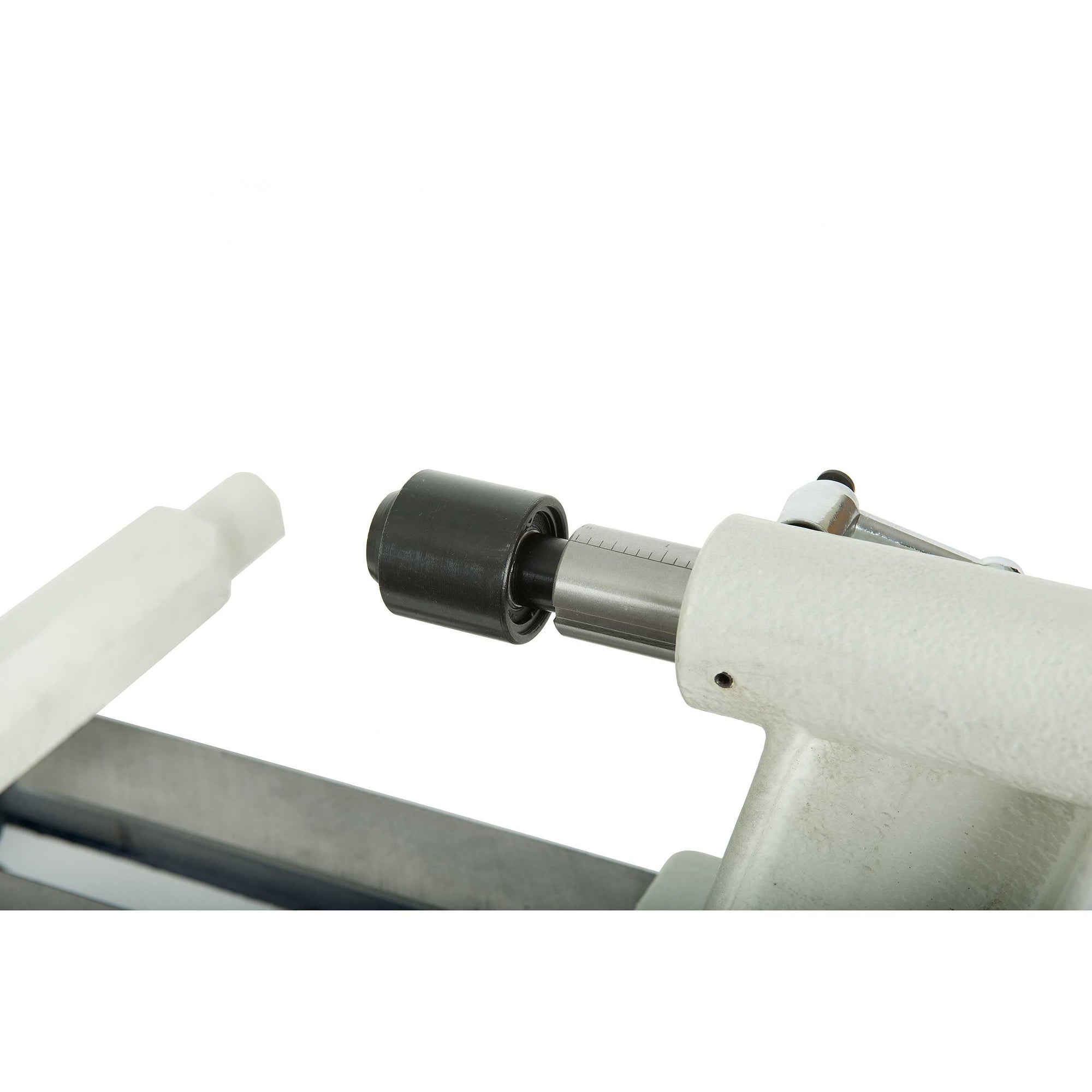

  • Self ejecting tail stock
  • Ability to add multiple extensions
  • Five-Year Warranty

Specifications:

  • Product: Lathe
  • Style: Benchtop
  • Motor: 1/2 HP TEFC (Totally enclosed, fan-cooled)
  • Motor Voltage: 120V
  • Motor Phase: 1 Ph
  • Amps / Hertz: 3.7A 60 HZ
  • Motor Speed (No Load): 1,700 RPM
  • Direction: Forward Only (Clockwise)
  • Number of Speeds: 5
  • Speed Ranges: 500, 1,175, 1,850, 2,225 and 3,200 RPM
  • Spindle Size: 1" x 8 TPI
  • Headstock & Tailstock Taper: #2 Morse Taper
  • Swing Over Bed: 10"
  • Swing Over Tool Rest: 7-1/2"
  • Distance Between Centers: 18"
  • Tool Rest Post Diameter: 5/8"
  • Overall Size (L x W x H): 35-1/2" x 10-1/2" x 14-3/4"
  • Net Weight: 74 lb.
  • Shipping Weight: 82 lb.

What's Included:

  • (1) Rikon® 10" x 18" Pen Lathe - 1/2 HP 1 Ph 120V
  • (1) 6” tool rest
  • (1) Spur center
  • (1) Live center
  • (1) Knockout bar
  • (4) Rubber feet with mounting screw
  • (1) Manual & Warranty Card (not shown)

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-21 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Residential delivery fee applies for all LTL items.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

If you have a return issue, contact Woodcraft Supply customer service @ 1-800-535-4482 for return details. Customer pays return freight.

When returning product, please include the invoice number or customer number and refer to the back of the invoice for shipping instructions.

If purchased at a Woodcraft Store, please return the item directly to the store where your purchase was made.

To be eligible for credit for returned Rikon goods, customers must comply with each of the following requirements:
    Written authorization to return any products must be obtained from the RIKON Power Tools Customer Service Department before the products are returned. RIKON Power Tools will issue a Return Goods Authorization Number (RGA#), which must be clearly marked on the shipping label and bill of lading with the returned goods. RIKON Power Tools Will Not Accept Any Unauthorized Returns. A 15% restock fee will apply.

    Warranty Information

    Rikon offers a 5 year warranty.Customers with warranty claims, defective or damaged goods should contact RIKON Power Tools before returning any product to the distributor. RIKON Power Tools reserves the right to ship parts to effect repairs or replace product, whichever they may deem appropriate.

    Request to return defective or damaged goods by distributors must be submitted to RIKON Power Tools and will be reviewed for product misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear before giving authorization to return said goods.

    Defective/Damaged goods that are returned to RIKON Power Tools and show misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear are subject to a restocking charge equal to 15% of the credit given for the returned goods or $25.00, whichever is greater.
