Proxxon

Micro Compound Table, Model KT 70

Item #822536 Model 27100
$ 79 00
$ 79 00 Was $79.00
  • Micro Compound Table, Model KT 70 alt 0
1 1

Proxxon

Micro Compound Table, Model KT 70

Item #822536 Model 27100
$ 79 00
$ 79 00 Was $79.00
Designed for accuracy, this compound table makes precision boring and milling an easy task. Table is made of surface treated solid aluminum and fitted with adjustable dovetail. . . View More Details
Ships from Manufacturer Shipping Info
Items you may need

  • Bench Drill Machine TBM 115 - Model 38128

    $ 262 00
    $ 262 00 Was $262.00
    Bench Drill Machine TBM 115 - Model 38128 alt 0

  • Micro Mill, Model MF 70

    $ 449 00
    $ 449 00 Was $449.00
    Micro Mill, Model MF 70 alt 0

  • Micro Mill, Model FF 230

    $ 1,385 00
    $ 1,385 00 Was $1,385.00
    Micro Mill, Model FF 230 alt 0

Details

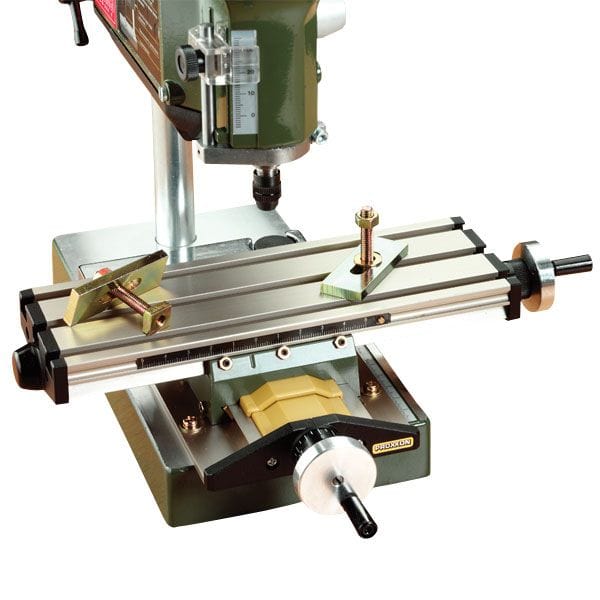

Designed for accuracy, this compound table makes precision boring and milling an easy task. Table is made of surface treated solid aluminum and fitted with adjustable dovetail slides and three T-slots.Table size is 7-7/8" x 2-3/4". X travel is 5-7/32" and Y is 1-3/16", overall height 11-1/16". The adjustable scale eases work piece positioning. Both hand wheels have adjustable dials that can be zeroed out for precise machining. Handwheel graduations: 1 revolution = 1mm (.04") and 1 division = 0.05mm (0.002"). Includes clamps and securing bolts. Photographed on a Proxxon Drill Press (not included).
  • Made of surface treated solid aluminum
  • Table size is 7-7/8" x 2-3/4"
  • X travel is 5-7/32" and Y is 1-3/16"
  • Overall height 11-1/16
  • Makes precision boring and milling an easy task

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-10 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

Returns generally not accepted. Contact Woodcraft Customer Service at 1-800-535-4482 with damage/defective issues.

If purchased at a Woodcraft Store, please return the item directly to the store where your purchase was made.

Warranty Information

Two Year limited warranty. Please contact Prox Tech with warranty issues @ 828-326-0326.
