Powermatic
20" x 35" Woodworking Lathe with 6" Risers - 2 HP 1 Ph 220V - 3520C
Item #424072
Model 1353001
Regular price
$5,299.99
Sale price
$5,299.99
Regular price
$5,299.99
Unit price
per
The Powermatic 3520C lathe is the fourth evolution of this classic lathe with many new and improved features. The 3520C has retained all the features . . .
View More Details
Items you may need
-
Lathe Tailstock Swing Away - PM-SA
Regular price $369.99Sale price $369.99 Regular priceUnit price per$369.99
Details

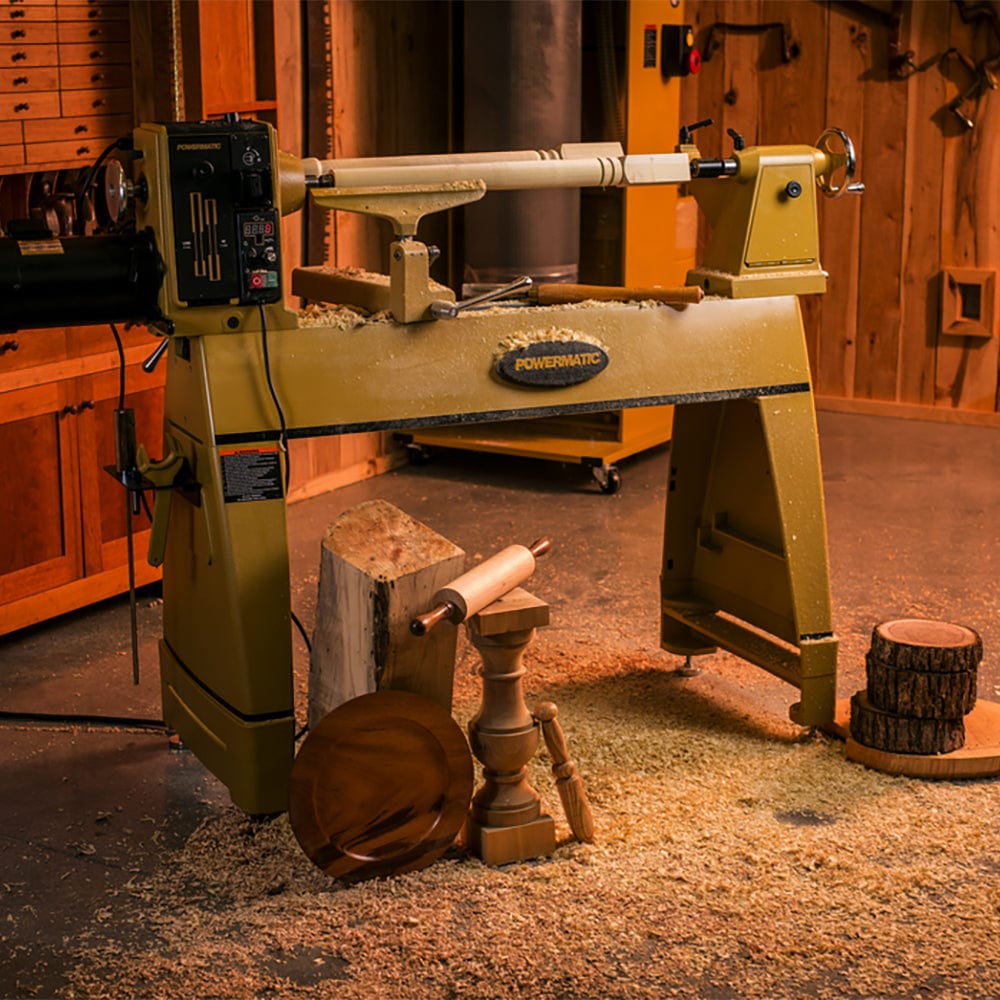

The Powermatic 3520C lathe is the fourth evolution of this classic lathe with many new and improved features. The 3520C has retained all the features of the previous models, such as the sliding headstock, electronic variable speed with low and high speed ranges, the spindle lock, digital RPM readout, and a laser etched, self-ejecting quill.
Several enhanced features are found on the Powermatic 3520C lathe, as well. They include a movable control box for maximum versatility, adjustable riser blocks for 6" or more of height adjustment, and an increased weight of 705 LBS (786 lbs with the bed extension). Additional features also include a new ergonomic spindle lock design, a digital indexing readout, an Anti-rotation tailstock key for smoother operation, a set of dead centers which hold a spindle for visual comparison, a two position mount for the optional bed extension, and a sliding hammer knockout rod with brass tip.
Features:

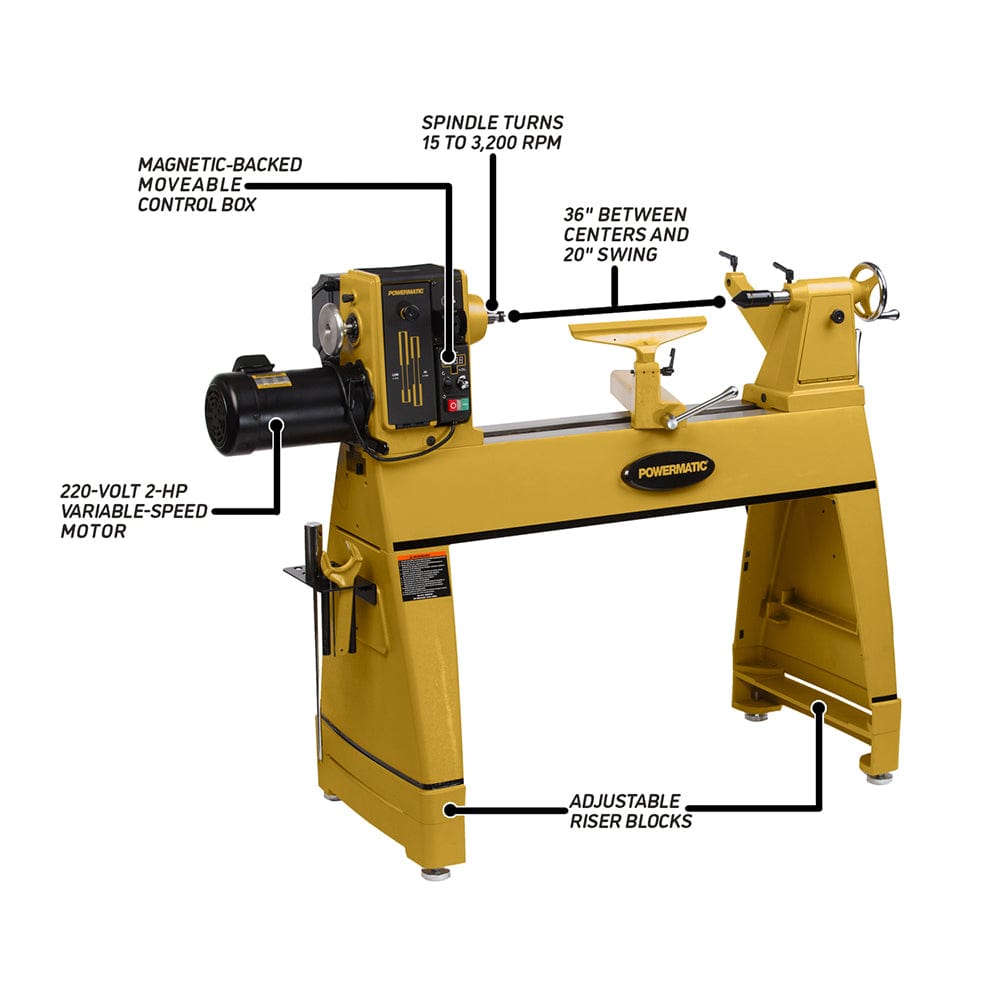

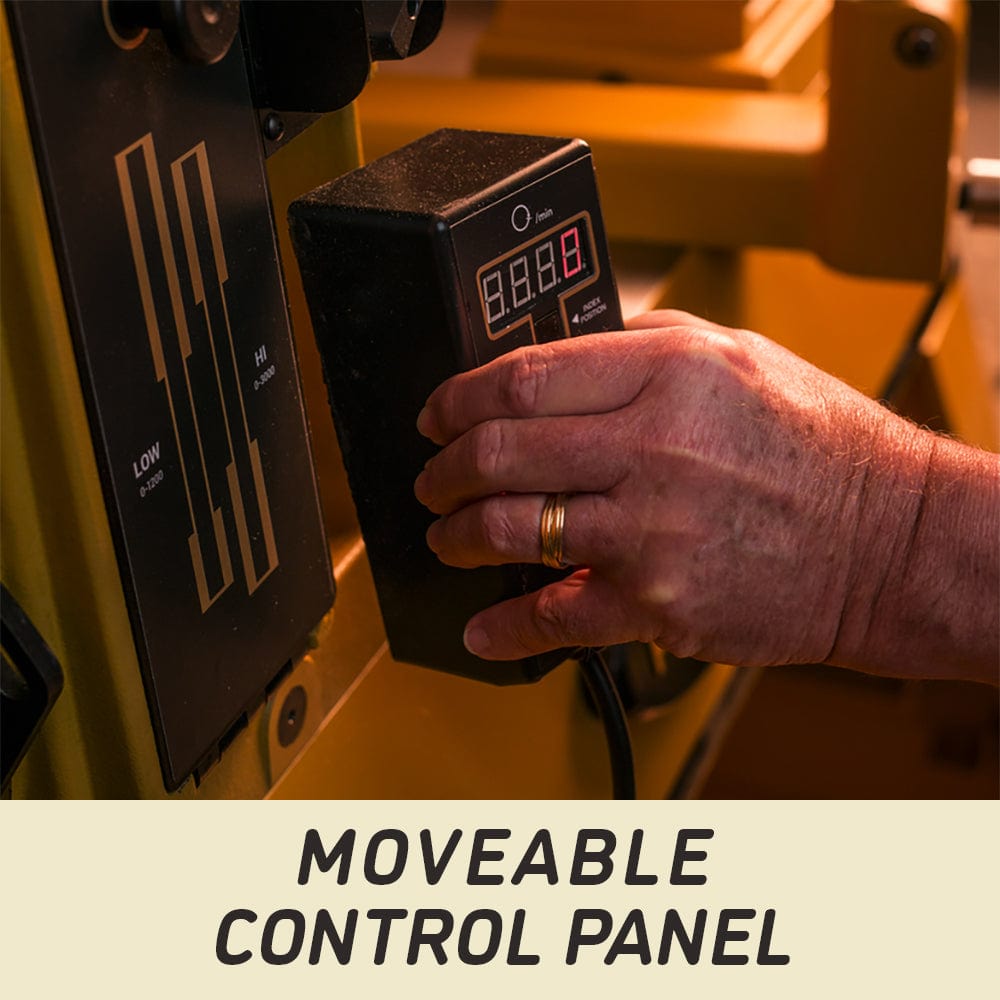

• Moveable control box for customizable versatility
• Main power disconnect switch located on rear of headstock
• Self-locating ergonomic spindle lock design for easy, one handed operation
• Upgraded banjo features a non-marring, pinch style clamp for solid tool rest placement

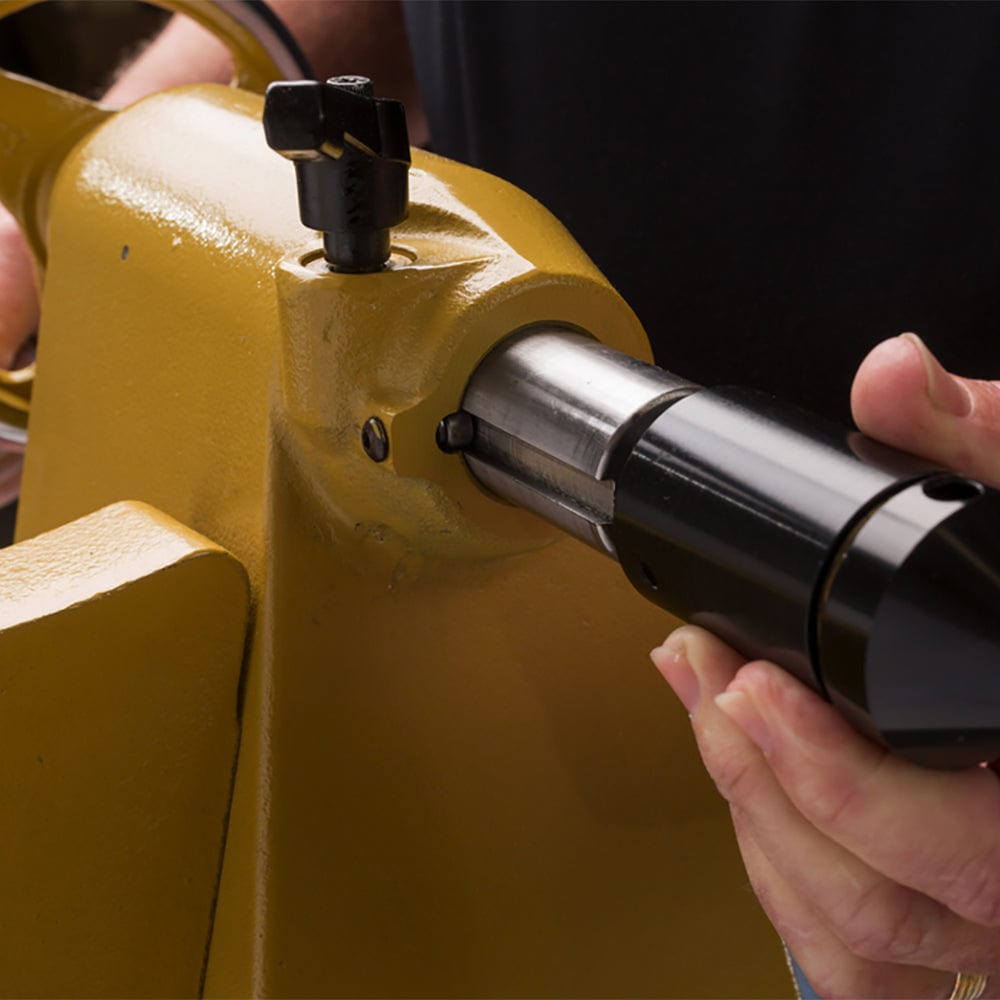

• Extended spindle nose increases access to the work piece

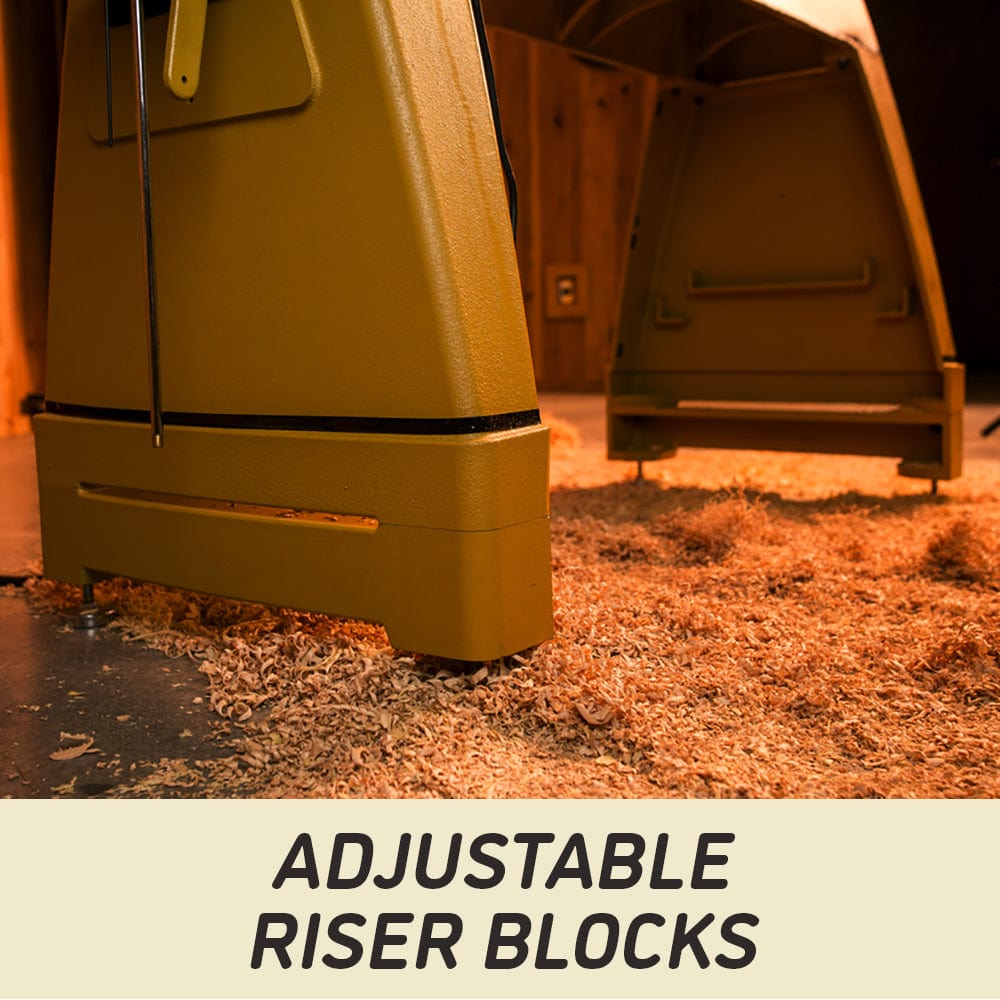

• Adjustable Risers Blocks for 6" of height adjustment, allowing maximum comfort when turning
• Tailstock incorporates Anti-rotation key and Acme threads for smoother operation and increased longevity

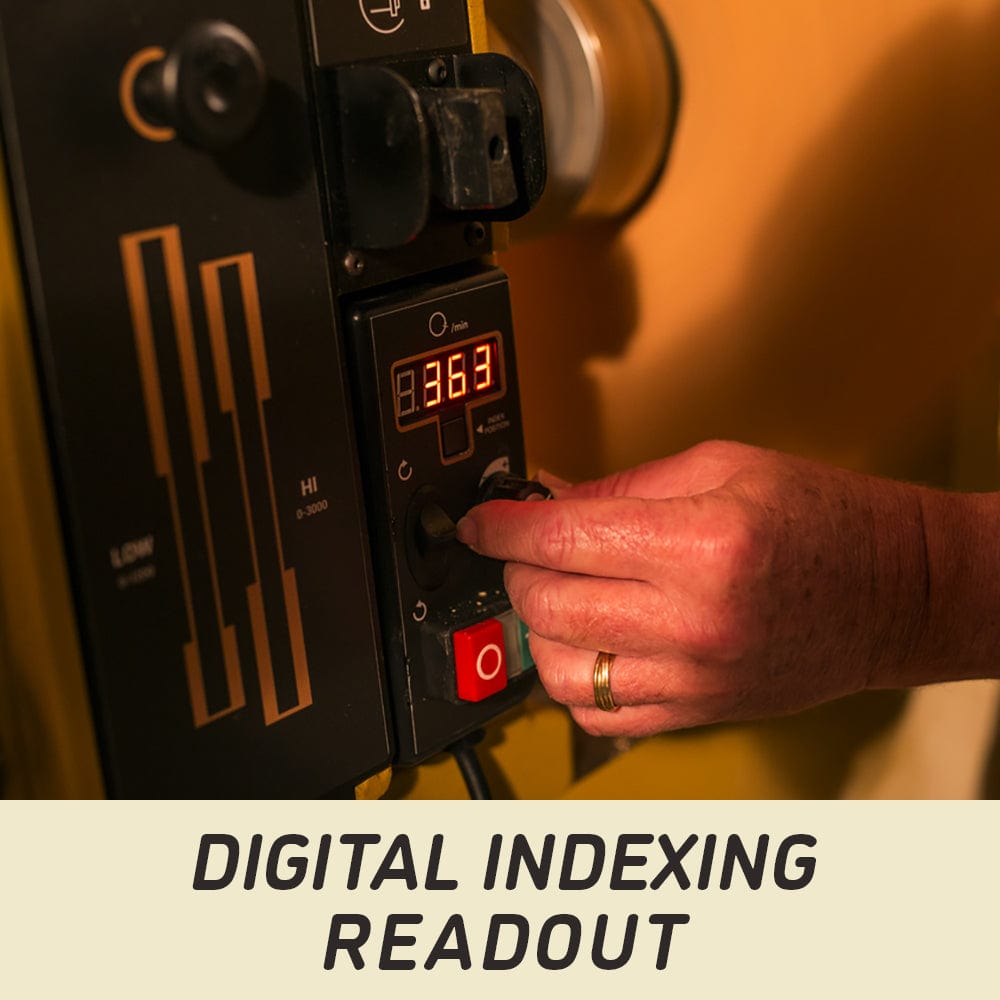

• Digital Indexing Readout simplifies the indexing process for added precision
• Fully enclosed VFD for increased user protection
Specifications:
Able to maintain speeds as low as 15 RPM
Motor: 2HP, 230V, 6.2A, 1PH (can be converted to 3PH with qualified electrician)
Dimensions: 30.5" H x 55.25" L x 27.25" W
Speed Range: 15-3200
Spindle Threads (In. x TPI): 1-1/4 x 8
Centerline of Spindle to Floor (In.): 40-5/8 without Risers
Spindle Bore: 5/8"
Headstock Movement: Full Length of Bed
Spindle Taper: MT-2
Number of Indexing Positions: 48
Swing Over Tool Rest Base (In.): 15-3/4
Outboard Turning: Yes
Distance between Centers (In.): 36 w/dual bearing center
Spindle Speeds: Low 15-1200/High 40-3200
Ram Travel Quill Travel: 4-1/2"
Bed Construction: Cast Iron
Recommended Circuit Size (Amps.): 20
Size (In.): 20
Quill Taper: MT-2
Tailstock Bore: 3/8"
Outboard External Threads (In. x TPI): 1-3/16-18 UNC
Swing Over Bed (In.): 20
Bed Gap (In.): 2-1/2
Tool Rest Post Diameter: 1"
Several enhanced features are found on the Powermatic 3520C lathe, as well. They include a movable control box for maximum versatility, adjustable riser blocks for 6" or more of height adjustment, and an increased weight of 705 LBS (786 lbs with the bed extension). Additional features also include a new ergonomic spindle lock design, a digital indexing readout, an Anti-rotation tailstock key for smoother operation, a set of dead centers which hold a spindle for visual comparison, a two position mount for the optional bed extension, and a sliding hammer knockout rod with brass tip.
Features:
• Moveable control box for customizable versatility
• Main power disconnect switch located on rear of headstock
• Self-locating ergonomic spindle lock design for easy, one handed operation
• Upgraded banjo features a non-marring, pinch style clamp for solid tool rest placement
• Extended spindle nose increases access to the work piece
• Adjustable Risers Blocks for 6" of height adjustment, allowing maximum comfort when turning
• Tailstock incorporates Anti-rotation key and Acme threads for smoother operation and increased longevity
• Digital Indexing Readout simplifies the indexing process for added precision
• Fully enclosed VFD for increased user protection
Specifications:
Able to maintain speeds as low as 15 RPM
Motor: 2HP, 230V, 6.2A, 1PH (can be converted to 3PH with qualified electrician)
Dimensions: 30.5" H x 55.25" L x 27.25" W
Speed Range: 15-3200
Spindle Threads (In. x TPI): 1-1/4 x 8
Centerline of Spindle to Floor (In.): 40-5/8 without Risers
Spindle Bore: 5/8"
Headstock Movement: Full Length of Bed
Spindle Taper: MT-2
Number of Indexing Positions: 48
Swing Over Tool Rest Base (In.): 15-3/4
Outboard Turning: Yes
Distance between Centers (In.): 36 w/dual bearing center
Spindle Speeds: Low 15-1200/High 40-3200
Ram Travel Quill Travel: 4-1/2"
Bed Construction: Cast Iron
Recommended Circuit Size (Amps.): 20
Size (In.): 20
Quill Taper: MT-2
Tailstock Bore: 3/8"
Outboard External Threads (In. x TPI): 1-3/16-18 UNC
Swing Over Bed (In.): 20
Bed Gap (In.): 2-1/2
Tool Rest Post Diameter: 1"
