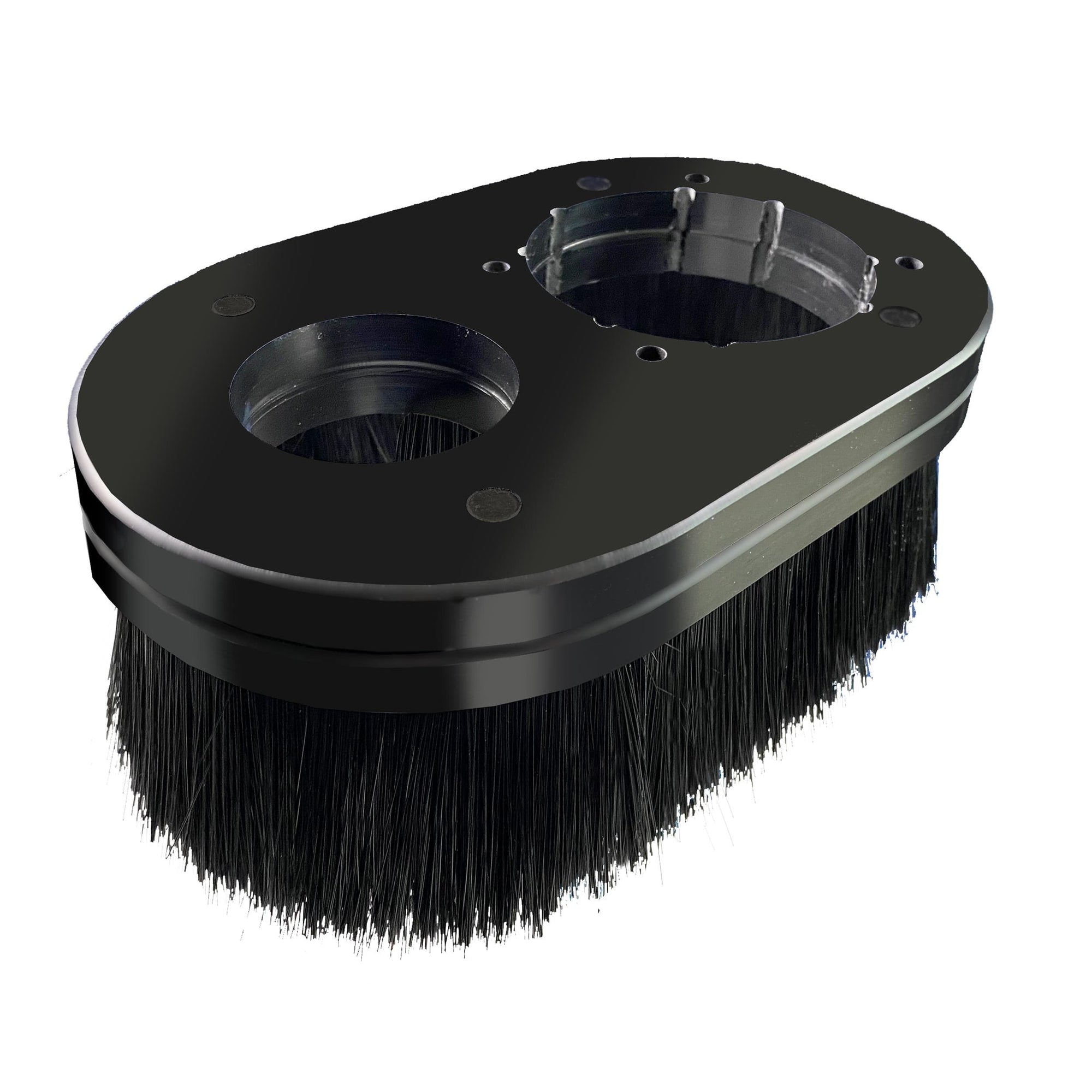

Keep dust off the work surface of your CNC project with the SHARK HD Dust Boot. The simple installation connects to your dust collector or shop vac to suction the dust off the workpiece, while flexible bristles conform to the surface to keep dust within the suction area. Powerful magnets in the base allow you remove the dust boot for bit access. Features: Specifications: What's Included: Notes:
Next Wave
Shark HD Dust Boot
Next Wave
Shark HD Dust Boot
Frequently Bought Together
-
Current product. Always included in the bundle total and cannot be deselected.
Next WaveShark HD Dust Boot$99.99 -
Next WaveSHARK HD510 CNC Machine+$3,399.99 -$3,999.99 Save $600
Next Wave

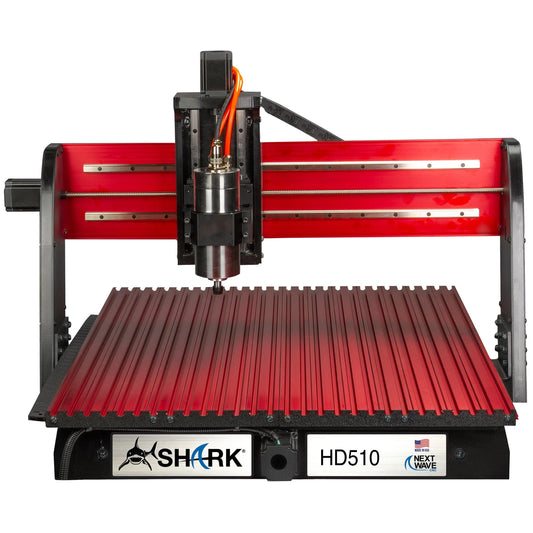

SHARK HD510 CNC Machine
Item #167550 Model 10022Handle all your machining needs in a home shop environment or on the production floor with the Next Wave® CNC SHARK HD510. Built with industrial grade components, the CNC SHARK HD510 also features a heavy-duty aluminum and steel reinforced gantry, an extruded aluminum router mount system, interlocking aluminum table, linear rails and guides on the gantry, and anti-backlash, wear-compensated lead screws on all axes. The SHARK HD510 CNC machine is the ideal tool for carving or machining a large variety of projects made from wood, soft metals, composites, or plastics.
Features:
- Colored touch screen pendant controller
- Ready2Control software allowing multi-machine operation: start, stop, rewind, and go to G-code location as well as project queuing for reliable bit change applications
- X & Y homing capability
- Linear guides and bearings on the gantry
- Anti-backlash, wear-compensated lead screws on all axis
- Interlocking rigid aluminum table with virtually unlimited clamp positioning
- Aluminum gantry backplate for heavy machining capabilities
- Extruded Aluminum router and spindle mounts
- Steel encased gantry legs for increased rigidity
- Automatic router on and off control
- USB interface
- One-year warranty on parts and labor
- Lifetime technical support
- Made in the USA
Specifications:
- Table Dimensions: 28'' x 36''
- XYZ Travel: 25'' x 25'' x 7''
-
Overall Dimensions: 36-1/4'' W x 38'' L x 24-1/2'' H
What's Included:
- (1) Full one-year warranty and lifetime technical support through Next Wave Automation
- (1) CNC SHARK HD510 machine
- (1) Vectric VCarve Desktop design software
- (1) Color pendant controller
- (2) Hold-down clamps
- (1) Carbide V-bit
- (1) Virtual Zero Unlimited Software and Vector Art 3-D Sampler Pack
Notes:
- Fully compatible with these routers (sold separately): Next Wave Water-Cooled Spindle, Bosch 1617 and 1618, Porter-Cable 690 and 890 Series (6902VS must be manually started), DeWalt 610, 616, 618 series.
- The SHARK HD510 CNC machine is fully compatible with Next Wave’s extensive product line of additional accessories, such as laser, 4th axis, scanner, and more – all sold separately.
- Requires PC computer with USB 2.0 Port and a USB Flash Drive (both sold separately).
FAQs
What is the maximum sheet size it can handle?
The Shark HD510 has a cutting area of twenty‑five inches by twenty‑five inches, with a table size of twenty‑eight inches by thirty‑six inches, allowing it to handle cabinet parts and mid‑size panels in sections rather than full four‑by‑eight sheets.
What regular maintenance does this machine require?
Routine maintenance includes keeping the rails and bearings clean, periodic lubrication of linear bearings and lead screws, and checking fasteners, couplers, and wiring for wear. Over time, normal wear parts such as bearings or belts may need replacement. -
Next WaveSHARK HD520 CNC Machine+$4,249.99 -$4,999.99 Save $750
Next Wave
SHARK HD520 CNC Machine
Item #167551 Model 10024Handle all your machining needs in a home shop environment or on the production floor with the Next Wave CNC SHARK® HD520. Built with industrial grade components, the CNC SHARK® HD520 also features a heavy-duty aluminum and steel reinforced gantry, an extruded aluminum router mount system, interlocking aluminum table, linear rails and guides on the gantry, and anti-backlash, wear-compensated lead screws on all axes. The SHARK® HD520 can be pendant or computer-controlled. The SHARK® HD520 CNC machine is the ideal tool for carving or machining a large variety of projects made from wood, soft metals, composites, or plastics. Beginners to professionals are incorporating this diverse woodworking tool for custom parts, joinery, precision drilling functions, or all things decorative.
Next Wave HD520 ships via R&L Freight with curbside delivery only
Features:
- Linear Guides and bearings on the gantry
- Anti-backlash, wear-compensated leadscrews on all axis
- Interlocking rigid aluminum table with virtually unlimited clamp positioning
- Aluminum gantry back plate for heavy machining capabilities
- Aluminum router mounting clamp
- Steel encased gantry legs for increased rigidity
- Automatic router on and off control
- USB Interface
- X and Y homing capability
Specifications:
- Table Dimensions: 28" x 63"
- XYZ Travel: 25" x 50" x 7"
- Overall Dimensions: 36-1/4"W x 63"L x 24-1/2" H
- Power: 110 /115 V
- USA-Based Technical Support
- Made in USA
What's Included:
- (1) Full Two-year warranty and USA Based technical support through NextWave Automation
- (1) CNC SHARK ®HD520 machine
- (1) V-Carve Pro design software
- (1) Color pendant controller
- (2) Hold-down clamps
- (1) Carbide V-bit
- (1) Virtual Zero Unlimited Software and Vector Art 3-D Sampler Pack
Notes:
- Fully compatible with these routers (sold separately): Bosch 1617 and 1618, Porter Cable 890 Series, DeWalt 610, 616 and 618, and the Next Wave Water-Cooled Spindle
- The SHARK HD520 CNC machine is fully compatible with Next Wave’s extensive product line of additional accessories, such as laser, 4th axis, scanner, and more – all sold separately.
- Requires a computer with a USB 2.0 Port and a USB Flash Drive (sold separately
Next Wave HD520 ships via R&L Freight with curbside delivery
