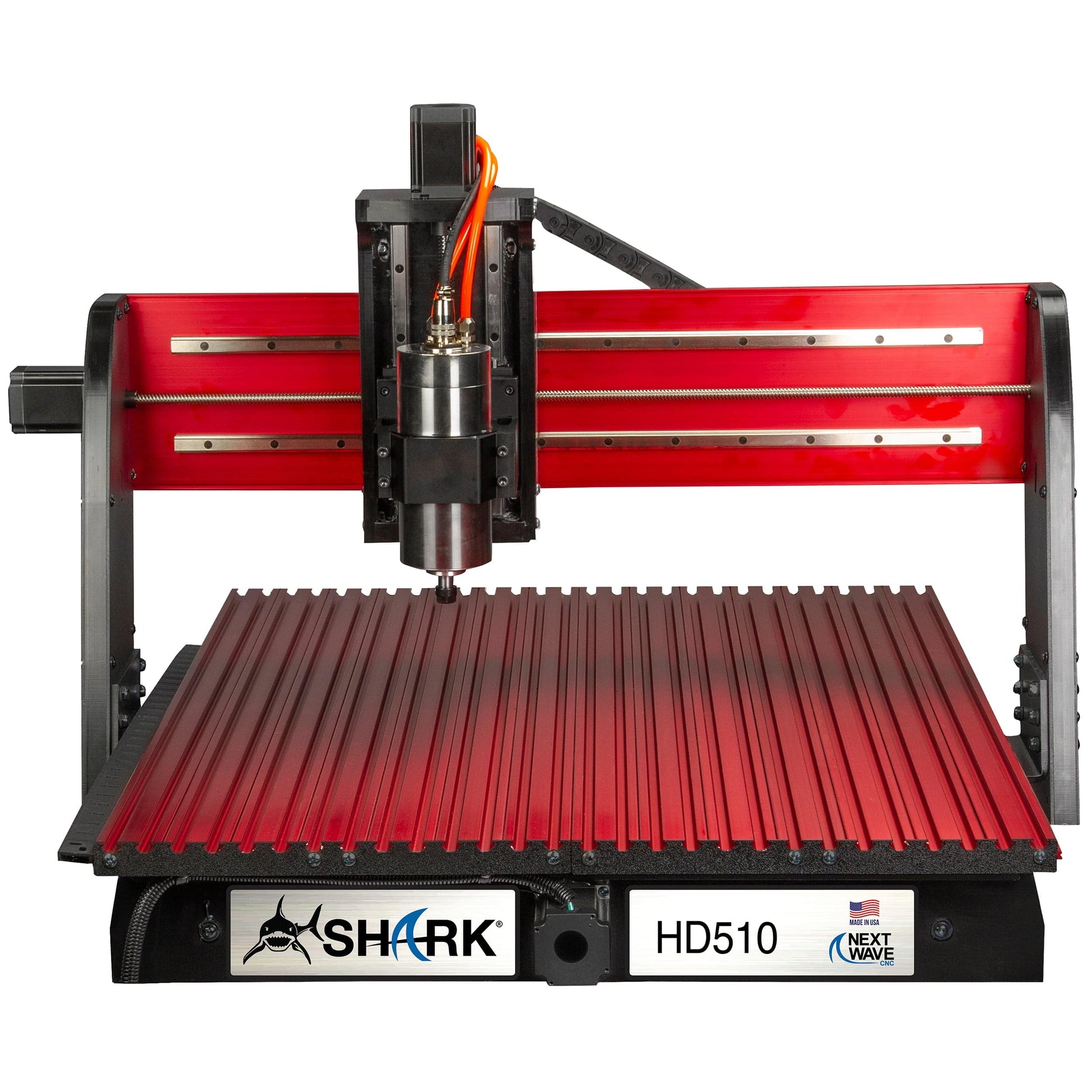

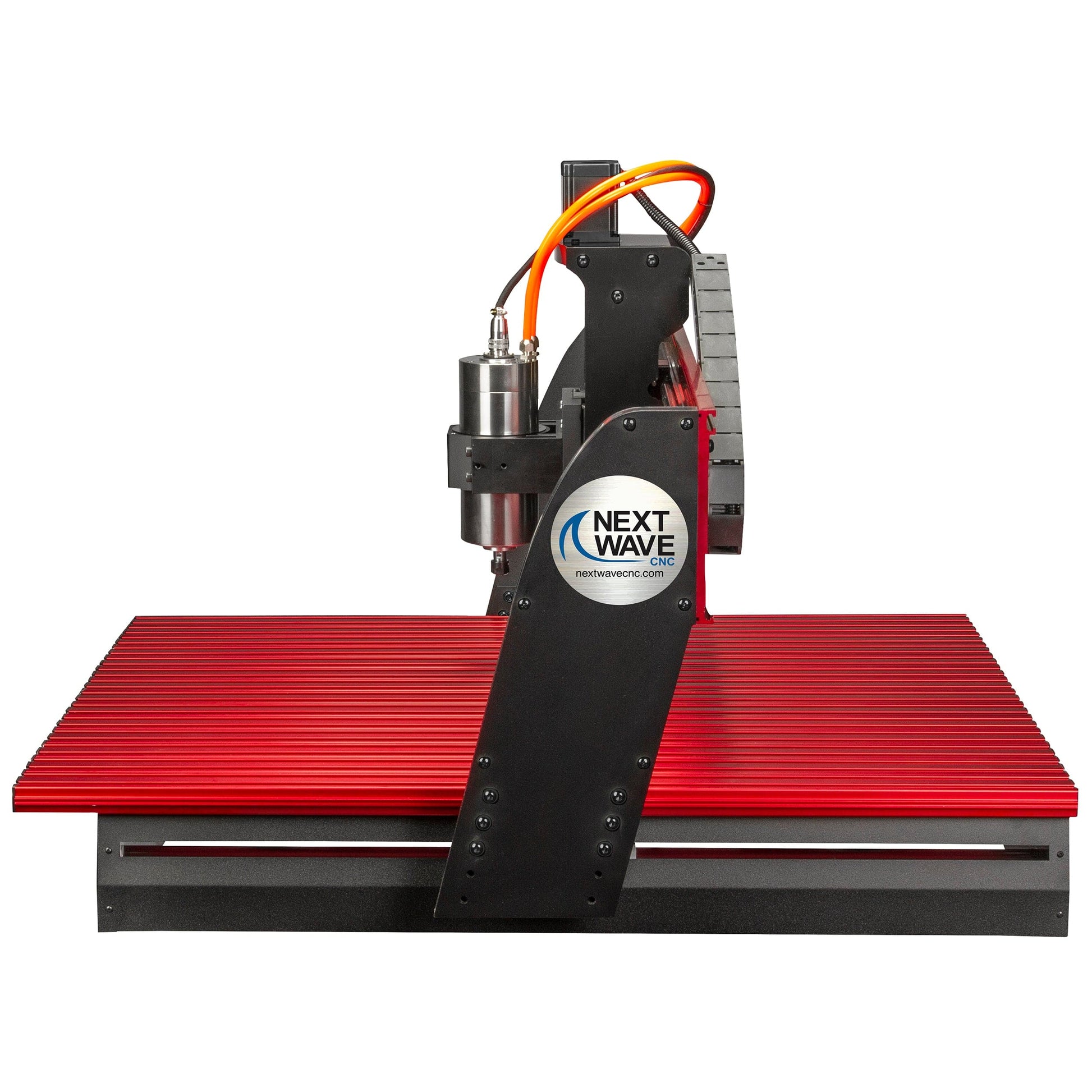

Handle all your machining needs in a home shop environment or on the production floor with the Next Wave® CNC SHARK HD510. Built with industrial grade components, the CNC SHARK HD510 also features a heavy-duty aluminum and steel reinforced gantry, an extruded aluminum router mount system, interlocking aluminum table, linear rails and guides on the gantry, and anti-backlash, wear-compensated lead screws on all axes. The SHARK HD510 CNC machine is the ideal tool for carving or machining a large variety of projects made from wood, soft metals, composites, or plastics.

Features:

• Colored touch screen pendant controller
• Ready2Control software allowing multi-machine operation: start, stop, rewind, and go to G-code location as well as project queuing for reliable bit change applications
• X & Y homing capability
• Linear guides and bearings on the gantry
• Anti-backlash, wear-compensated lead screws on all axis
• Interlocking rigid aluminum table with virtually unlimited clamp positioning
• Aluminum gantry backplate for heavy machining capabilities
• Extruded Aluminum router and spindle mounts
• Steel encased gantry legs for increased rigidity
• Automatic router on and off control
• USB interface
• One-year warranty on parts and labor
• Lifetime technical support
• Made in the USA

Specifications:

• Table Dimensions: 28'' x 36''
• XYZ Travel: 25'' x 25'' x 7''

• Overall Dimensions: 36-1/4'' W x 38'' L x 24-1/2'' H

What's Included:

• (1) Full one-year warranty and lifetime technical support through Next Wave Automation
• (1) CNC SHARK HD510 machine
• (1) Vectric VCarve Desktop design software
• (1) Color pendant controller
• (2) Hold-down clamps
• (1) Carbide V-bit

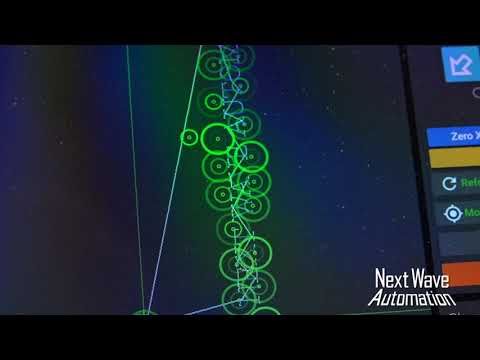

• (1) Virtual Zero Unlimited Software and Vector Art 3-D Sampler Pack

Notes:

• Fully compatible with these routers (sold separately): Next Wave Water-Cooled Spindle, Bosch 1617 and 1618, Porter-Cable 690 and 890 Series (6902VS must be manually started), DeWalt 610, 616, 618 series.
• The SHARK HD510 CNC machine is fully compatible with Next Wave’s extensive product line of additional accessories, such as laser, 4th axis, scanner, and more – all sold separately.
• Requires PC computer with USB 2.0 Port and a USB Flash Drive (both sold separately).

FAQs

What is the maximum sheet size it can handle?

The Shark HD510 has a cutting area of twenty‑five inches by twenty‑five inches, with a table size of twenty‑eight inches by thirty‑six inches, allowing it to handle cabinet parts and mid‑size panels in sections rather than full four‑by‑eight sheets.

What regular maintenance does this machine require?

Routine maintenance includes keeping the rails and bearings clean, periodic lubrication of linear bearings and lead screws, and checking fasteners, couplers, and wiring for wear. Over time, normal wear parts such as bearings or belts may need replacement.
