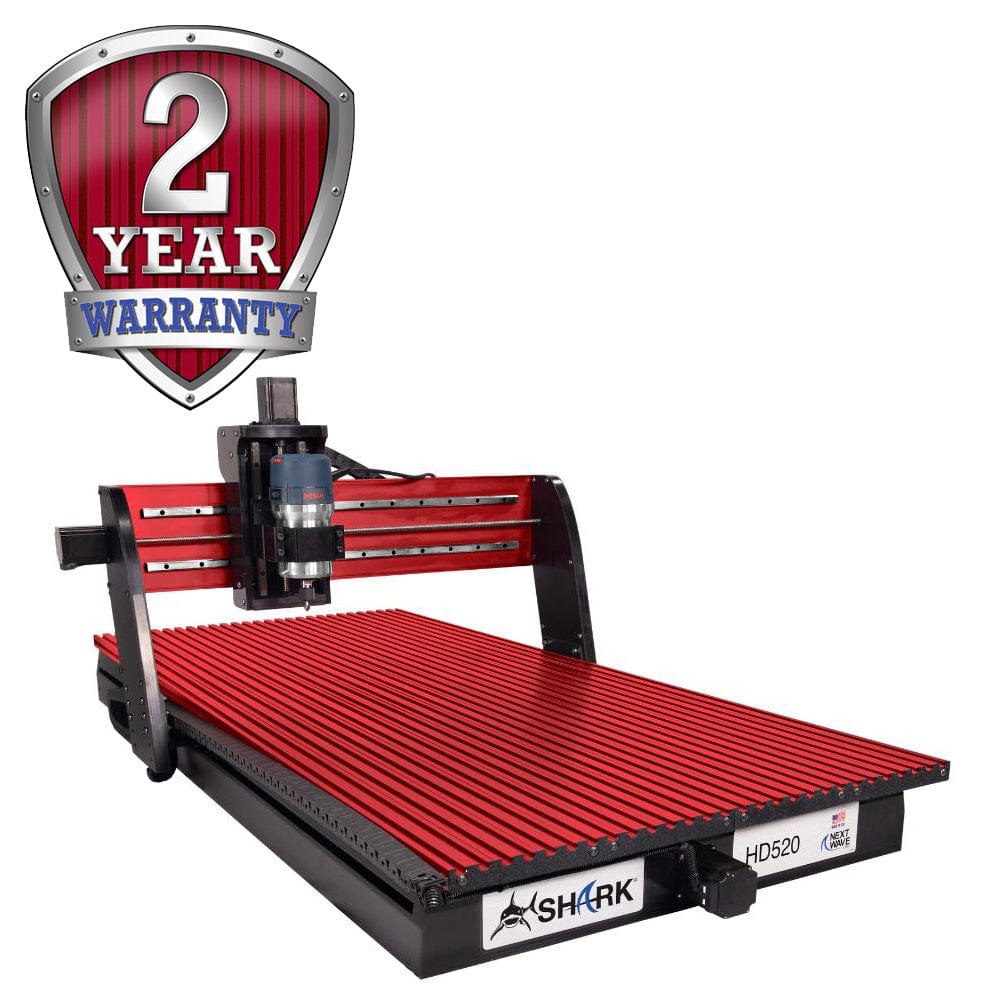

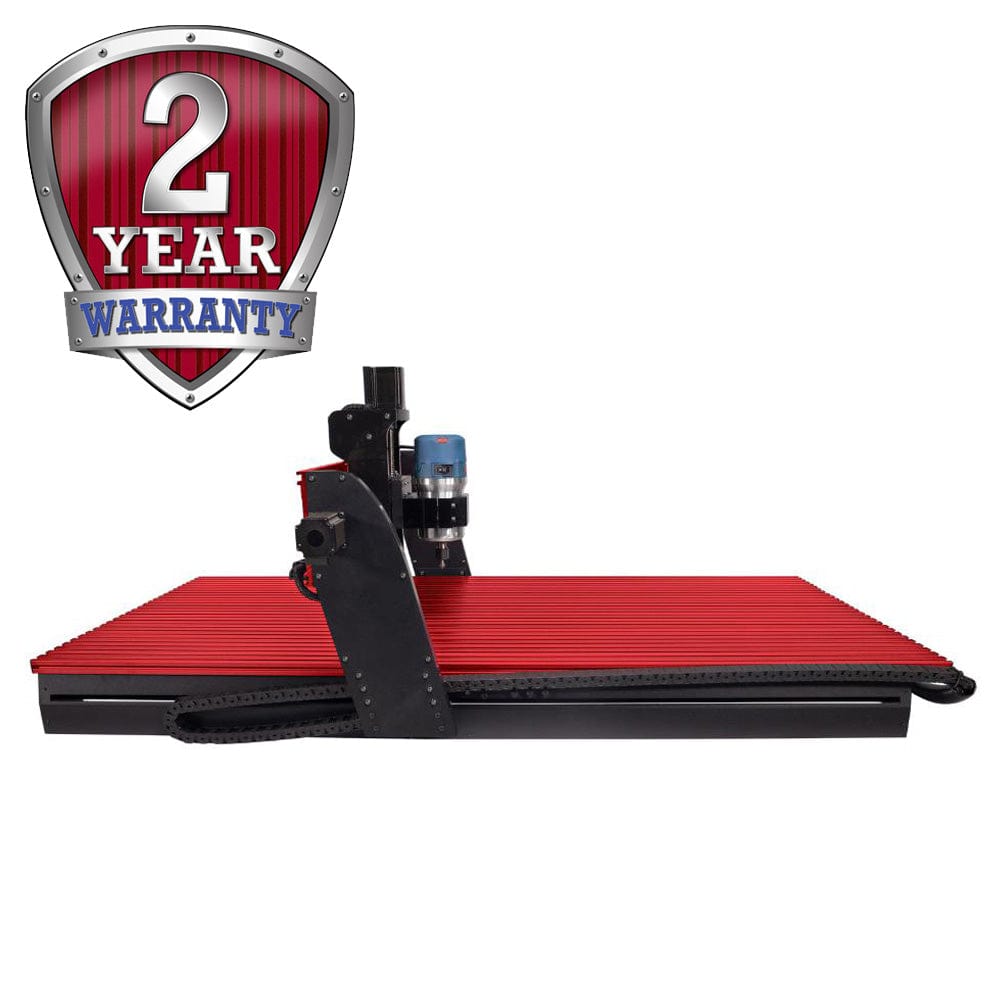

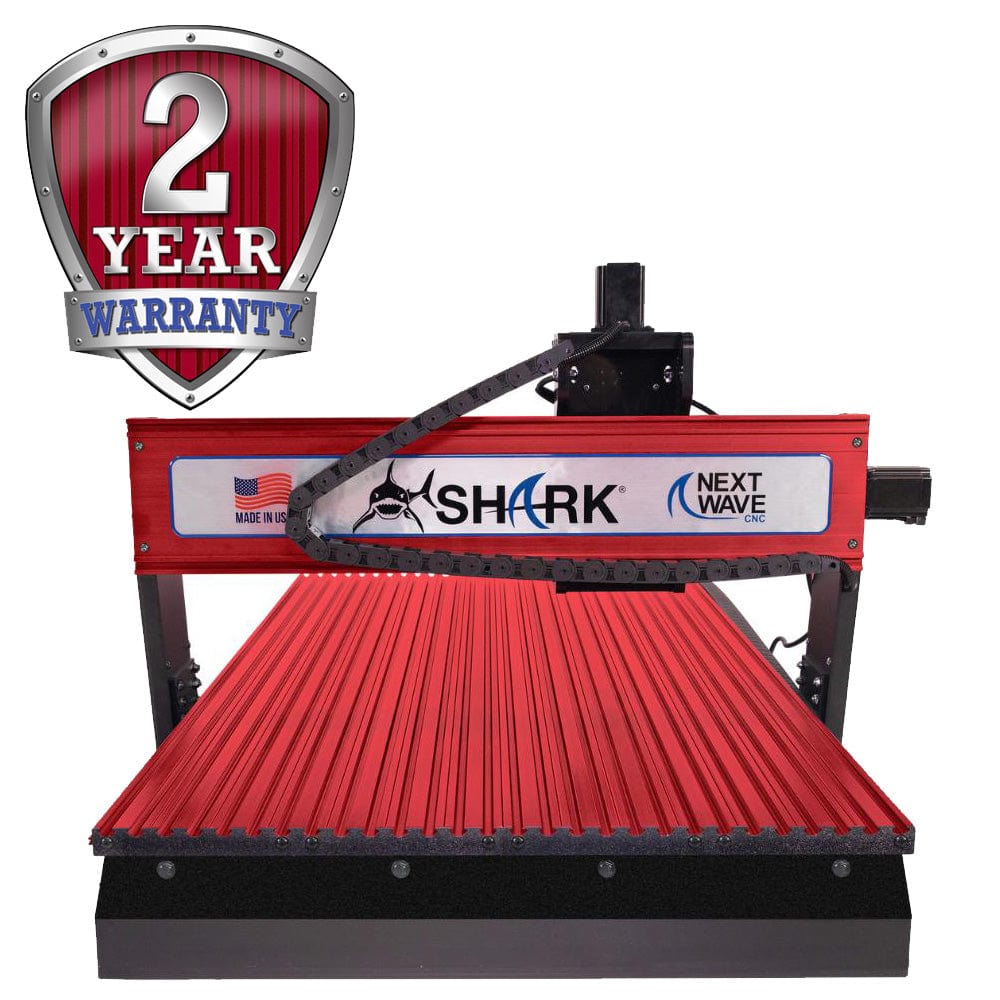

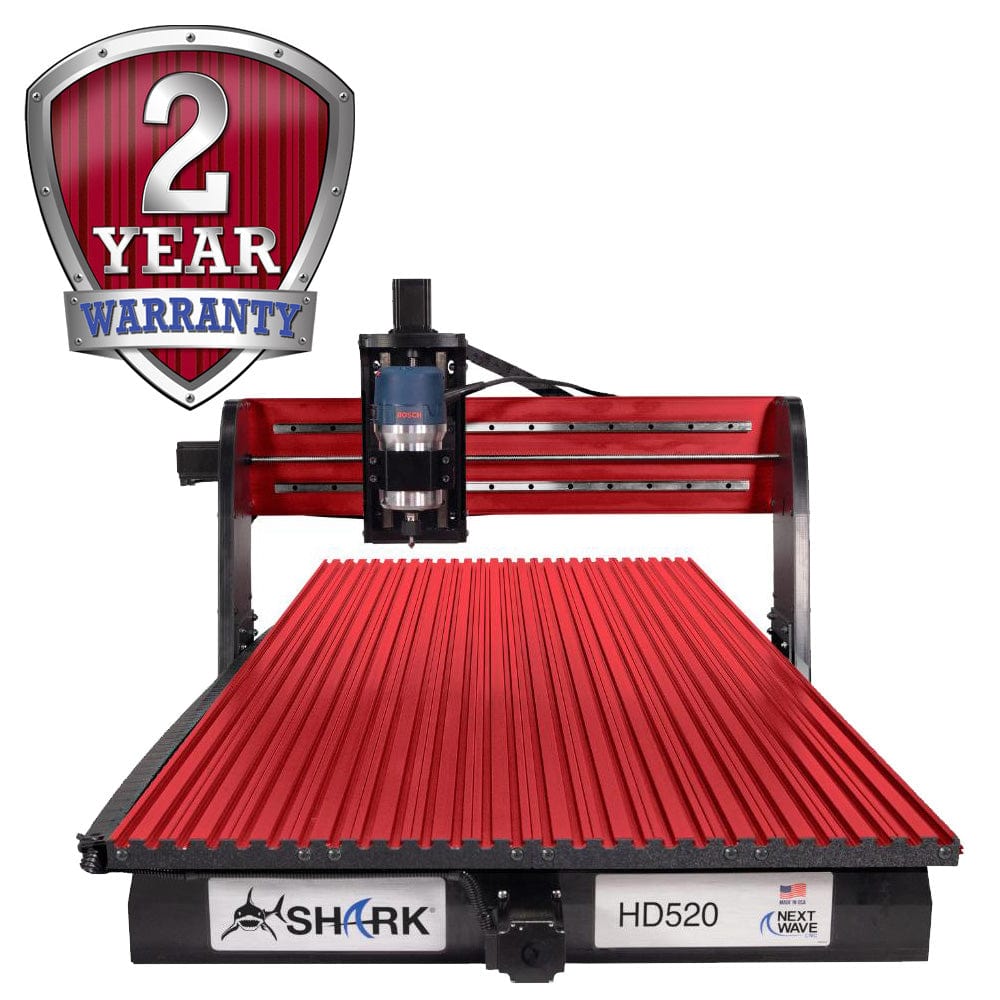

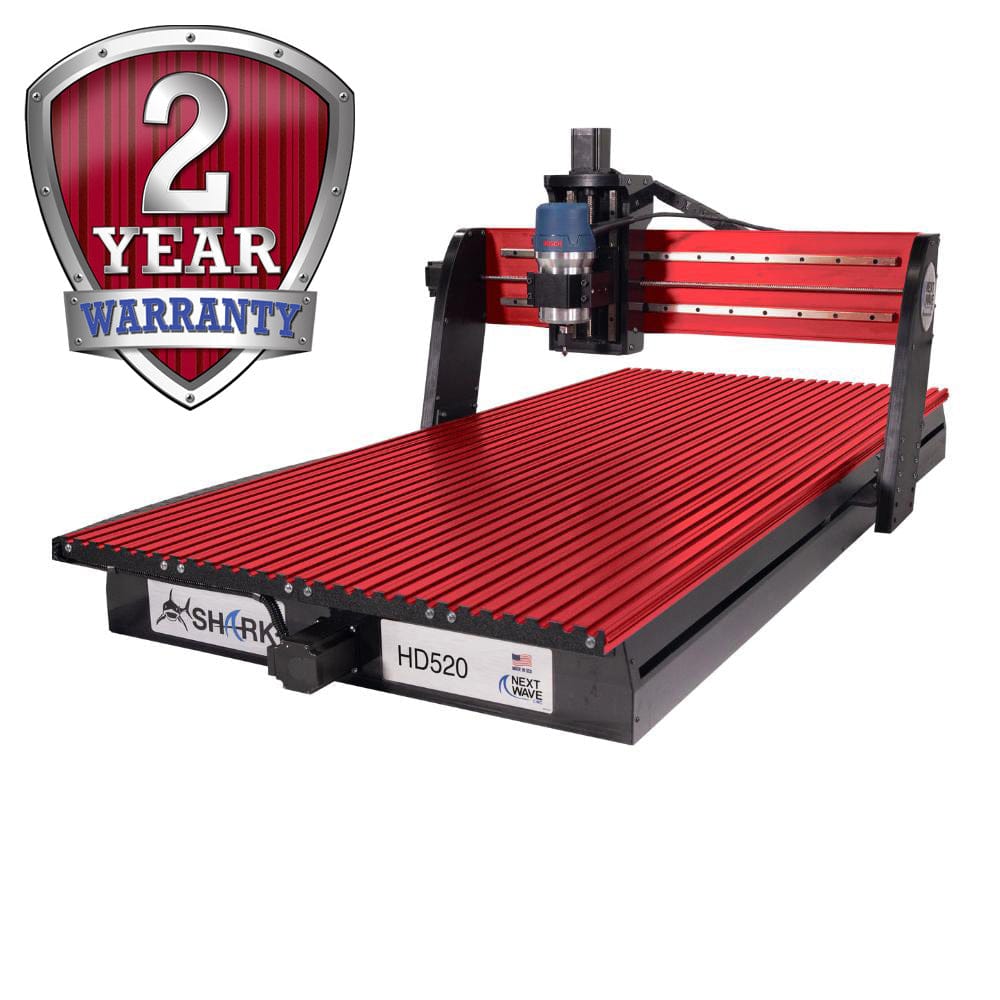

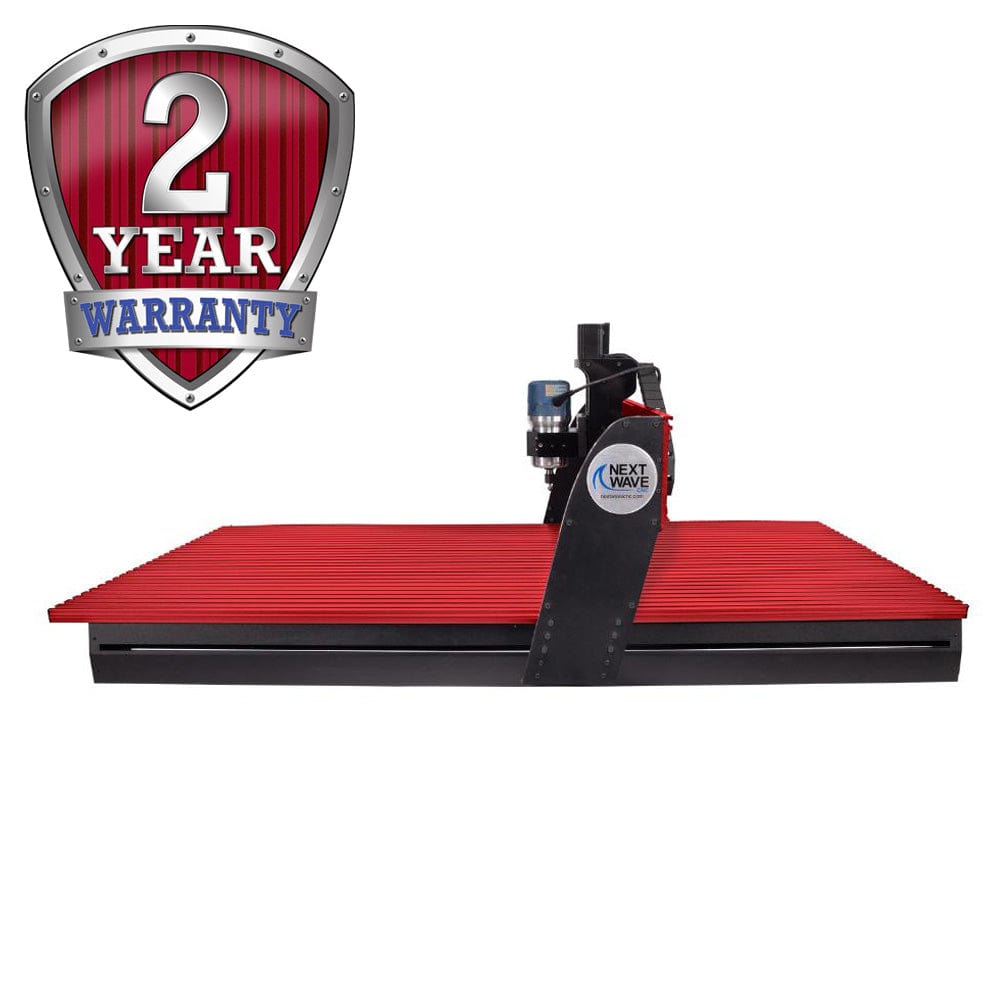

Handle all your machining needs in a home shop environment or on the production floor with the Next Wave CNC SHARK HD520. Built with industrial grade components, the CNC SHARK HD520 also features a heavy-duty aluminum and steel reinforced gantry, an extruded aluminum router mount system, interlocking aluminum table, linear rails and guides on the gantry, and anti-backlash, wear-compensated lead screws on all axes. The SHARK HD520 can be pendant or computer-controlled. The SHARK HD520 CNC machine is the ideal tool for carving or machining a large variety of projects made from wood, soft metals, composites, or plastics. Beginners to professionals are incorporating this diverse woodworking tool for custom parts, joinery, precision drilling functions, or all things decorative.

Next Wave HD520 ships via R&L Freight with curbside delivery only

Features:

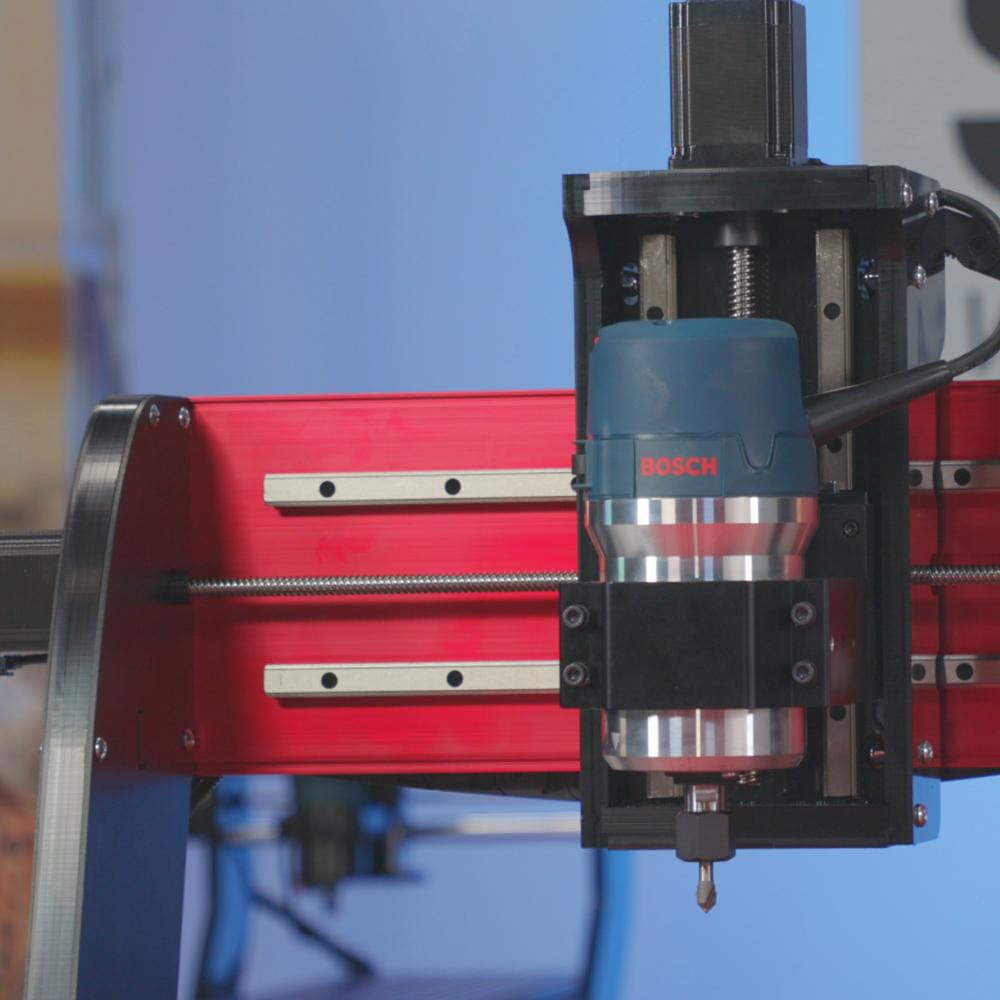

• Linear Guides and bearings on the gantry
• Anti-backlash, wear-compensated leadscrews on all axis
• Interlocking rigid aluminum table with virtually unlimited clamp positioning
• Aluminum gantry back plate for heavy machining capabilities
• Aluminum router mounting clamp
• Steel encased gantry legs for increased rigidity
• Automatic router on and off control
• USB Interface
• X and Y homing capability

Specifications:

• Table Dimensions: 28" x 63"
• XYZ Travel: 25" x 50" x 7"
• Overall Dimensions: 36-1/4"W x 63"L x 24-1/2" H
• Power: 110 /115 V
• USA-Based Technical Support
• Made in USA

What's Included:

• (1) Full Two-year warranty and USA Based technical support through NextWave Automation
• (1) CNC SHARK HD520 machine
• (1) V-Carve Pro design software
• (1) Color pendant controller
• (2) Hold-down clamps
• (1) Carbide V-bit
• (1) Virtual Zero Unlimited Software and Vector Art 3-D Sampler Pack

Notes:

• Fully compatible with these routers (sold separately): Bosch 1617 and 1618, Porter Cable 890 Series, DeWalt 610, 616 and 618, and the Next Wave Water-Cooled Spindle
• The SHARK HD520 CNC machine is fully compatible with Next Wave’s extensive product line of additional accessories, such as laser, 4th axis, scanner, and more – all sold separately.
• Requires a computer with a USB 2.0 Port and a USB Flash Drive (sold separately
