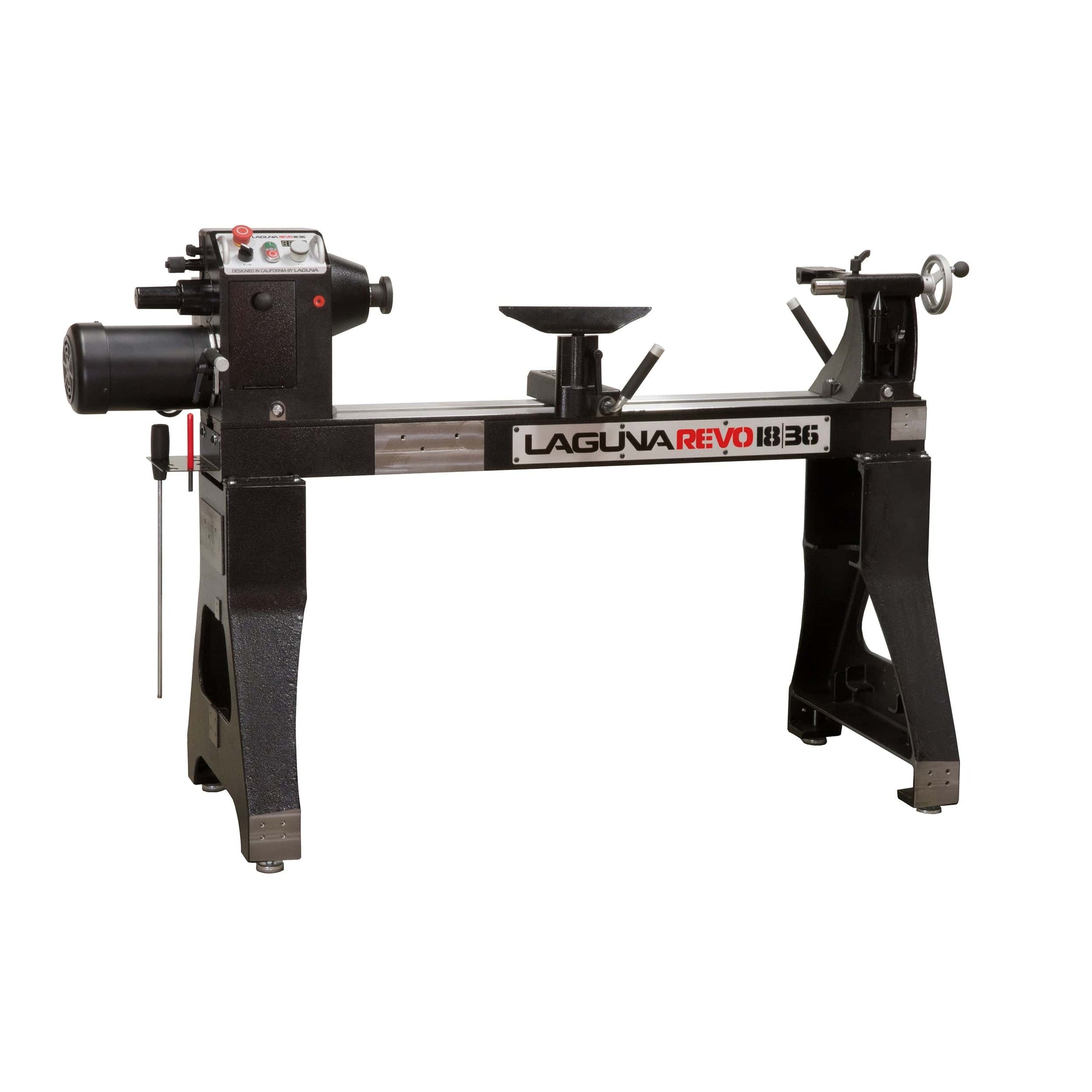

Revo 18|36 Lathe - 110 V - 1-1/2 HP

Item #866106 Model MLAREVO 1836-110
Regular price $ 2,969 . 10
Sale price $ 2,969 . 10 Was $3,299.00 Save $329.90 (10% off)
Skip to product information
1 of 13

Laguna

Revo 18|36 Lathe - 110 V - 1-1/2 HP

Item #866106 Model MLAREVO 1836-110
Regular price $ 2,969 . 10
Sale price $ 2,969 . 10 Was $3,299.00 Save $329.90 (10% off)
Try Laguna’s 18|36 lathe and take your turning to the next level. Laguna has exceeded expectations with their REVO line of lathes. The first feature that will catch your. . . View More Details
Ships from Manufacturer Shipping Info
Items you may need
Sale price $ 148 . 50
Was $165.00
Save $16.50 (10% off)
Sale price $ 557 . 10
Was $619.00
Save $61.90 (10% off)
Sale price $ 395 . 10
Was $439.00
Save $43.90 (10% off)
Sale price $ 296 . 10
Was $329.00
Save $32.90 (10% off)
Sale price $ 296 . 10
Was $329.00
Save $32.90 (10% off)
Sale price $ 247 . 50
Was $275.00
Save $27.50 (10% off)
Sale price $ 2,969 . 10
Was $3,299.00
Save $329.90 (10% off)

About This Product

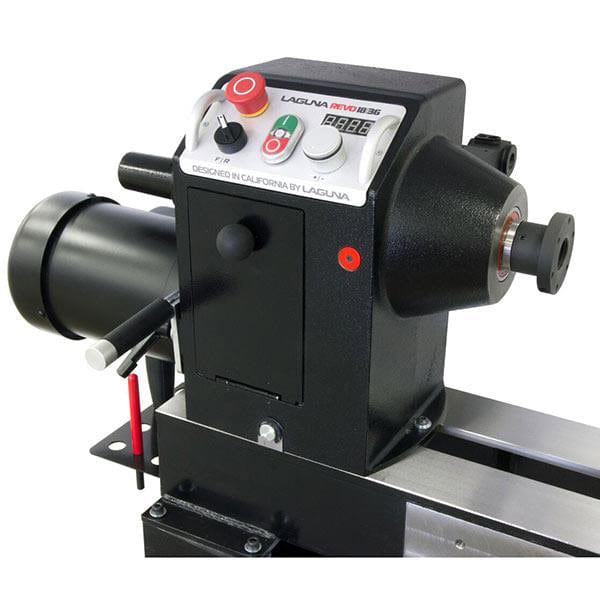

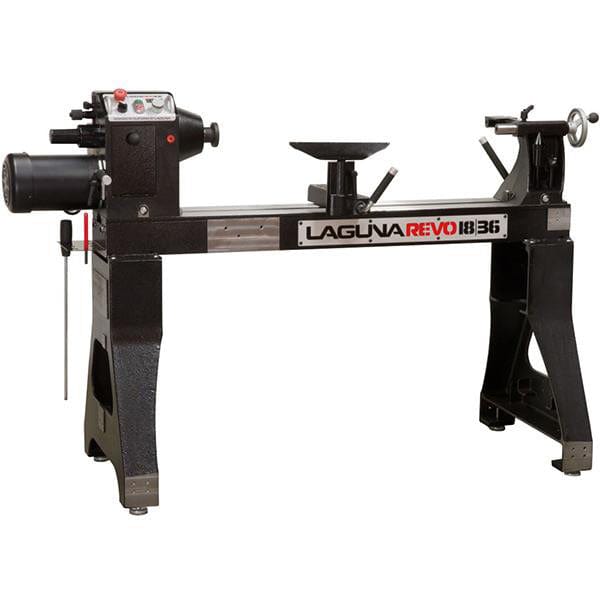

Try Laguna’s 18|36 lathe and take your turning to the next level. Laguna has exceeded expectations with their REVO line of lathes. The first feature that will catch your eye is the ergonomically angled control panel made of anodized aluminum. The blue hue of the DRO along with the nice knurled control knob fitted with a rubber grip signals that this is no ordinary lathe.

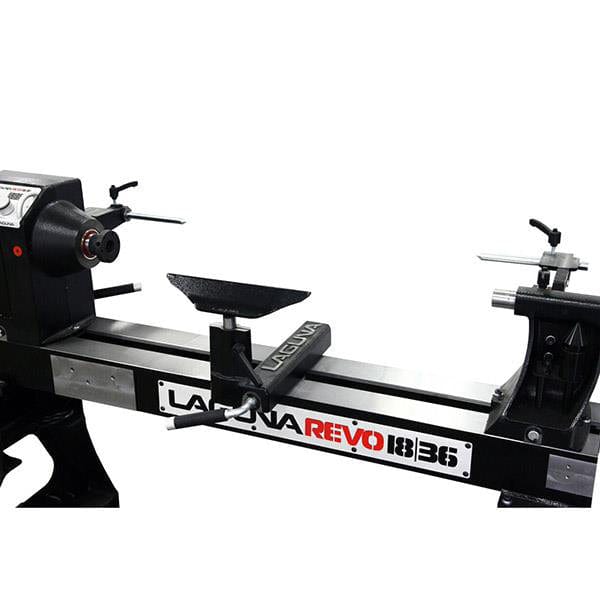

The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well-known longevity and strength. Electronic variable speed is obtained via a VFD that converts 1 phase to 3 phase output so even at lower settings you will get an incredible amount of torque.
Changing from high to low setting is made easy on this lathe by using the quick release handle. The headstock and tailstock lock handles are situated on the back to eliminate any interruptions to your work flow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.


Features:


  • Provides smooth and consistent power
  • Variable speed control with digital readout for precision turning
  • Cast iron bed and steel headstock ensure strength and stability
  • Sliding headstock for maximum versatility and easy access
  • Forward and reverse function for improved sanding and finishing
  • Poly-groove belt drive for smooth, quiet operation
  • Ergonomic control panel with easy-to-read RPM display
  • Magnetic control box for flexible positioning and convenience
  • Durable construction designed for long-lasting reliability

Specifications:

  • Power: 1.5HP, 110V, 60 Hz
  • Motor: Induction, 1725 RPM, TEFC
  • VFD: Delta S1 Variable Frequency Drive
  • Phase: 1 Ph input, 3 Phase output
  • Poly-Groove Drive Belt w/ easy access
  • Recommended Breaker: 20 Amp
  • Spring Loaded Spindle Lock
  • Max. Outboard Swing: 32”

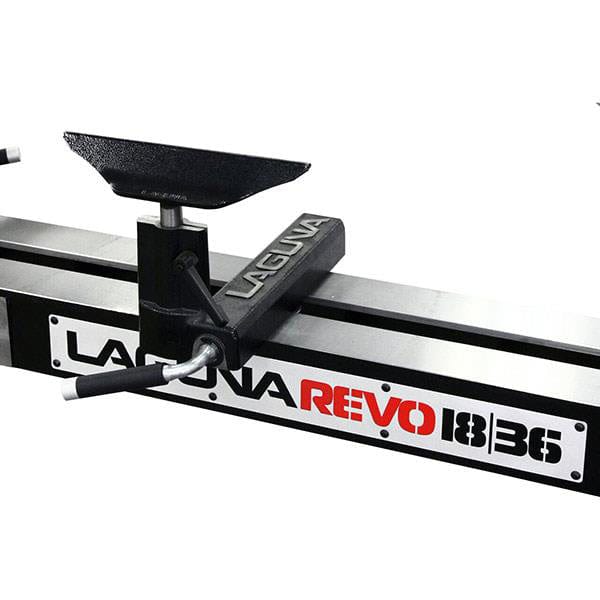

  • Swing Over Banjo: 13-1/2”
  • Steel Bed: ASTM A36
  • Spindle Taper: MT#2
  • Swing Over Bed: 18”
  • RPM High:135-3500
  • RPM Low: 50-1300

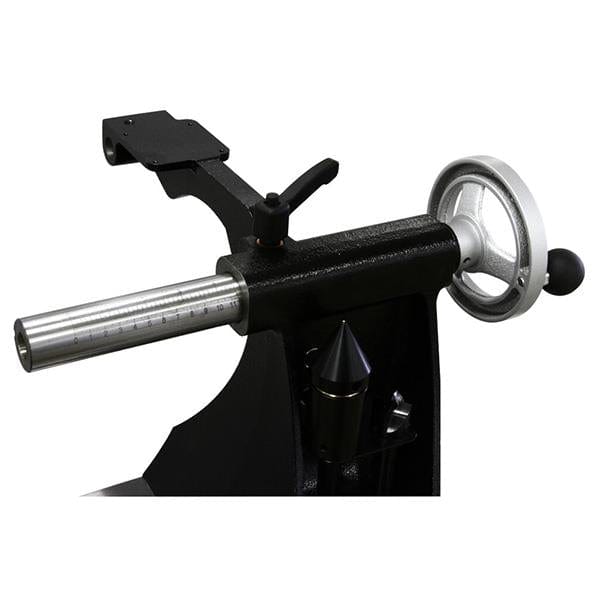

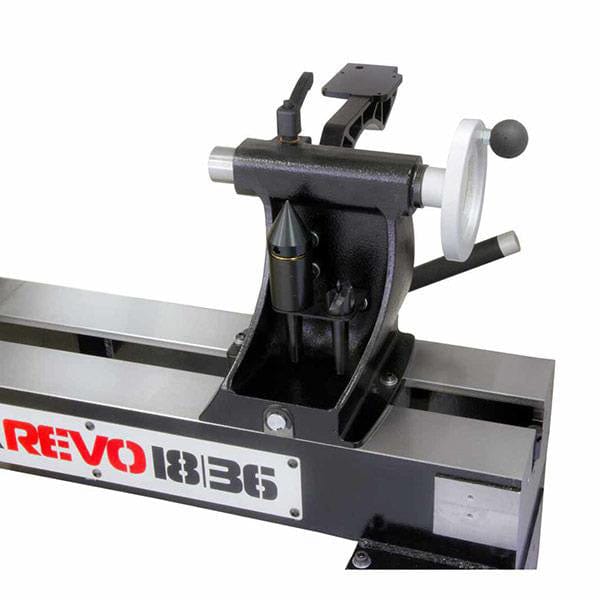

  • Tailstock Quill: 4-1/2”, Engraved, Self-Ejecting
  • Floor to Spindle Center: 41-1/2” w/ pads
  • Front Bearing: TPI Taiwan 6207LLU
  • Rear Bearing: TPI Taiwan 6205LLU
  • Spindle Index #: 14/36/48 w/ lock
  • Distance Between Centers: 36”
  • Headstock Through-Bore: 3/8”
  • Headstock Travel: Full Length
  • Tailstock Through-Bore: 3/8”
  • Tailstock Storage of Centers
  • Spindle Size: 1-1/4” x 8 TPI RH
  • Floor to Bed: 32-1/2” w/ pads
  • Footprint: 60” W x 26” D x 47” H
  • Weight (Net/Ship): 427/480 lbs

What's Included:

  • (1) Laguna Revo 18|36 Lathe - 110 V - 1-1/2 HP

Note:

  • The REVO 18|36 is available in 110v / 1.5HP (WC# 866106) and 220v / 2HP (WC# 861424).

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 4 weeks.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
  • Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time at no charge to you.

Return Information

Laguna does not accept returns. If your shipment was damaged, please refuse delivery, for defective items, please contact Woodcraft Supply customer service @ 1-800-535-4482.

Warranty Information

New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.

For warranty repair information, call 1-800-332-4094.

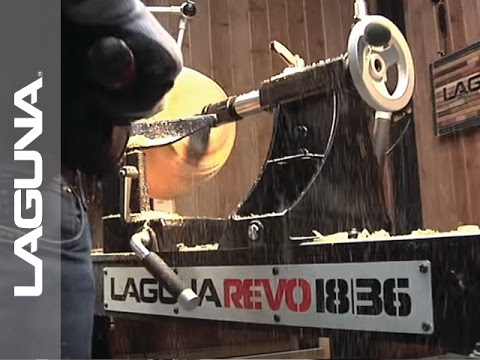

Product Videos
