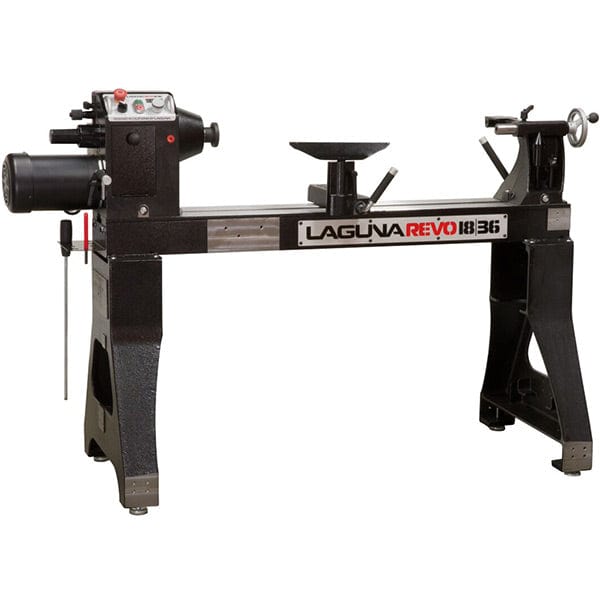

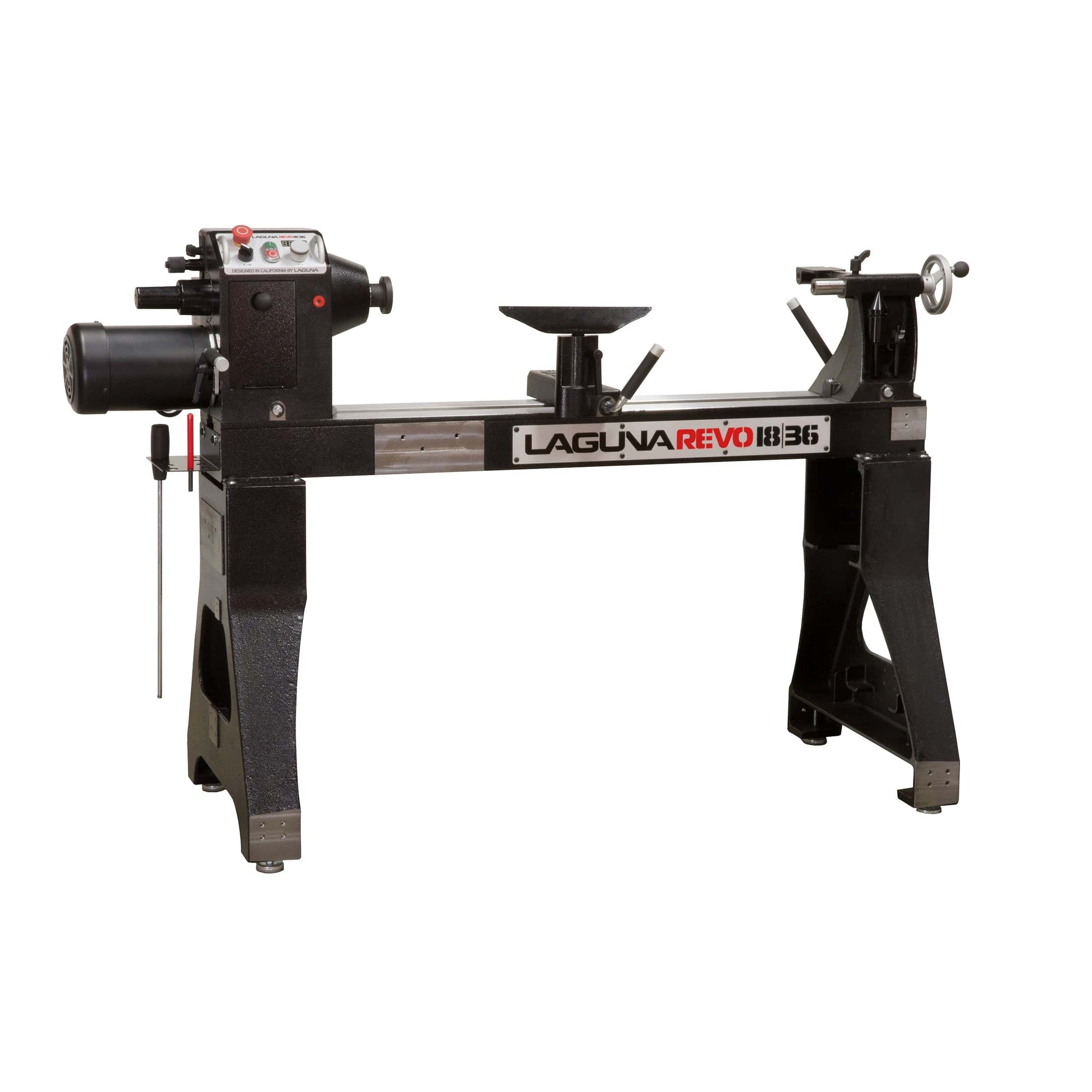

REVO 18 - 36 Lathe, 220 V, 2 HP

Item #861424 Model MLAREVO 1836-220
Regular price $2,999.00
Sale price $2,999.00 Regular price $2,999.00

This item has an additional shipping charge

Skip to product information
1 of 13

Laguna

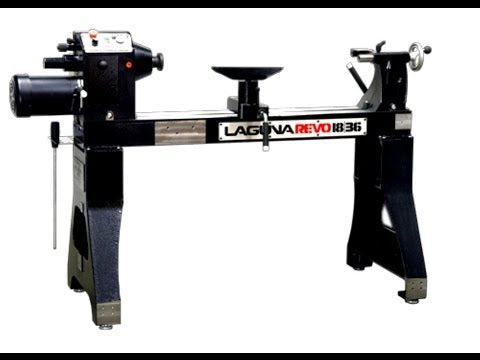

REVO 18 - 36 Lathe, 220 V, 2 HP

Item #861424 Model MLAREVO 1836-220
Regular price $2,999.00
Sale price $2,999.00 Regular price $2,999.00

This item has an additional shipping charge

Try Laguna’s 18|36 lathe and take your turning to the next level. Laguna has exceeded expectations with their REVO line of lathes. The first feature that will catch your eye. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Estimated Ship Date June 8, 2024

Shipping Info

Items you may need

  • Turning Tool Roll

    Regular price $32.99
    Sale price $32.99 Regular price $32.99
    WOODCRAFT TURNING TOOL ROLL alt 0
  • Full-Size Carbide Turning Tool

    Regular price $118.99
    Sale price $118.99 Regular price $139.99
    Full-Size Easy Detailer alt 0
  • Industrial Flood Light for REVO 1836

    Regular price $149.00
    Sale price $149.00 Regular price $149.00
    Industrial Flood Light for 1836 alt 0
  • 20" Extension for REVO 1836

    Regular price $399.00
    Sale price $399.00 Regular price $399.00
    20" Extension for 18|36 alt 0

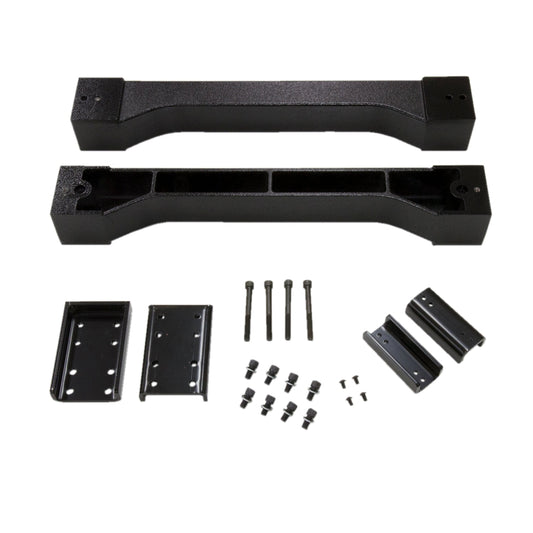

  • 3" Riser Block for REVO 1836

    Regular price $299.99
    Sale price $299.99 Regular price $299.99
    3" Riser Block for 1836 alt 0
  • Vacuum Inverter for REVO 1836

    Regular price $250.00
    Sale price $250.00 Regular price $250.00
    Vacuum Inverter for 1836 alt 0
  • 12" Swing Away Extension for REVO 1836

    Regular price $299.00
    Sale price $299.00 Regular price $299.00
    12" Swing Away Extension for 1836 alt 0

Details

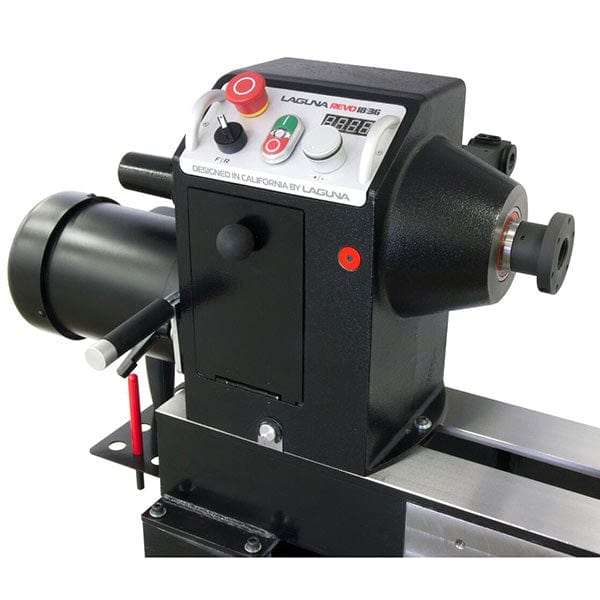

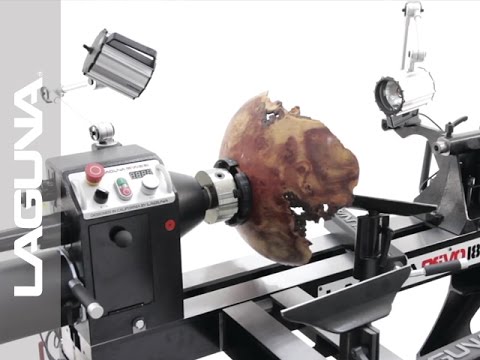

Try Laguna’s 18|36 lathe and take your turning to the next level. Laguna has exceeded expectations with their REVO line of lathes. The first feature that will catch your eye is the ergonomically angled control panel made of anodized aluminum. The blue hue of the DRO along with the nice knurled control knob fitted with a rubber grip signals that this is no ordinary lathe.

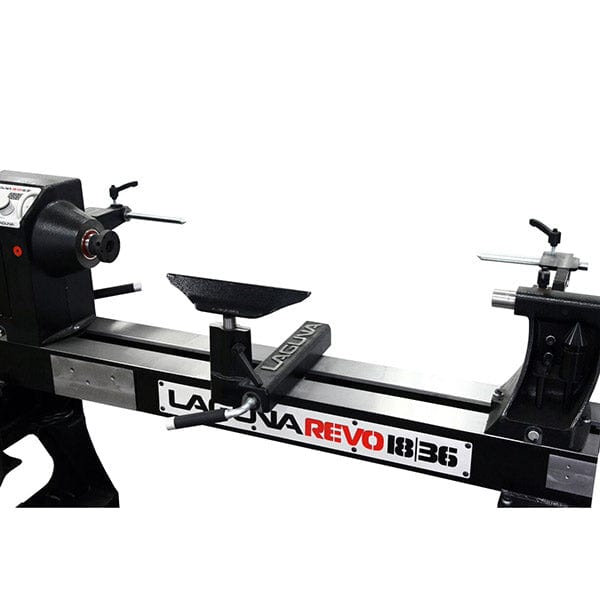

The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well-known longevity and strength. Electronic variable speed is obtained via a VFD that converts 1 phase to 3 phase output so even at lower settings you will get an incredible amount of torque.

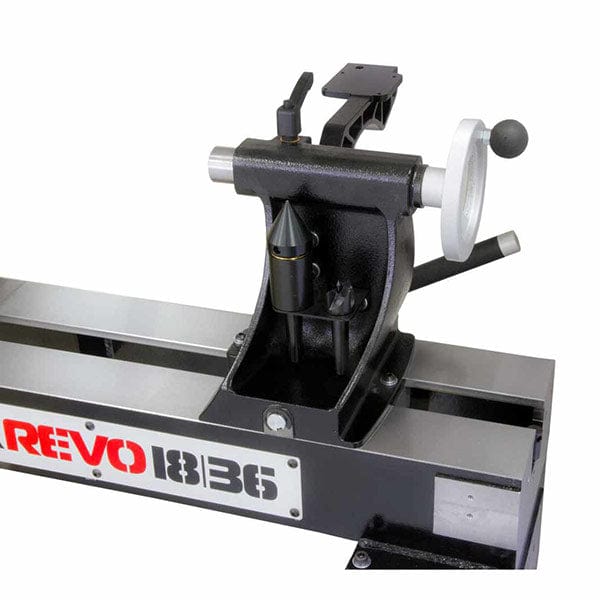

Changing from high to low setting is made easy on this lathe by using the quick release handle. The headstock and tailstock lock handles are situated on the back to eliminate any interruptions to your work flow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.
Specifications
  • Power: 2HP, 220V, 60 Hz
  • Motor: Induction, 1725 RPM, TEFC
  • VFD: Delta S1 Variable Frequency Drive
  • Phase: 1 Ph input, 3 Phase output
  • Poly-Groove Drive Belt w/ easy access
  • Recommended Breaker: 20 Amp
  • Spring Loaded Spindle Lock
  • Max. Outboard Swing: 32”
  • Swing Over Banjo: 13-1/2”
  • Steel Bed: ASTM A36
  • Spindle Taper: MT#2
  • Swing Over Bed: 18”
  • RPM High:135-3500
  • RPM Low: 50-1300

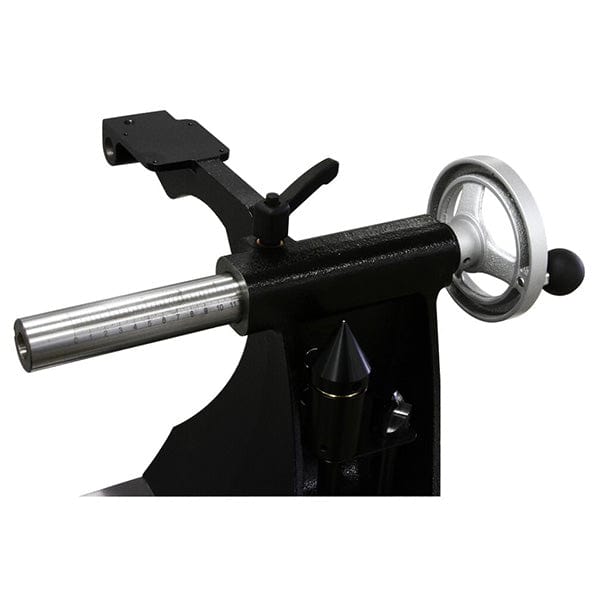

  • Tailstock Quill: 4-1/2”, Engraved, Self-Ejecting
  • Floor to Spindle Center: 41-1/2” w/ pads
  • Front Bearing: TPI Taiwan 6207LLU
  • Rear Bearing: TPI Taiwan 6205LLU
  • Spindle Index #: 14/36/48 w/ lock
  • Distance Between Centers: 36”
  • Headstock Through-Bore: 3/8”
  • Headstock Travel: Full Length
  • Tailstock Through-Bore: 3/8”
  • Tailstock Storage of Centers
  • Spindle Size: 1-1/4” x 8 TPI RH
  • Floor to Bed: 32-1/2” w/ pads
  • Footprint: 60” W x 26” D x 47” H
  • Weight (Net/Ship): 427/480 lbs.
