Laguna

REVO 1524 Lathe - 110V

Item #172164 Model 415241
$2,299.00
$2,299.00 $2,299.00

This item has an additional shipping charge

The Laguna® 15|24 REVO lathe provides more power and capacity in a constrained space while plugging into a standard 110V outlet (15 Amp service re. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Estimated Ship Date May 24, 2024

Shipping Info

Items you may need

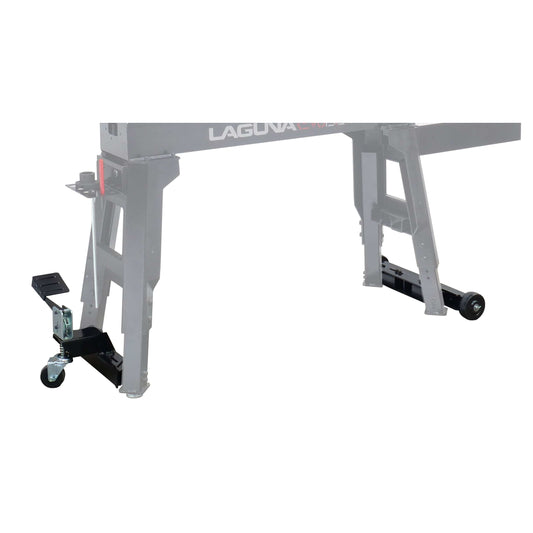

  • Wheel System for REVO 1524 Lathe

    $199.00
    $199.00 $199.00
    172166.0

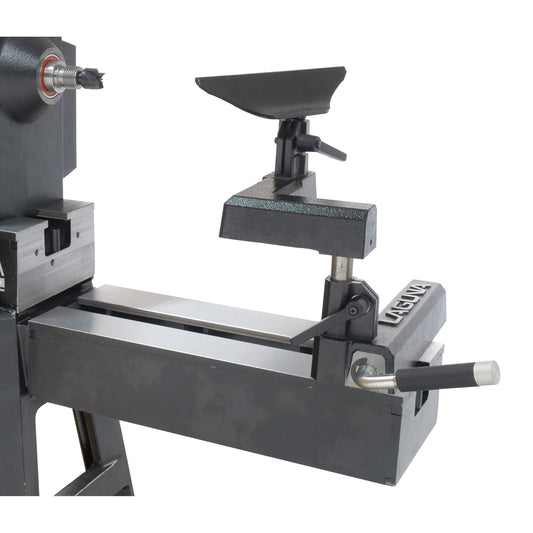

  • 20" Extension for REVO 1524 Lathe

    $349.99
    $349.99 $349.99
    172165.0

Details

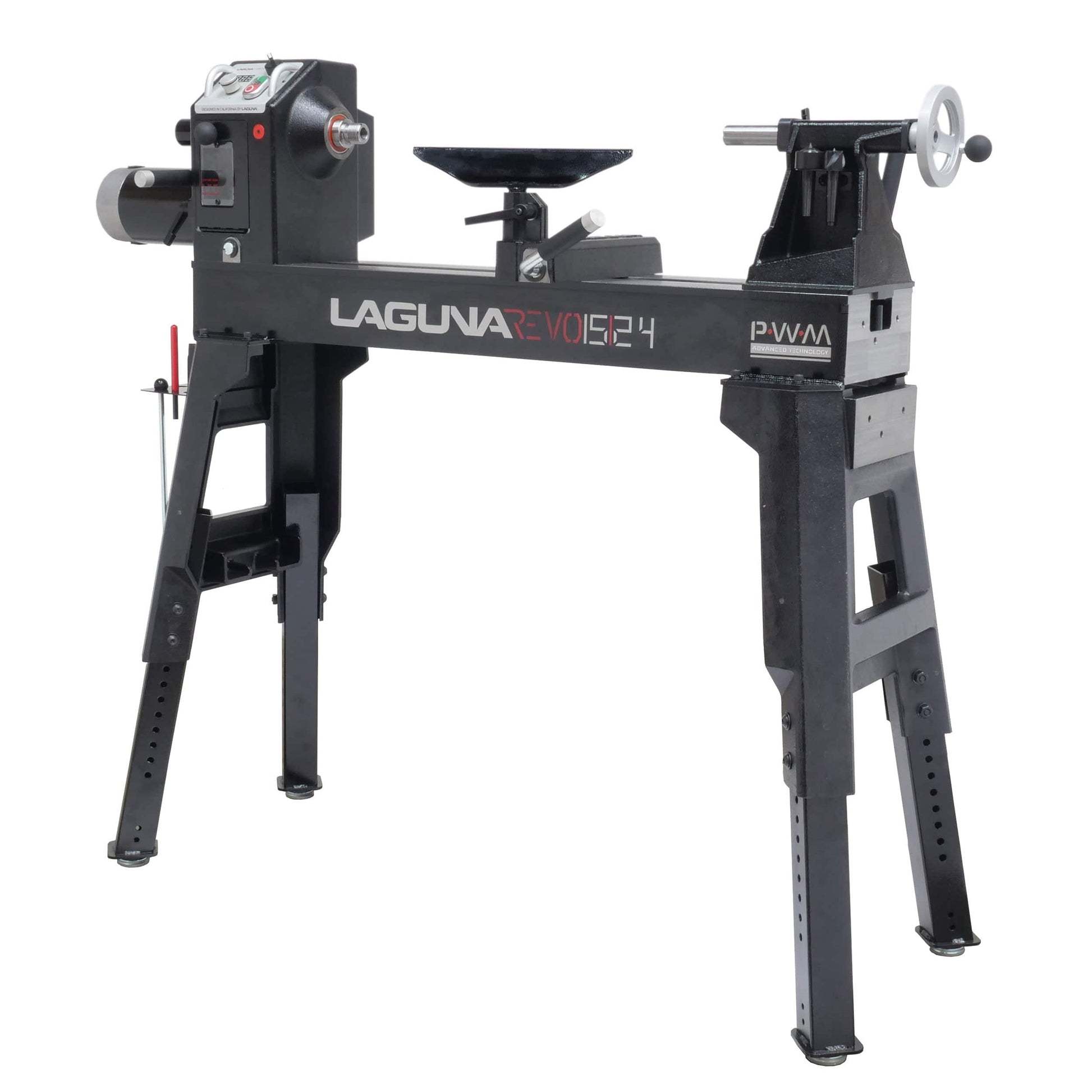

The Laguna® 15|24 REVO lathe provides more power and capacity in a constrained space while plugging into a standard 110V outlet (15 Amp service required). The headstock, banjo and tailstock are fully removable from the bed. The tailstock features on-board tool storage for the live center and drive center (included). A tool shelf mounts to the left of the headstock with storage for the knockout bar and other lathe tools. The headstock can be repositioned to the tail end of the bed for outboard turning. A 24-position indexing plate allows the headstock to rotate in 15° increments. The headstock and tail stock accept an MT2 taper.

Precise Position adjusts the spur drive for the ideal point-to-point alignment between the drive center and the drive center. This simple adjustment of 4 screws and minor manipulation of the drive center brings your 15|24 lathe into ideal alignment for turning. The PWM (Pulse Width Modulation) motor utilizes transistors for fast communication between the motor and controller. PWM controls stabilize the RPM and provide consistent torque (voltage) when using speeds at low RPM so you can turn with confidence at any speed on the Laguna REVO 15|24 Lathe. Adjustable legs allow you to set the height of the 15|24 lathe at just the right height. Leveling feet provide micro adjustments to properly level the lathe.

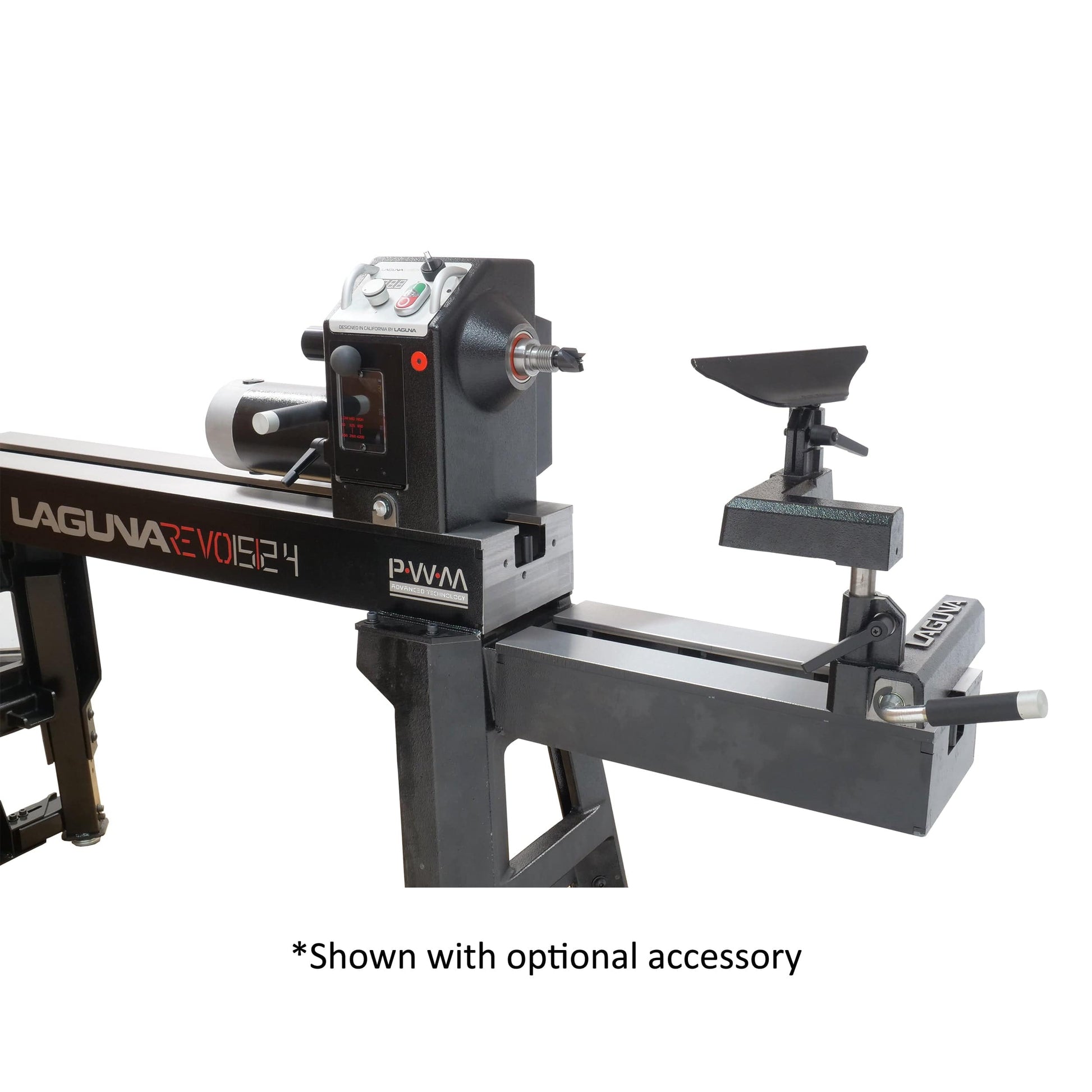

Upgrade your 15|24 REVO Lathe with a wheel system to move it around the shop (#172166, sold separately), a 20” steel extension that fits in two positions for increased spindle or turning capacity (#172165, sold separately) or an LED Lathe Lamp featuring Chameleon hot/cold to configure perfect work lighting for your shop (#172167, sold separately).

Features:

  • World-class fit and finish
  • Sliding headstock for ergonomic outboard bowl turning
  • 24-position indexing plate allows the headstock to rotate in 15° increments

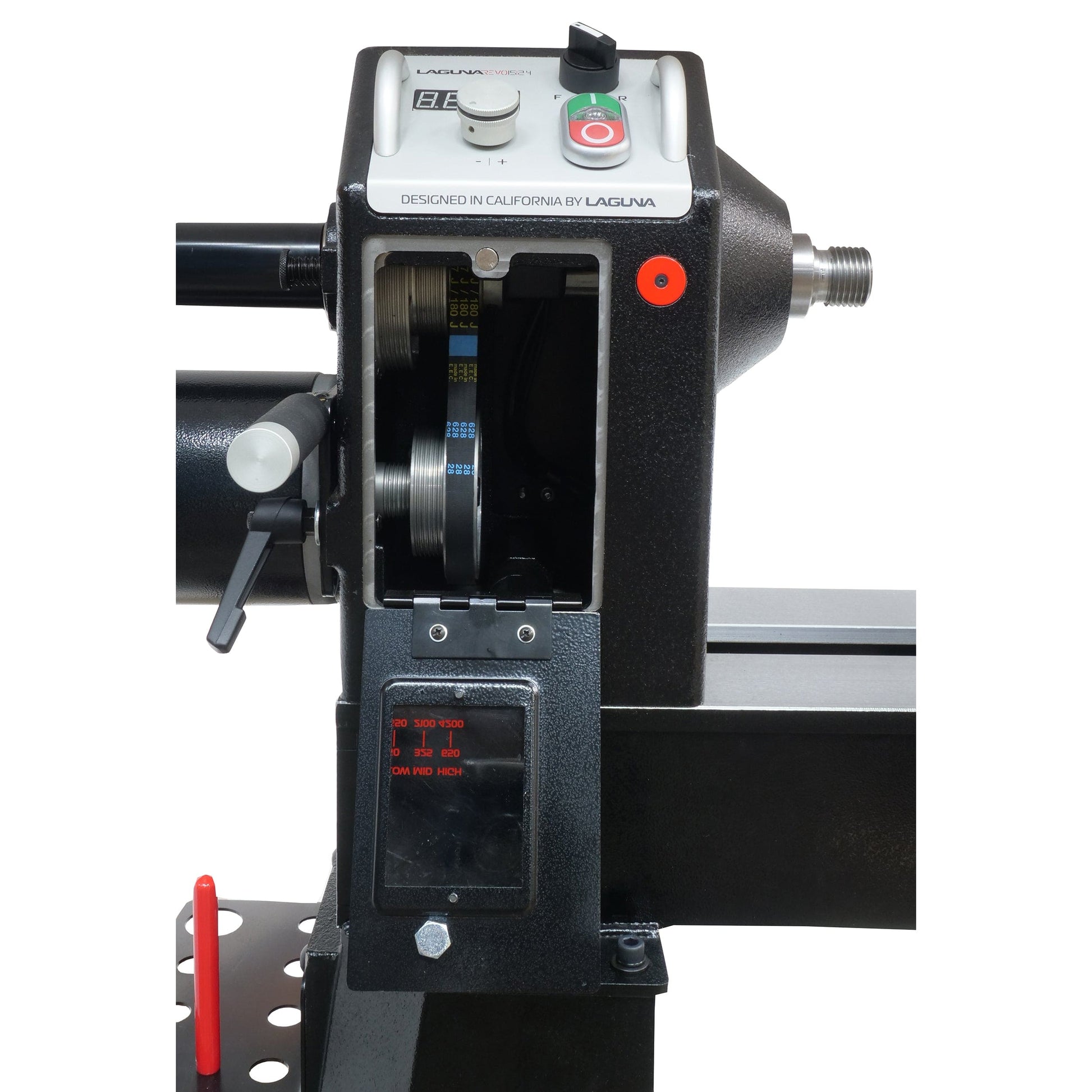

  • Infinite electronic variable speed from 50 - 4200 RPM with a 3 step pulley
  • Extraordinary torque even at low speeds, powered by Pulse Width Modulation
  • Adjustable-height legs for a more ergonomic working position
  • Steel bed provides strength, stability and a surface that the banjo will glide across smoothly
  • Patent-pending Precise Point allows you to dial in the tailstock quill to meet with the headstock center

Specifications:

  • Electrical: 1.5HP, 110V, 8 Amp, 60 Hz
  • Recommended Breaker: 15 Amp
  • Motor: Permanent Magnet DC, 2150 RPM
  • PWM: Pulse Width Module Speed Control
  • Spring Loaded Spindle Lock
  • Swing Over Bed: 15-1/2”
  • Swing Over Banjo: 11-3/32”
  • Max. Outboard Swing (with optional accessory): 25”
  • Tool Rest Post Size: 1”
  • Tool Rest Length: 12”
  • Spindle Taper: MT#2
  • RPM: 650-4200 (High); 325-2100 (Mid); 50-650 (Low)
  • Tailstock Quill: 4-1/2” Self-Ejecting
  • Floor to Spindle Center: 36.4” – 51.4”
  • Floor to Bed Min.: 28.6” – 43.6”
  • Spindle Index #: 24 w/ Lock
  • Distance between Centers: 24”
  • Headstock/Tailstock Through-Bore: 3/8”
  • Headstock Travel: Full Length
  • Spindle Size: 1-1/4” X 8TPI RH
  • Footprint: 60” W x 22” D x 56” H
  • Shipping Dimensions: 52” L x 22” W x 22” H
  • Net Weight: 288 lb.
  • Shipping Weight: 302 lb.

What's Included:

  • (1) Laguna 15|24 Lathe
  • (1) Banjo
  • (1) 12” Tool Rest
  • (1) Drive Center
  • (1) Live Center
  • (1) Faceplate
  • (1) Face Plate Wrench
  • (1) Knock Out Bar

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-21 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
  • Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time at no charge to you.

Return Information

Laguna does not accept returns. If your shipment was damaged, please refuse delivery, for defective items, please contact Woodcraft Supply customer service @ 1-800-535-4482.

Warranty Information

New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.

For warranty repair information, call 1-800-332-4094.
