Jet

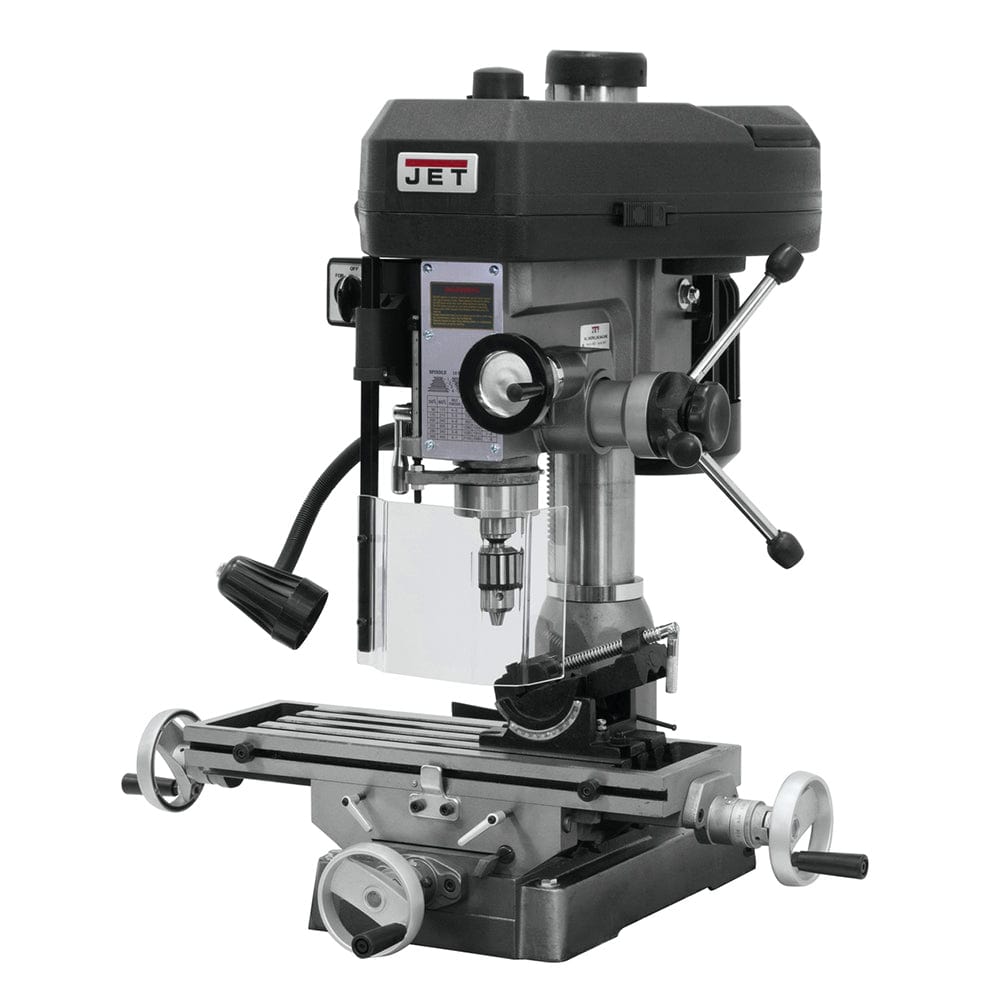

JMD-15 Mill/Drill with R-8 Taper - 115V - 1 Ph
Item #819299
Model JT9-350017
Regular price
$
2,749
.
99
Sale price
$
2,749
.
99
Was
$2,749.99
Unit price
per
Mill drills offer a space-saving alternative to traditional milling machines—combining the functionality of a drill press with the precision of a mill. . .
View More Details
Details
Mill drills offer a space-saving alternative to traditional milling machines—combining the functionality of a drill press with the precision of a milling machine's dual-coordinate table. Designed for light machining, the JMD Milling Drilling Machines deliver impressive flexibility and performance. A built-in locking collet keeps your cutting tool secure under lateral pressure, ensuring safe and accurate operation. Ideal for shops where space, cost, and capability all matter.
Features:
- 1/2” Drill chuck, chuck arbor
- 360° head swivel
- Adjustable carbide facemill
- Base taper allows for easier clean up
- Easy to read external depth gauge

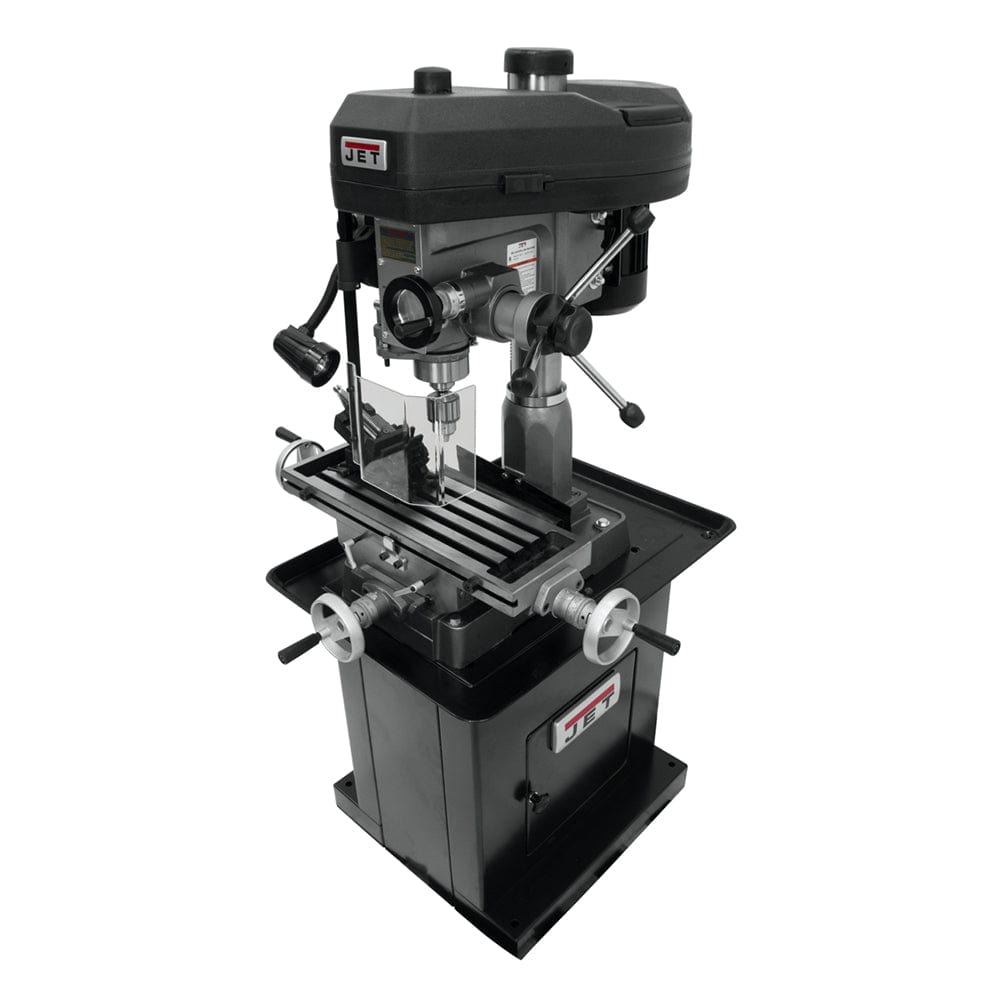

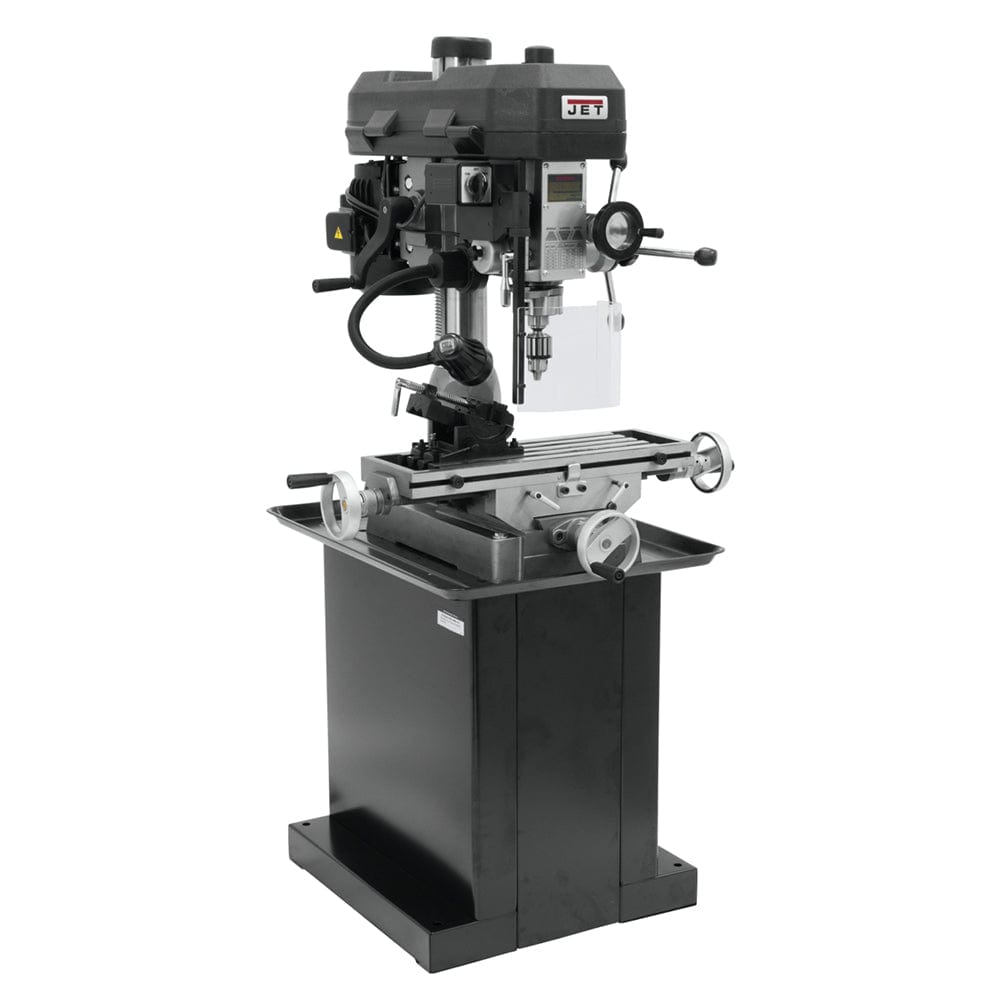

- Mill Drill Stand, p/n 350045, shown in some images, is optional
- One-piece cast iron column for added support
- UL Listed
- Base Dimensions: 12-1/2” x 19-3/4”
- Column Diameter: 3-5/8”
- Drilling Capacity: 1”
- Max Distance Spindle to Table: 14-1/2”
- Motor: 1 HP - 115/230V – 1 Ph

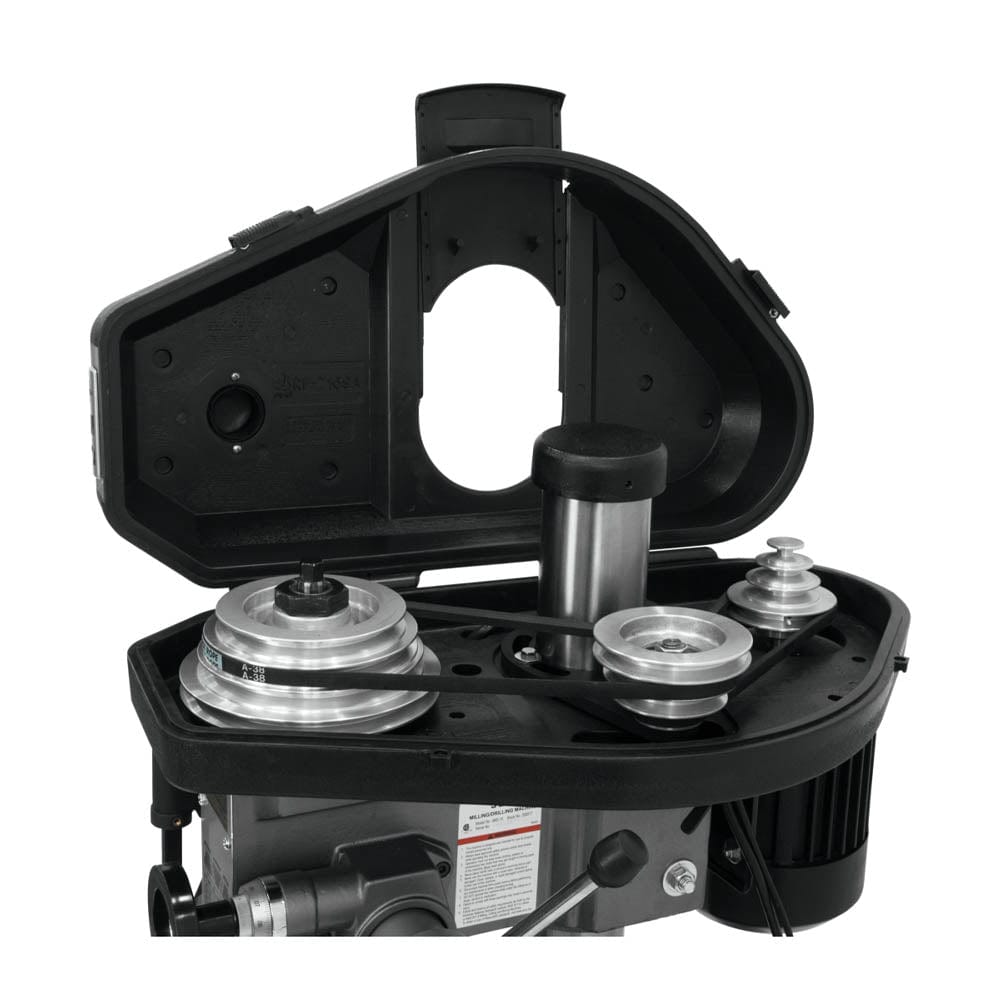

- Number of Spindle Speeds: 12
- Overall Dimensions: 38” x 37-1/2” x 42”
- Quill Diameter: 2-7/16”

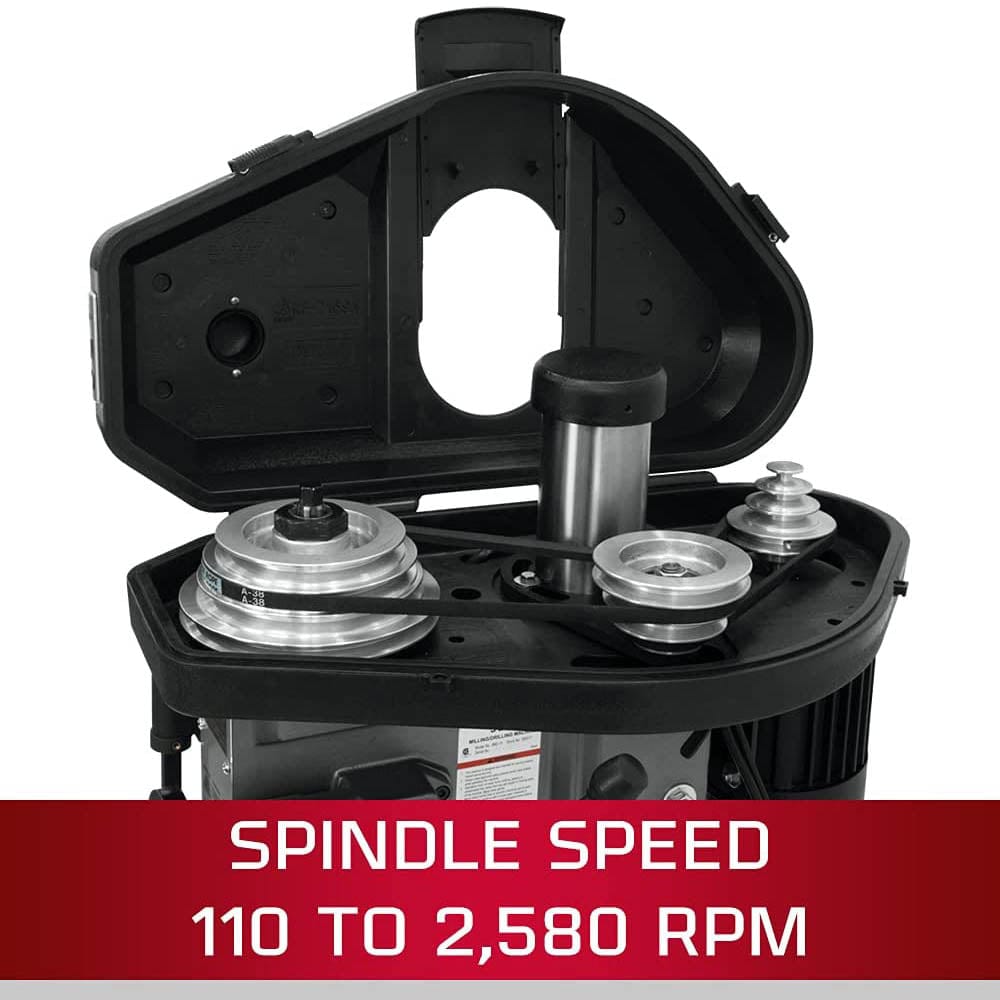

- Range of Spindle Speeds: 110 - 2,580 RPM
- Spindle Taper: R-8”
- Spindle Travel: 3-1/2”
- Swing: 14-1/2”
- T-Slot Centers: 1-13/16”
- T-Slots Number and Size: 4 and 9/16”
- Table Longitudinal Travel: 14”

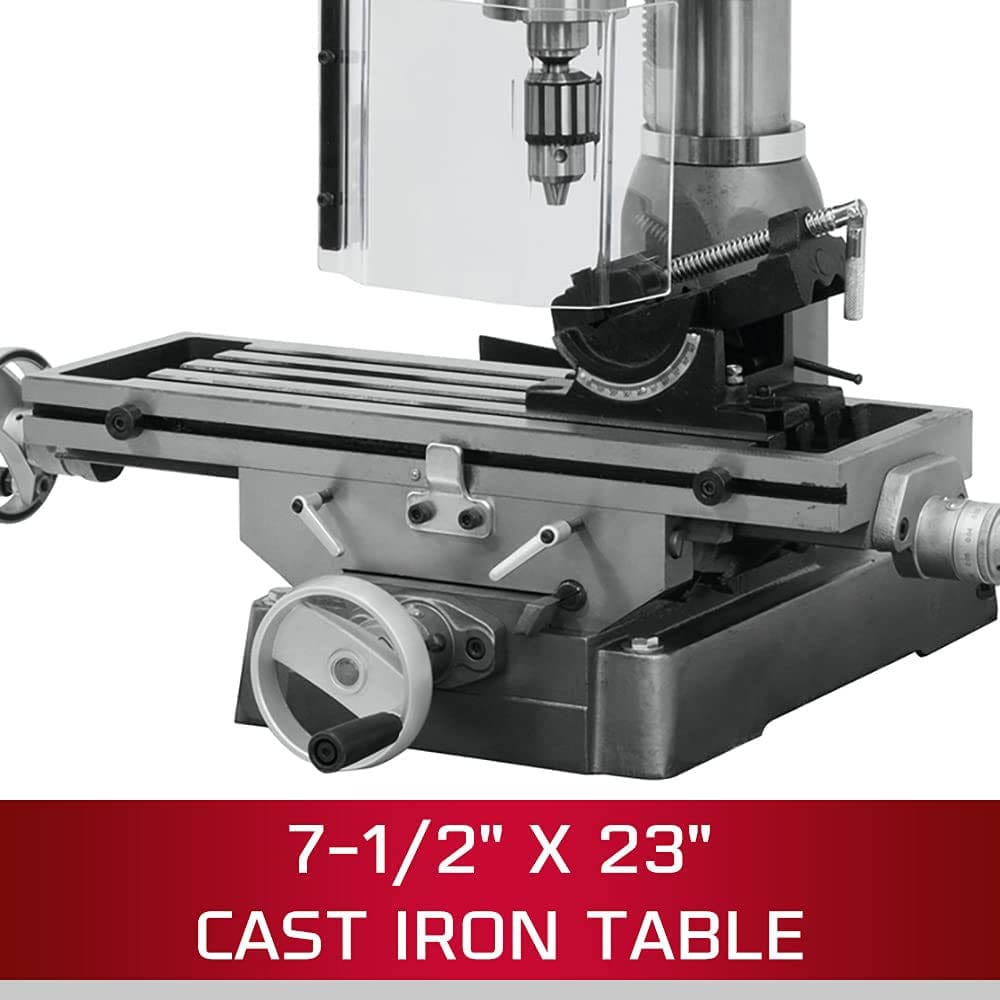

- Table Size: 7-1/2” x 23”
- Warranty: 2 Year
- 2 Year Warranty
