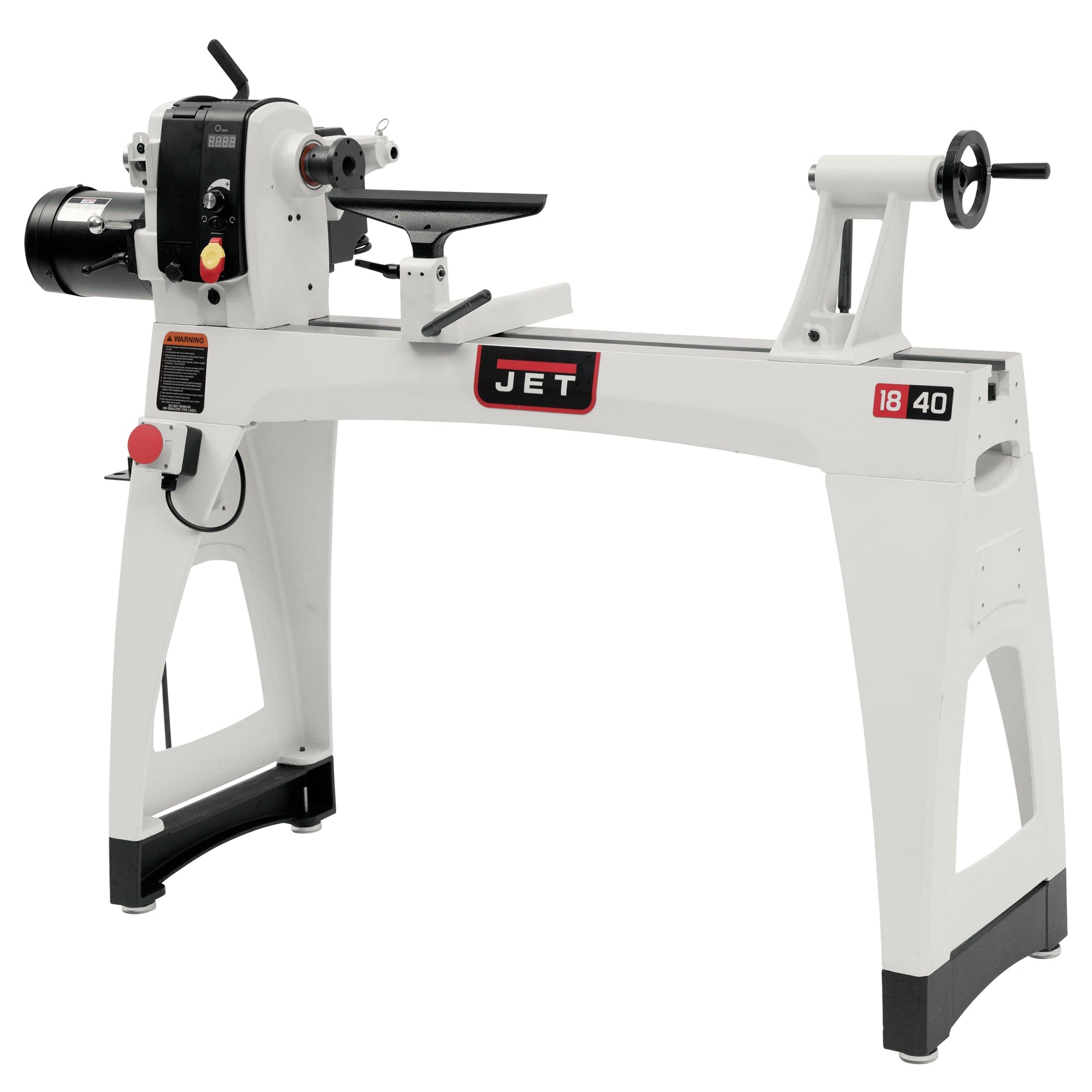

18" x 40" EVS Woodworking Lathe - 2 HP 230V - JWL-1840EVS

• Sliding headstock
• Extended spindle nose houses dual headstock spindle bearings
• Four inch cast iron risers allow user to adjust height of lathe for maximum comfort
• Improved tailstock quill locking mechanism incorporates an anti-rotation key
• Tailstock features Acme threads for smooth and durable movement
• Banjo uses non-marring, positive locking wedge system to securely hold tool post
• Tool post locking mechanism designed for year of consistent strength
• Spindle lock latch frees up both hands
• Electronic infinitely variable speed from 40 – 3200 RPM
• 36 integrated indexing positions
• Newly designed headstock locking handle accessible from front of lathe
• Remote emergency stop button can be situated along the lathe bed
• Convenient leg-mounted tool holder
• Inverter is enclosed for added protection
• Conveniently located digital readout

• Product: Wood Lathe
• Style: Floor Standing Model
• Motor Type: TEFC, totally enclosed fan cooled, induction
• Power Transfer: V-belt
• Motor Power: 2 HP (1.5 kW)
• Motor Phase: 3
• Voltage: 230 V
• Cycle: 60Hz
• Listed FLA (full load amps): 5A
• Power Input Requirements: single phase, 230V only
• Drive: electronic variable speed, inverter control
• On/Off Switch: paddle switch with safety key
• Power Cord Length: 6 ft.
• Recommended Circuit Size: 15A
• Noise Emission Without Load: 78 dB at 20 inches from motor
• Working Distance Between Centers - Single Bearing Center: 40-1/2"
• Working Distance Between Centers - Live Cone Center: 38-1/4"
• Swing Over Bed: 18-1/2"
• Swing Over Tool Rest Base: 14-1/4"
• Indexing: 36 positions, positive locking, 10 degree increments
• Spindle Taper: MT-2
• Spindle Thread - Inboard: 1-1/4" x 8 TPI
• Spindle Thread - Outboard: 3/4"-16 (LH)
• Spindle Speed Range: variable within 40-3200 RPM
• Spindle Speeds: Low: 40-1200 RPM and High: 100-3200 RPM
• Headstock Spindle Bore: 3/8"
• Spindle Direction: forward and reverse
• Headstock Movement: sliding
• Tailstock Quill Taper: MT-2
• Tailstock Bore: 3/8"
• Tailstock Quill Travel: 4-1/4"
• Tailstock Quill Thread: UNC 3/4”-10 (LH)
• Overall Assembled Dimensions (L x W x H): 73" x 52-1/2" x 20"
• Net Weight: 418 lbs.

• (1) Jet® 18" x 40" EVS Woodworking Lathe - 2 HP 3 Ph 230V - JWL-1840EVS
• (2) Legs

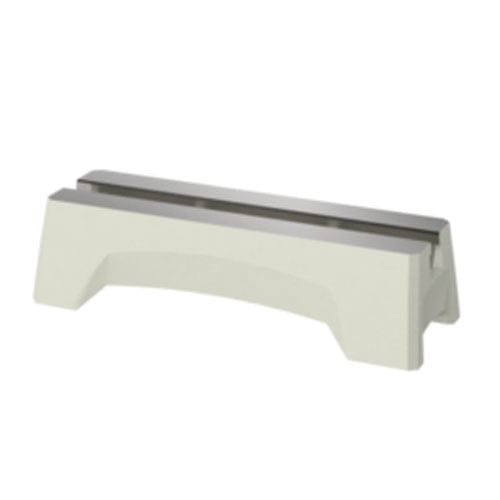

• (2) Riser blocks
• (1) Live single bearing center
• (1) Live cone center
• (1) Live cone center pin
• (1) Knockout rod
• (1) Faceplate (installed on lathe)
• (1) Faceplate wrench
• (4) Adjustable feet
• (1) Tool shelf
• (1) Operating Instructions & Parts Manual
• (1) Warranty Card
• (1) Hardware Package
