$25.99
This item has an additional shipping charge
Add accuracy and precision to your jigs and fixtures with T-Track Plus from Incra. These tracks are designed with a host of enhancements. Like other tracks, the extruded anodized aluminum construction is designed to house a 1/4"-20 bolt head, but that’s where the similarity ends. First,...
Details

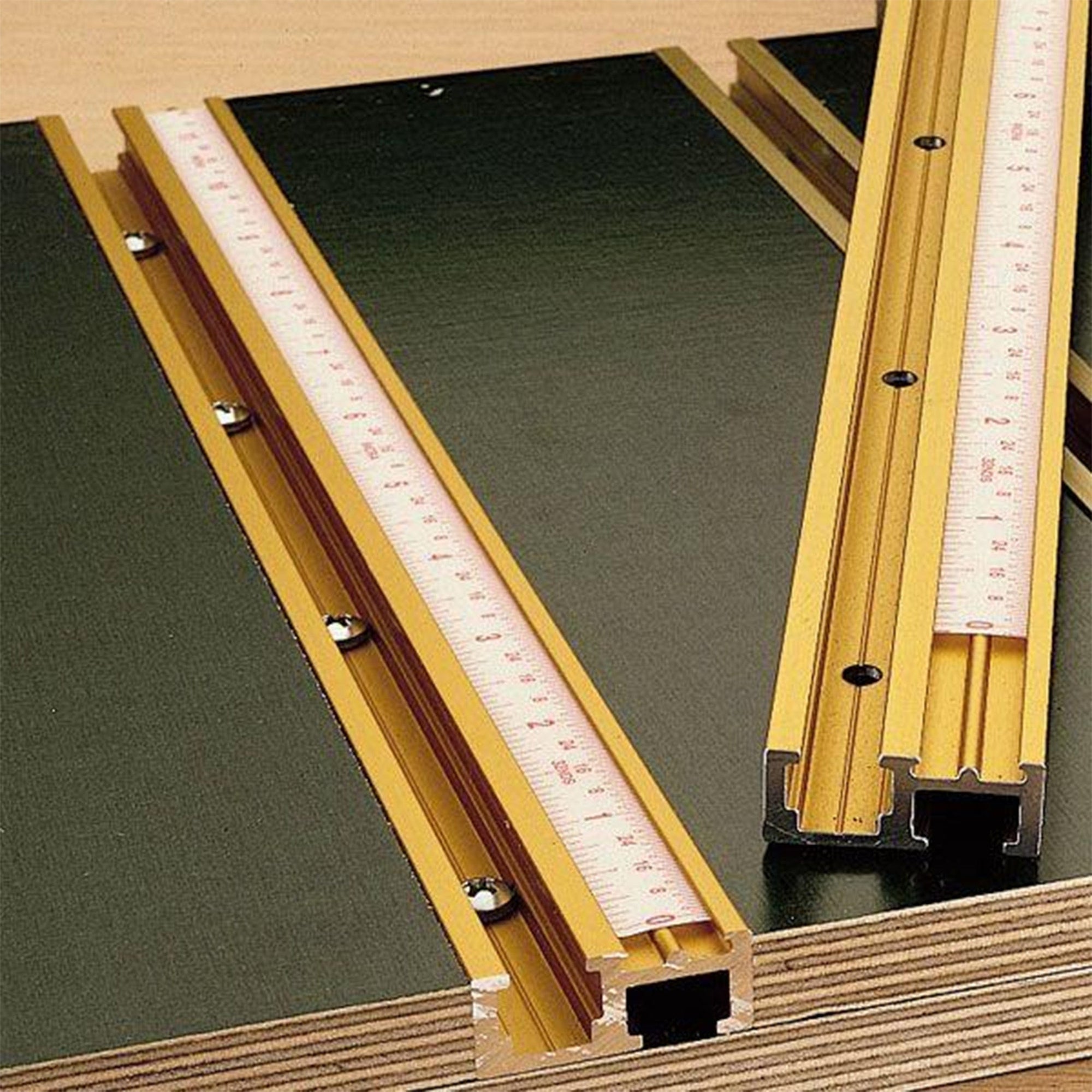

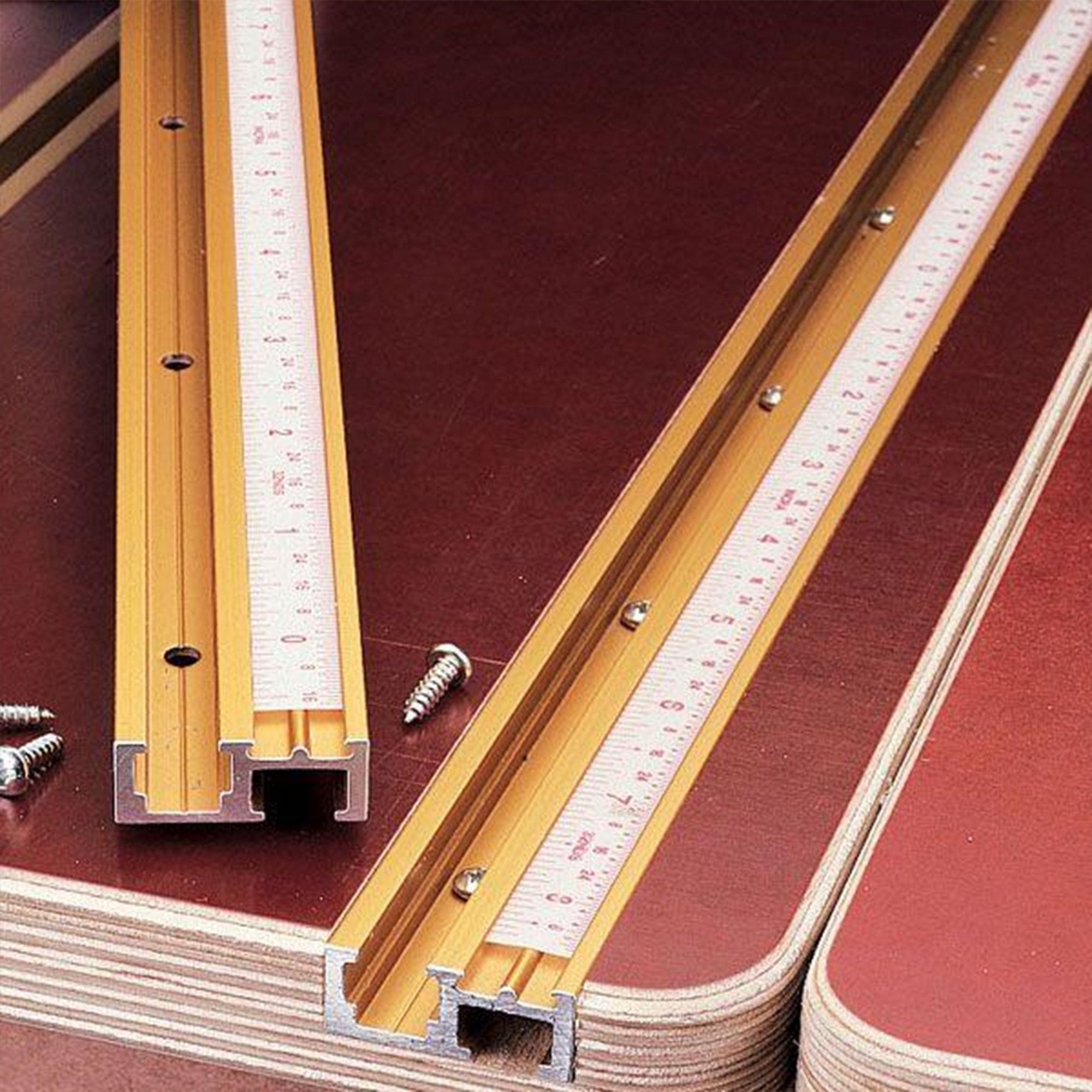

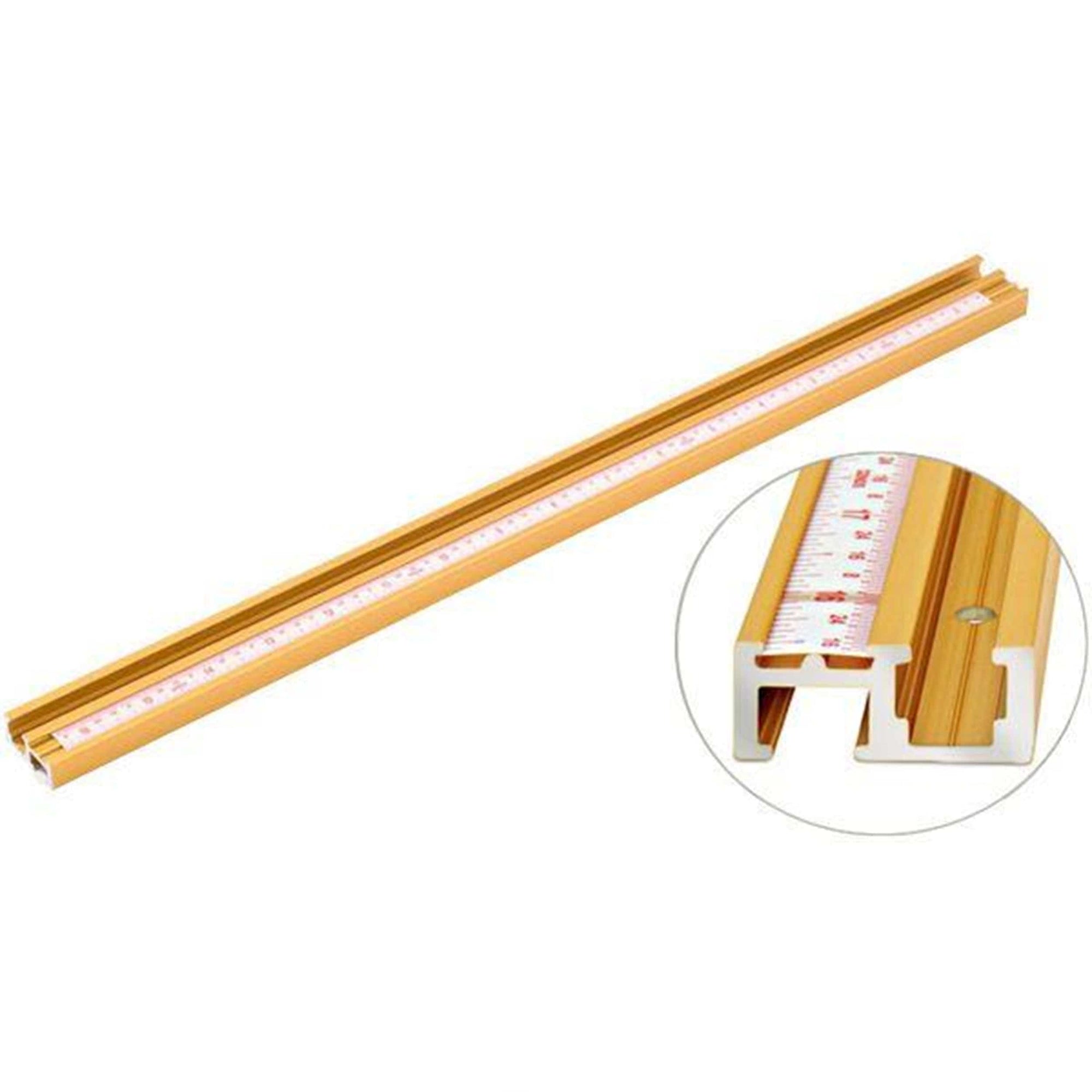

Add accuracy and precision to your jigs and fixtures with T-Track Plus from Incra. These tracks are designed with a host of enhancements. Like other tracks, the extruded anodized aluminum construction is designed to house a 1/4"-20 bolt head, but that’s where the similarity ends. First, this track features a “well” in the extrusion allowing the track to be mounted using the included #8 pan head screws versus #6 flat head screws used by other tracks. The extra depth of the “well” allows the use of 1/4"-20 nuts that are not accommodated by other tracks. On the T-Track Plus there is the addition of a highly accurate Lexan scale that can be moved to a “zero” reference. The T-Track Plus is sized to fit a 1-1/4" wide opening.
- 48" length is pre-drilled
for included fasteners - Profile accommodates 1/4"-20
bolt heads - Unique design also allows use
of 1/4"-20 nuts - Includes a movable Lexan
scale for added precision - Extrusion is 1-1/4” wide x
1/2" tall
Reviews
-
It's an OKAY track, but not super
Its difficult to incorporate into a fence for a radial arm saw.
-
Makes a jig outstandingly useful!
The embedded tape measure is a time saving feature for my workbench/assembly table. The flange bolts slide easily bover the mounting screws. It was a great added featrure to include the mounting screws. A quality product.
-
Perfect for my purpose
The existing tall fence on my add-on drill press table was interferring with the laser centers. I bought this track and a pair of tracklocks to replace that fence. It works beautifully. Gives a positive fence stop for the workpiece that is short enough to not interfere with the laser centers or the presses handles. I added a couple of flip stops to use as stops along this track and have the perfect drill press fence. Functional, but unobtrusive. I will probably purchase an additional shorter length for those time I don't need the full 4' length fence.
-
Adding t-track rails
I was building add-on extensions form my miter saw -- the rules on the t-track would not allow me to "begin" their measurement at a different figure than 0. I could have cut-off the forst 9 or so inches, but I would not have the 9 inches for measurement (on stop blocks) at the far end.
