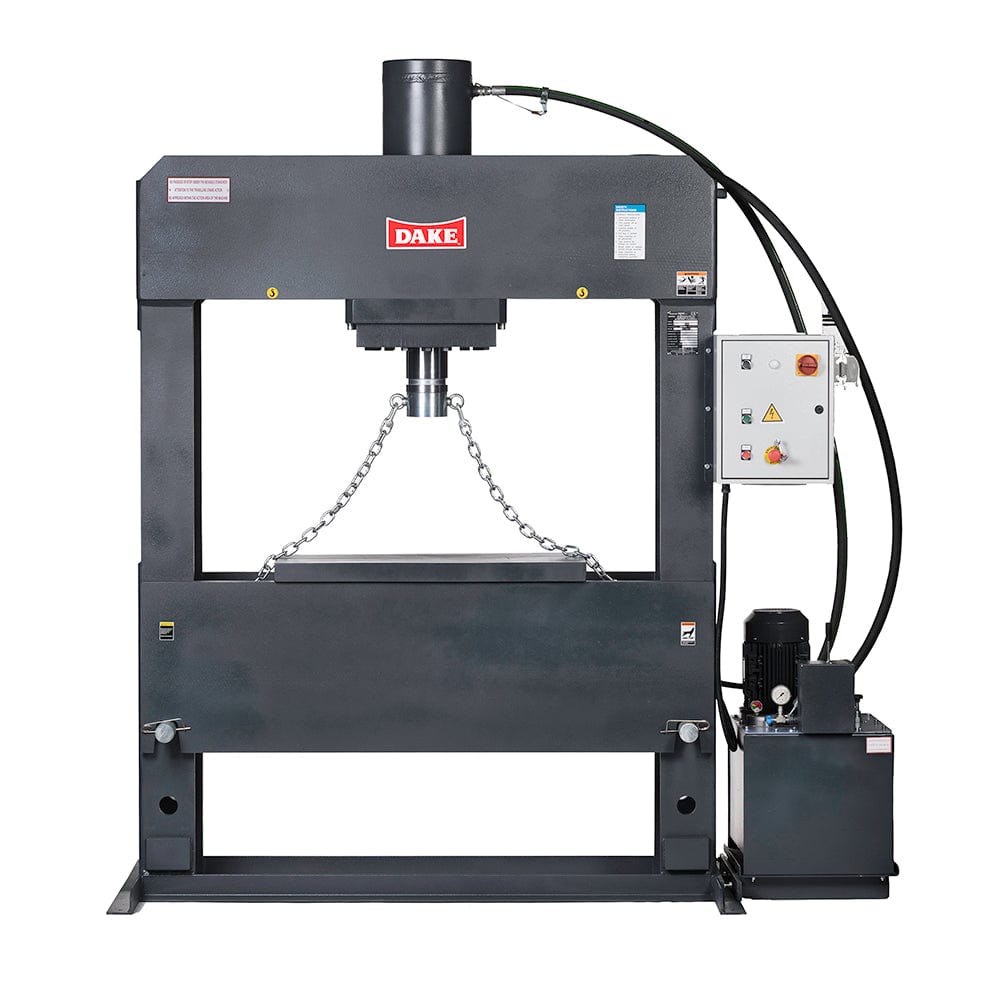

The Dake Hydraulic Press - Electrically Operated - H-Frame- 220V - 3 Ph - 150-Ton is built for the most demanding industrial applications. With an impressive 150-ton capacity and powered by 220V, 3 Phase electricity, this electrically operated H-frame press delivers maximum force and efficiency for high-volume metalworking, fabrication, and repair tasks. Adjustable table, pressure preset and lock out so max tonnage can never be exceeded, and rapid ram advance. Its heavy-duty H-frame design provides exceptional strength, stability, and open workspace, making it easy to position materials for pressing, bending, and straightening. The electric operation allows for consistent pressure and precise control, reducing operator fatigue and increasing shop productivity. Joystick operation makes this machine easy to operate. A fast, quiet, dependable, economical price, smooth operating press that is very simple to operate.

• Double acting cylinder design with 5-part oil seals for smooth operation and a tight seal
• Welded heavy steel plate frame for greater rigidity
• All electrical controls are low voltage (24V)
• Preset and factory-sealed relief valve to prevent exceeding pressure capacity
• Ram has lifting eyes that attach a chain to hydraulically move the table
• 2 HP submerged motor drives two centrifugal pumps for quiet, steady oil flow
• Smooth, responsive control valve
• Rapid advance of the ram to the workpiece - speed shifts automatically when contact is made

• Capacity: 150 tons
• Operation: Electric
• Horsepower: 4
• Voltage: 220V 3-Phase
• Width Between Uprights: 59”
• Width Between Table Channels: 14”
• Minimum Ram to Table: 14”
• Maximum Ram to Table: 35”
• Ram Travel: 19”
• Screw Travel: n/a
• Horizontal Workhead Travel: n/a
• Footprint: 98” x 47"
• Height: 106”
• Weight: 5,711 lbs
• Base: 98” x 47"
• Ram Advance Speed: 49 ipm
• Pressing Speed: 7 ipm
• RPM: n/a
• Air Pressure: n/a

• Frame
• 2 Steel Table Plates
• Lifting Chain
• Workhead
• Pressure Gauge
• Safety Relief Valve
