California Air Tools

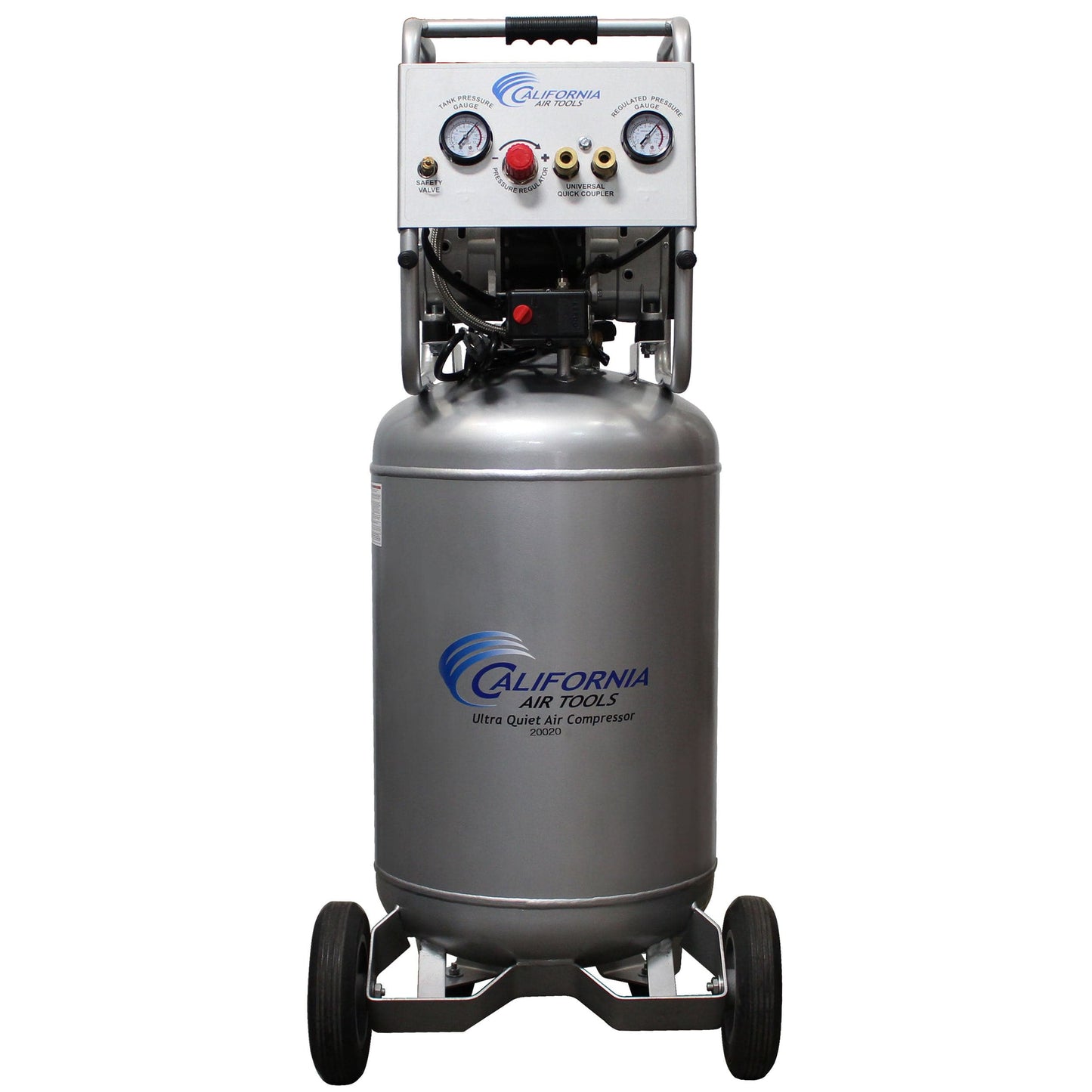

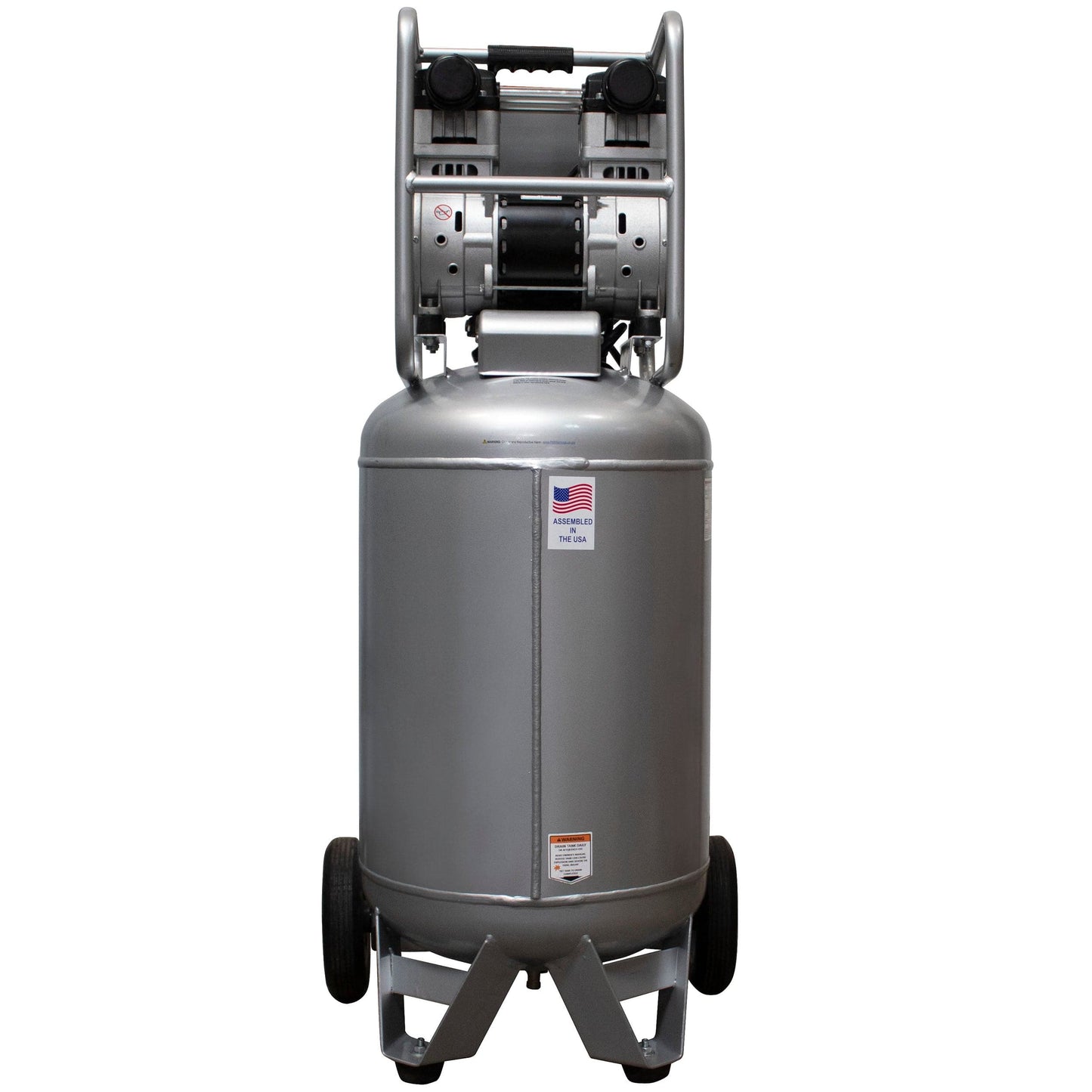

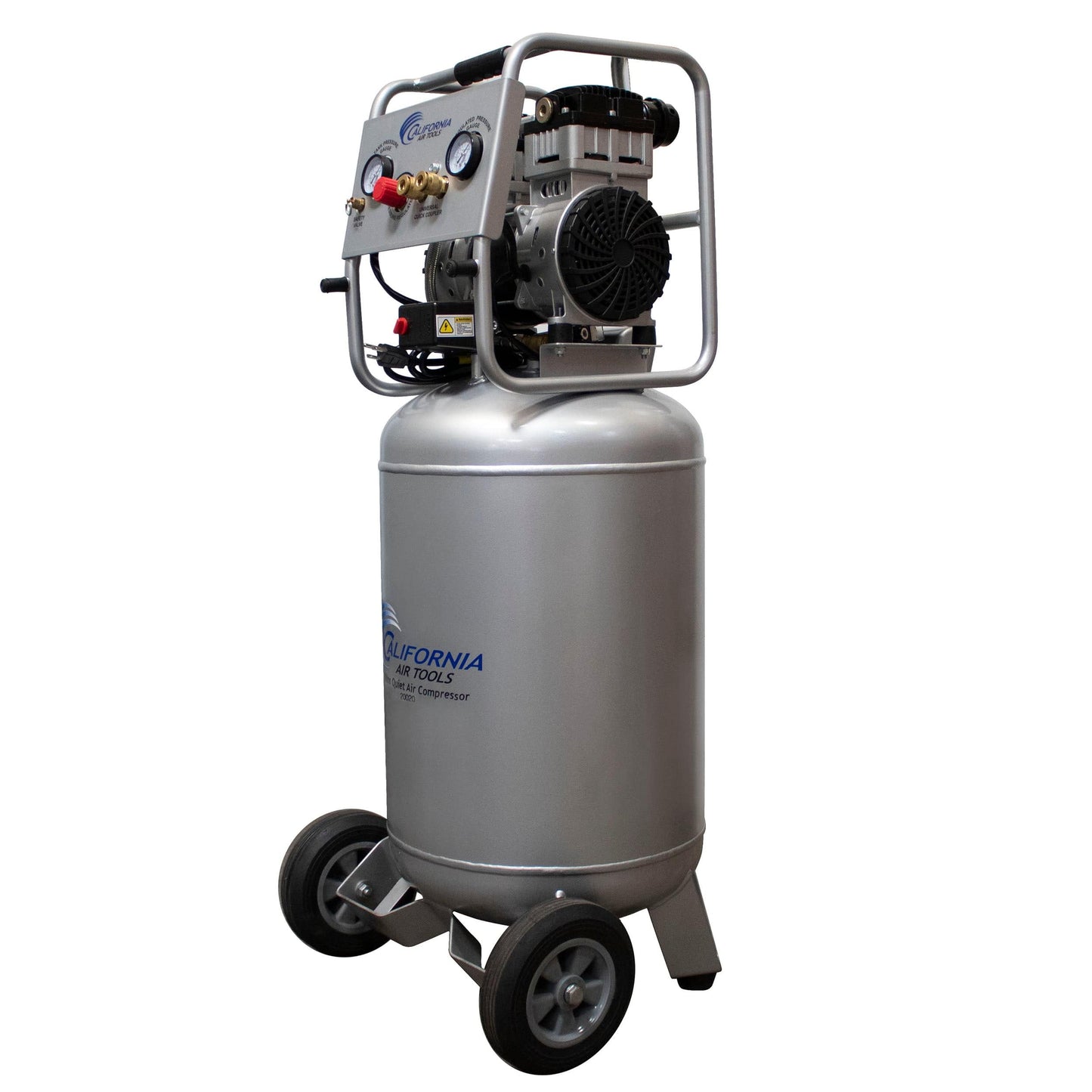

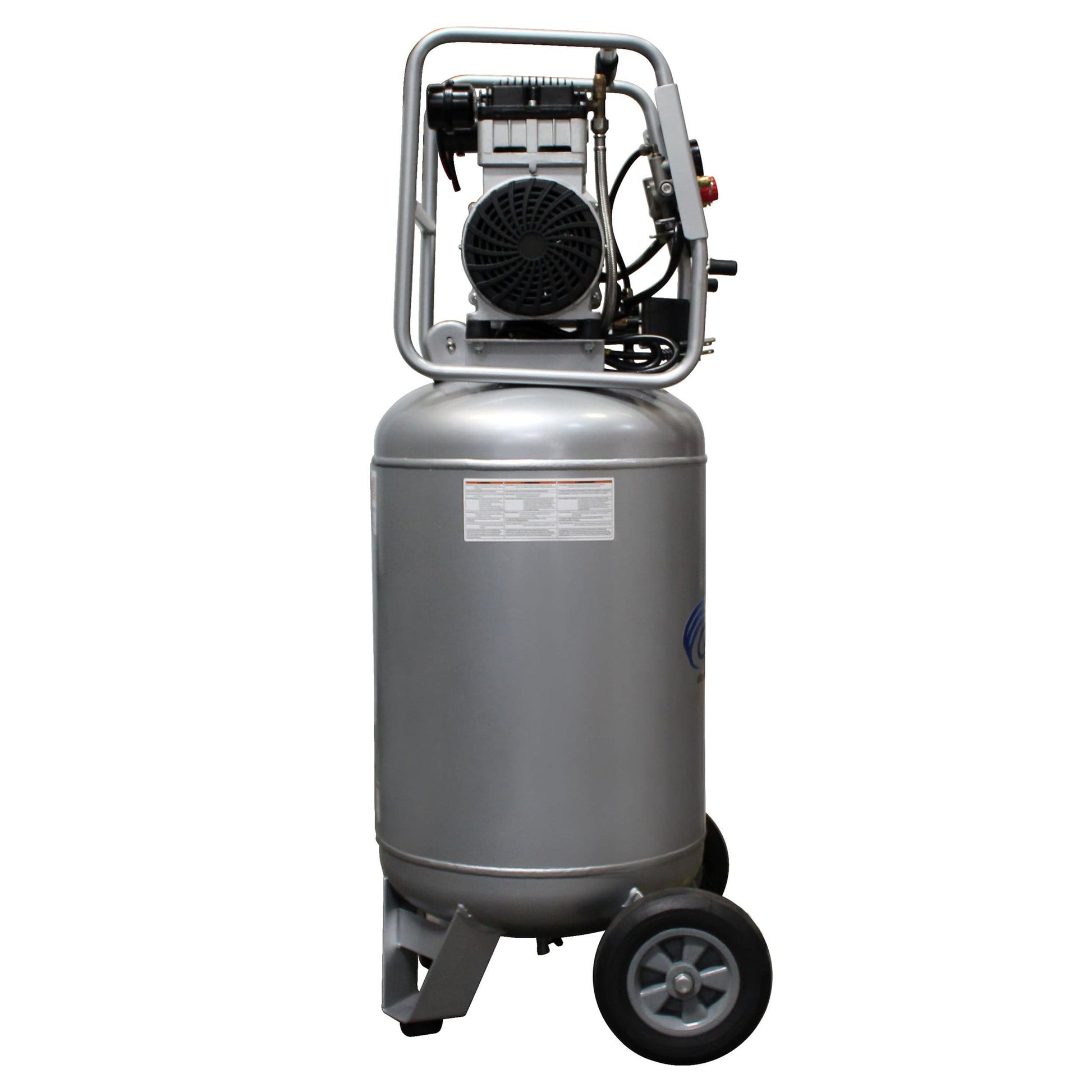

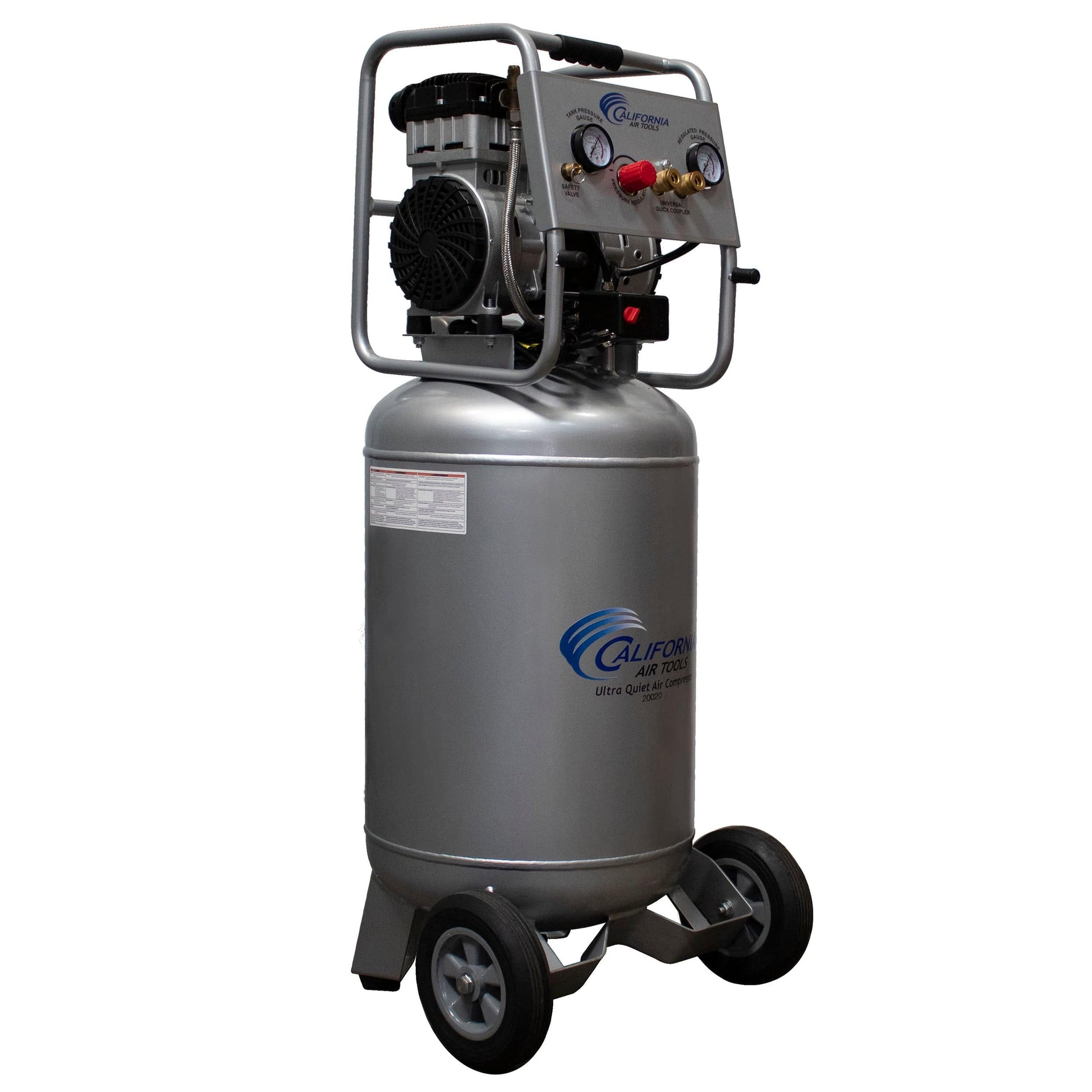

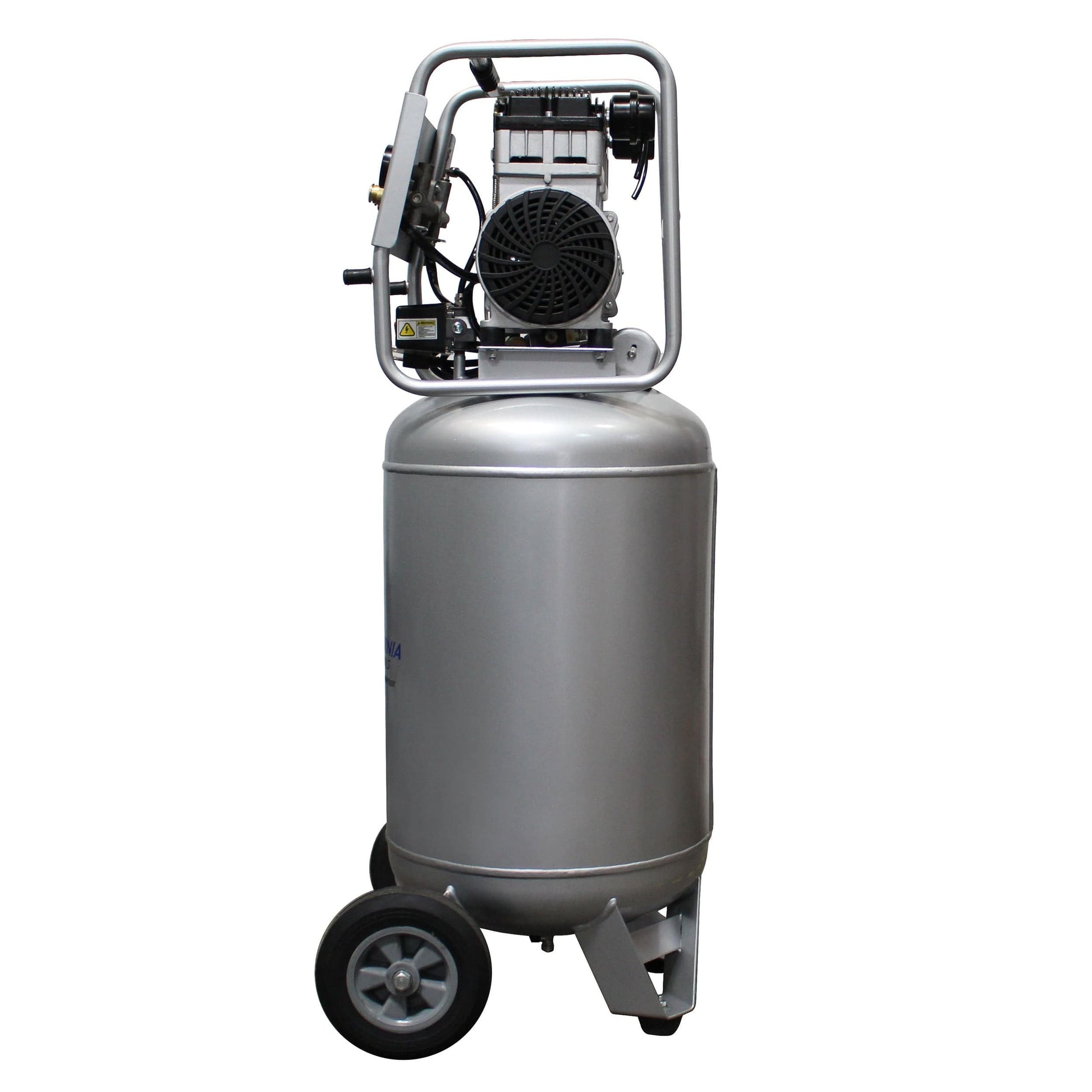

2HP 220V 20 Gallon Oil-Free Steel Tank Air Compressor

Item #173567 Model CAT-20020-22060
$637.00
$637.00 $637.00

This item has an additional shipping charge

1 7

California Air Tools

2HP 220V 20 Gallon Oil-Free Steel Tank Air Compressor

Item #173567 Model CAT-20020-22060
$637.00
$637.00 $637.00

This item has an additional shipping charge

The California Air Tools 20020-22060 (220 volts, 60 hertz) Ultra Quiet and Oil-Free Air Compressor is designed to be one of the quietest 2. 0 Hp air compressors in the industry. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Ships from Manufacturer

Shipping Info

Items you may need

  • Hybrider Flex 1/4" 25ft Hybrid Air Hose with Quick Connect Air Fittings

    $29.99
    $29.99 $29.99
    Hybrider Flex 1/4" 25ft Hybrid Air Hose with Quick Connect Air Fittings alt 0

  • Hybrider Flex 1/4" 50ft Hybrid Air Hose with Quick Connect Air Fittings

    $39.99
    $39.99 $39.99
    Hybrider Flex 1/4" 50ft Hybrid Air Hose with Quick Connect Air Fittings alt 0

Details

The California Air Tools 20020-22060 (220 volts, 60 hertz) Ultra Quiet and Oil-Free Air Compressor is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound. The powerful 2.0 HP motor operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.

The oil-free dual piston pump system is engineered for high performance and durability. The CAT-20020-22060 Air Compressor has an oil-free dual piston pump designed to have a life cycle before wear of over 3000 hours. The oil-free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).

The easy start valve feature allows for an easier start up using less starting amps. The easy start valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for an easier start up in cold temperatures.

The large 20 gallon steel air tank is designed to store more air for higher demand air tools such as spray guns and sanders. Perfect for the shop or garage. The two no flat wheels makes moving this air compressor very easy. Designed for the person looking for power, air flow, less service and maintenance with at Least 30% less noise!

Features
  • Ultra quiet - only 70 decibels
  • Oil-free pump for less maintenance and costs
  • Portable and easy to store
  • Two pressure control gauges
  • Thermal overload protector
  • Less time to fill the tank - only 4.00 minutes
  • Low vibration: motor speed of 1680 RPM
  • Less heat - dissipates heat more efficiently
  • Extra large dual piston pump for increased compression
  • Extra long pump life of over 3000 hours
  • Oil-free pump allows you to use in different temperatures and terrains
Specifications
  • 20.0 gallon steel tank with wheels
  • Powerful 2.0 HP (rated / running) motor
  • 6.40 CFM @ 40 PSI
  • 5.30 CFM @ 90 PSI
  • Maximum pressure: 125 PSI
  • Two 1/4" universal quick connectors
  • Low amp draw: 7.0 amps, 220 volts, 60 hertz
  • Weight: 114 lbs.
