Engineered for professionals, educators, and small shops, the Axiom 2x2 CNC Router delivers industrial-grade performance without demanding industrial . . .
View More Details
Details

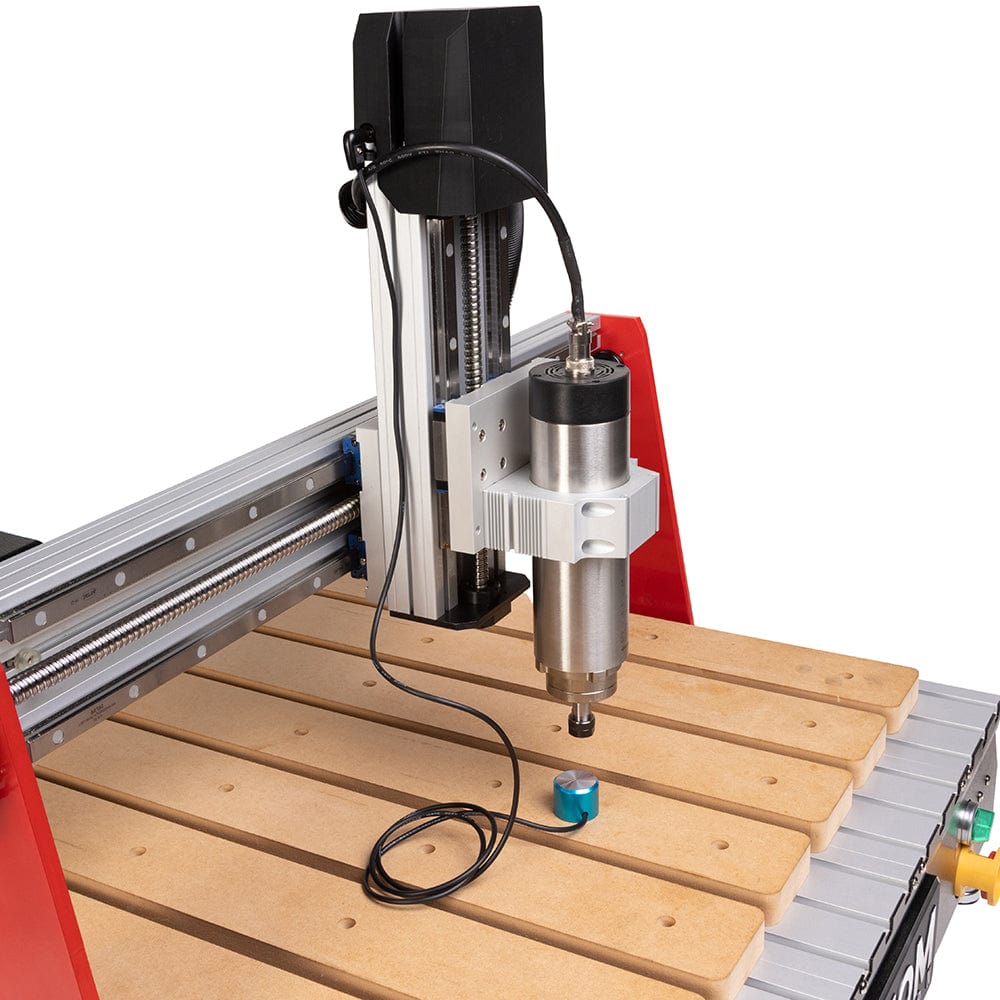

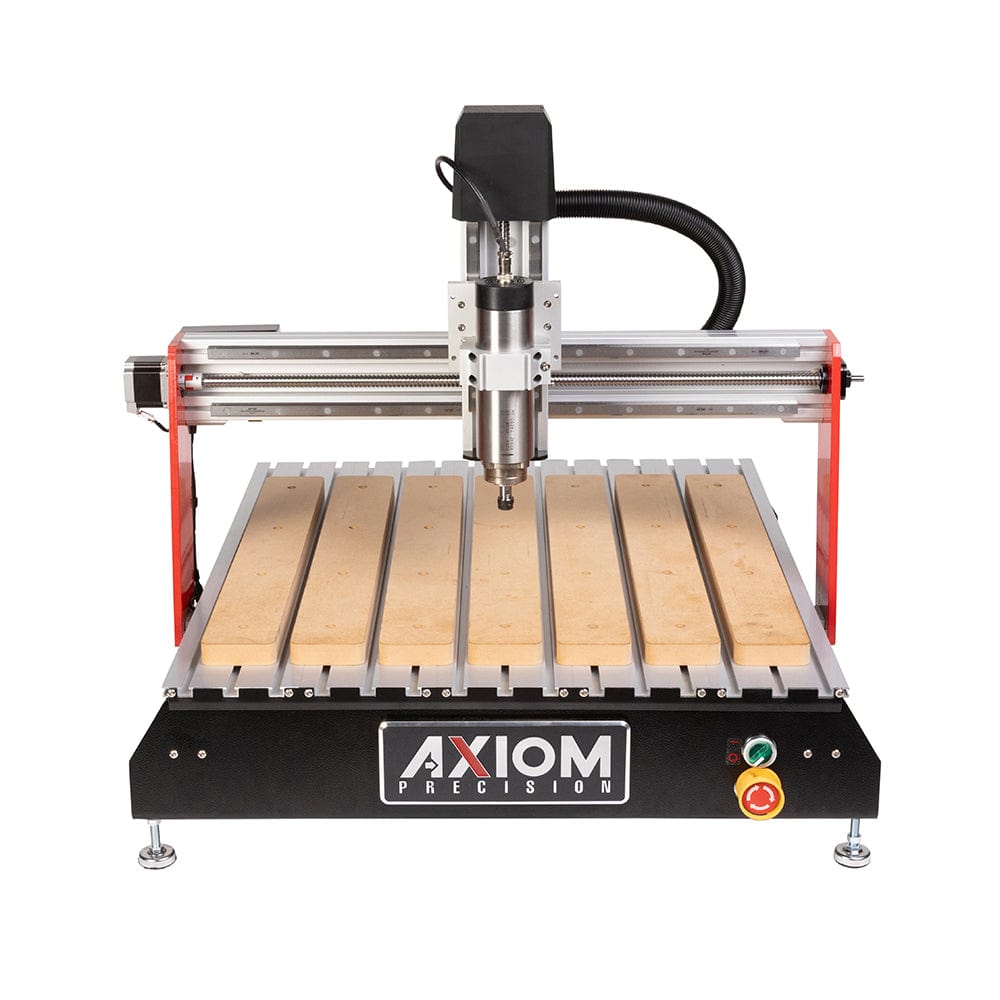

Engineered for professionals, educators, and small shops, the Axiom 2x2 CNC Router delivers industrial-grade performance without demanding industrial space. With superior accuracy, repeatability, and speed, this compact powerhouse is built to elevate your craft.
Whether you're scaling up production, inspiring future makers, or diving into CNC for the first time, the Axiom 2x2 delivers the precision, power, and reliability you need—without compromise.
Features:
- 24" x 24" cutting area with 5.5" Z-axis travel

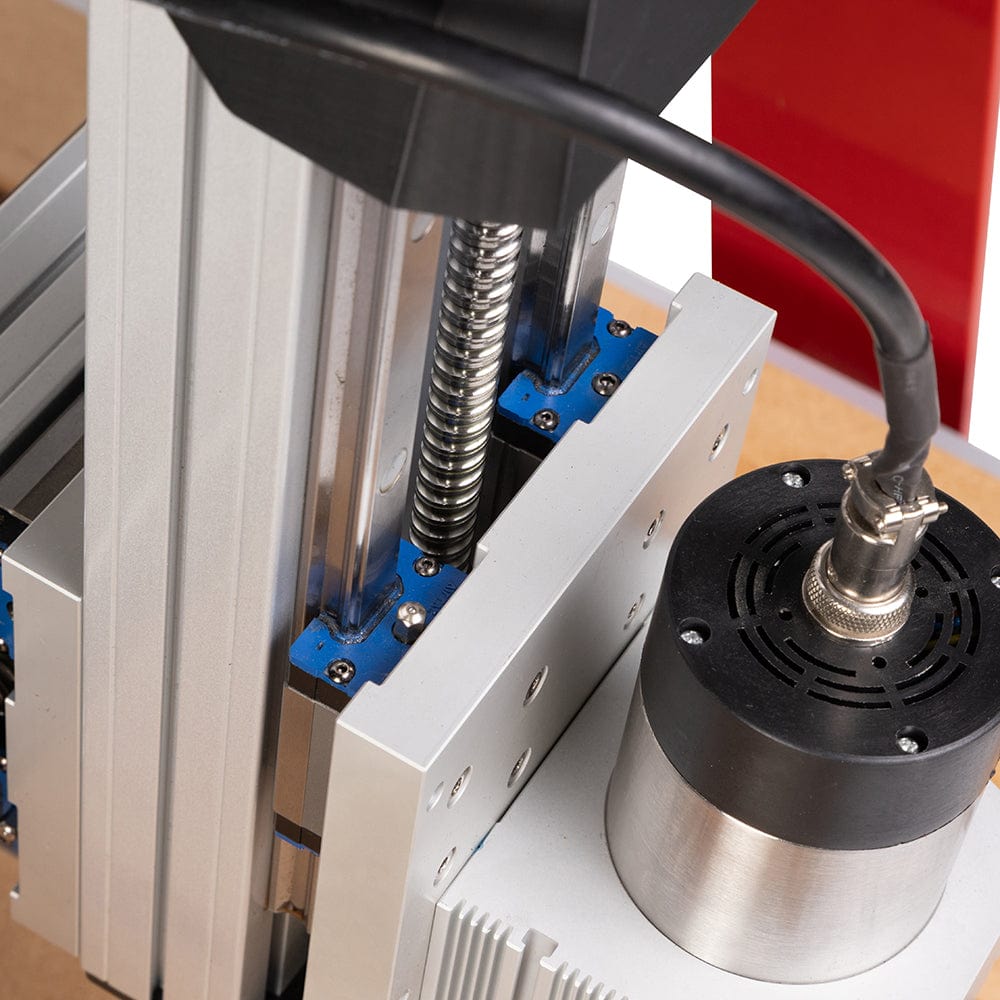

- ±0.007" accuracy with precision ball screws on all axes
- Rigid all-metal frame and extruded aluminum gantry
- 1-HP air-cooled spindle with speeds up to 24,000 RPM

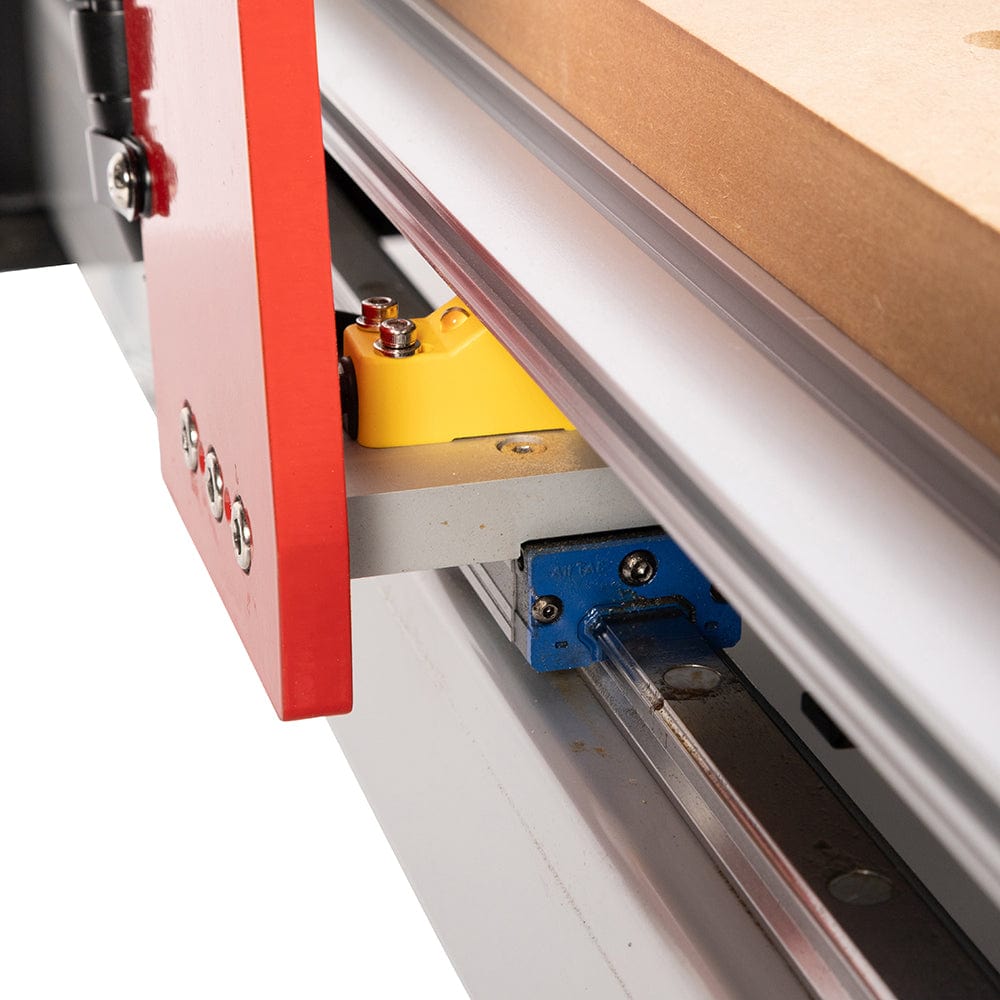

- Prismatic linear guides for smooth, repeatable motion
- Includes UCCNC software and Vectric VCarve Desktop software (Windows Compatible)
- Backed by Axiom’s expert U.S.-based support and service team
Specifications:
- Assembled Dimensions: 31.5" x 36" x 31.5"
- Cutterhead Speed: Up to 24000 rpm
- Motor: 1 HP, 5A
- Input Power: 115V Single Phase
- Motor Voltage: 220V
- Collet: 1/8" and 1/4"
- Spindle Taper: ER11
- Table Length: 24"
- Table Width: 24"
- X-Axis Travel: 24"
- Y-Axis Travel: 24"
- Z-Axis Travel: 5.5"
What's Included:
- 2x2 CNC Router Model AX1-101
- Access Accessories Kit (open wrench, chuck, puck, pads, power cord, etc)
- Spindle
- Leveling Pad (set of 4)
- 7 Board Set (5) 80mm boards, (2) 65mm boards
- Amana ER11 Spring Collet 1/4
- Amana ER11 Spring Collet 1/8
- RJ45 Ethernet cable
