WoodRiver

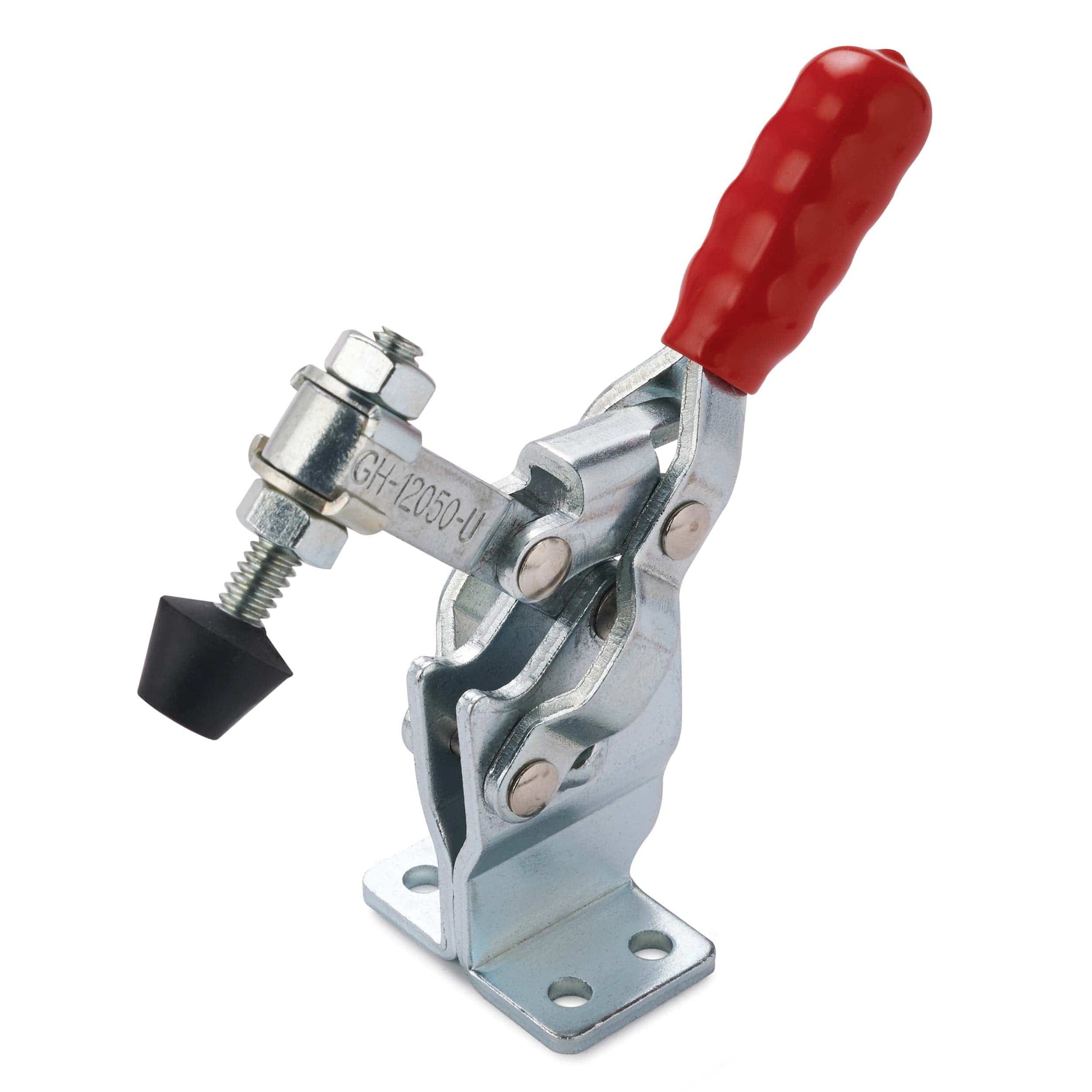

Vertical Handle High Base Toggle Clamp

Item #172983 Model GH-12050-UHB
$ 18 99
$ 18 99 Was $18.99
  • Vertical Handle High Base Toggle Clamp 1-5/16 x 29/32, 200lb alt 0
  • Vertical Handle High Base Toggle Clamp 1-5/16 x 29/32, 200lb alt 1
  • Vertical Handle High Base Toggle Clamp 2-7/8 x 1-1/8, 500lbs alt 0
  • Vertical Handle High Base Toggle Clamp 2-7/8 x 1-1/8, 500lbs alt 1
1 4

WoodRiver

Vertical Handle High Base Toggle Clamp

Item #172983 Model GH-12050-UHB
$ 18 99
$ 18 99 Was $18.99
This WoodRiver® Vertical Handle High Base Toggle Clamp can apply vertical clamping pressure with the handle that locks in a vertical/up position. Best used when positioned. . . View More Details
Capacity
In Stock Online Shipping Info
Items you may need

  • Tape Measure - Lefty / Righty

    $ 10 99
    $ 10 99 Was $10.99
    LEFTY/RIGHTY 16' (1) alt 0

  • Dry Longlife Automatic Pencil

    $ 16 99
    $ 16 99 Was $16.99
    Dry Longlife Automatic Pencil alt 0

  • General Utility Mens Gloves, Coyote, Medium

    $ 18 99
    $ 18 99 Was $18.99
    General Utility Mens Gloves, Coyote, Medium alt 0

  • Toggle Clamp - 5/16"-18 x 6" Swivel Foot

    $ 5 99
    $ 5 99 Was $5.99
    Toggle Clamp - 5/16"-18 x 6" Swivel Foot alt 0

  • Toggle Clamp 5/16"- 18 x 2" Swivel Foot

    $ 5 69
    $ 5 69 Was $5.69
    Toggle Clamp 5/16"- 18 x 2" Swivel Foot alt 0

  • Speed Set Wood Glue

    $ 5 99
    $ 5 99 Was $5.99
    182588.0

Details

This WoodRiver® Vertical Handle High Base Toggle Clamp can apply vertical clamping pressure with the handle that locks in a vertical/up position. Best used when positioned away from the operator; handle can be pulled up into locking position or pushed back to release. This toggle clamp is a great addition to any table for keeping material in place.

Features:


  • Quick clamping action
  • Installs on jigs and fixtures or movable bases
  • Common uses include securing a piece for sawing, sanding, and drilling
  • Provides up to 500 lb of holding capacity

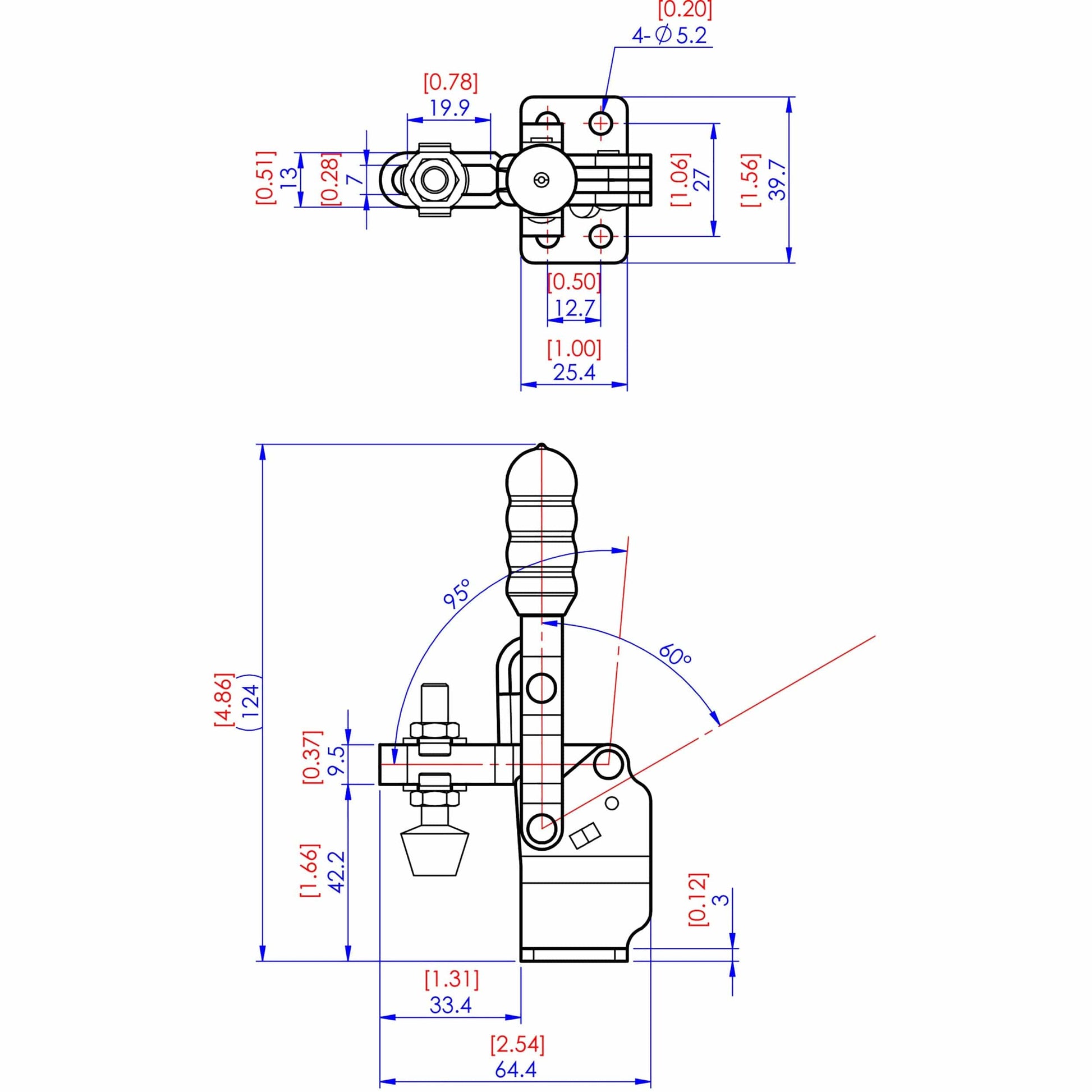

Specifications:

  • Arm Length: 2-7/8"
  • Base Height: 2-1/4"
  • Maximum Thickness Under Foot: 1-1/8"
  • Adjustable Rubber Pressure Tip: 5/16" x 18
  • Holding Capacity: 500 lb.

What's Included:

  • (1) WoodRiver® Vertical Handle High Base Toggle Clamp - 2-7/8" x 1-1/8" - 500 lb Capacity
