View a Larger Image of Guide Rail 4' x 8' Kit
WoodRiver
Item 150006

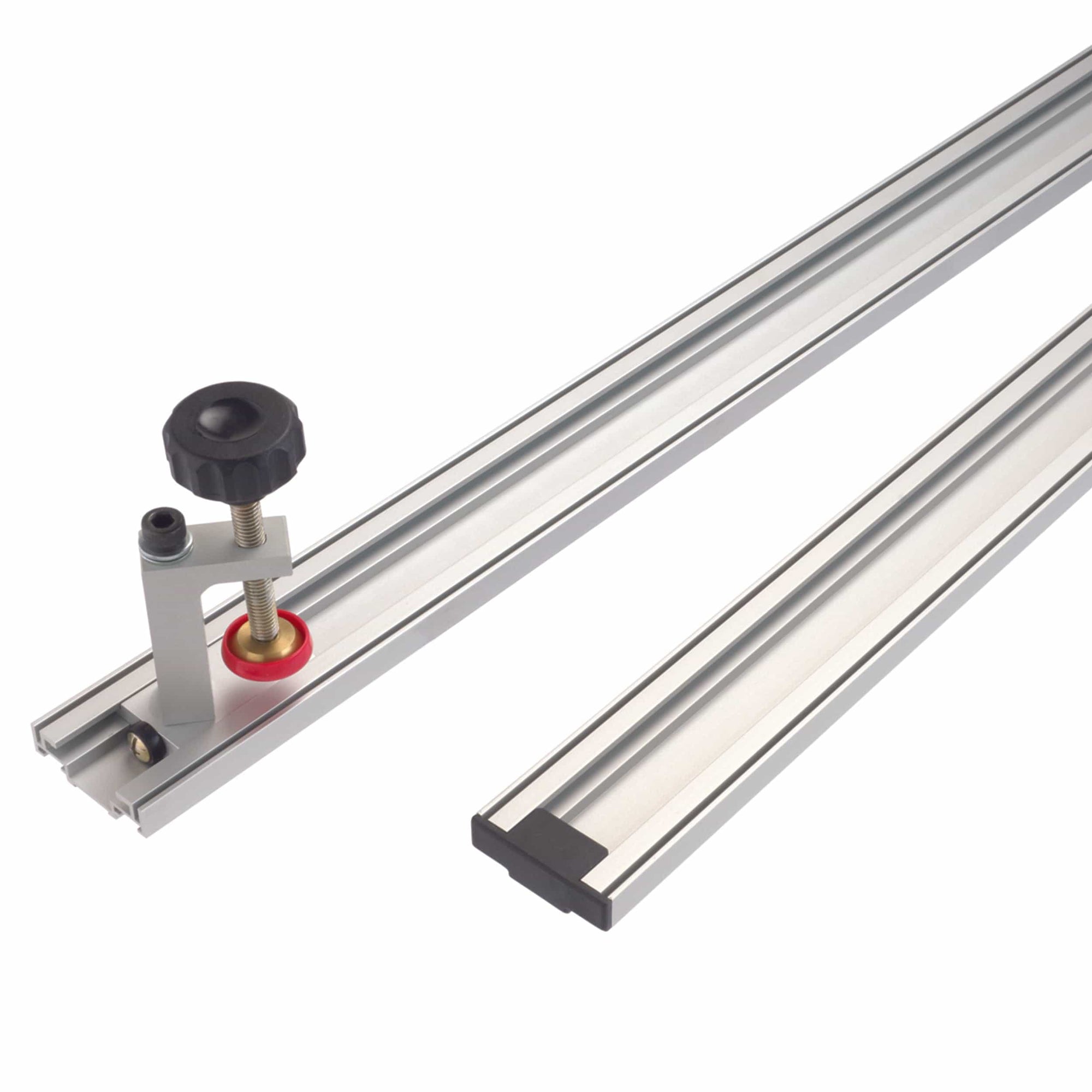

Guide Rail 4' x 8' Kit

$79.99

This item has an additional shipping charge

This system will allow you to place a tool guide for ripping, crosscutting or routing at an acute angle on any size panel. 56" Guide rail component features same heavy-duty aluminum extrusion used...

This kit includes the following items:

  • 56" WoodRiver Guide Rail
  • Guide Rail Connector
  • Guide Rail Clamp Pair

You May Also Like

Details

This system will allow you to place a tool guide for ripping, crosscutting or routing at an acute angle on any size panel. 56" Guide rail component features same heavy-duty aluminum extrusion used in the WoodRiver clamp guides. Guide rail component has 2-1/8" x 1/2" profile with integral 1/4" T-tracks. Guide rail connector locks together multiple guide rails to form a continuous guide for your circular saw or router across any length material. Guide rail clamps secure the guide rail at each end. Clamps swivel about the “T” shaped anchor at any angle. Clamps can be placed at any position along the underside of the guide rail extrusion. Unique angle jig acts as a miter gauge for the guide rail system. The angle jig references any angle from the edge between plus or minus 60 degrees. The angle jig has positive stops at 90 degrees, plus or minus 30 degrees, plus or minus 45 degrees and plus or minus 60 degrees.



  • 56" guide rail component features heavy-duty aluminum extrusion
  • Guide rail component has 2-1/8" x 1/2" profile with integral 1/4" T-tracks
  • Guide rail connector locks together multiple guide rails to form a continuous guide
  • Clamps swivel about the “T” shaped anchor at any angle
  • Guide rail clamps secure the guide rail at each end

Videos

Reviews

4.2 out of 5 stars
10 Reviews
  1. 5.0 out of 5 stars
    by on

    Great gift for son-in-law

    Son-in-law loves it. It was far better than the one he requested for his birthday

  2. 5.0 out of 5 stars
    by on

    Very satisfied

    Good product good service I woud order from them if I need anything else.

  3. 4.0 out of 5 stars
    by on

    Heavy duty guide

    Strong well built straight edge system with integrated clamps. I have used a cheaper straight edge that you get from the "big box" store for years. This guide is much better. The integrated clamps really save time, and stay out of the way of your cutting tool. You have to place the guide offset from your cutline. I use combination square, or custom made "story stick" to quickly set the offset. No problem. The only problem (one star off for this) is the plastic ends pop out VERY easily. The first time I picked up the tool, the clamps slid down, popped out the plastic, and went right on the floor. GRAB THE CLAMP FIRST solves the problem, but it would be nice if the ends would hold them in.

  4. 4.0 out of 5 stars
    by on

    "Too much whiz and not enough bang"

    I think it should improve the graphic description of the product, in this case the kit as one tends to think that the offer includes all the items that appear on the right side of your website. For the rest the tool is very good and covers all my expectations. Best Regards Mauricio

  5. 5.0 out of 5 stars
    by on

    Time saver at it's best!

    ANY and all

  6. 3.0 out of 5 stars
    by on

    A little too flexible on long cuts

    I watched the video which stated that it was very rigid and bought it at the local Woodcraft. Guess what? It isn't that rigid. My first 8 foot cut with a jigsaw was pretty curvy. Should track better with the circular saw. It flexes too much. Other than that it works well. The clamping system is tight and out of the way.

  7. 4.0 out of 5 stars
    by on

    I would buy this product again

    It's a pleasure to cut plywood

  8. 4.0 out of 5 stars
    by on

    It does what it says

    It is pretty straight forward. I primarily use it to rip plywood since I don't own a table saw and it improved my line cutting tremendously.

  9. 4.0 out of 5 stars
    by on

    Works pretty well

    The rail connector mechanism could align the rails more securely. There was a small tendency for it to come loose. I'd like to see a more positive locking mechanism (using a cam perhaps). Of course, since there are no instructions, it is possible that I was doing something wrong. In the end, I cross braced the join between the rails to prevent absolutely any side movement, which worked well.

  10. 4.0 out of 5 stars
    by on

    very good

    I buy many small items that are needed for my customers. [...] I have a small custom and furniture repair shop which prohibitives me from paying to much as I must pass it on to the customer.
