Build your own personalized growth chart using this WoodRiver® growth chart router jig – a modular router template to use with your favorite plunge router (3/8" router bushing and 1/4" router bit sold separately). If you're looking for how to grow router projects that create lasting family keepsakes, this jig provides a simple and accurate solution. Finished growth charts make great heirloom gifts to document and measure the progress as your children, or grandchildren, grow to maturity. Designed for use with 7-1/4"-wide board. Features: Use this router jig to build your own personalized growth chart Modular router template for use with your favorite plunge router Make for a great heirloom gift Specifications: Construction: Machined from .30-thick acrylic Calibrations are in 1" increments Compatibility: Use with 3/8" Porter-Cable style router bushing and 1/4" router bit (sold separately) What's Included: (1) Growth Chart Router Jig - including master template, 6 number inserts, and edge locating pins Notes: Designed for use with 7-1/4"-wide board
WoodRiver
Growth Chart Router Jig
WoodRiver
Growth Chart Router Jig
Frequently Bought Together
-
Current product. Always included in the bundle total and cannot be deselected.
WoodRiverGrowth Chart Router Jig$99.99 -
WhitesideUpcut Spiral Router Bit - 1/4" SH+$27.99
Whiteside
Upcut Spiral Router Bit - 1/4" SH
Item #03K33 Model RU2100Whiteside upcut spiral cutters provide a smooth cut in all plunge routing operations. Spiral design pulls waste from the cut, leaves a flat bottomed mortise, and permits accurate cuts without chatter in any wood. Machined from solid carbide, this production quality bit will provide exceptional results for serious woodworkers.
Features:- Spiral design pulls waste from the cut
- Leaves a flat bottomed mortise
- Permits accurate cuts without chatter in any wood
- Machined from solid carbide
- Shank: 1/4"
- Diameter: 1/8"
- Cut Length: 1/2"
- Overall Length: 2"
Download Vectric 03K32 FileTool #03K32-K Vectric Compatible Tool File
03K32 tool file to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve.
This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.
Installation:
To add a .tool file, open the Tool Database in your software after safely downloading the .tool file. Select the Import Option to add the downloaded .tool files into the software. Only use the .tool file for the specific Whiteside part number. By downloading any of these .tool files, you acknowledge the safety information below.
Safety:
1) Never use the .tool file for any bit other than the specified Whiteside part number.
2) Always wear eye and ear protection along with dust masks. Avoid using bits while in loose clothing. Keep hands, body, clothing and hair away from the cutter.
3) Do not remove safety guards, and be sure to always feed against the cutter rotation. Never use dull or damaged cutters.
4) Disconnect power when changing bits or making adjustments, and always leave the power disconnected when not in use.
5) Follow all safety recommendations of the power tool manufacturer.
6) Whiteside Machine Company assumes no responsibility for defects, damage, or injury (direct or indirect) caused by misuse, abuse, alteration or modification of any product (including sharpening). -
Whiteside9540-38N Precision 3/8" OD Template Guide Bushing+$19.99
Whiteside
9540-38N Precision 3/8" OD Template Guide Bushing

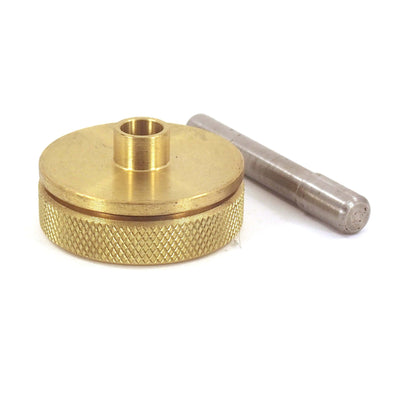

Item #148156 Model 9540-38NThis Whiteside Precision 3/8" Template Guide Bushing is machined to an exact Outer Diameter (OD) of 3/8" to allow precise centering of a bit inside jigs and templates. Many standard template guide bushings are stamped and lack the overall precision of a machined bushing. In some cases, even some machined bushings may have an OD that is inaccurate. Another problem is that some bushings can be installed such that your router bit is off-center within the bushing. In either case, it is impossible to take full advantage of your precision jig’s ability to produce perfect fitting joints.An alignment pin that mates with the 9/32” Inside Diameter (ID) of the bushing is included so the router bit will be absolutely on-center. The template guide bushing is constructed of brass and includes a matching knurled lock ring. The 3/8" OD Template Guide Bushing works with various shelf pin jigs, box joint templates and most templates. Consult your instruction manual to confirm the size bushing needed. Made in the USA.
Features:
- Precision Template Guide Bushing is machined to an exact 3/8" OD
- Alignment pin exactly matches the 9/32" ID of the bushing
- Bushing allows precise centering of the bit inside of jigs and templates
- Each template guide bushing is constructed of brass and includes a matching knurled lock ring
- Made in the USA
What’s Included:
- (1) Whiteside Precision Machined 3/8" OD, 9/32" ID Brass Template Bushing
- (1) Matching Brass Knurled Lock Ring
- (1) Matching 9/32" Alignment Pin
-
Bosch2-1/4 HP EVS Fixed and Plunge Base Router Combo Kit+$289.00
Bosch
2-1/4 HP EVS Fixed and Plunge Base Router Combo Kit
Item #822704 Model 1617EVSPKGet the best of both worlds with the Bosch® 1617EVSPK 2-1/4 HP Variable Speed Router Kit. Bosch includes a plunge base and fixed base with the powerful 2-1/4 HP motor with soft start and advanced speed-control technology. Classic hardwood handles accentuate the fixed base design. This base is perfect for upright use or use in a router table. The adjustment system offers coarse and micro-fine adjustment with resettable depth indicator. The motor housing does not rotate during depth adjustment, which eliminates horizontal movement of bit.
The Plunge Base is designed with a quick clamp system that allows removal of motor from base with ease. The fine adjustment on the depth rod gives you the ability to quickly set bit depth settings. To ensure maximum control, Bosch engineered the contoured soft grip handles to provide perfect access to the plunge release lever. Both Bases feature Bosch’s exclusive precision centering design, which centers the bit precisely and makes it easy to keep the bit on the intended cutline when using jigs, templates or dovetail jigs.Features:
- Powerful 2-1/4 HP motor with soft start
- Adjustment system offers coarse and micro-fine adjustment with resettable depth indicator
- Versatile fixed base can be used above or under the router table
- Wide openings in bases and sub-bases allow use of larger bits and provide better visibility
- Plunge base has contoured soft grip handles for enhanced control and comfort at all plunge depths
- Precision centering design centers the bit precisely and makes it easy to keep the bit on the intended cutline when using jigs, templates or dovetail jigs
- Variable speed dial for matching speed to workpiece and task
- Constant Response Circuitry maintains constant speed under load and provides overload protection
- Right or left switch and cord location
- Double insulated
Specifications
- Motor: 2-1/4 HP, 120V, 12A
- Speeds: Variable Speed Ranges from 8,000 – 25,000 RPM
- Speed Control: Dial
- Base Diameters: 6" Fixed & 6-11/16" Plunge
- Base Openings: 3-3/4" Fixed and Plunge
- Subbase Openings: 2" Fixed and Plunge
- Weight: 19.5 lb
- Model Number: Bosch 1617EVSPK
What's Included:
- (1) Bosch 2-1/4 HP VS Router Motor
- (1) Plunge Base w/ Chip Shield
- (1) Fixed Base w/ Chip Shield
- (1) 1/4" Self-Releasing Collet Chuck
- (1) 1/2" Self-Releasing Collet Chuck
- (1) Shaft and Collet Wrench
- (1) T-Handle Height Adjustment Knob
- (1) Hardware for Router Table Applications
- (1) Carrying Case
-
WoodRiverRouter Baseplate - Bosch 1617 - Plunge Base+$34.99
WoodRiver
Router Baseplate - Bosch 1617 - Plunge Base

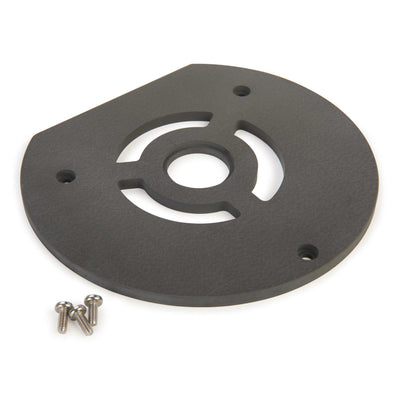

Item #184644 Model AWRJ11Upgrade your Bosch 1617 Series Plunge Router with this precision machined WoodRiver® Subbase. Made from acetal resin, this router baseplate has a naturally slippery, wear resistant surface. It is CNC machined to accept PORTER-CABLE® style router bushings and is engraved in the 12:00 position for the Leigh style bushing used with dovetail jigs.
Features:
- CNC machined from acetal resin for wear resistance
- Accepts standard PORTER-CABLE® Style Router Bushings
- Engraved 12:00 position for use with Leigh Guide Bushings
- Specifically designed to fit Bosch 1617 Series Plunge Routers
What’s Included:
- (1) WoodRiver® Plunge Router Baseplate
- (3) M4 x 0.7 x 10 mm Torx Screws
