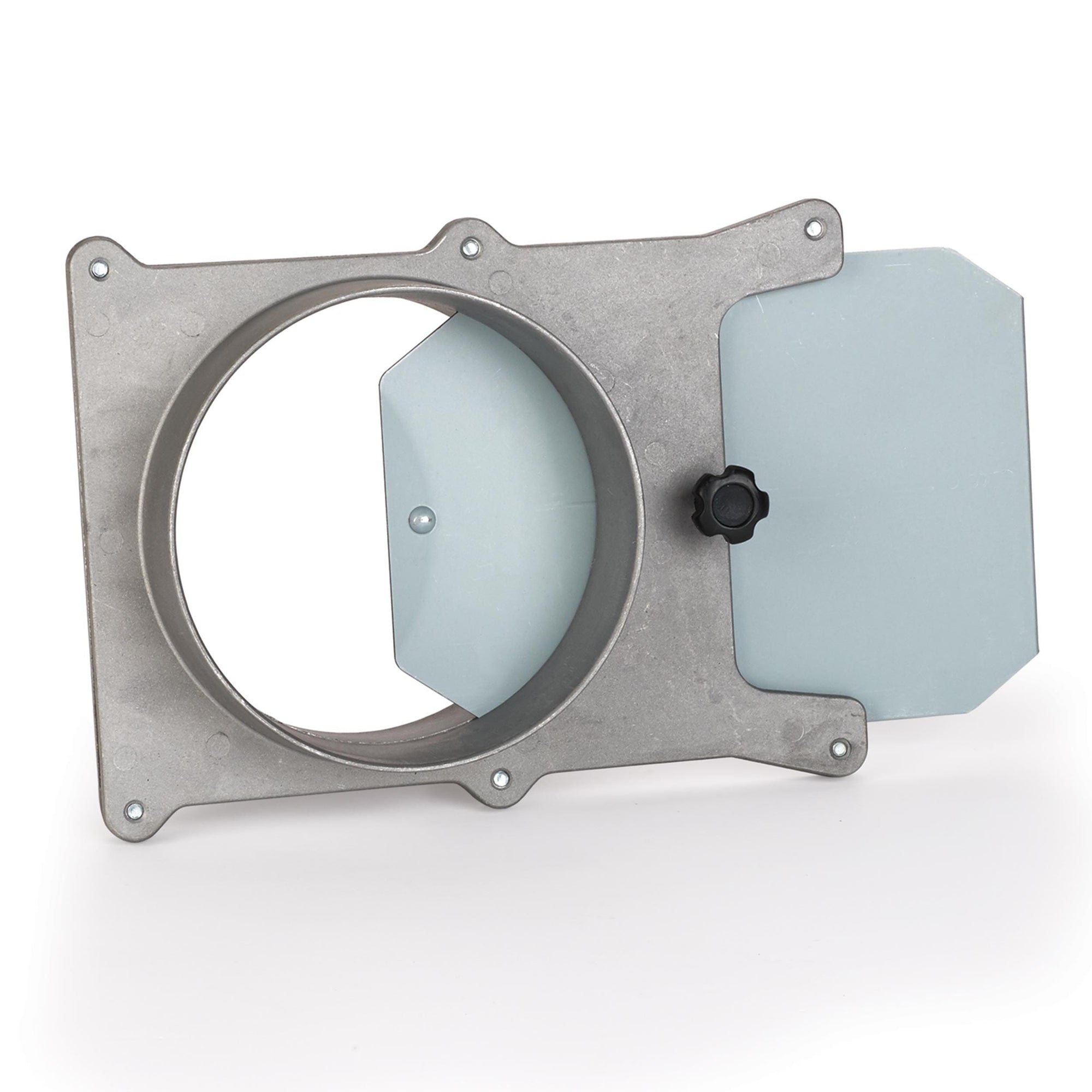

WoodRiver® Dust Connection™ Aluminum Blast Gate Dust Collection Fitting allows you to close one branch of your central dust collection system while you are using the other. Simple open or shut design has flat, steel plate that moves inside a 2-sided die-cast aluminum frame to provide a pass-through or shutoff to connect your dust collector to your system or a branch line to one of your tools. Frame is open on one end to prevent waste material from packing inside the frame to hamper operation and includes locking knob to hold gate in open or closed position. All metal fitting has overall dimensions of 8" long and 6" wide closed and 12" long and 6" wide in the open position. Each 5" OD port on either side of the gate is 1-1/4" long to provide room to slide on hose and apply hose clamps at each connection.

Features:

• Blast gate fitting allows you to shut off one branch of your central dust collection system
• Simple open or shut design has flat, square plate that moves inside a vented frame to prevent clogging
• Frame includes locking knob to hold gate in open or closed position regardless of location

Specifications:

• Overall Dimensions: 8" x 6" closed and 12" x 6" in open position
• Each 5" OD port is 1-1/4" long to provide room to slide on hose and apply hose clamps

What's Included:

• (1) WoodRiver Dust Connection - 5" Aluminum Blast Gate for Dust Collection System
