WoodRiver

Bar-Lock Expandable Clamp Set

Item #195058 Model LL-6NLVX2-ANGX2-PTC
Regular price $ 49 . 99
Sale price $ 49 . 99 Was $49.99
Skip to product information
New
1 of 5

WoodRiver

Bar-Lock Expandable Clamp Set

Item #195058 Model LL-6NLVX2-ANGX2-PTC
Regular price $ 49 . 99
Sale price $ 49 . 99 Was $49.99
Ever find that your clamps don't quite have the range that you need? The WoodRiver® Bar-Lock Expandable Clamp Set is two trigger clamps with a con. . . View More Details
In Stock Online Shipping Info

Details

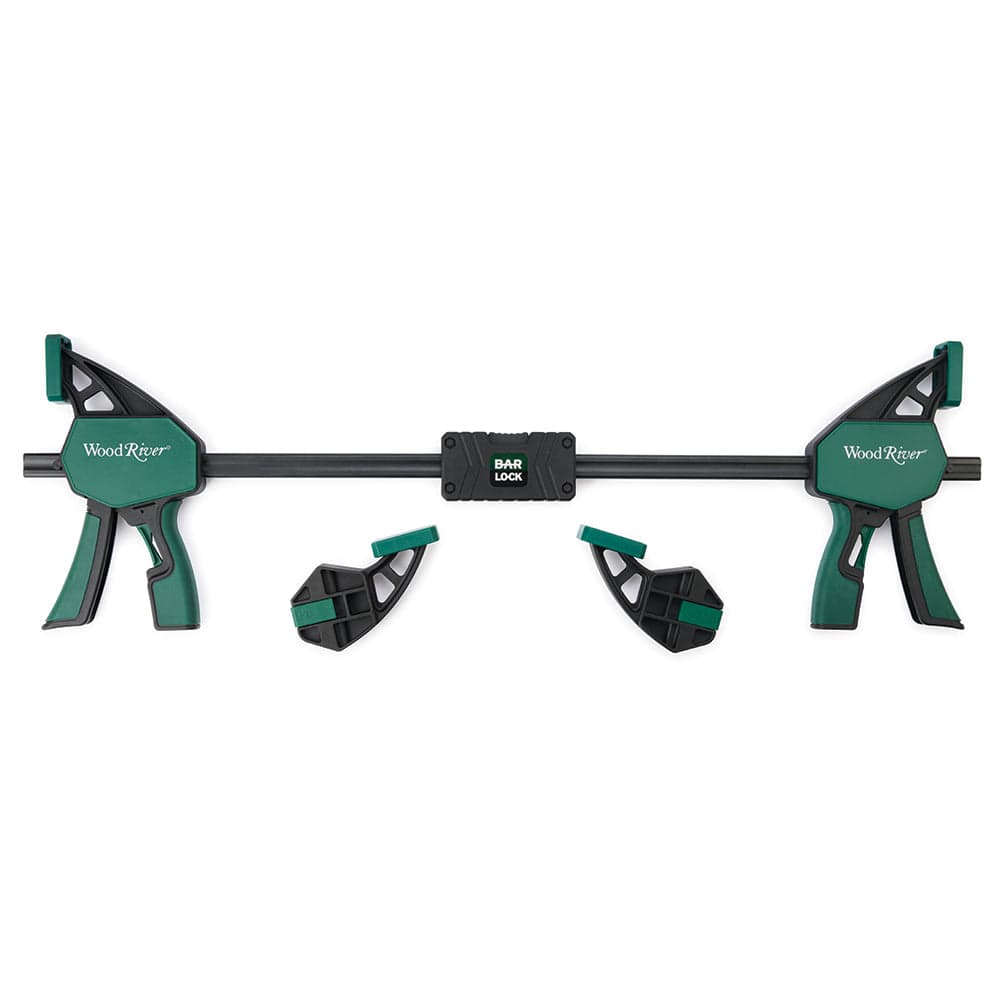

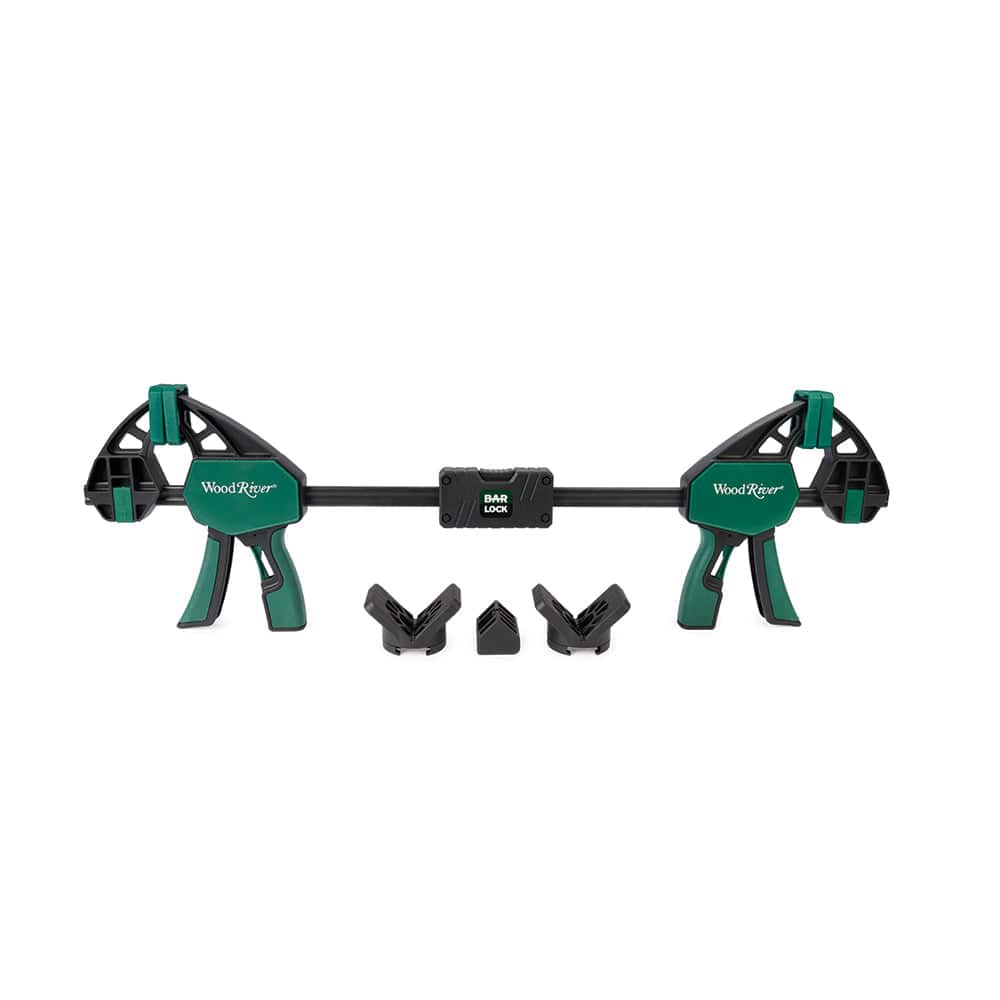

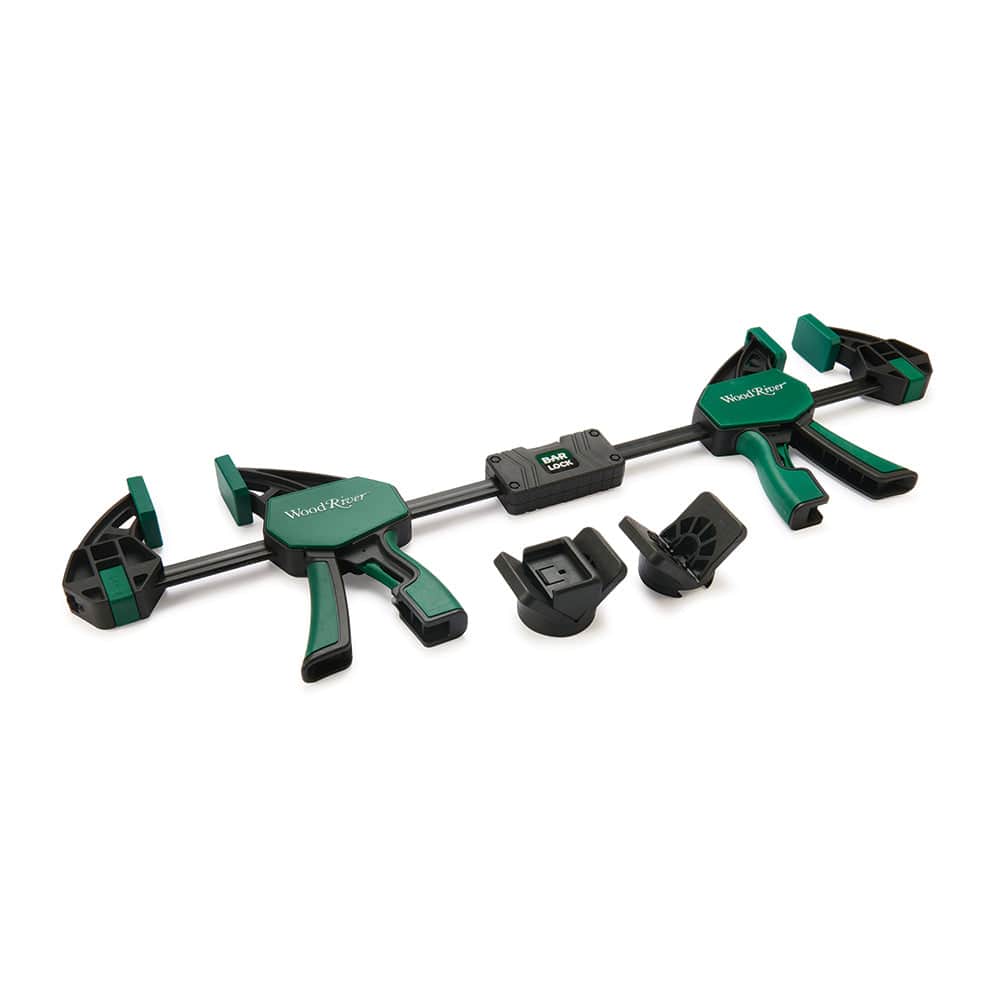

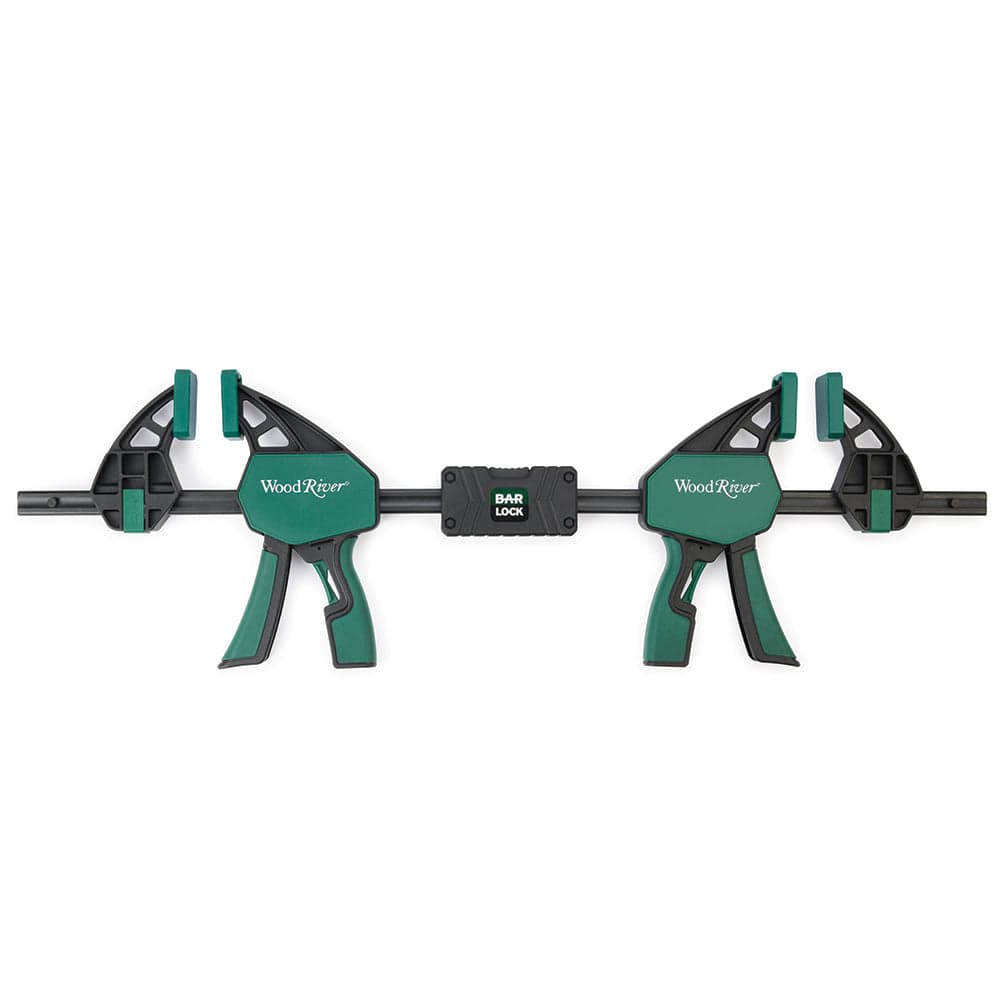

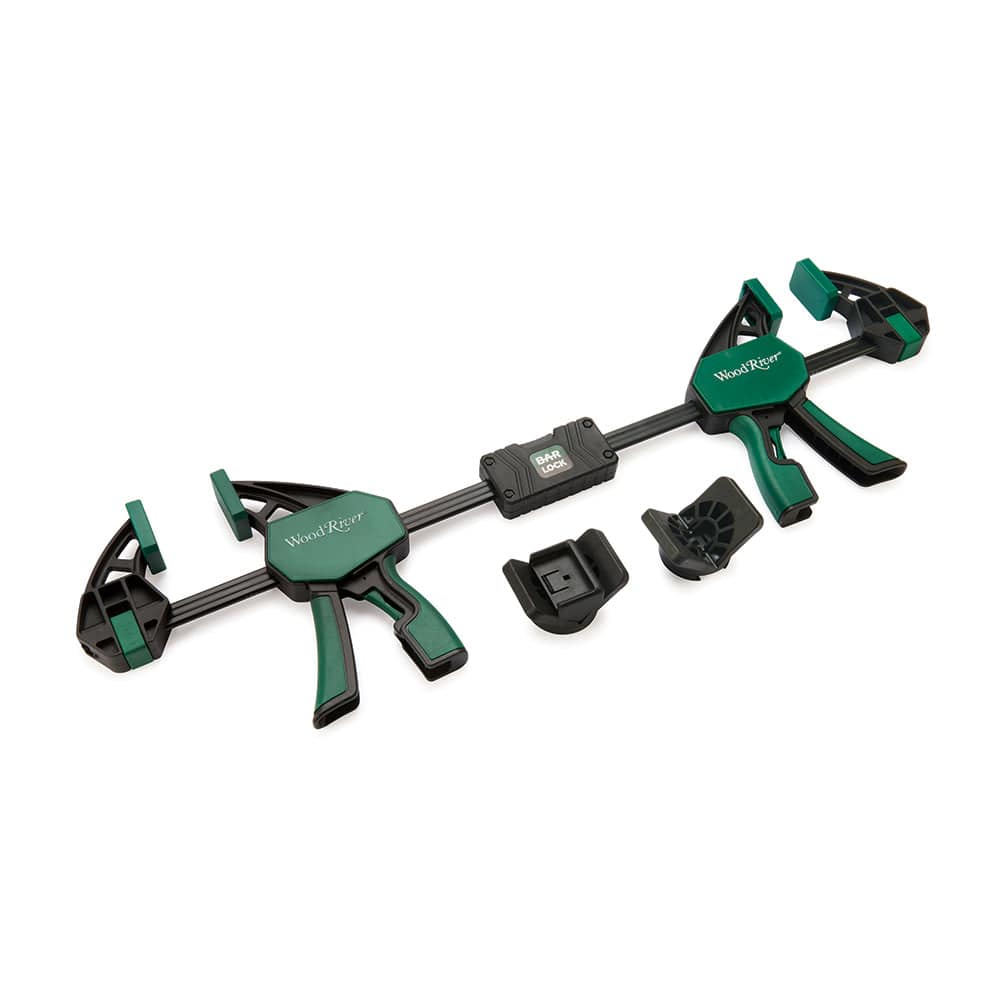

Ever find that your clamps don't quite have the range that you need? The WoodRiver® Bar-Lock Expandable Clamp Set is two trigger clamps with a connector that lets you combine them into one longer clamp or spreader. Each clamp features an ergonomic soft-grip handle and delivers up to 330 pounds of clamping force.
Built for versatility, the design also lets you convert into a spreader without the need for additional tools. Simply press the jaw release button, slide off the jaw, reposition it to the opposite end of the bar and reengage the button. For added utility, the set includes a corner clamp accessory kit for holding 90° joints in drawers, frames and similar assemblies. Additional features include protective jaw pads, a profiled steel bar and a quick-release lever.
Features (Clamps):

  • Medium-duty project clamp
  • Great for woodworking, assembly, hobby, craft, model making and general-purpose clamping
  • One-handed clamping action
  • Quickly changes from a clamp to a spreader without tools
  • Non-marring jaw pads
  • Ergonomic handles for efficient and easy-to-use squeezing
  • Profiled steel bar for dependable strength and stability

Features (Bar Lock):

  • Heavy-duty internal steel construction
  • High-impact outer plastic casing
  • Easy to use and easy to disconnect
  • Centralized release button

Features (Corner Clamp Accessory Kit):

  • Converts one-handed bar clamp into a corner clamp for secure 90° angles
  • Designed to aid in clamping 90° corners for drawers, frames and other items
  • Special mechanism can turn 90° for clamping horizontally or vertically

Specifications:

  • Clamping Range (Clamps + Connector): 3-1/4" to 17-3/8"
  • Spreading Range (Clamps + Connector): 13" to 27"
  • Clamping Capacity (Single Clamp): 5-7/8"
  • Spreading Capacity (Single Clamp): 7-1/2" to 14-1/8"
  • Clamping Force (Single Clamp): 330 lb
  • Jaw Size (W x L): 1-5/16" x 1-7/8"
  • Throat Depth (Single Clamp): 3-3/8"
  • Throat Depth with Bar-Lock Connector: 2-3/4"

What's Included:

  • (2) 6" WoodRiver Quick Action Bar Clamps
  • (1) Bar-Lock Connector
  • (1) Corner Clamp Accessory Kit
