WoodRiver

4-Way Pressure Clamping System

Item #125392 Model 125392W
Regular price $44.99
Sale price $44.99 Regular price $44.99
Skip to product information
1 of 5

WoodRiver

4-Way Pressure Clamping System

Item #125392 Model 125392W
Regular price $44.99
Sale price $44.99 Regular price $44.99
The WoodRiver® 4-Way Clamping System applies equal pressure from all four directions (top, bottom, and both sides). The ideal clamping system for glui. . . View More Details

In Stock

Shipping Info

Items you may need

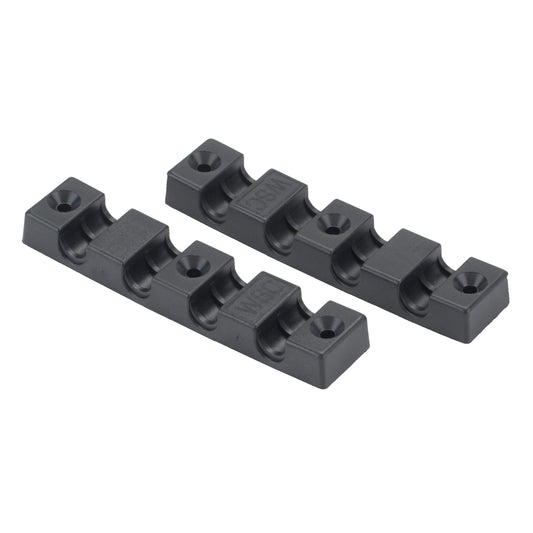

  • Clamping System Replacement Bars

    Regular price From $4.99
    Sale price From $4.99 Regular price $4.99
    SHORT CLAMP REPLACEMENT-2 alt 0

Details

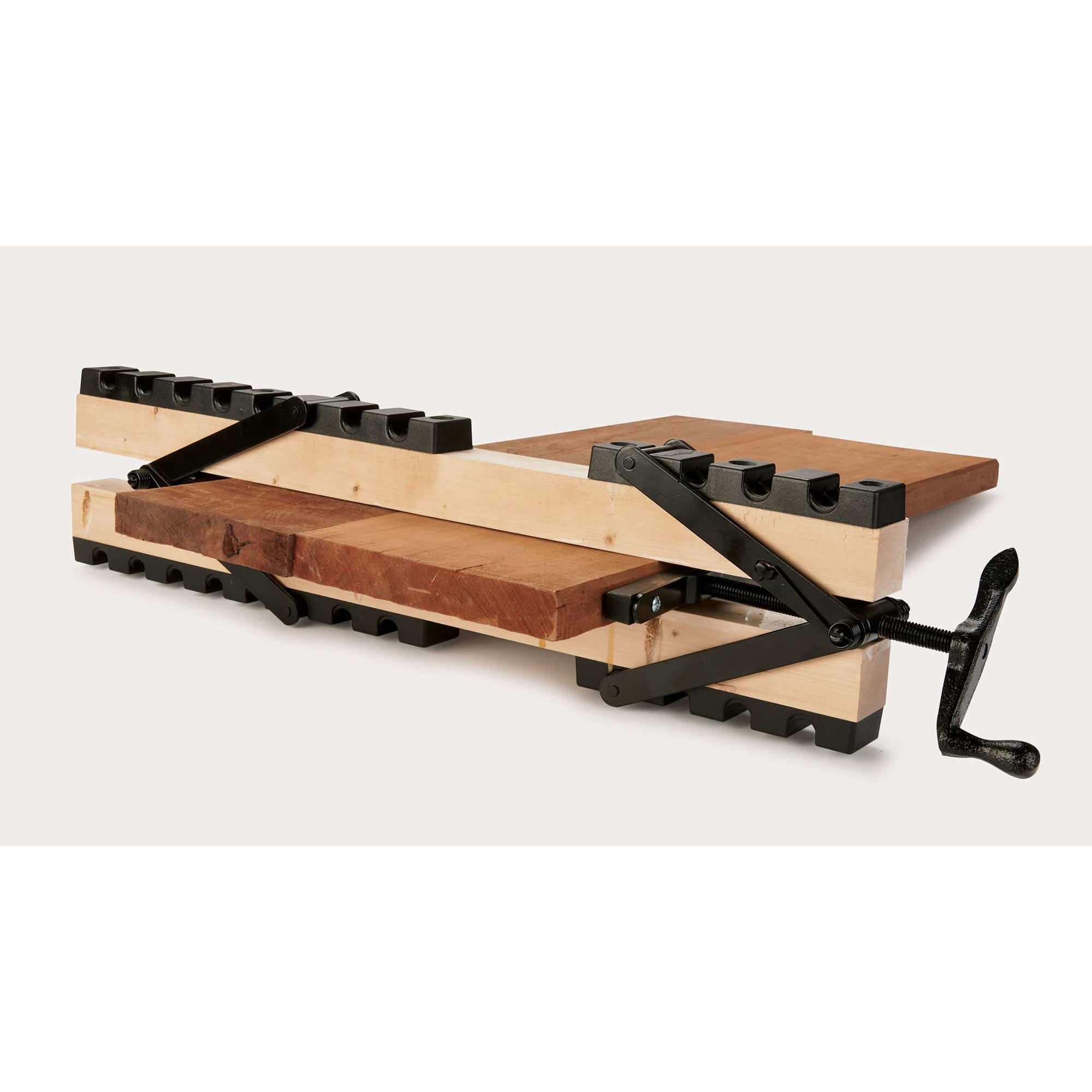

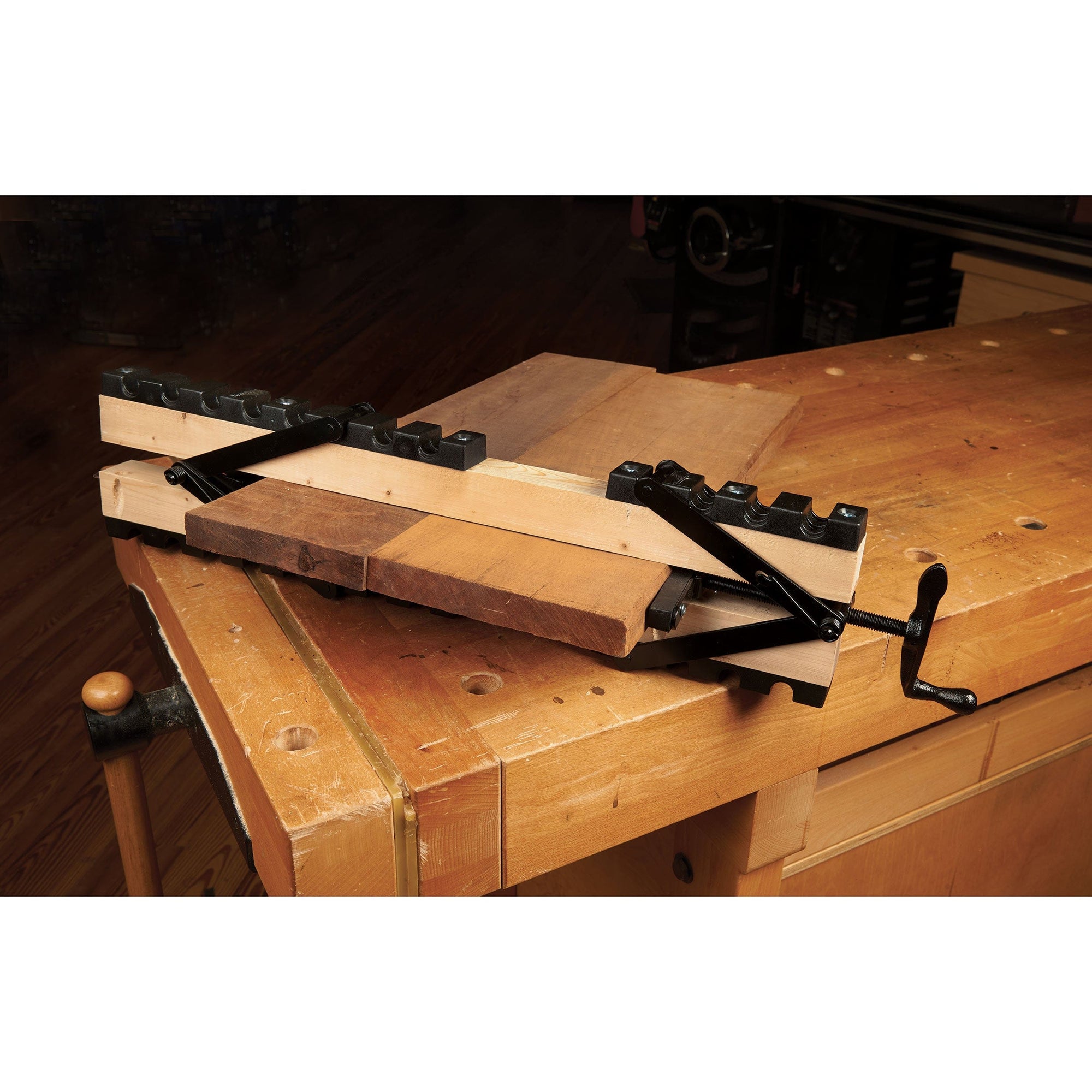

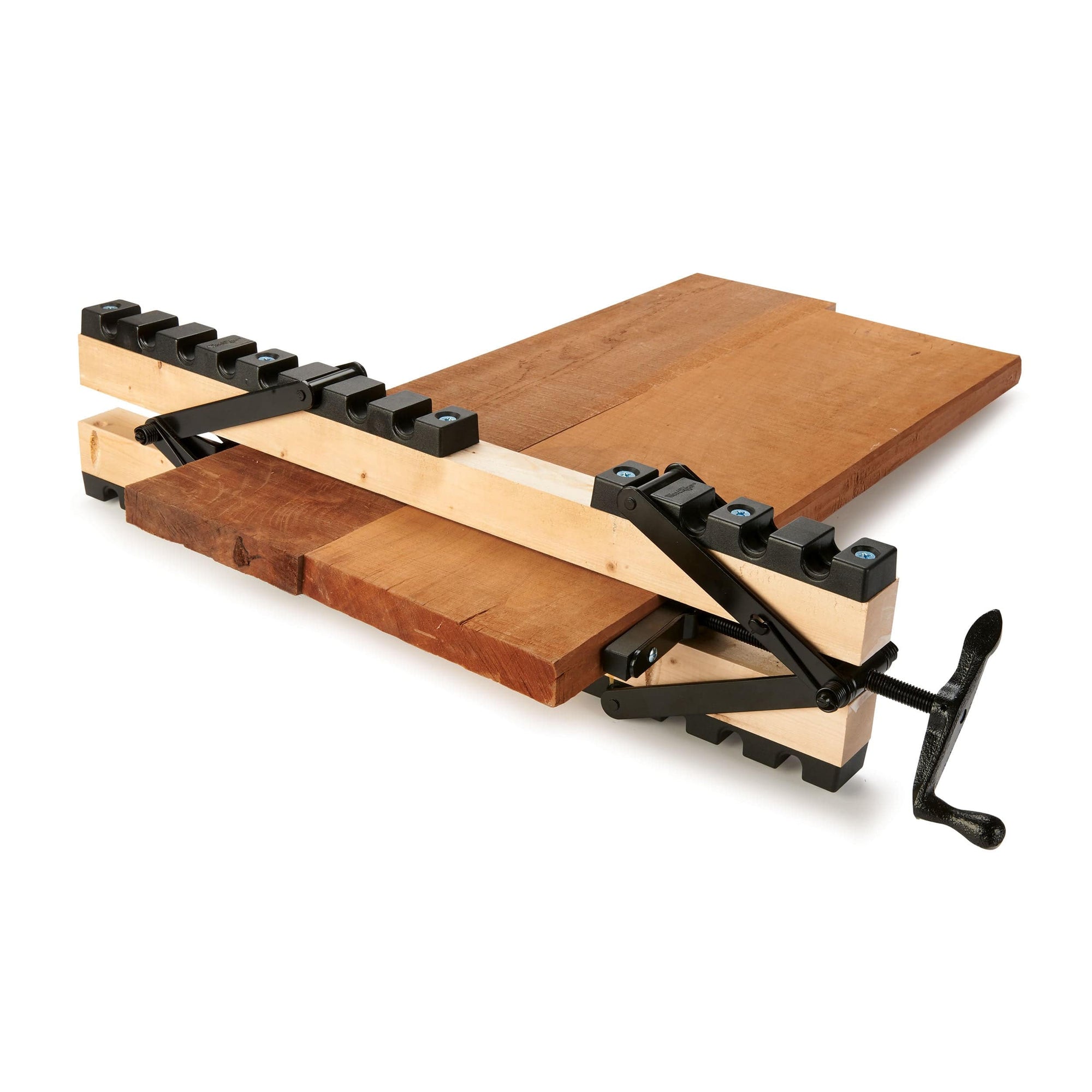

The WoodRiver® 4-Way Clamping System applies equal pressure from all four directions (top, bottom, and both sides). The ideal clamping system for gluing table tops, shelving, veneer, and laminates. This clamping system uses plastic pressure pads and two 19-1/2" tough plastic tail bars with 12 notches to handle a variety of stock widths. It can be used on boards up to 6" thick. Attach the clamps to any length 2 x 2's with the screws provided, set the jig and turn the handle to tighten (on large pieces, position every 12"- 18" for maximum clamping efficiency).

Features:
  • Four-way pressure clamping system
  • Applies equal pressure on all four directions
  • Variety of uses: table tops, shelving, veneers, laminates, and more.
Specifications:
  • Clamps under 36" long: use one 2x4 ripped in half
  • Clamps over 36" long: it is recommended that you attach the clamps to a full 2x4 on both sides
  • Clamp capacity: 6" thick

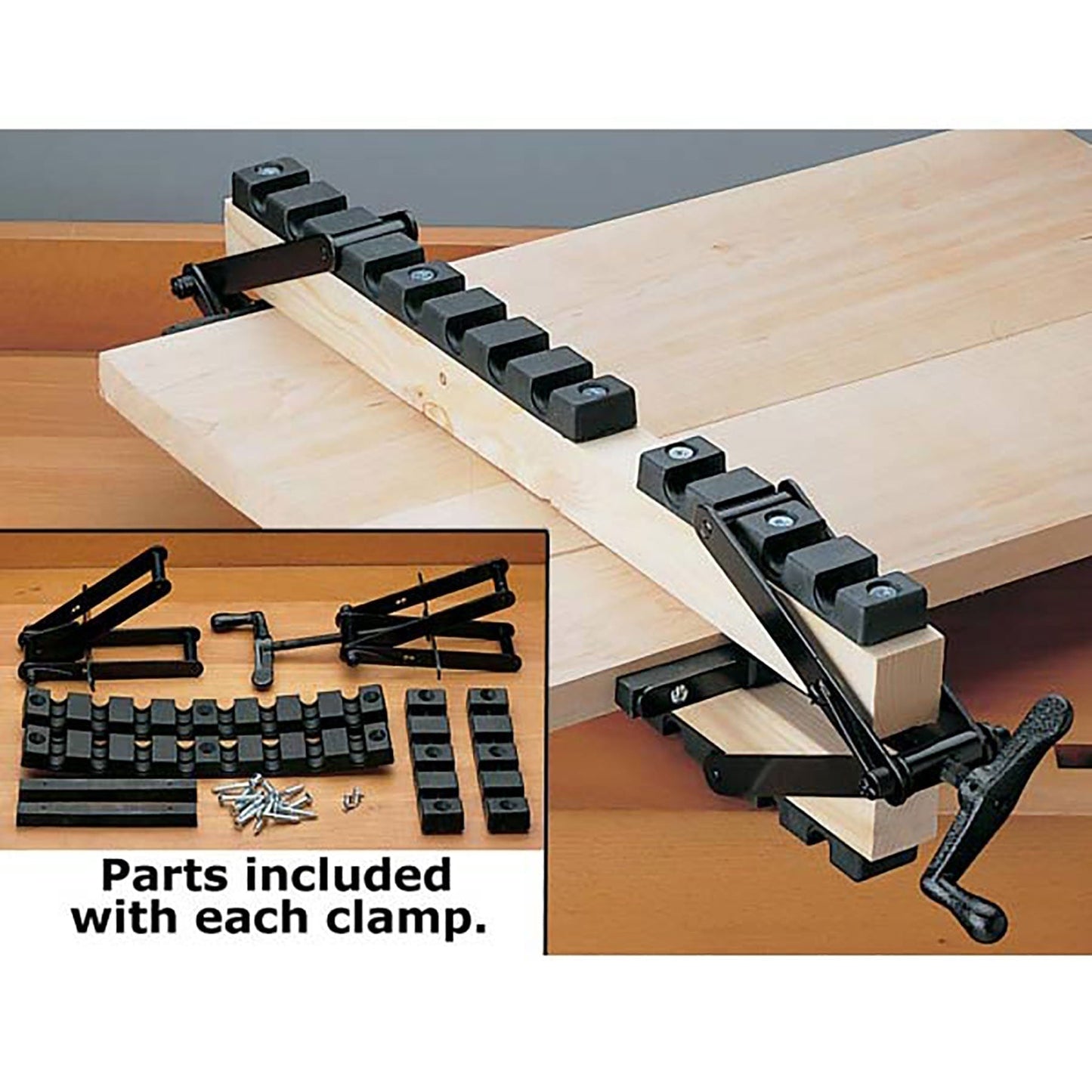

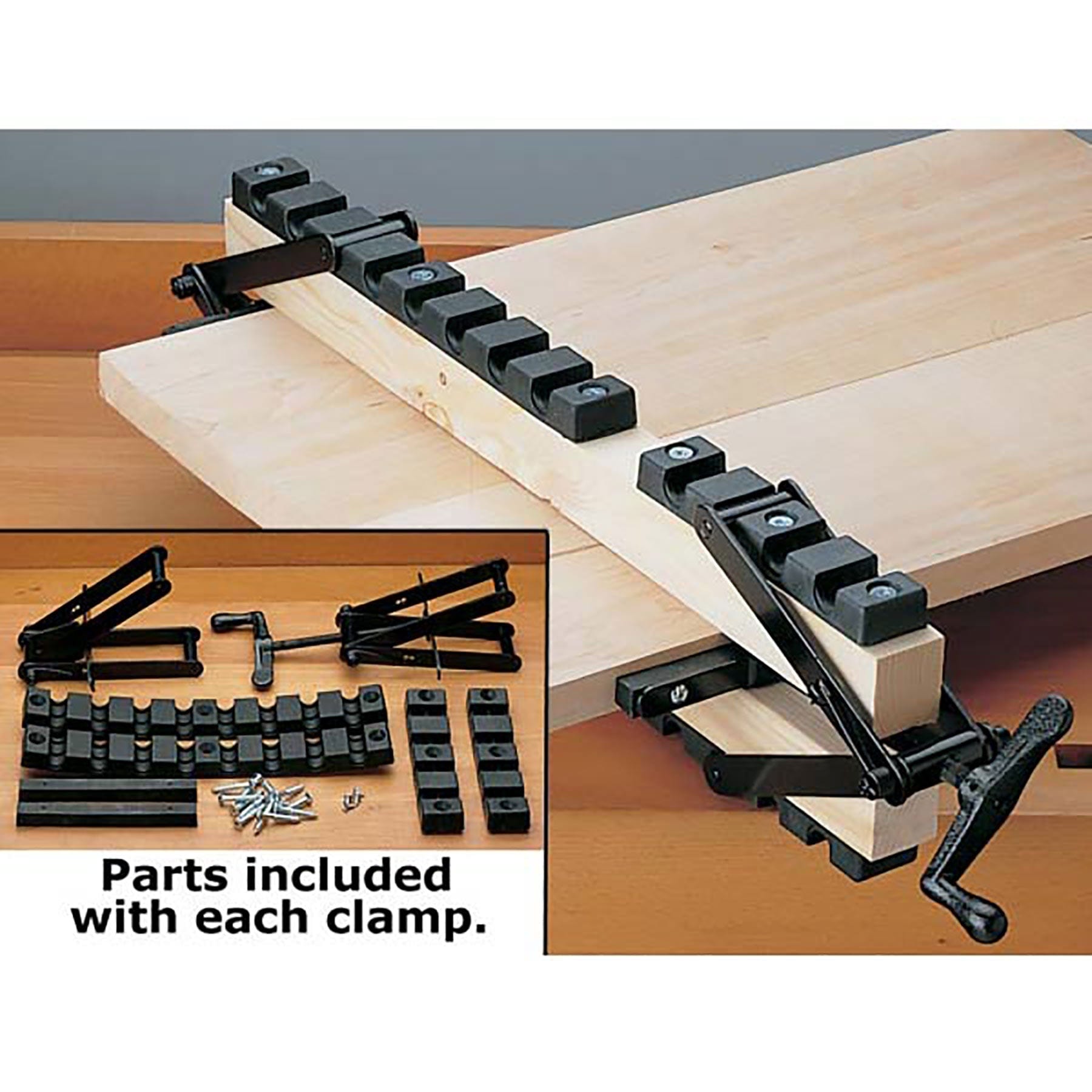

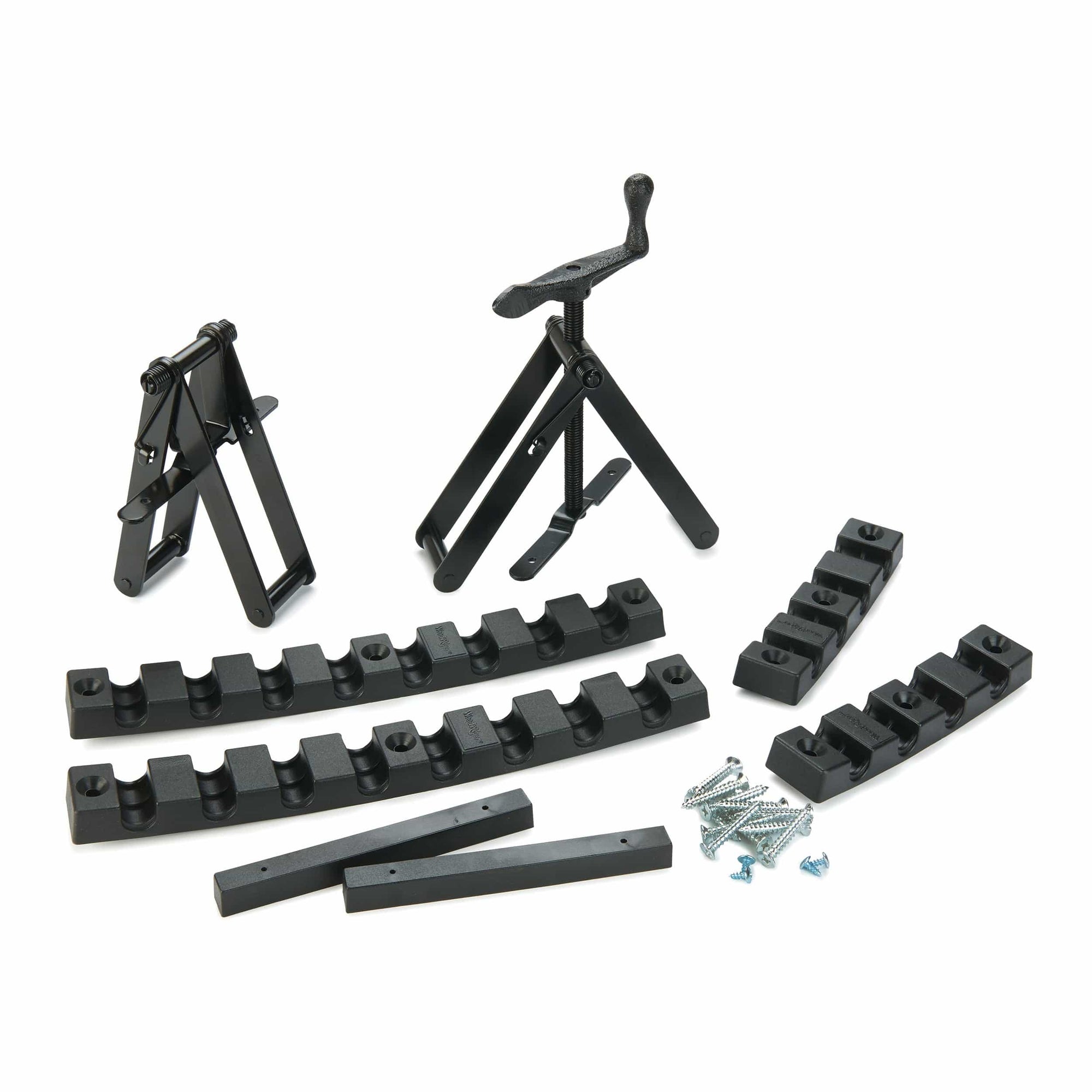

What's Included:
  • (2) Clamp ends
  • (2) Short notched bars
  • (2) Long notched bars
  • (1) Set of screws
  • (1) Complete instructions
Notes:
  • Kit includes hardware to make one 4-way clamp assembly
  • 2 x 4's (2 x 2's) not included.
  • Replacement "long" and "short" notched plastic clamping bars are available separately and may be used to make clamps in multiple sizes.
