With the Wixey™ WR300 Type 2 Digital Angle Gauge simply “zero” the device on your machine table surface, and then attach it to your table saw blade using its powerful magnets in order to display the bevel angle accurately and precisely. Large fixed display shows angles in 0.1-degree increments. New Type 2 design uses common AAA batteries. Features: Specifications: What's Included: Notes:
Wixey
Digital Angle Gauge with Backlight - Type 2 - WR300
Wixey
Digital Angle Gauge with Backlight - Type 2 - WR300
Frequently Bought Together
-
Current product. Always included in the bundle total and cannot be deselected.
WixeyDigital Angle Gauge with Backlight - Type 2 - WR300$34.99 -
OnewayMulti Gauge+$111.99
Oneway
Multi Gauge

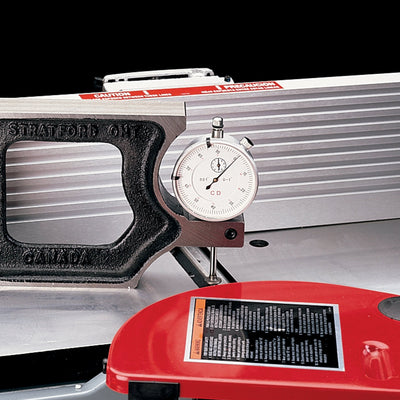

Item #126979 Model 2289This multi purpose tool revolutionizes dial indicator usage in the work shop. Originally designed for setting exact height adjustments of jointer knives and accurately setting jointer cutting depth, uses for this versatile tool do not stop here. The solid 1-1/4" thick cast iron frame is precision machined at 90 degrees on three sides so you can check squareness of, or accurately position, joiner fences, saw blades or tilting tables of scroll saws and drill presses. The dial indicator has 1-1/32" of travel for a full 1" measurement in .001" increments. Dial indicator includes a round tip for checking run out and flat tip for saw blade, dado head, or router bit height adjustments.- Solid 1 1/4 " thick cast iron
- Machined 90 degrees on three sides
- Includes dial indicator
-
WixeyPlaner Digital Readout - Height Gauge+$94.99
Wixey
Planer Digital Readout - Height Gauge

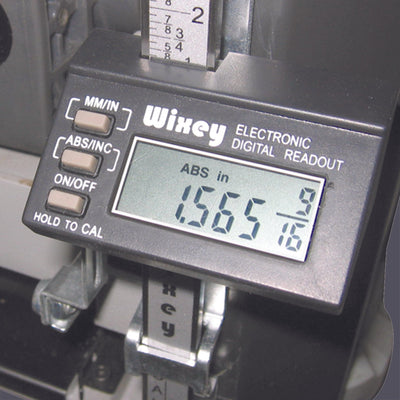

Item #146096 Model WR510Replace the inaccurate stock height gauge on your portable planer and stop constantly using calipers to check stock thickness! Most digital calipers only read out in decimal measurements, forcing you to do the mental math to convert to fractions. If your stock is measuring .575" and you need 9/16", how much do you need to remove with your next pass through the planer? With the Digital Planer Height Gauge simply lower your planer until the gauge reads .565 - 9/16. It can't get any easier! A unique gauge reads out both decimal and fractional measurements. Fits most portable "lunch box" style planers. Easy to follow installation instructions.
Features:
Fits most portable "lunch box" style planers
Precise measurements
Replaces inaccurate stock height gauge
Displays decimal and fractional inch measurements or millimeters
Easy to follow instructions for installation and calibration
Uses common AAA batteries
Specifications:
Measuring Length: 6" (155 mm)
Resolution (Decimal): .005"
Resolution (Fraction): 1/32"
Resolution (Metric): .1 mm
Accuracy (Decimal): +/- .0025"
Accuracy (Fraction): +/- 1/500"
Accuracy (Metric): +/- .05 mm
Battery: 2 AAA (not included)
Functions: Constant memory retains calibration even when OFF; incremental measuring mode; absolute measuring mode; millimeter, inch and fraction readout; auto shut off
What's Included:
(1) Wixey - WR510 - Planer Digital Readout - Height Gauge
-
WixeyDigital Height Gauge with Fractions+$79.99
Wixey
Digital Height Gauge with Fractions

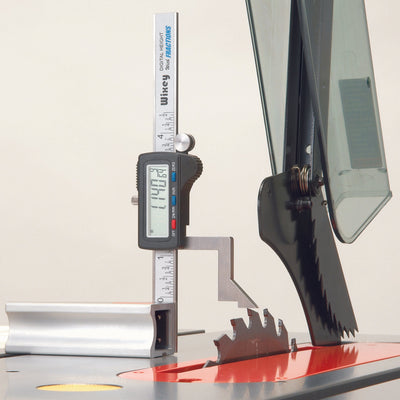

Item #148380 Model WR200You no longer need to align a rule or mess with set up blocks when you're trying to accurately set router bit or table saw blade height. The 1-1/2" x 4" base features a magnetic strip to help hold the gauge in position while the large digital readout lets you set your cutter height to exactly the depth you need. Fast, accurate and repeatable cutter height setting allows you to make precise cuts and repeat your set ups. The shape of the anvil lets you use the gauge to set router fence position up to 4-1/2". Displays both fractions and the decimal equivalent at the same time so you know your fraction is exactly on, not rounded up or down like other fraction read outs. Accurate to +/- .001", 1/500", or .025mm- Reads fractions and decimals
- Magnetic base
- Accurate to +/- .001"
- Set router bit or table saw height
-
Micro MeshSanding Stick Assortment - 1/2" x 5-3/4" - 9 Piece+$16.99
Micro Mesh
Sanding Stick Assortment - 1/2" x 5-3/4" - 9 Piece
Item #150860 Model 4NWDVRTroubled with polishing those hard to reach areas, or smaller turnings? Not any longer, Micro-Mesh has solved that problem with the Sanding Sticks. The smaller size will now allow you to polish those smaller and more detailed areas. These 1/2” x 5- 3/4” foam backed sticks are coated with an abrasive crystal that will last up to 15 times longer than normal abrasives. Kit includes one each of 1500, 1800, 2400, 3200, 3600, 4000, 6000, 8000, and 12,000 grit sticks.
Features:
- Use to smooth jagged edges, protrusions and raised particles from contoured areas
- Great for small projects
- Use a utility knife to tailor shape them
- Re-usable and last a very long time
Specifications:
- Dimensions: 1/2" x 5-3/4"
- Grits: 1500, 1800, 2400, 3200, 3600, 4000, 6000, 8000, 12,000
- Applications: Metal and wood finishing
What's Included:
- (1) Micro Mesh Sanding Stick Assortment - 1/2" x 5 3/4" - 9 Piece
-
WixeyMini Digital Height Gauge+$29.99
Wixey
Mini Digital Height Gauge

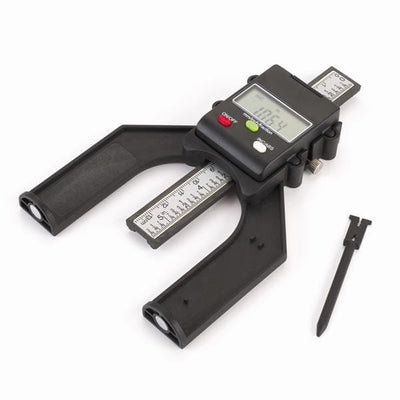

Item #153811 Model WR25Wixey™ digital readout products, noted for superb quality and ease of use, now include a Mini Digital Height Gauge. Accurately adjust the height of a router bit, or saw blade, in seconds with this large easy-to-read digital gauge. The display, which can be adjusted for fractions or millimeters, lies flat to fence, blade or bit for quick positioning, has a locking rule for repeat settings and includes a depth measuring attachment. Measures heights up to 3" and depths to 2", with 1/32" resolution and an accuracy of +/- .004". Includes battery and instructions.
Features:
- Adjustable to the height of router bit or saw blade
- Lies flat for quick positioning
- Includes battery and instructions
Specifications:
- Maximum Height: 3"
- Maximum Depth: 2"
- Resolution: 1/32"
- Accuracy: +/- 0.004"
What's Included:
- (1) Wixey™
- (1) Battery
- (1) Instructions
-
WixeyDigital Angle Gauge with Level+$54.99
Wixey
Digital Angle Gauge with Level

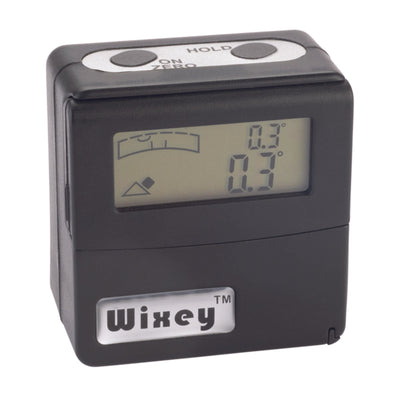

Item #154507 Model WR365The Wixey™ WR365 Digital Angle Gauge with Level is a compact and versatile tool that helps woodworkers and metalworkers precisely measure angles. It's now easy to achieve perfect pre-set stops or set your saw for any angle in between. Tired of leaning over and trying to "see light" between a square and your table saw blade to get exact 90 or 45° cuts? Need 22.5° for that curio cabinet corner? Now it's easy to achieve perfect pre-set stops or set your saw for any angle in between. Set the Wixey Digital Angle Gauge on your table saw top, close to the blade, and push the zero button, then attach it to your blade with the built-in magnets. Adjust your blade until the desired angle appears on the easy-to-read digital display. The display is in 0.1° increments. Count on the Wixey Digital Angle Gauge to give you accurate angle settings every time.Features:
- Precisely set the angle of your saw blades, jointer fences, drill press tables and more
- Super strong magnets securely attach the gauge to saw blades and other metallic surfaces
- Flip up display for easy reading in any light
- Built-in level uses patent pending Dead Level technology
- Uses standard AAA batteries for up to 2 years life
- Convenient “Hold” feature
Specifications:- Range: +/- 180°
- Resolution: 0.1°
- Accuracy: +/- 0.2°
- Repeatability: +/- 0.1°
- Size: 2.2” x 2.3” x 1.3”
- Power: Two AAA batteries (not included)
- Functions: On/Off, Zero, Hold, Auto shut-off
What's Included:- (1) Wixey® Digital Angle Gauge With Level
-
WixeyRemote Planer Readout+$115.99
Wixey
Remote Planer Readout
Item #159489 Model WR550Replace the inaccurate stock height gauge on your stationary planer or thickness sander and stop constantly using calipers to check stock thickness! With the Wixey® WR550 Remote Planer Digital Readout simply lower your planer cutter head until the display reads the desired thickness. Unique gauge reads out either decimal and fractional inch measurements or millimeters up to 12" thickness. Ideal for large stationary planers and sanders, this model is so flexible and versatile that with a little creativity it can be adapted to almost any machine. The kit includes all mounting hardware, drill bits, thread forming screws and easy-to-follow instructions for installation and calibration.Features:
- Fits most stationary planers and thickness sanders
- Precise measurements; replaces inaccurate stock height gauge
- Displays decimal and fractional inch measurements or millimeters
- Easy-to-follow instructions for installation and calibration
- Uses common AAA batteries
- Model Number: Wixey WR550
- Measuring Length: 12" (305mm )
- Resolution - Decimal: .005"
- Resolution - Fraction: 1/32"
- Resolution - Metric: .1 mm
- Accuracy - Decimal: +/- .002"
- Accuracy - Fraction = +/- 1/500 in.
- Accuracy - Metric = +/- .05 mm
- Battery Type: (2) AAA (not included)
- (1) WR550 Remote Planer Readout
- (1) Set mounting hardware
- (2) Drill bits - 5.5 and 3.6 mm,
- (1) Set of thread forming screws
- (1) Easy-to-follow installation and calibration instructions
-
PicaDry Longlife Automatic Pencil+$18.99
Pica
Dry Longlife Automatic Pencil
Item #160111 Model 3030The versatile Pica-Dry® Longlife Automatic Pencil marks and writes on all surface materials, as well as dusty, raw, oily, wet and dark surfaces, and can be wiped off glossy surfaces with a wet tissue.
Features:
- Writes on all surface materials
- Automatic lead support
- Built-in sharpener in the front of the cap
- Stainless steel tub
- Convenient quiver cap with special clip
What's Included:
- (1) Pica-Dry - 3030 Longlife Automatic Pencil
Notes:
- Item #160112 - Pica® Dry Refill Set #4020, Assorted Color is a water-soluble refill pack.
