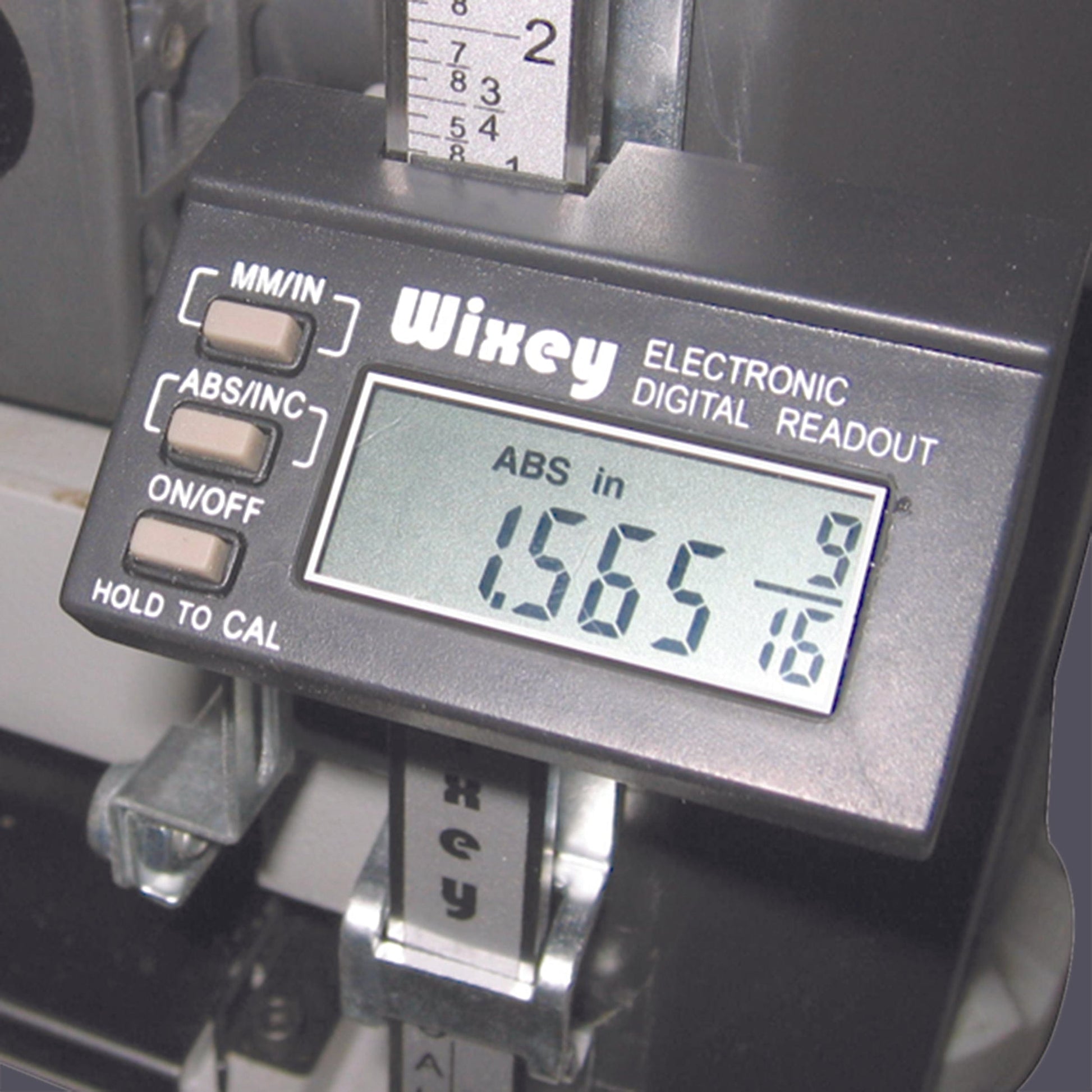

Replace the inaccurate stock height gauge on your portable planer and stop constantly using calipers to check stock thickness! Most digital calipers only read out in decimal measurements, forcing you to do the mental math to convert to fractions. If your stock is measuring .575" and you need 9/16", how much do you need to remove with your next pass through the planer? With the Digital Planer Height Gauge simply lower your planer until the gauge reads .565 - 9/16. It can't get any easier! A unique gauge reads out both decimal and fractional measurements. Fits most portable "lunch box" style planers. Easy to follow installation instructions. Features: Fits most portable "lunch box" style planers Precise measurements Replaces inaccurate stock height gauge Displays decimal and fractional inch measurements or millimeters Easy to follow instructions for installation and calibration Uses common AAA batteries Specifications: Measuring Length: 6" (155 mm) Resolution (Decimal): .005" Resolution (Fraction): 1/32" Resolution (Metric): .1 mm Accuracy (Decimal): +/- .0025" Accuracy (Fraction): +/- 1/500" Accuracy (Metric): +/- .05 mm Battery: 2 AAA (not included) Functions: Constant memory retains calibration even when OFF; incremental measuring mode; absolute measuring mode; millimeter, inch and fraction readout; auto shut off What's Included: (1) Wixey - WR510 - Planer Digital Readout - Height Gauge
Wixey
Planer Digital Readout - Height Gauge
Wixey
Planer Digital Readout - Height Gauge
Frequently Bought Together
-
Current product. Always included in the bundle total and cannot be deselected.
WixeyPlaner Digital Readout - Height Gauge$74.99 -$94.99 Save $20 -
WixeyRemote Planer Readout+$115.99
Wixey
Remote Planer Readout
Item #159489 Model WR550Replace the inaccurate stock height gauge on your stationary planer or thickness sander and stop constantly using calipers to check stock thickness! With the Wixey® WR550 Remote Planer Digital Readout simply lower your planer cutter head until the display reads the desired thickness. Unique gauge reads out either decimal and fractional inch measurements or millimeters up to 12" thickness. Ideal for large stationary planers and sanders, this model is so flexible and versatile that with a little creativity it can be adapted to almost any machine. The kit includes all mounting hardware, drill bits, thread forming screws and easy-to-follow instructions for installation and calibration.Features:
- Fits most stationary planers and thickness sanders
- Precise measurements; replaces inaccurate stock height gauge
- Displays decimal and fractional inch measurements or millimeters
- Easy-to-follow instructions for installation and calibration
- Uses common AAA batteries
- Model Number: Wixey WR550
- Measuring Length: 12" (305mm )
- Resolution - Decimal: .005"
- Resolution - Fraction: 1/32"
- Resolution - Metric: .1 mm
- Accuracy - Decimal: +/- .002"
- Accuracy - Fraction = +/- 1/500 in.
- Accuracy - Metric = +/- .05 mm
- Battery Type: (2) AAA (not included)
- (1) WR550 Remote Planer Readout
- (1) Set mounting hardware
- (2) Drill bits - 5.5 and 3.6 mm,
- (1) Set of thread forming screws
- (1) Easy-to-follow installation and calibration instructions
-

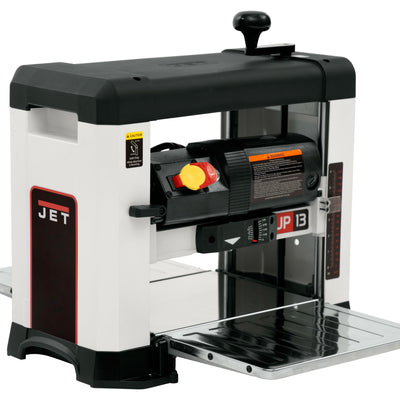

Jet13" Benchtop Planer - 2 HP 1 Ph 120V - Helical Cutterhead - JWP-13BT+$699.99 -$934.99 Save $235
Jet
13" Benchtop Planer - 2 HP 1 Ph 120V - Helical Cutterhead - JWP-13BT
Item #167703 Model JT9-722130JET® JWP-13BT 13" Helical Head Benchtop Planer will satisfy woodworkers in their shop with power and efficiency. The JPW-13BT produces a smooth and consistent cut surface thanks to the helical-style cutterhead. The cutterhead features 6 rows of 26 quick-change inserts that can be rotated or replaced if damaged or worn. This segmented cutter head design helps reduce noise as its 2 HP motor is turning at an impressive 10,000 RPM. Additional features include a rugged 4 post design, adjustable folding tables, 2 infeed speeds, and a sturdy cast iron base which helps reduce snipe.Features:
- Helical style cutterhead with 6 rows of 26 individual quick change inserts, provides a clean and smooth cut with easy to change blades
- Precision machined cast iron bed and steel cover assist in keeping boards flat and reducing snipe
- Four post design for maximum control and support of cutter head in reference to work piece and cast table
- Dual infeed speed control maximizes cut efficiency on different wood material types
- 1/8" maximum depth of cut, 6" depth and 13" width capacity
- Adjustable folding infeed/outfeed tables
- Toggle switch with removable safety key
- Adjustable depth stop for consistent repetitive cuts
- Dust port hooks up to dust management system and helps keep shop clean
Specifications:- Type: Benchtop Planer
- Style: Helical Cutterhead
- Motor: 2 HP
- Motor Amps: 15A
- Motor Phase: Single phase
- Motor Voltage: 115V
- Number of Speeds: 2
- Cutterhead Type: Helical Style
- Cutterhead Speed (No Load): 10,000 RPM
- Cutterhead Diameter: 2"
- Number of Knives or Inserts: 26 two-edged high speed steel inserts
- Cuts Per Minute: 20,000
- Maximum Depth of Cut: 1/8"
- Maximum Full Width Depth of Cut: 1/16"
- Maximum Cutting Width: 13"
- Maximum Cutting Thickness: 6"
- Feed Rate: 18 and 26 feet per minute
- Table Size: 13" x 9.8"
- Dust Port: 4" outside diameter
What's Included:- (1) JET® 13" Benchtop Planer - 2 HP 1 Ph 120V - Helical Cutterhead - JWP-13BT
- (1) Dust hood
- (1) T-handle hex wrench - 3 mm
- (1) Operating Instructions & Parts Manual
- (1) Product registration card
Shipping / Billing Information
All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:- Your order will ship in 7-10 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.
-

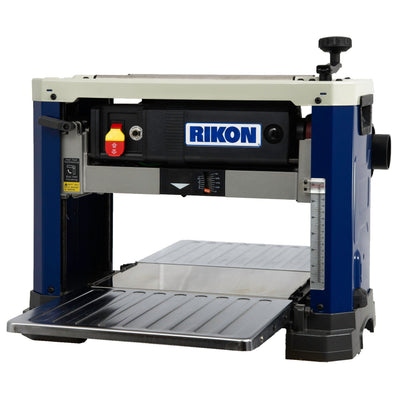

RIKON13" Portable Planer with Helical Style Cutterhead and 2-Speed Feed+$899.99
RIKON
13" Portable Planer with Helical Style Cutterhead and 2-Speed Feed
Item #174854 Model 25-135HThe RIKON 13" Portable Planer with Helical Style Cutterhead and 2-Speed Feed - Model: 25-135H benchtop planer features a six row helical-style cutter head and 26 HSS insert cutters. Each indexable knife insert is precision sharpened on two edges and can be easily changed/rotated if damaged or worn – just loosen, rotate, and retighten! The alternating cutter pattern in the cutter head is super-efficient, and with a two-speed feed rate, produces a smooth cut surface. Planer features a threaded 4-post housing for extra head stability when running, side handle for quick table height adjustments, repeat cut setting lever, large fold-up extension tables, flat top with rollers for stock returning, and side carry handles.Features:
- Helical Style Cutterhead
- 2-Speed Feed Rate
- All Steel Construction
- Easy Blade Access
- Infeed/Outfeed Table Extensions
- Five year warranty
Specifications:- Motor: 15 Amp, 115V, 60Hz
- Motor Speed: 22,000 RPM
- Cutterhead: 2" diameter, 10,000 RPM
- Number of HSS Inserts: 26, 6 rows
- Maximum Cut Depth: 1/16" @ 6" x 13" Wide, 1/8" within 6" Wide
- Maximum Cutting Width: 13"
- Maximum Cutting Depth (Height): 6"
- Min. Length of Stock: 7"
- Min. Width of Stock: 3/4"
- Min. Thickness of Stock: 3/16"
- Feed Speeds (SF/Min): 16 and 26
- Table Size: 9-7/16" L x 13-1/16" W
- Extension Tables (2): 12" L x 14" W
- Dust Port (OD): 4" or 2-1/2" diameter
- Dust Collection min CFM: 650
- Noise Level: 100 dB
- Unit Height: 19-1/4"
- Unit Width: 22"
- Unit Depth: 34-1/4"
- Base Size: 13-3/8" L x 22" W
- Net Weight: 68 lb.
What's Included:- (1) RIKON 13" Portable Planer with Helical Style Cutterhead and 2-Speed Feed
-

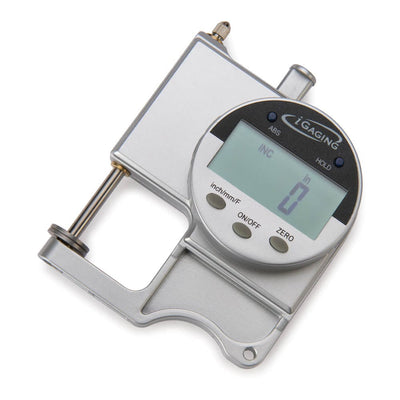

iGagingSnap Digital Thickness Gauge - 0 to 1-1/16"+$27.99 -$34.99 Save $7
iGaging
Snap Digital Thickness Gauge - 0 to 1-1/16"
Item #195431 Model 35-MT64The iGaging Snap Digital Thickness Gauge revolutionizes measurement in your workshop. Unlike traditional rulers and squares that can be hard to read, this pocket-sized tool features a large, easy-to-read display with a single, clear number, making it perfect for precise measurements.
Effortlessly measure the thickness of wood, plywood or veneer and accurately determine drill bit diameters, router bit sizes, dado stack widths, tenon thicknesses, dowel diameters and fastener sizes. Its compact design allows it to slip easily into your pocket, but it's packed with features that woodworkers love.
The gauge's large digital window displays readings in numbers up to half an inch tall, ideal for aging eyes. It is ergonomically designed for comfort and provides a secure grip with a spring-loaded stainless steel plunger that operates smoothly.
You can easily switch between display readings in decimal inches, millimeters and fractions of an inch. The one-button zero function and Absolute (ABS) feature let you quickly find size differences without the hassle of calculations. Plus, it automatically turns off after a few minutes to save battery life.
Features:
- Ideal for measuring the thickness of wood, plywood or veneer
- Use to determine drill bit diameters, router bit sizes, dado stack widths, tenon thicknesses, dowel diameters and fastener sizes
- 0 to 1-1/16 inches of travel with a large LCD
- Readout in inches, metric, and fractional inch
- Perfect handhold design for easy usage
- Spring-loaded movement with a push button
- Hold function
Specifications:
- Measuring Range: 0 to 1-1/16" (approximately 24 mm)
- Reading: Decimal inch, metric, fractional inch
- Resolution: 0.0005", 0.01 mm or 1/64"
- Accuracy: ±0.0015"
- Battery: 3V CR2032
- Anvils: 1 Ball anvil and 2 flat anvils (installed)
- Anvil Thread Size: #4-48
What's Included:
- (1) iGaging Snap Digital Thickness Gauge - 0 to 1-1/16"
-

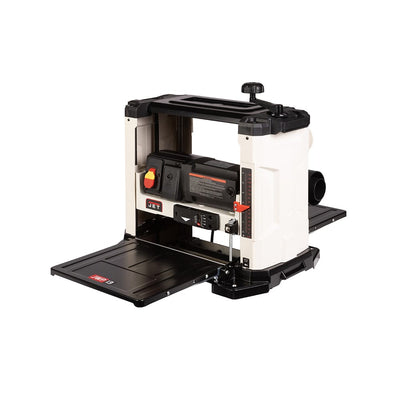

Jet13" Benchtop Planer with Helical Cutterhead - JWP-13BTHH+$799.99
Jet
13" Benchtop Planer with Helical Cutterhead - JWP-13BTHH
Item #199284The JET JWP‑13BTHH 13" Portable Thickness Planer pairs a compact benchtop footprint with a true helical cutterhead to deliver smoother surfaces and quieter operation compared to straight‑knife designs. It is built to deliver consistent thickness control while reducing tearout on figured or difficult grain.
The helical cutterhead uses 30 four‑sided carbide inserts arranged in a spiral pattern. Each insert can be rotated to a fresh cutting edge, extending usable life while maintaining cutting quality over time. This design also spreads cutting forces more evenly, which helps lower operating noise and reduce vibration during planing. Feed rate is held at 24.6 FPM to keep stock moving steadily through the cutterhead without forcing the cut.
Thickness adjustment is handled through a top‑mounted crank with a calibrated scale and depth‑of‑cut gauge. One full revolution of the handwheel moves the cutterhead 1/16", allowing controlled, repeatable changes between passes. Integrated infeed and outfeed tables support stock as it enters and exits the planer, helping manage longer boards and minimize handling issues.
The planer runs on standard 120V power and includes an overload protection system to help manage motor load during deeper cuts. A 4" dust port supports connection to a dust collection system rated at 550 CFM, which is strongly recommended for maintaining cutterhead performance and chip evacuation.
Features:
- Helical cutterhead with 30 four‑sided carbide inserts
- Insert rotation extends cutting edge life without re‑setting knives
- 13" maximum planing width with up to 6" thickness capacity
- Controlled 24.6 FPM feed rate for consistent material removal
- Indexed height adjustment with calibrated thickness scale
- Integrated infeed and outfeed tables for stock support
- 120V single‑phase motor with overload protection
- 4" dust port for use with 550 CFM dust collection systems
- Included Torx tools for insert rotation and maintenance
- 5-Year JET Warranty
Specifications:
- Model Number: JWP‑13BTHH
- HP: 2 HP
- Stock Number: JT1‑2989
- Motor Output: P1 1.650 kW / P2 1.000 kW
- Voltage: 120V
- Phase: Single
- Cycle: 60 Hz
- Full Load Amps: 15A
- Cutterhead Type: Helical
- Cutterhead Speed: 9,500 RPM
- Cutterhead Diameter: 1.84"
- Number of Inserts: 30
- Maximum Planing Width: 13"
- Maximum Planing Thickness: 6"
- Minimum Planing Length: 14"
- Maximum Depth of Cut (Up to 6" Wide): 1/8"
- Maximum Full‑Width Depth of Cut: 1/16"
- Feed Rate: 24.6 FPM
- Table Size: 13" x 12"
- Extension Table Size: 13.1" x 11.8"
- Table Movement per Handwheel Revolution: 1/16"
- Dust Port Diameter: 4" Outside / 2‑1/2" Inside
- Recommended Dust Collection: 550 CFM
- Net Weight: 66 lb
- Shipping Weight: 71 lb
- Warranty: 5-Year
What's Included:
- (1) Planer
- (1) Crank handle (installed)
- (4) Socket head cap screw M5x25
- (1) Dust hood (installed)
- (1) T-handle hex screwdriver, 3 mm
- (2) Torx screwdriver
- (5) M5 x 10 Hex Screws
- (5) Replacement Helical Head Cutting Knives
- (1) Operating Instructions & Parts Manual
- (1) Product registration card
