Tormek

T-4 Water Cooled Sharpening System

Item #861412 Model T-4 O
Regular price $527.00
Sale price $527.00 Regular price $527.00
Skip to product information
1 of 1

Tormek

T-4 Water Cooled Sharpening System

Item #861412 Model T-4 O
Regular price $527.00
Sale price $527.00 Regular price $527.00
The Tormek® T-4 is a second generation compact sharpening machine. Unlike the previous T-3, all the vital functions of the T-4 – including t. . . View More Details

In Stock

Shipping Info

Items you may need

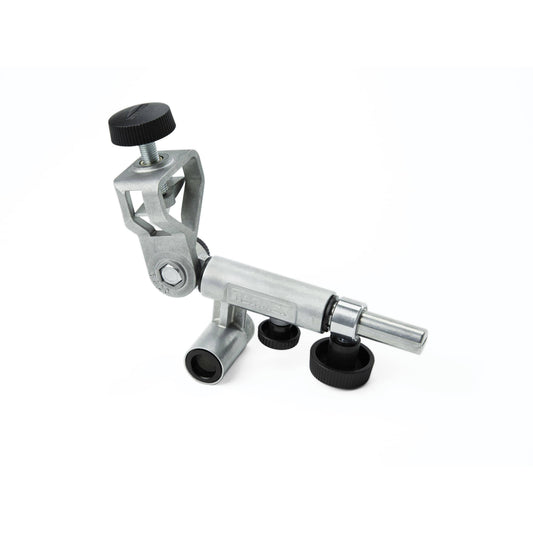

  • Gouge Jig SVD-186R

    Regular price $131.00
    Sale price $131.00 Regular price $131.00
    Gouge Jig SVD-186R alt 0

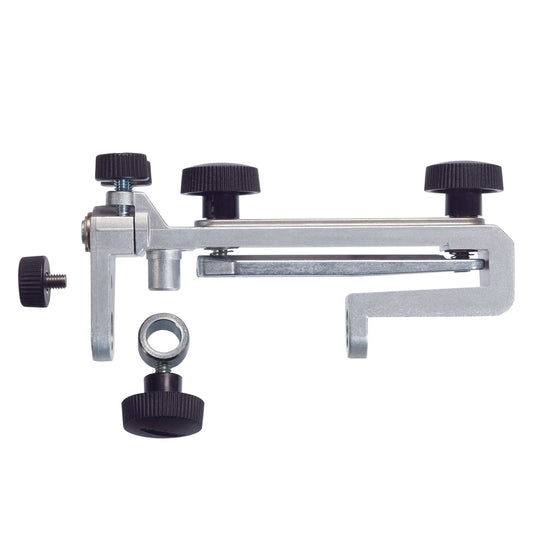

  • Advanced Square Edge Jig SE-77

    Regular price $90.00
    Sale price $90.00 Regular price $90.00
    Advanced Square Edge Jig SE-77 alt 0

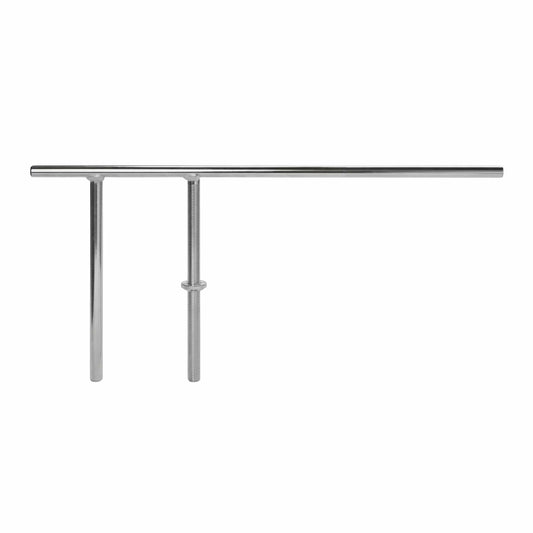

  • US-430 Extended Universal Support

    Regular price $115.00
    Sale price $115.00 Regular price $115.00
    Universal Support Extended US-430 alt 0

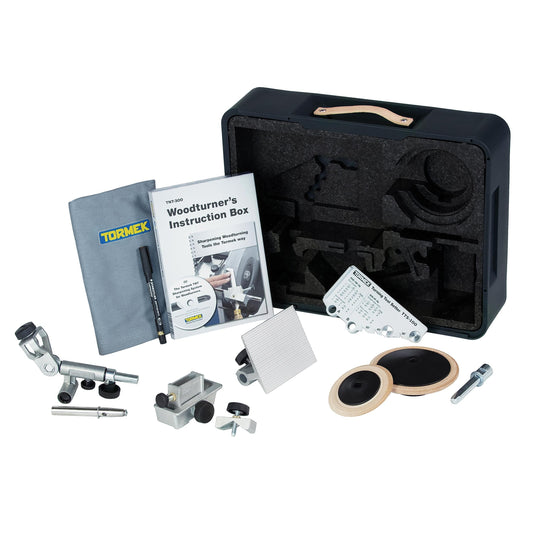

  • Wood Turner's Kit TNT-808

    Regular price $463.00
    Sale price $463.00 Regular price $463.00
    Wood Turner's Kit TNT-808 alt 0

Details

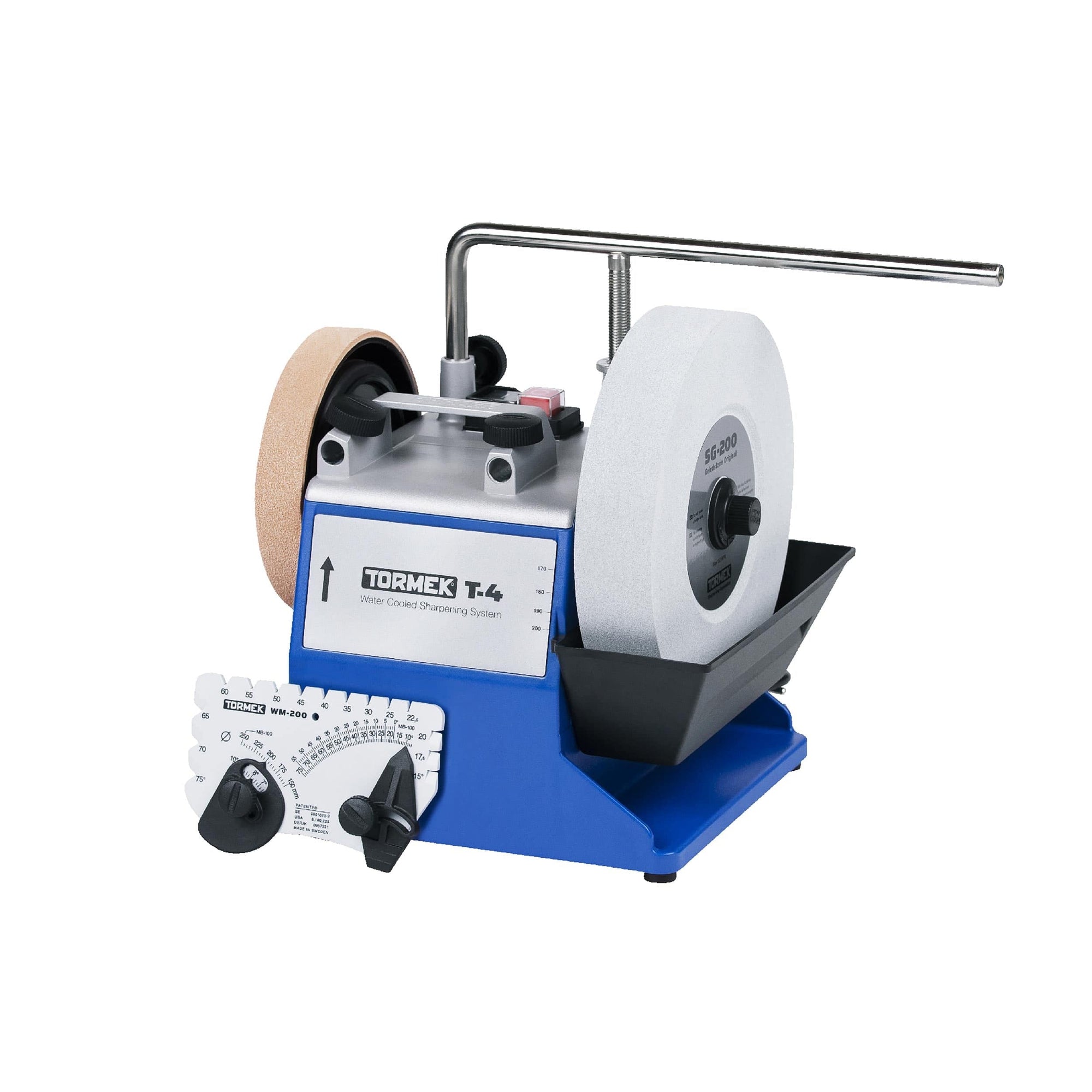

The Tormek® T-4 is a second generation compact sharpening machine. Unlike the previous T-3, all the vital functions of the T-4 – including the motor, main shaft and mounting supports for the Universal Tool Support – are now integrated in a zinc casting. The result is a significant improvement in stability and precision for the Universal Tool Support, which is the base from which all Tormek Jigs operate. The Tormek 8" (200 mm) original grindstone is optimized for efficient grinding while providing a smooth finish and preserving edge life. The property of the stone’s surface can be change from 220-grit to 1000-grit with the Tormek Stone Grader which, combined with the leather honing wheel and special honing compound, changes your T-4 from a grinder to an efficient sharpening machine.

Features:


  • High quality and compact sharpening machine, ideal for home and hobby work as well as professional use
  • Vital functions integrated in a zinc casting for improved stability and precision
  • Functions as grinder and sharpening machine
  • Handle makes the machine easy to move and position

Specifications:

  • Product Width: 9-7/16" (240 mm)
  • Product Depth: 8-1/16" (205 mm)
  • Product Height: 10-1/4" (260 mm).
  • Weight (Machine Only): 17.6 lb (8 kg)
  • Grindstone: Tormek Original Grindstone - 120 RPM, torque 8.4 Nm
  • Grindstone Material: Aluminium oxide
  • Grindstone Dimensions: 8" x 1-5/8" (200 x 40 mm)
  • Leather Honing Wheel: 5-3/4" x 1" (145 x 26 mm)
  • Main Shaft: Stainless steel and stone hardware. EzyLock in composite.
  • Housing: Zinc cast top, impact resistant ABS plastic
  • Motor: Industrial single phase, 120W (input), 230V, 50 Hz or 115V, 60 Hz, Duty 30 min/hour, maintenance free, silent running, 54 dB, 10,000 hour life

What's Included:

  • (1) Tormek - T-4 Water Cooled Sharpening System is supplied with the following:
  • (1) Stone Grader (SP-650)
  • (1) Angle master (WM-200)
  • (1) Honing Compound (PA-70)
  • (1) Owner’s Handbook (HB-10)
  • (1) Instructional DVD.

Instructions / MSDS
