Tormek

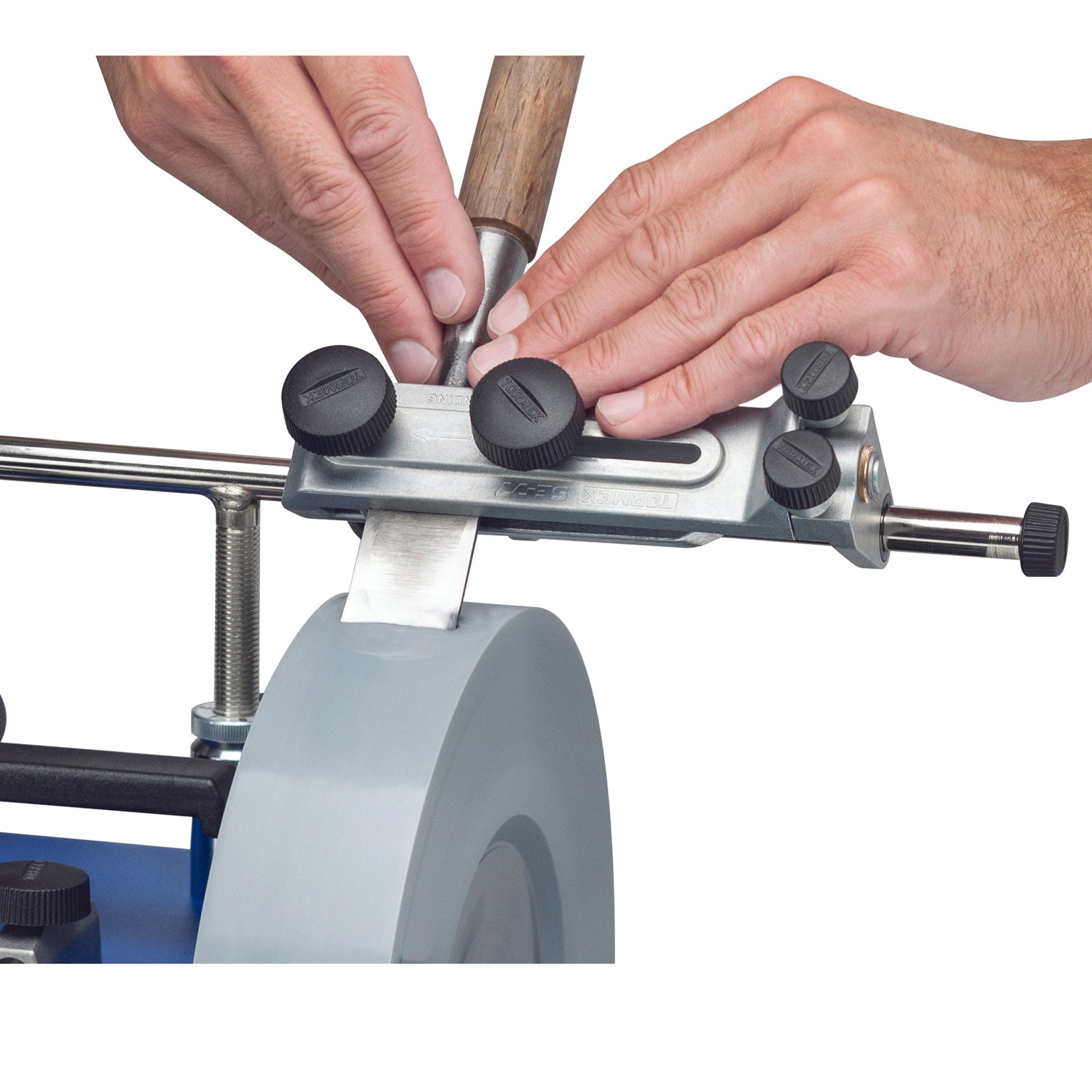

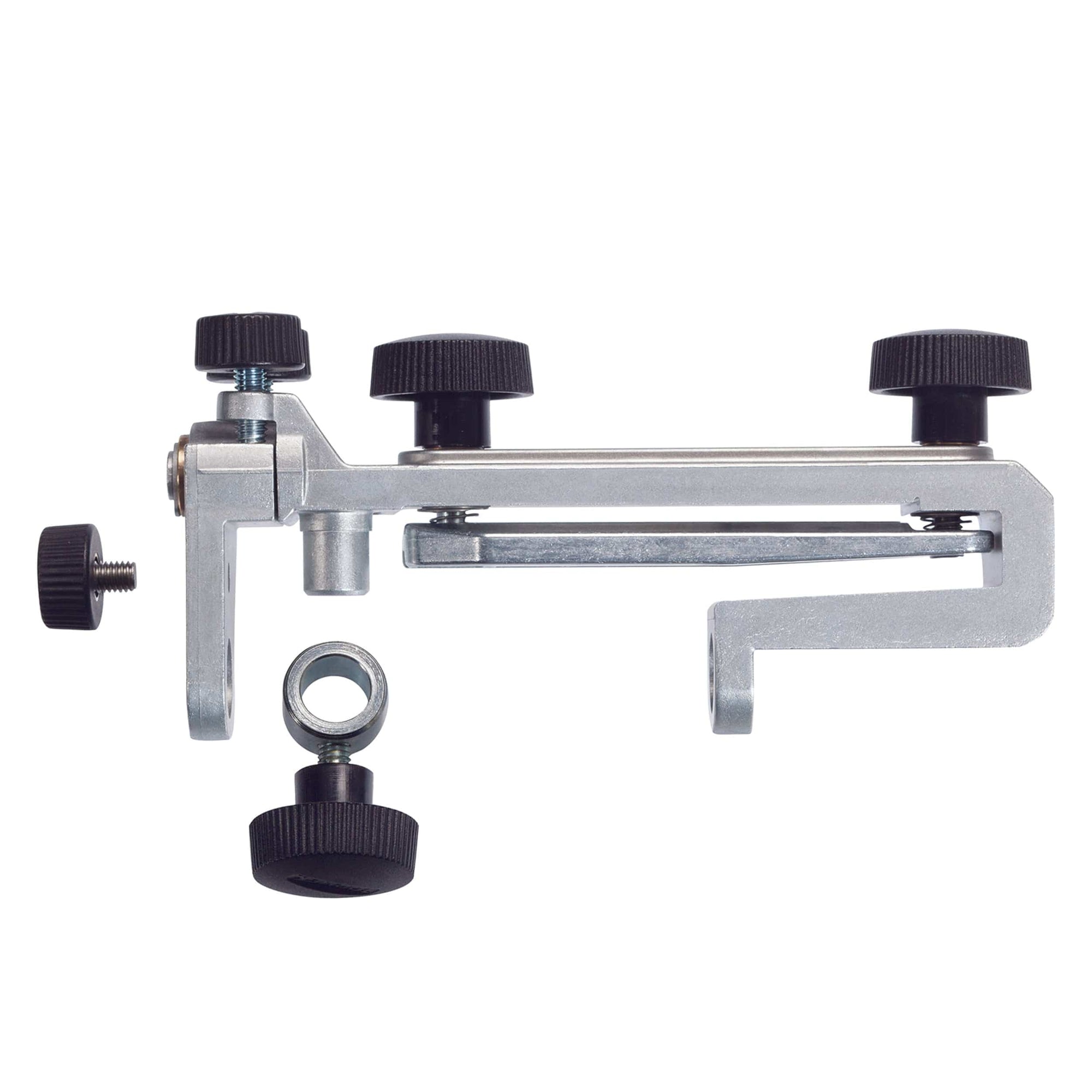

Advanced Square Edge Jig SE-77
Tormek
Advanced Square Edge Jig SE-77
Frequently Bought Together
-
Current product. Always included in the bundle total and cannot be deselected.
TormekAdvanced Square Edge Jig SE-77$104.00 -
TormekAxe Jig+$28.00

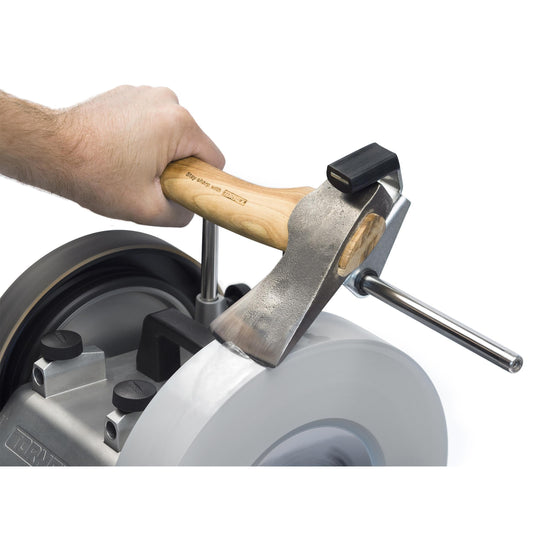

Use this jig to grind axes and hatchets with a maximum head length of 6-3/4" (170mm). The jig is designed so that the rotation of the stone presses the axe firmly into the jig. You only need to hold and guide the axe with your hands. For use with the Tormek T-7 and T-3 sharpening systems.- Jig for grinding axes and hatchets with a maximum head length of 6-3/4"
- For use with the Tormek T-7 and T-3
-

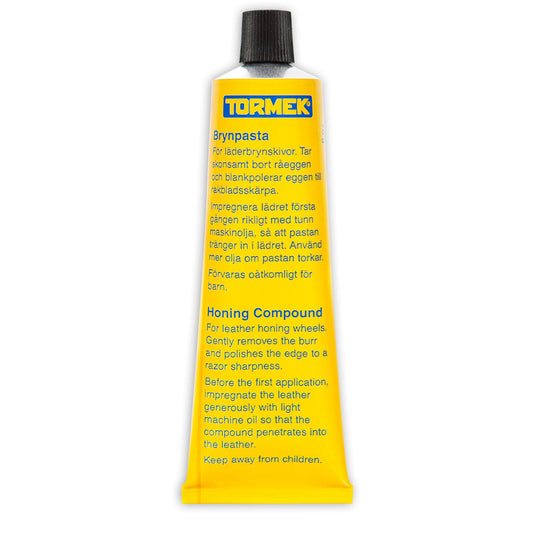

TormekHoning Compound+$20.00
The Tormek honing compound is used together with the Tormek brand leather honing wheels. The combination of micro abrasives and polishing components (average grain size 3 micron) paired with the leather will effectively remove the burr created from sharpening, without damaging the edge. At the same time, it will also polish the bevel to the finest finish.
One application lasts for about 5–10 tools. Work the honing compound into the leather. The leather honing wheel will become saturated and more efficient the more you use it.
When you have a new honing wheel, impregnate it first with a light machine oil so that it gets the right texture and can absorb the honing compound.If you work in a dry climate, you might need to re-impregnate the honing wheel after some time with a few drops of oil before you apply fresh honing compound. Do not let the compound dry, apply more oil if necessary.
- Use on the Tormek leather honing wheels to create a razor-sharp edge
- For use with the Tormek T-7 and T-3 leather honing wheels.
- Use on the Tormek leather honing wheels to create a razor-sharp edge
-
TormekMulti Jig+$101.00
This jig is called the Tormek® "Multi Jig" for a very good reason. It consists of a housing with two interchangeable seats for different types of tools; the open seat and the closed seat, which practically gives you two jigs in one. You can use the SVS-50 Multi Jig to sharpen straight and round-edged woodturning chisels, as well as parting tools, roughing gouges and woodcarving gouges and chisels.Features:
- It's like two jigs in one – sharpen all your woodturning chisels, parting tools, roughing gouges and more
- Easy to use – just turn the jig over to grind the second bevel without resetting the jig
- Works with both Tormek® T-4 and Tormek® T-8, as well as older models
Specifications:- Material: Precision-cast zinc, black composite
- Color: Gray/black
- Warranty: 2-year warrany
What's Included:- (1) Tormek® Multi Jig
-

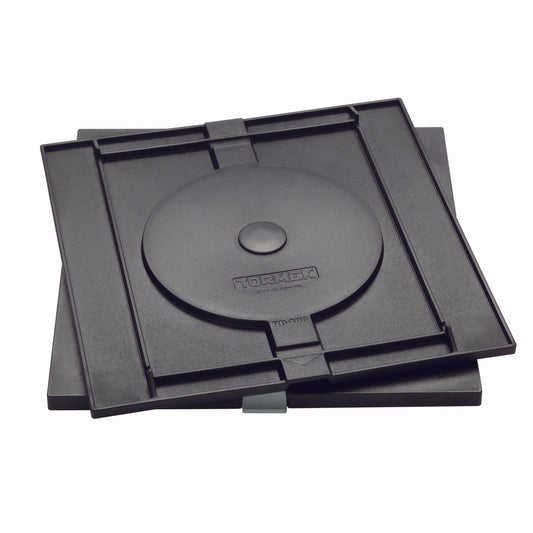

TormekRB-180 Rotating Base+$83.00
Tormek machines are solid, stable, and heavy – all desirable features but ones that make it difficult to easily turn the machines to take advantage of the best possible sharpening position or direction of rotation. The RB-180 changes that! It’s a substantial rotating platform with rubber feet and a locking mechanism that your Tormek simply sits on. When you need to swap ends, disengage the lock, rotate 180° until the lock reengages, and continue sharpening. Perhaps best of all, the folks at Tormek have designed the RB-180 to fit the T-7, T-3, the 2000, the 1200 plus the SA-250 and N-1500.
Features:
- Easily rotate the Tormek 180°
- Adds negligible sharpening height
- Fits a variety of new and older Tormeks
- Constructed from a sturdy, low-friction polymer
- Locking lever prevents inadvertent rotation from vibration
- No tools required to attach the sharpener to the rotating base
Specifications:
- Dimensions: 1" H x 9-5/8" x 9-5/8"
What's Included:
- (1) Tormek - RB-180 - Rotating Base For Tormek Sharpeners
-

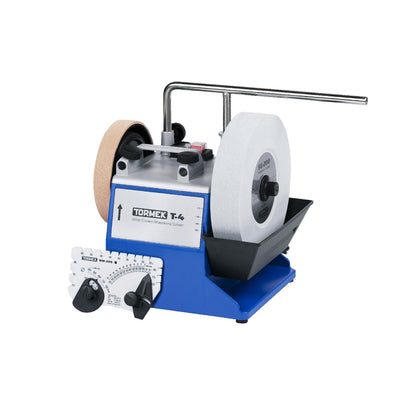

TormekT-4 Water Cooled Sharpening System+$613.00
The Tormek® T-4 is a second generation compact sharpening machine. Unlike the previous T-3, all the vital functions of the T-4 – including the motor, main shaft and mounting supports for the Universal Tool Support – are now integrated in a zinc casting. The result is a significant improvement in stability and precision for the Universal Tool Support, which is the base from which all Tormek Jigs operate. The Tormek 8" (200 mm) original grindstone is optimized for efficient grinding while providing a smooth finish and preserving edge life. The property of the stone’s surface can be change from 220-grit to 1000-grit with the Tormek Stone Grader which, combined with the leather honing wheel and special honing compound, changes your T-4 from a grinder to an efficient sharpening machine.Features:
- High quality and compact sharpening machine, ideal for home and hobby work as well as professional use
- Vital functions integrated in a zinc casting for improved stability and precision
- Functions as grinder and sharpening machine
- Handle makes the machine easy to move and position
Specifications:- Product Width: 9-7/16" (240 mm)
- Product Depth: 8-1/16" (205 mm)
- Product Height: 10-1/4" (260 mm).
- Weight (Machine Only): 17.6 lb (8 kg)
- Grindstone: Tormek Original Grindstone - 120 RPM, torque 8.4 Nm
- Grindstone Material: Aluminium oxide
- Grindstone Dimensions: 8" x 1-5/8" (200 x 40 mm)
- Leather Honing Wheel: 5-3/4" x 1" (145 x 26 mm)
- Main Shaft: Stainless steel and stone hardware. EzyLock in composite.
- Housing: Zinc cast top, impact resistant ABS plastic
- Motor: Industrial single phase, 120W (input), 230V, 50 Hz or 115V, 60 Hz, Duty 30 min/hour, maintenance free, silent running, 54 dB, 10,000 hour life
What's Included:- (1) Tormek - T-4 Water Cooled Sharpening System is supplied with the following:
- (1) Stone Grader (SP-650)
- (1) Angle master (WM-200)
- (1) Honing Compound (PA-70)
- (1) Owner’s Handbook (HB-10)
- (1) Instructional DVD.
Advanced Square Edge Jig SE-77
by Tormek
