Sjöbergs

Elite Clamping Platform

Item #169686 Model 33463
Regular price $ 635 . 00
Sale price $ 635 . 00 Was $635.00

Sjöbergs

Elite Clamping Platform

Item #169686 Model 33463
Regular price $ 635 . 00
Sale price $ 635 . 00 Was $635.00
The Sjöbergs Elite Clamping Platform extends compatible Sjöbergs Elite Workbenches and the Original 1900 workbench by 18 7/8" to increase usable surfa. . . View More Details
In Stock Online Shipping Info
Items you may need
Vendor:
Sjöbergs
Regular price $ 2,800 . 00
Regular price $ 3,800 . 00
Vendor:
Sjöbergs
Regular price $ 2,620 . 00
Regular price $ 3,400 . 00
Regular price $ 4,075 . 00
This item has an additional shipping charge

About This Product

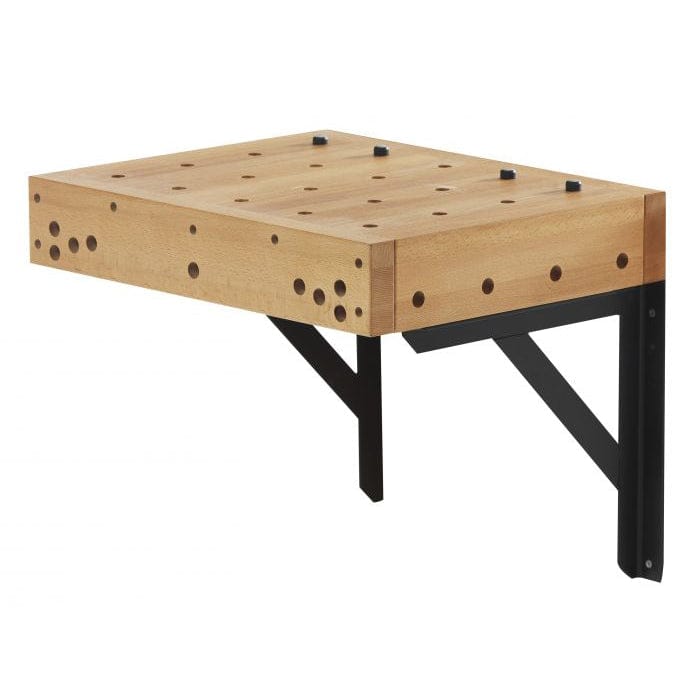

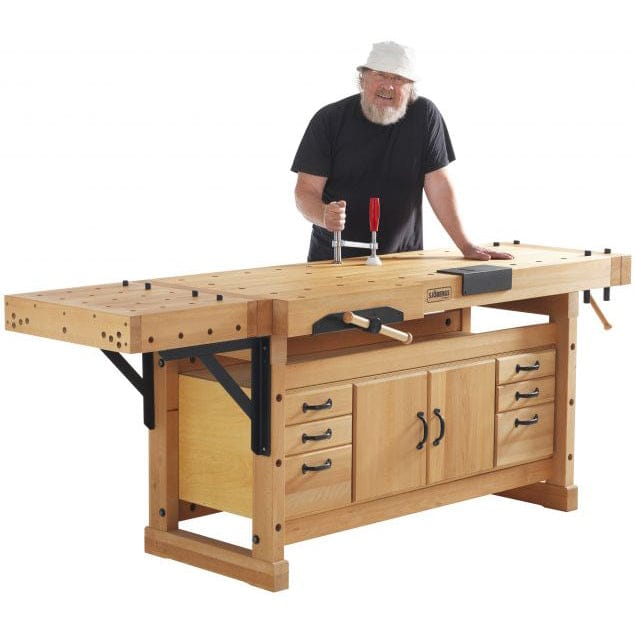

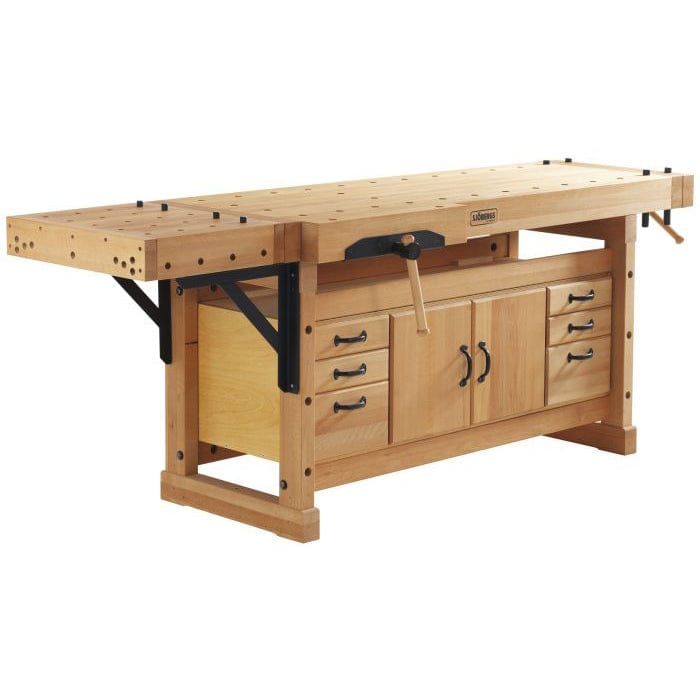

The Sjöbergs Elite Clamping Platform extends compatible Sjöbergs Elite Workbenches and the Original 1900 workbench by 18 7/8" to increase usable surface area and expand end vise clamping reach. It is built for woodworkers who need more controlled holding capacity without replacing their existing bench.

Double rows of 19 mm dog holes in the top align with the main work surface, allowing the end vise to clamp longer stock with consistent pressure across the joint. Additional dog holes in the skirt and at the end of the platform support vertical clamping with optional hold‑downs and holdfasts, improving control during edge work, fitting and assembly.

Constructed in Sweden from full‑length laminations of knot‑free European Beech, the platform adds mass and rigidity where clamping forces are highest. The 4‑5/16" skirt reinforces the structure and provides multiple clamping positions. When mounted to a wall using the included brackets, the platform also functions as a dedicated clamping station with strong resistance to racking during demanding work.

Features:

  • Extends compatible Sjöbergs benches by 18‑7/8" for increased clamping reach
  • Double rows of dog holes align with the main bench to extend end‑vise capacity
  • 19 mm (3/4") dog holes support common bench dogs and clamping accessories
  • Skirt and end‑mounted dog holes allow vertical clamping with optional hold‑downs
  • Full‑length laminated European Beech top treated with oil
  • Can be wall‑mounted as a standalone clamping station
  • Includes four steel‑core bench dogs

Specifications:

  • Weight: 38 lb
  • Top Length: 18‑7/8" (480 mm)
  • Top Width: 23‑5/8" (600 mm)
  • Top Thickness: 1‑1/2" (38 mm)
  • Skirt Height: 4‑5/16" (110 mm)
  • Dog Hole Diameter: 19 mm (3/4")

What’s Included:

  • (1) Clamping Platform
  • (4) Steel Bench Dogs
