Item 167550
Model 10022

Next Wave - SHARK HD510 CNC Machine

$3,999.99

Rebate Available! Learn More

Protect Your Purchase With A Woodcraft Protection Program

Learn More

FREE 2HP Spindle Through Mail-In Offer With The Purchase Of The Shark HD520 Or HD510 CNC Machines By Next Wave Now Through June 30, 2021

This kit includes the following items:

  • CNC SHARK HD510 Base
  • CNC SHARK HD510 Gantry

Compare With

Details

Handle all your machining needs in a home shop environment or on the production floor with the Next Wave CNC SHARK HD510. Built with industrial grade components, the CNC SHARK HD510 also features a heavy-duty aluminum and steel reinforced gantry, an extruded aluminum router mount system, interlocking aluminum table, linear rails and guides on the gantry, and anti-backlash, wear-compensated lead screws on all axes. The SHARK HD510 CNC machine is the ideal tool for carving or machining a large variety of projects made from wood, soft metals, composites, or plastics.

Features:
  • Colored touch screen pendant controller
  • Ready2Control software allowing multi-machine operation: start, stop, rewind, and go to G-code location as well as project queuing for reliable bit change applications
  • X & Y homing capability
  • Linear guides and bearings on the gantry
  • Anti-backlash, wear-compensated lead screws on all axis
  • Interlocking rigid aluminum table with virtually unlimited clamp positioning
  • Aluminum gantry backplate for heavy machining capabilities
  • Extruded Aluminum router and spindle mounts
  • Steel encased gantry legs for increased rigidity
  • Automatic router on and off control
  • USB interface
  • One-year warranty on parts and labor
  • Lifetime technical support
  • Made in the USA
Specifications:
  • Table dimensions: 28'' x 36''
  • XYZ travel: 25'' x 25'' x 7''
  • Overall dimensions: 36-1/4'' W x 36'' L x 24-1/2'' H
What's Included:
  • (1) Full one-year warranty and lifetime technical support through NextWave Automation
  • (1) CNC SHARK HD510 machine
  • (1) Vectric VCarve Desktop design software
  • (1) Color pendant controller
  • (2) Hold-down clamps
  • (1) Carbide V-bit

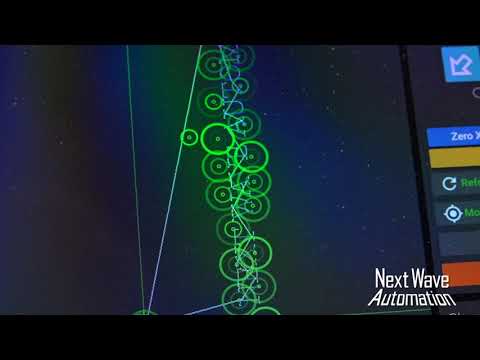

  • (1) Virtual Zero Unlimited Software and Vector Art 3-D Sampler Pack
What's Needed:
  • Requires PC computer with USB 2.0 Port
  • USB Flash Drive
  • A router (Sold Separately - See Product Notes)

Product Notes:
  • Fully compatible with these routers: Next Wave Water-Cooled Spindle, Bosch 1617 and 1618, Porter-Cable 690 and 890 Series (6902VS must be manually started), DeWalt 610, 616, 618 series.
  • The SHARK HD510 CNC machine is fully compatible with Next Wave’s extensive product line of additional accessories, such as laser, 4th axis, scanner, and more – all sold separately.
