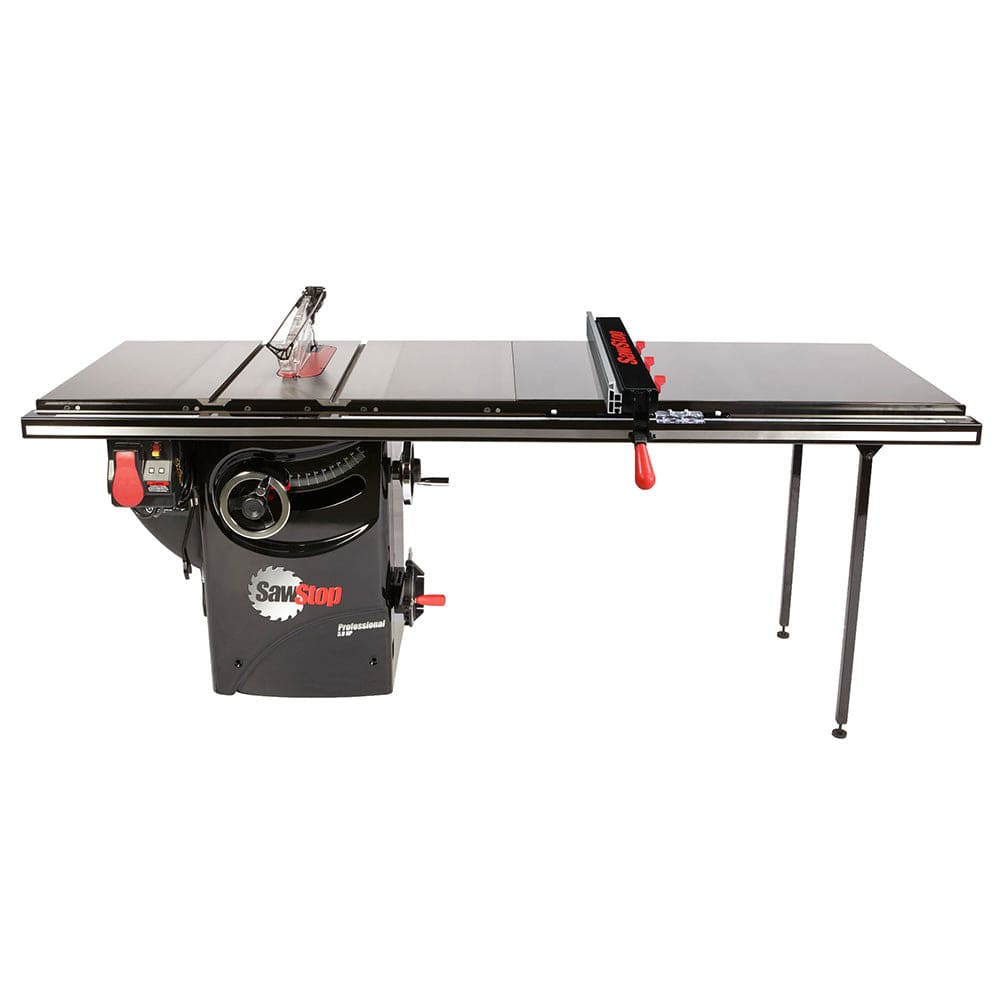

The SawStop® 3 HP 10" Professional Cabinet Saw offers unmatched fit and finish and superior cutting performance to avid hobbyists and small-shop pros. At 230V power, the optimized footprint makes this table saw ideal for the many challenges of a home shop. With SawStop's legendary safety system, uncompromising quality, and industry-leading dust collection, the PCS™ table saw is the cornerstone of a high-end home shop.

Features:

• SawStop’s patented safety system
• Riving knife reduces the risk of kickback
• Tool-free quick-change blade guard mount
• Diagnostic system ensures the saw is ready to respond
• Dust-Collection Blade Guard
• 52" Professional T-Glide Advance Fence System provides smooth operation and precise measurement

Specifications:

• Product Type: Cast Iron Table Saw
• Overall saw dimensions: 85-1/4" x 33" x 34"
• Cabinet footprint: 19-3/8" x 19-3/8"
• Cast-iron table: 20" x 27"
• Cast-iron table size with extension wings: 44" x 27"
• Motor: 3 HP, 1-Phase, 230V, 13A
• Weight: 449 lbs.
• Blade: 40-tooth, professional grade, 5/8" arbor
• Blade diameter: 10"
• Blade tilt: left
• Blade kerf: 0.118" (3mm)
• Blade plate thickness: 0.078"
• Max. depth of cut, blade at 0º: 3-1/8"
• Max. depth of cut, blade at 45º: 2-1/4"
• Max. rip, left of blade: 12"
• Dado diameter: 8" (requires a separate brake cartridge and table insert)
• Dado max. width: 13/16"
• Arbor diameter at blade: 5/8"
• Table in front of blade (max. elevation): 10-1/4"
• Table behind blade (max. elevation): 7-1/2"
• Table flatness measured diagonally: 0.010" maximum gap
• Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
• Dust-collection port diameter: 4"
• Riving knife/splitter thickness: 0.078" (2mm)
• Blade guard: polycarbonate, extends only 5/8" to right of blade
• Insert: zero clearance, steel core, ABS surfaces
• Belts: 2 V-ribbed belts – arbor belt is static dissipative

What's Included:

• (1) SawStop PCS™ 3 HP Table Saw Body
• (1) T-Glide Pro 52" Table
• (1) T-Glide Pro Advance Fence
• (1) T-Glide Pro 52" Rails
