Sawstop

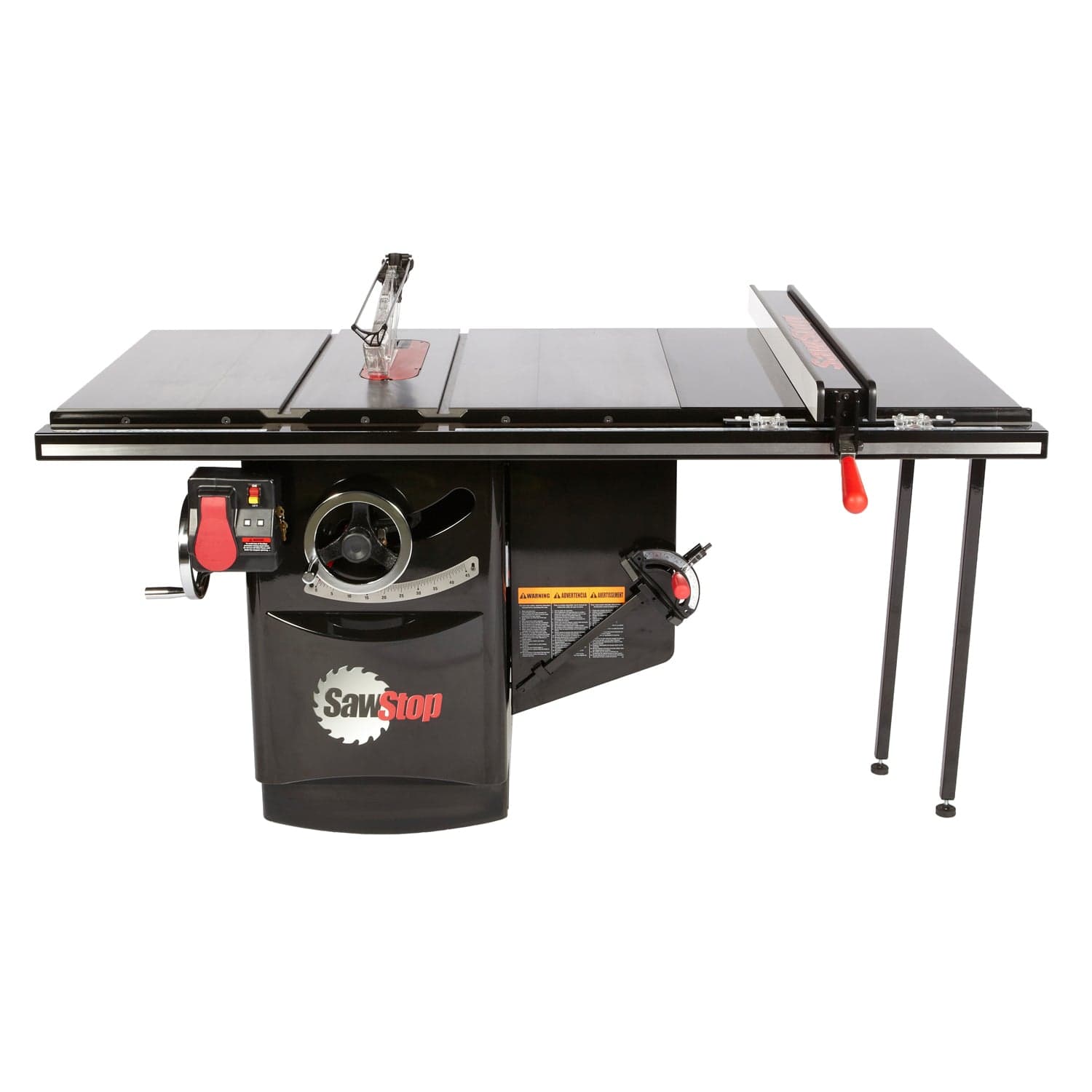

5HP 1PH 230V Industrial Cabinet Saw with 36" Industrial T-Glide Fence System

Item #856292 Model ICS51230-36
Regular price $5,349.00
Sale price $5,349.00 Regular price $5,349.00

This item has an additional shipping charge

The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet . . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

In Stock

Shipping Info

Items you may need

  • Industrial Cabinet Saw Mobile Base

    Regular price $429.00
    Sale price $429.00 Regular price $429.00
    839714.0
  • Stacked Dado Set - 8" x 5/8" Bore x 24T - Hi ATB

    Regular price $178.49
    Sale price $178.49 Regular price $209.99
    171605.0
  • Glue Line Rip Saw Blade - 10" x 5/8" Bore x 30T - TCG

    Regular price $73.94
    Sale price $73.94 Regular price $86.99
    171602.0
  • Sliding CrossCut Table

    Regular price $1,399.00
    Sale price $1,399.00 Regular price $1,399.00
    861677.0

Details

The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10" cabinet saw available. The 5 HP, 1 ph, 230V configuration with a 36" Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop’s patented safety system can provide.
Features:


  • SawStop’s patented safety system
  • Riving knife reduces the risk of kickback
  • Tool-free quick-change blade guard mount
  • Diagnostic system ensures the saw is ready to respond
  • Dust-Collection Blade Guard
  • 36" Industrial T-Glide Fence System
  • 5 HP motor 1-phase, 230V 60 HZ


Table Saw Specs:



  • Overall saw dimensions: 69-1/4" wide x 36-1/2" deep x 34" high
  • Cabinet footprint: 20" x 25"
  • Cast-iron table: 24" w x 30" d
  • Cast-iron table size with extension wings: 44" w x 30" d
  • Motor: 5 HP, 1-Phase, 230V 60 HZ
  • Weight: 635 lbs.
  • Blade: 60-tooth, professional grade, 5/8" arbor
  • Blade diameter: 10"
  • Blade tilt: left
  • Blade kerf: 0.118" (3mm)
  • Blade plate thickness: 0.078"
  • Max. depth of cut, blade at 0º: 3-1/8"
  • Max. depth of cut, blade at 45º: 2-1/4"
  • Max. rip, left of blade: 12-1/2"
  • Dado diameter: 8" (requires a separate brake cartridge and table insert)
  • Dado max. width: 13/16"
  • Arbor diameter at blade: 5/8"
  • Table in front of blade (max. elevation): 11"
  • Table behind blade (max. elevation): 9-3/4"
  • Table flatness measured diagonally: 0.010" maximum gap
  • Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
  • Dust-collection port diameter: 4"
  • Riving knife/splitter thickness: 0.090" (2.3mm)
  • Insert: zero clearance, phenolic core, melamine surfaces
  • Belts: 2 V-ribbed belts
