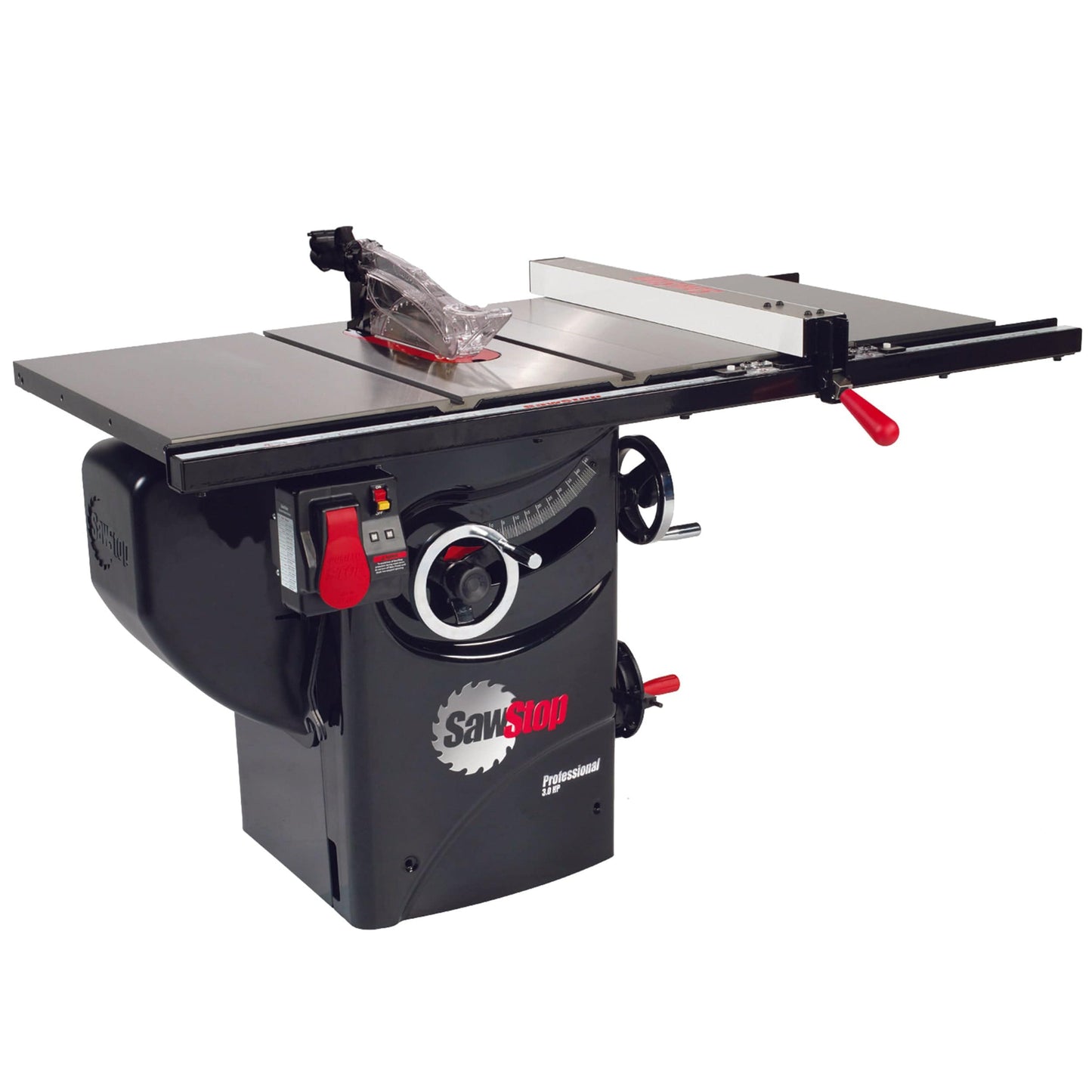

3 HP Professional Cabinet Saw with 30" Premium Fence System PCS31230-PFA30
Flat Shipping Fee of $250.00
Rebate Available! Learn More
The SawStop 230V, 3 HP 10" Professional Cabinet Saw is engineered to fit the unique demands of the avid hobbyist in a home setting. Delivering the peerless fit and finish of the Professional...
This kit includes the following items:
- PCS - Saw Body 3 HP
- 30 in Premium Fence System
The SawStop 230V, 3 HP 10" Professional Cabinet Saw is engineered to fit the unique demands of the avid hobbyist in a home setting. Delivering the peerless fit and finish of the Professional Cabinet Saw, this saw’s 230V power and optimized footprint make it ideal for the many challenges of a home shop. With SawStop’s legendary safety system, uncompromising quality and industry-leading dust collection, the 230V Professional Cabinet Saw is engineered to be the cornerstone of a high-end home shop.
- SawStop’s patented safety system
- Riving knife reduces the risk of kickback
- Tool-free quick-change blade guard mount
- Diagnostic system ensures the saw is ready to respond
- Dust-Collection Blade Guard
- 30" Premium T-style Fence system
- 3 HP motor 1-phase, 230V, 13A
Cabinet footprint: 19-3/8" x 19-3/8"
Cast-iron table: 20" w x 27" d
Cast-iron table size with extension wings: 44" w x 27" d
Motor: 3 HP motor 1-phase, 230V, 13A
Weight: 385 lbs.
Blade: 40-tooth, professional grade, 5/8" arbor
Blade diameter: 10"
Blade tilt: left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078"
Max. depth of cut, blade at 0º: 3-1/8"
Max. depth of cut, blade at 45º: 2-1/4"
Max. rip, left of blade: 12"
Dado diameter: 8" (requires a separate brake cartridge and table insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Table in front of blade (max. elevation): 10-1/4"
Table behind blade (max. elevation): 7-1/2"
Table flatness measured diagonally: 0.010" maximum gap
Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
Dust-collection port diameter: 4"
Riving knife/splitter thickness: 0.078" (2mm)
Blade guard: polycarbonate, extends only 5/8" to right of blade
Insert: zero clearance, steel core, ABS surfaces
Belts: 2 V-ribbed belts – arbor belt is static dissipative
Instructions / MSDS
Best set up instructions I've ever seen
Lost my 28 year old saw to Hurricane Sandy, so finally replacing with 3HP Pro. Price is good and quality is great. Took some time to set it up but the instructions and hardware layout are so efficient and clear, it was a pleasure. We're still in the middle of reconstruction (5' of floodwater in shop ) so I was constantly interrupted by myriad questions, but was alway able to return smoothly to the set-up. Squareness, accuracy of run out etc. all the factory settings were pretty much right on the money. Love the paint job, (finish inside the cabinet --- very impressive.) Shop is still being rebuilt, but with the aid of my new saw! PS. I lost the tip of my right thumb to my old saw --- this Sawstop should be mandatory in new shops!
