RIKON

30" x 40" VSR Lathe with Sliding Bed - 3 HP 1 Ph 220V

Item #168993 Model 70-3040
$3,999.99
$3,999.99 $4,999.99

Save 20% - All RIKON Tools & Accessories - November 22 - December 31 Only!

Sale
  • 30" x 40" VSR Lathe with Sliding Bed - 3 HP 1 Ph 220V alt 0
  • 30" x 40" VSR Lathe with Sliding Bed - 3 HP 1 Ph 220V alt 0
  • 30" x 40" VSR Lathe with Sliding Bed - 3 HP 1 Ph 220V alt 0
  • 30" x 40" VSR Lathe with Sliding Bed - 3 HP 1 Ph 220V alt 0
1 4

RIKON

30" x 40" VSR Lathe with Sliding Bed - 3 HP 1 Ph 220V

Item #168993 Model 70-3040
$3,999.99
$3,999.99 $4,999.99

Save 20% - All RIKON Tools & Accessories - November 22 - December 31 Only!

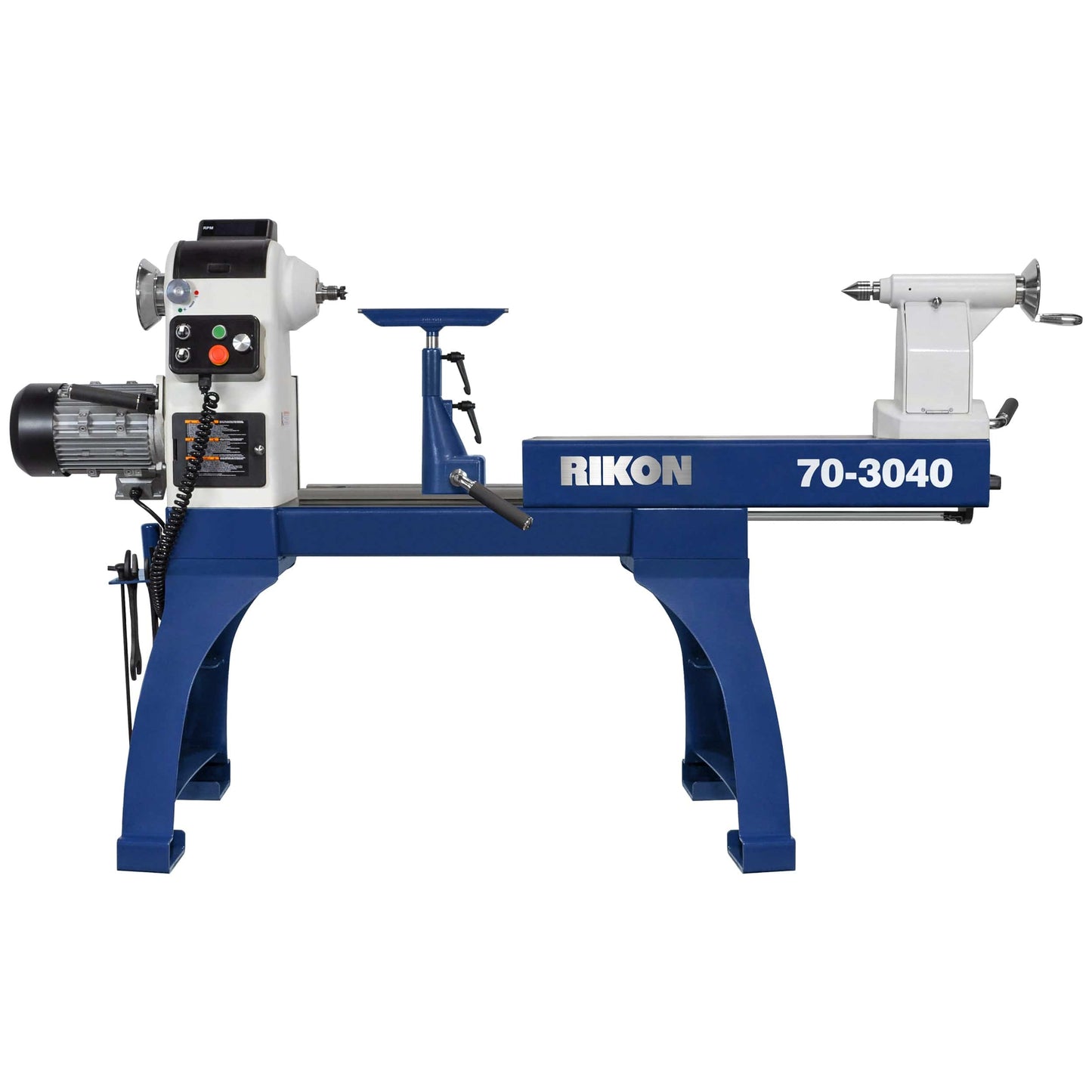

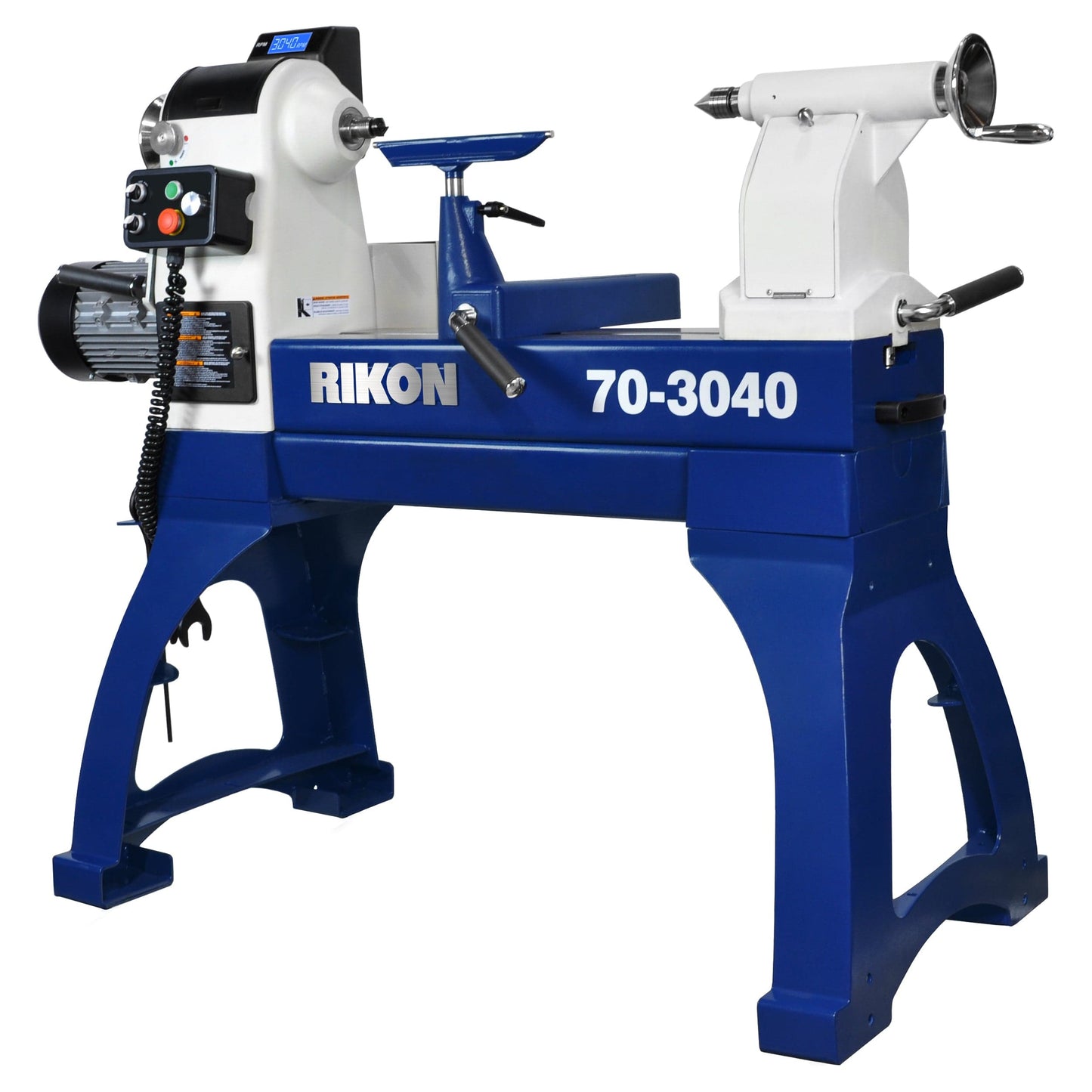

Rikon® 30" x 40" VSR Lathe with Sliding Bed - Model: 70-3040, has power, precision, and adjustable sizing, making this lathe a favorite . . . View More Details

Ships from Manufacturer

Shipping Info

Details

Rikon® 30" x 40" VSR Lathe with Sliding Bed - Model: 70-3040, has power, precision, and adjustable sizing, making this lathe a favorite among professional turners and is perfect for turning large bowls, platters, or spindles. This space-saving lathe is extra heavy-duty and made of solid cast iron and steel construction to provide professional turners with a robust machine that can handle the stress of turning such projects. The motorized upper bed effortlessly moves to the right away from the headstock to double the standard between-centers distance from 20" to 40". Moving the sliding bed also increases the swing from 23-7/32" to 31-1/4" over the lower bed. The 3HP TEFC, 220V motor combined with four heavy-duty bearings in the headstock and digital speed controls provide all the power and precision needed for this versatile lathe.

Features:

  • Powerful 3 HP 220V TEFC industrial motor provides robust, reliable power for all turning needs
  • 36 indexing positions allow for precise and accurate positioning of the workpiece during machining operations
  • Motorized sliding bed increases spindle length from 20" up to 40"
  • Electronic variable speed controls a wide range of operating speeds

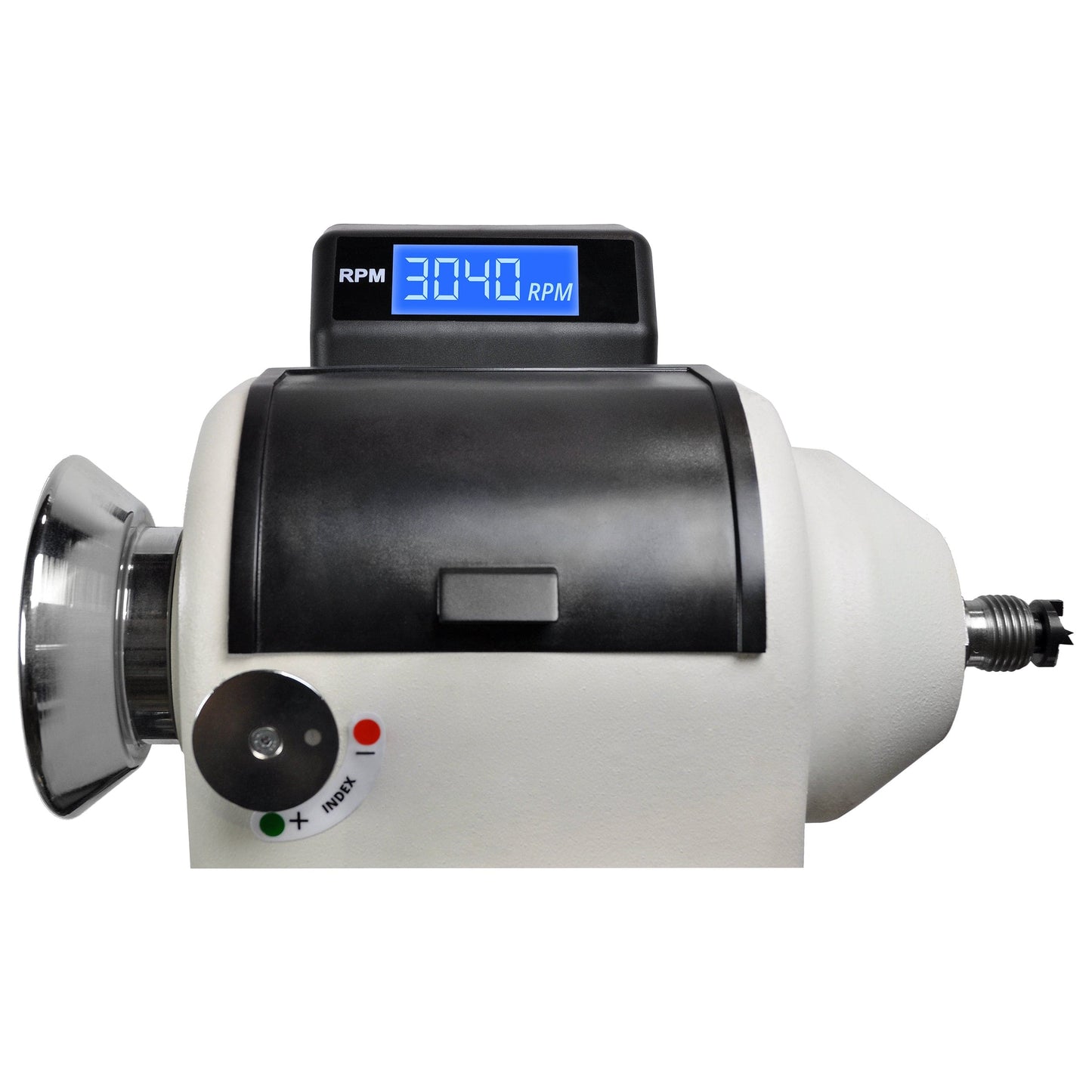

  • Easy-to-read LCD readout displays speeds ranging from 20 to 3850 RPMs in forward or reverse rotation modes
  • Magnets on the back of the control box allow for placement anywhere along the bed for quick control of the lathe speeds or emergency stop
  • Heavy cast iron and steel beds, headstock, tailstock, tool rest, and leg stand all reduce vibration when roughing stock for final shaping
  • Heavy steel legs include brackets for installing one or two shelves to store your turning tools and supplies
  • Includes stand, spur center, live center, faceplate, tool rest, knock-out bars, wrenches, and tool holder

Specifications:

  • Product: Lathe
  • Style: Floor Standing
  • Motor: 3 HP TEFC (Totally Enclosed, Fan-Cooled)
  • Voltage: 220V
  • Amps: 14.8A
  • Hertz: 50/60 Hz
  • Motor Phase: 1 Ph
  • Motor Speed (No Load): 1,720 RPM
  • Sliding Bed Motor: DC 24V
  • Recommended Breaker Size: 20A
  • Spindle Rotation/Direction: Forward/Reverse
  • Speeds: Variable 20 - 3,850 RPM
  • Speed Ranges (3): 20–650 RPM; 50–1,750 RPM; 100–3,850 RPM
  • Swing Over Bed: 12"
  • Swing Over Tool Rest: 23-7/32" to 31-1/4"
  • Working Distance between Centers: 20" to 40"
  • Tool Rest Post Diameter: 1"
  • Spindle Nose: 1-1/4" x 8 TPI
  • Headstock/Tailstock Taper: MT2
  • Ram Travel: 4-11/16"
  • Indexing Positions: 36
  • Overall Size (L x W x H): 61-5/8" to 81-5/8" x 30-1/8" x 50-3/8"
  • Overall Base Size: 31-13/16" x 7-7/32"
  • Net Weight: 546 lb.
  • Shipping Weight: 665 lb.

What's Included:

  • (1) Rikon® 30" x 40" VSR Lathe with Sliding Bed - 3 HP 1 Ph 220V
  • (1) Stand
  • (1) Spur center
  • (1) 60° Live center
  • (1) 3-3/8" faceplate
  • (1) 12" Tool rest with height extension
  • (1) Knock-out bar
  • (1) Tool holder
