Powermatic

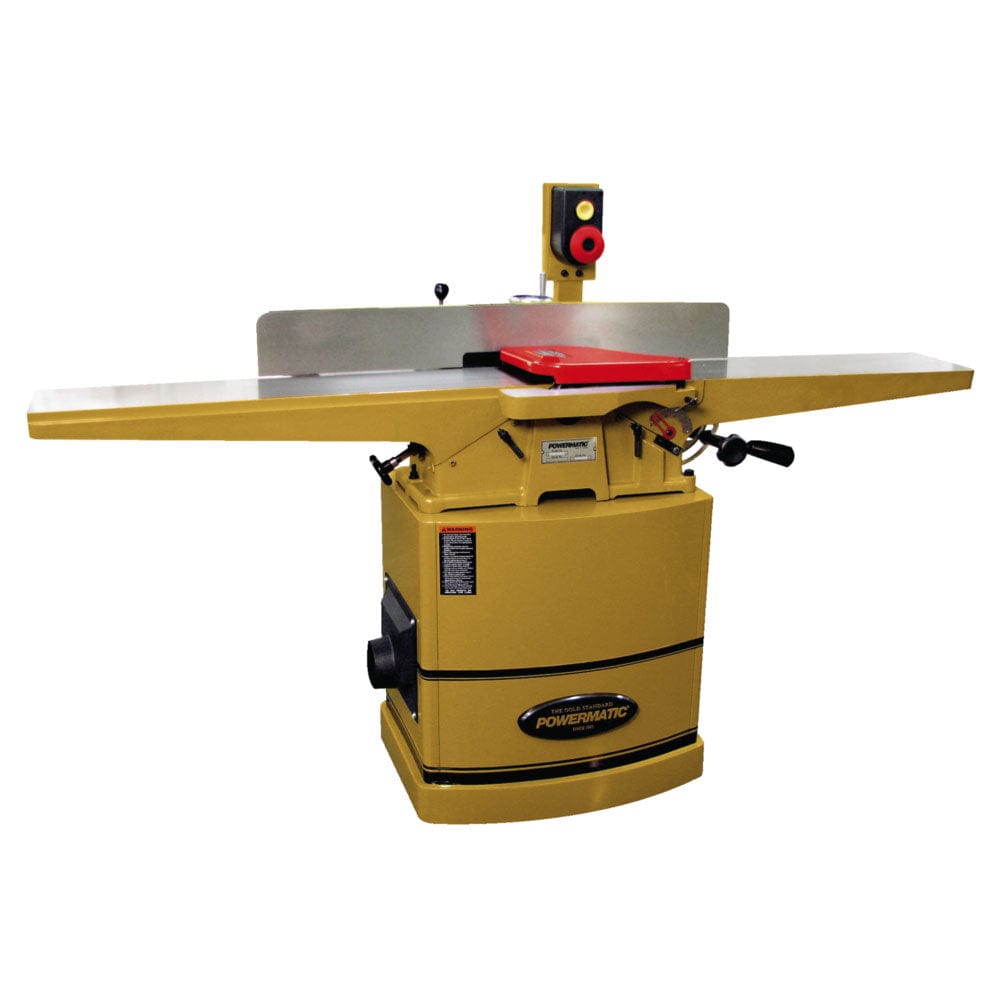

8" Jointer - 2 HP 1 Ph 230V - Helical Cutterhead - 60HH
Item #843948
Model 1610086K
Regular price
$3,499.99
Sale price
$3,499.99
Regular price
$3,499.99
Unit price
per
If you have a need for accuracy, this Powermatic 60HH 8" Jointer with its Helical Cutterhead will meet those needs while providing unique, user-friend. . .
View More Details
Items you may need
-
Magnetic Jointer Knife Setting Jig - Polycarbonate Body
Regular price $33.99Sale price $33.99 Regular priceUnit price per$33.99
Details
If you have a need for accuracy, this Powermatic 60HH 8" Jointer with its Helical Cutterhead will meet those needs while providing unique, user-friendly functions.
The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73" long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The operating switch is mounted high so you can reach it easily, and the push blocks have a magnetic base so they can be stored on any metallic surface for instant access.
Features
Specifications:
The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73" long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The operating switch is mounted high so you can reach it easily, and the push blocks have a magnetic base so they can be stored on any metallic surface for instant access.
Features

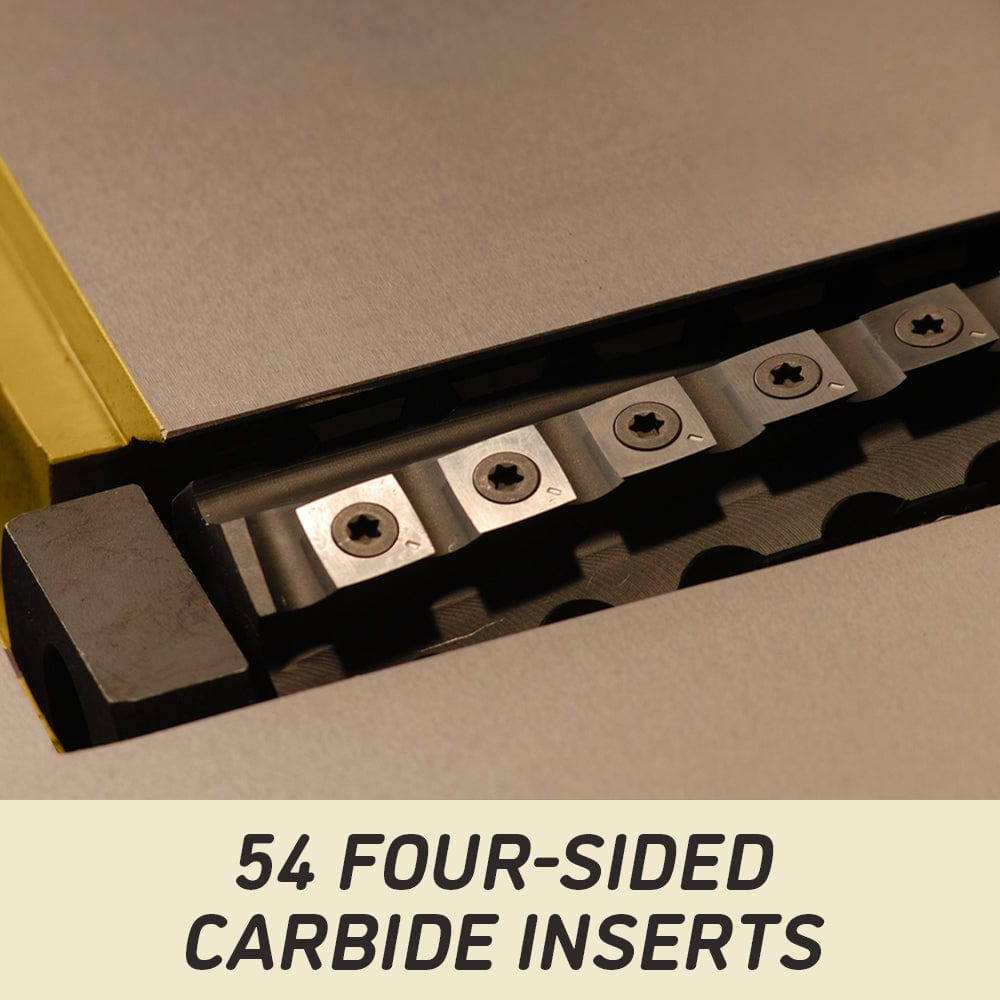

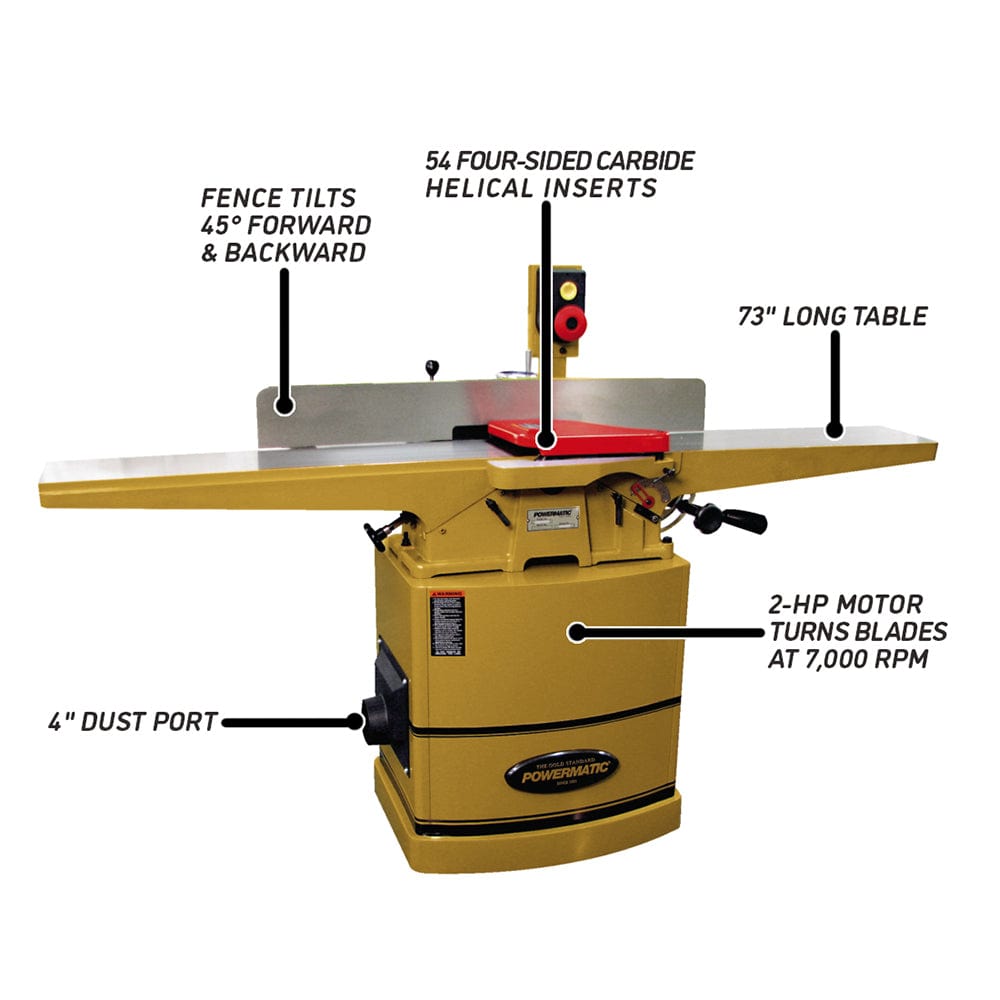

- Helical cutterhead with 4-sided carbide inserts provides smoother, quieter cutting and a superior finish

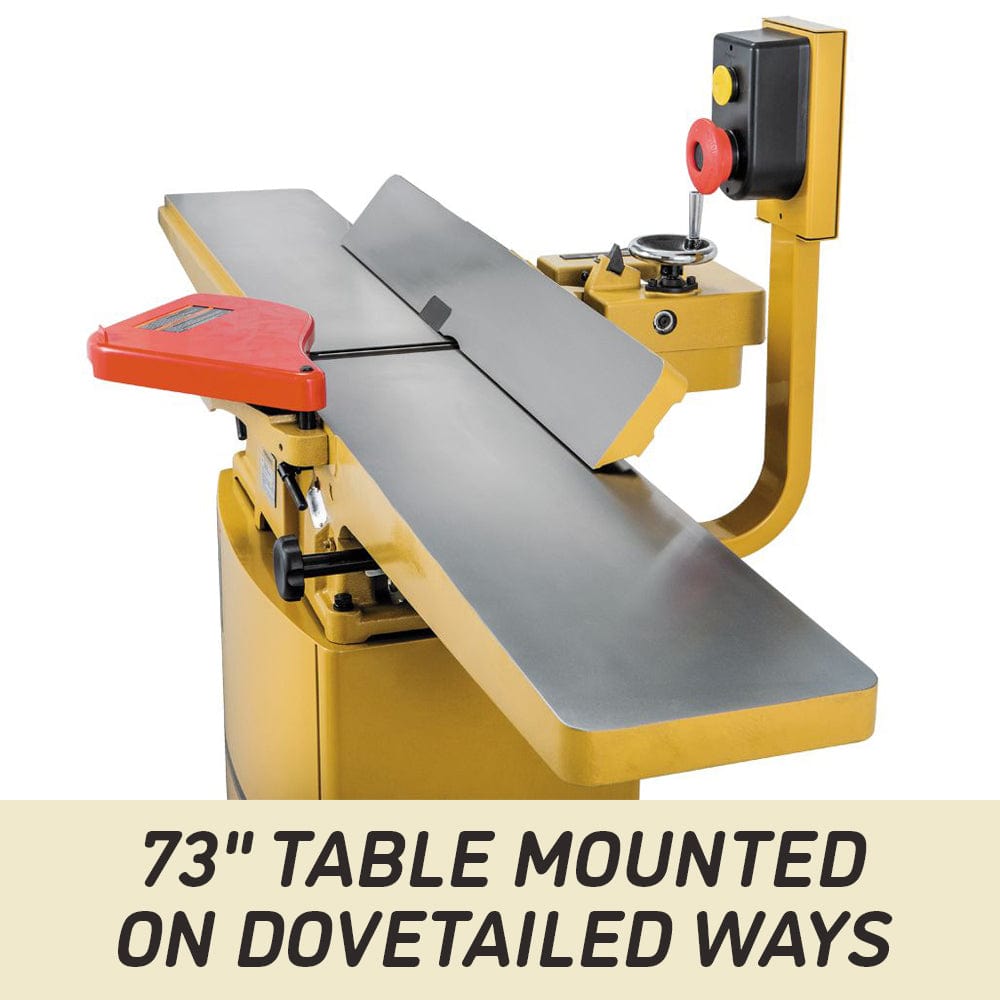

- Extra-long tables are mounted on dovetailed ways for extended workpiece support
- Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth

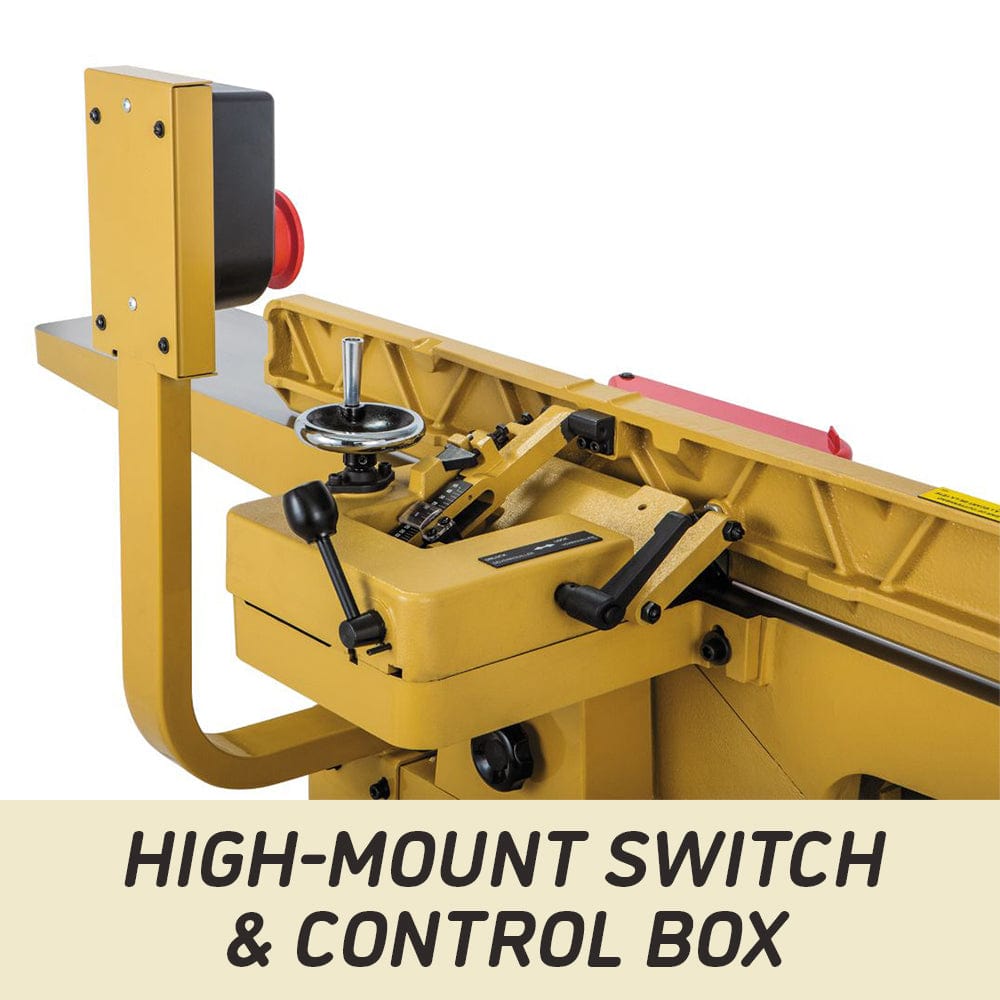

- Switch is mounted high for operator convenience

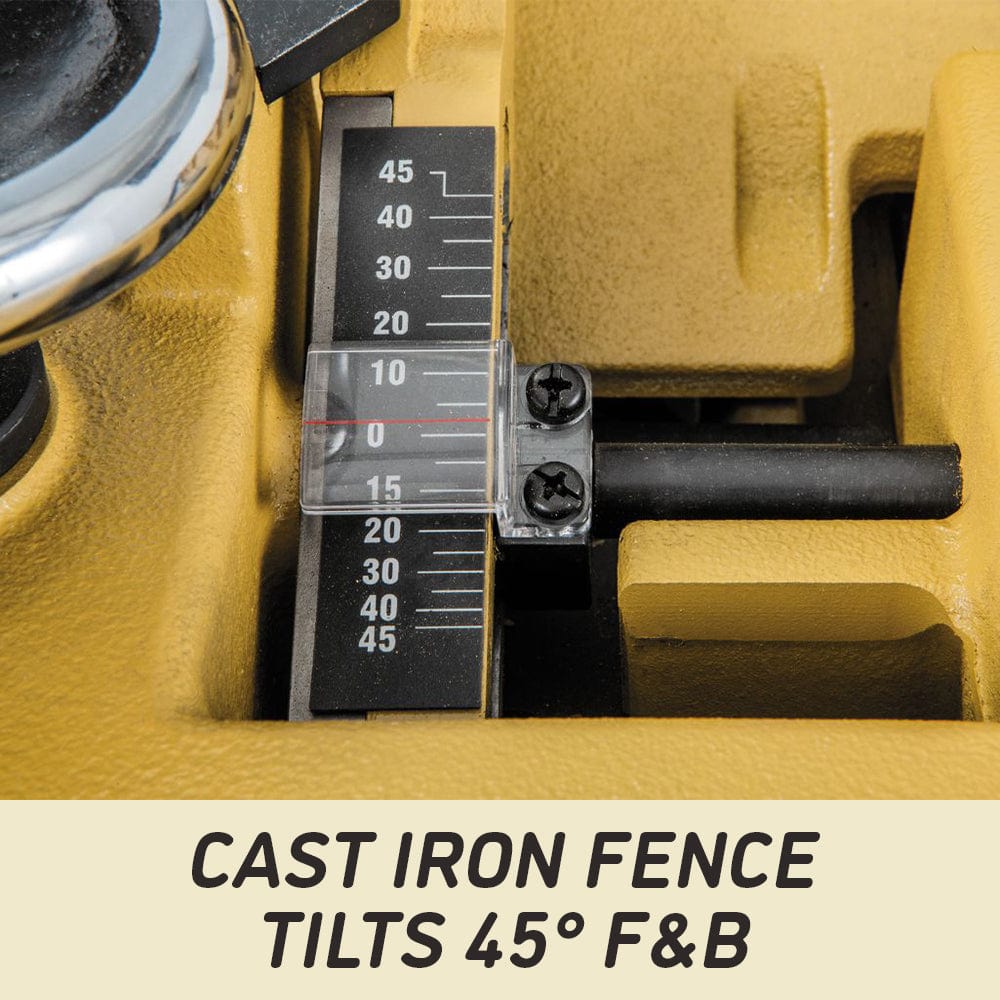

- Handwheel operated worm gear system for smooth fence tilting
- Magnetic push blocks can be stored on the machine within constant reach
- Non-mar fence insert protects table surface
Specifications:

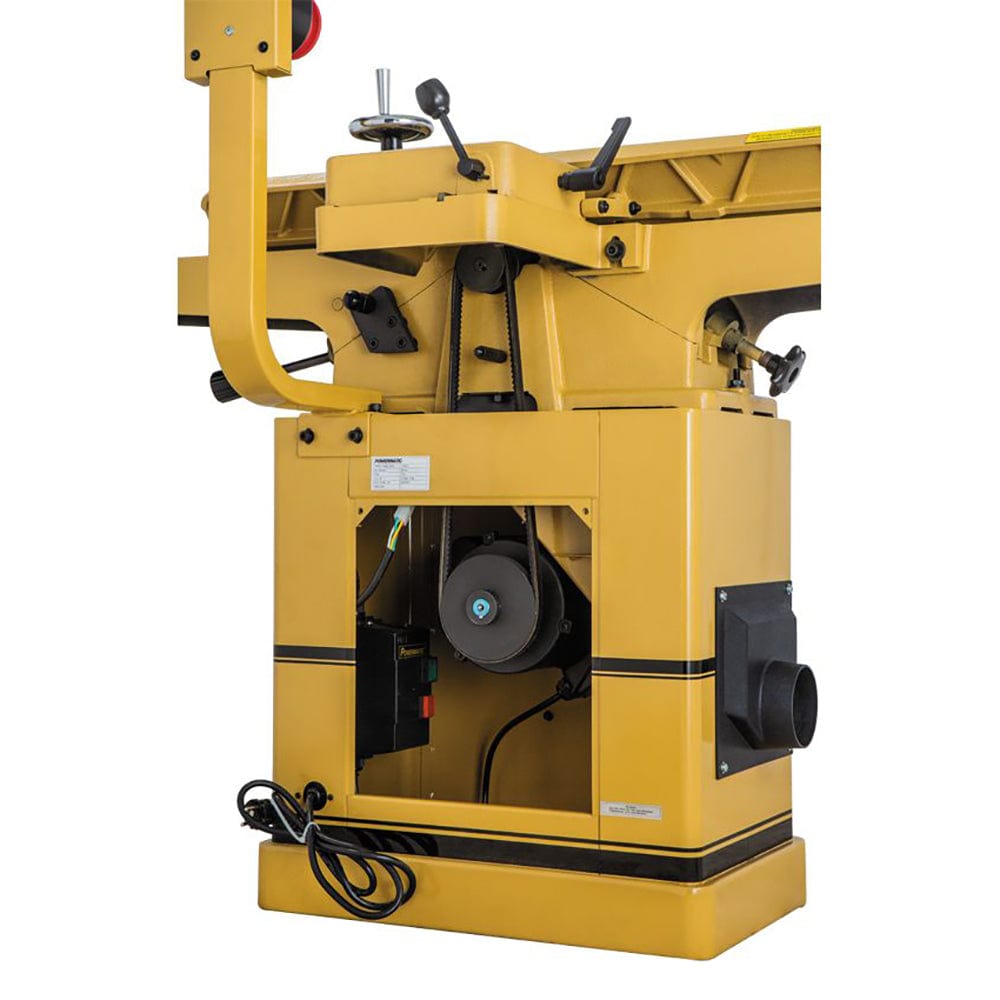

- Motor: 2HP, 1PH, 230V, 9A
- Number of Knives: 54
- Helical Knife Size (L x W x T) (In.): 15 x 15 x 2.5
- Cutterhead Speed (RPM): 7,000
- Cutting Capacity (W x D) (In.): 8 x 1/2
- Table Size (L x W) (In.): 73 x 8-1/2
- Table Height from Floor (In.): 32
- Infeed Table Length (In.): 35-1/4
- Outfeed Table Length (In.): 35-1/2
- Fence Size (L x H) (In.): 38 x 4-3/4
- Fence Tilt (Deg.): 45 Forward, 45 Backward
- Fence Positive Stops (Deg.): 45, 90, -45
- Dust Collection Minimum CFM Required (CFM): 450
- Dust Port Outside Diameter (In.): 4
- Recommended Circuit Size (Amps.): 20V
