Frequently Bought Together

• Current product. Always included in the bundle total and cannot be deselected.



  Next Wave

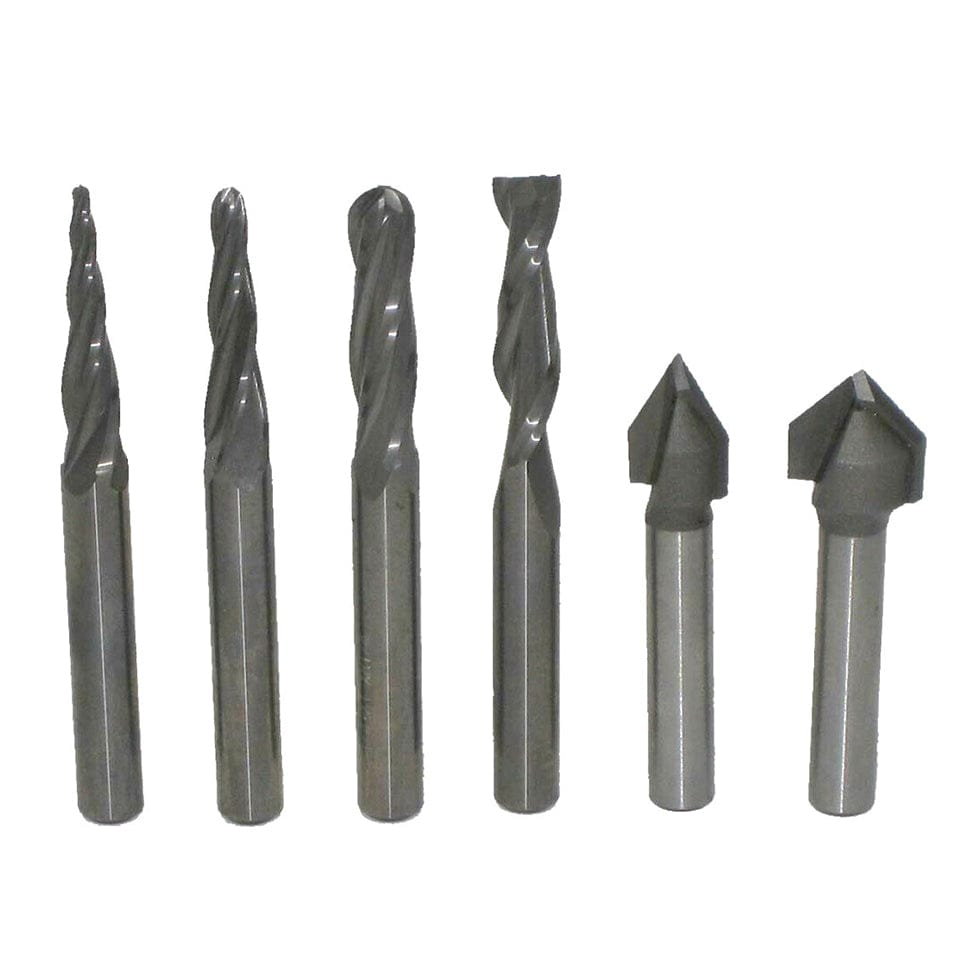

  Starter Bit Set- 6 Piece

  $179.99
•

  Next Wave

  SHARK HD520 CNC Machine

  +$4,249.99 -$4,999.99 Save $750


  Next Wave

  SHARK HD520 CNC Machine

  Item #167551 Model 10024

  More Info

  Handle all your machining needs in a home shop environment or on the production floor with the Next Wave CNC SHARK® HD520. Built with industrial grade components, the CNC SHARK® HD520 also features a heavy-duty aluminum and steel reinforced gantry, an extruded aluminum router mount system, interlocking aluminum table, linear rails and guides on the gantry, and anti-backlash, wear-compensated lead screws on all axes. The SHARK® HD520 can be pendant or computer-controlled. The SHARK® HD520 CNC machine is the ideal tool for carving or machining a large variety of projects made from wood, soft metals, composites, or plastics. Beginners to professionals are incorporating this diverse woodworking tool for custom parts, joinery, precision drilling functions, or all things decorative.




  Next Wave HD520 ships via R&L Freight with curbside delivery only


  Features:





  • Linear Guides and bearings on the gantry
  • Anti-backlash, wear-compensated leadscrews on all axis
  • Interlocking rigid aluminum table with virtually unlimited clamp positioning
  • Aluminum gantry back plate for heavy machining capabilities
  • Aluminum router mounting clamp
  • Steel encased gantry legs for increased rigidity
  • Automatic router on and off control
  • USB Interface
  • X and Y homing capability




  Specifications:


  • Table Dimensions: 28" x 63"
  • XYZ Travel: 25" x 50" x 7"
  • Overall Dimensions: 36-1/4"W x 63"L x 24-1/2" H
  • Power: 110 /115 V
  • USA-Based Technical Support
  • Made in USA




  What's Included:


  • (1) Full Two-year warranty and USA Based technical support through NextWave Automation
  • (1) CNC SHARK ®HD520 machine
  • (1) V-Carve Pro design software
  • (1) Color pendant controller
  • (2) Hold-down clamps
  • (1) Carbide V-bit
  • (1) Virtual Zero Unlimited Software and Vector Art 3-D Sampler Pack




  Notes:


  • Fully compatible with these routers (sold separately): Bosch 1617 and 1618, Porter Cable 890 Series, DeWalt 610, 616 and 618, and the Next Wave Water-Cooled Spindle
  • The SHARK HD520 CNC machine is fully compatible with Next Wave’s extensive product line of additional accessories, such as laser, 4th axis, scanner, and more – all sold separately.
  • Requires a computer with a USB 2.0 Port and a USB Flash Drive (sold separately




  Next Wave HD520 ships via R&L Freight with curbside delivery


  Shipping / Billing Information

  This product ships direct from the manufacturer:

  • Your order will ship in approximately 5 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground or Freight to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.




  Return Information

  Next Wave products can be returned if they are in unopened, resaleable condition. You will be responsible for a 25% restocking fee. If you need help initiating a return, please contact Woodcraft Customer Service at 1-800-535-4482.

•

  Next Wave

  SHARK SD110 CNC Machine

  +$1,499.99


  Next Wave

  SHARK SD110 CNC Machine

  Item #173787 Model 10001

  More Info

  Let your creativity shine with the SHARK® SD110 CNC Machine. Hobbyists and pros alike are incorporating it into their shops as a go-to woodworking tool for custom parts, joinery, precision drilling functions, or anything decorative. The compact table size designed for projects such as carving plaques or signs, ornamental boxes and precision parts machined from wood, soft metals, or plastics can easily fit into any workshop – on the end of a bench or stored underneath. Using the included 3-D carving capability and a 3-D model library, you can cut beautiful relief carvings, intricate inlays, and create exquisitely detailed engravings with ease. The incredible accuracy of the SHARK® SD110 CNC Machine makes engraving custom circuit boards possible.
  Run the SHARK® SD110 CNC Machine from either the included touchscreen pendant or your computer. To use the pendant, design your project with the included VCarve Desktop Design software on a PC computer with USB 2.0 port or higher (computer not included). Then save your project directly to a USB flash drive, plug it into the Pendant, select your file, and hit the run button. By using the flash drive, your computer won't be subjected to a dusty shop environment. For more challenging projects and added versatility, connect your computer to the SHARK® SD110 with the USB cord and run your CNC machine with the Ready2Control software. This will allow you to use the Virtual Zero Unlimited programming, which adjusts your design to fit the curves and angles of your substrate.


  Features:


  • Aluminum interlocking slotted table track for highly customizable clamping
  • Color touch screen pendant controller system
  • Ships fully assembled
  • Design software included
  • Ready2Control software lets your computer run your CNC
  • Made in the USA

  Specifications:

  • Table dimensions: 12'' x 18"
  • XYZ travel: 12'' x 13'' x 3''
  • Overall dimensions: 19-1/2'' W x 20-1/2'' L x 18'' H
  • Compatible Routers: DeWALT 611, Porter-Cable 450, Bosch 1 HP Model PR20 or similar style palm router (sold separately).

  What's Included:

  • (1) Next Wave SHARK® SD110 CNC Machine
  • (1) Color touch screen pendant controller
  • (2) Hold-down clamps
  • (1) Dewalt 611 Compact router clamp
  • (1) Bosch 1 HP Compact router clamp
  • (1) Bosch 1.25 HP Compact router clamp
  • (1) Carbide V-bit
  • (1) Latest version of VCarve Desktop Design Software Package
  • (1) Ready2Control software
  • (1) 2-Year Factory Warranty

  Notes:

  • Requires a PC computer with USB 2.0 port, USB flash drive and palm router (sold separately).
  • Included router clamps fit the Bosch, Dewalt, and Porter Cable compact routers.
  • If you have received prior versions of VCarve, they are upgradeable to version 9.0

  FAQs


  What is the actual usable cutting area?


  The usable cutting area is approximately 12" x 18", though exact dimensions may vary slightly based on setup and accessories. It’s well-suited for small to medium-sized CNC projects.


  What’s the maximum cutting depth?


  Maximum cutting depth depends on the bit length and setup, but the machine is designed to handle typical routing depths for its size. It’s capable of working through standard material thicknesses with proper passes.


  Can it cut hardwoods, aluminum, acrylic, or only soft materials?


  Yes, it can cut hardwoods, plastics like acrylic, and even light aluminum with the proper bits and settings. It’s a versatile option for a range of CNC woodworking and hobby applications.

•

  Next Wave

  SHARK SD120 CNC Machine

  +$1,999.99


  Next Wave

  SHARK SD120 CNC Machine

  Item #173788 Model 10014

  More Info

  The Next Wave SHARK® SD120 CNC Machine features a longer 12" x 24"- table designed for larger projects such as carving plaques or signs, ornamental boxes and precision parts machined from wood, soft metals, or plastics. Using the included 3-D carving capability and a 3-D model library, you can cut beautiful relief carvings, intricate inlays, and create exquisitely detailed engravings with ease. The incredible accuracy of the SHARK® SD120 CNC Machine makes engraving custom circuit boards possible. Let your creativity shine with the SHARK® SD120 CNC Machine. Hobbyists and pros alike are incorporating it into their shops as a go-to woodworking tool for custom parts, joinery, precision drilling functions, or anything decorative. The compact size means it can easily fit into any workshop – on the end of a bench or stored underneath.
  Run the SHARK® SD120 CNC machine from either the included touchscreen pendant or your computer. To use the pendant, create the project using the included VCarve design software and transfer it to a USB drive. The USB is then plugged into the pendant. For more challenging projects and added versatility, connect your computer to the SHARK® SD120 with the USB cord and run your CNC machine with the Ready2Control software. This will allow you to use the Virtual Zero Unlimited programming, which adjusts your design to fit the curves and angles of your substrate.


  Features:





  • Aluminum interlocking slotted table track for highly customizable clamping
  • Color touchscreen pendant controller system
  • Ships fully assembled
  • Made in USA




  Specifications:


  • Table Dimensions: 12'' x 24”
  • XYZ Travel: 12'' x 24'' x 4''
  • Overall Dimensions: 19-1/2'' W x 30-1/2'' L x 21'' H




  What's Included:


  • (1) Next Wave SHARK® SD120 CNC Machine
  • (2) Hold-down clamps
  • (1) Carbide V-bit
  • (1) Vectric VCarve desktop design software
  • (1) Vector Art 3-D sample pack
  • (1) Ready2Control software




  Notes:


  • Requires a PC computer with USB 2.0 port, USB flash drive and palm router (not included, sold separately).
  • Compatible routers include DeWALT 611, Porter-Cable 450, Bosch 1 HP Model PR20 or similar style palm router (sold separately).




•

  Next Wave

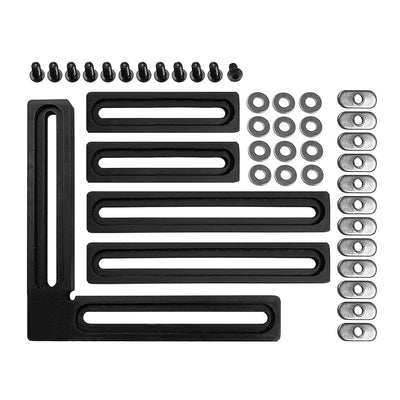

  Fence Kit - 5 Piece

  +$24.99


  Next Wave

  Fence Kit - 5 Piece

  Item #191708

  More Info

  This 5pc Low Profile CNC Fence Kit allows you to easily square off your working material with your CNC machine and speeds set up when doing any type of production work. Combining the corner clamp with the additional low profile side pressure clamping fences you can easily secure your working piece on all 4 sides while maintaining it squared to your machine.




  Features:







  • Very stiff non-metallic material will not damage your bits if hit accidentally
  • Made in USA
  • L' is 6" on a side, 2 of the straight pieces are 6" long, 2 are 4" long.
  • Includes bolts and T nuts for ease of placement.
  • 1 Year Warranty




  What's Included:


  • (1) Next Wave Fence Kit
