Milescraft

DustRouter - Router Dust Collection System

Item #173742 Model 1501
$29.99
$29.99 $29.99
Now you can breathe easy with the Milescraft DustRouter. Install, connect, and cut dust by over 90 percent. The DustRouter can be mounted directly to . . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Face Frame Clamp

    From $18.99
    From $18.99 $18.99
    163346.0

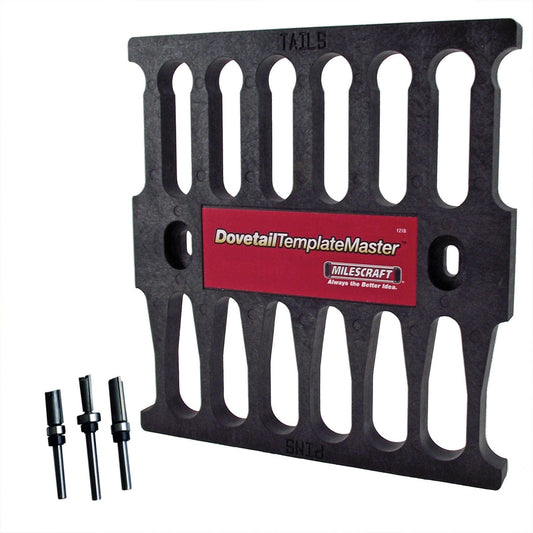

  • DoveTailTemplateMaster

    $54.99
    $54.99 $54.99
    154243.0

  • DustRouter - Router Dust Collection System

    $29.99
    $29.99 $29.99
    173742.0

  • DustCutter Table Saw Dust Collection Bag

    $29.99
    $29.99 $29.99
    172690.0

Details

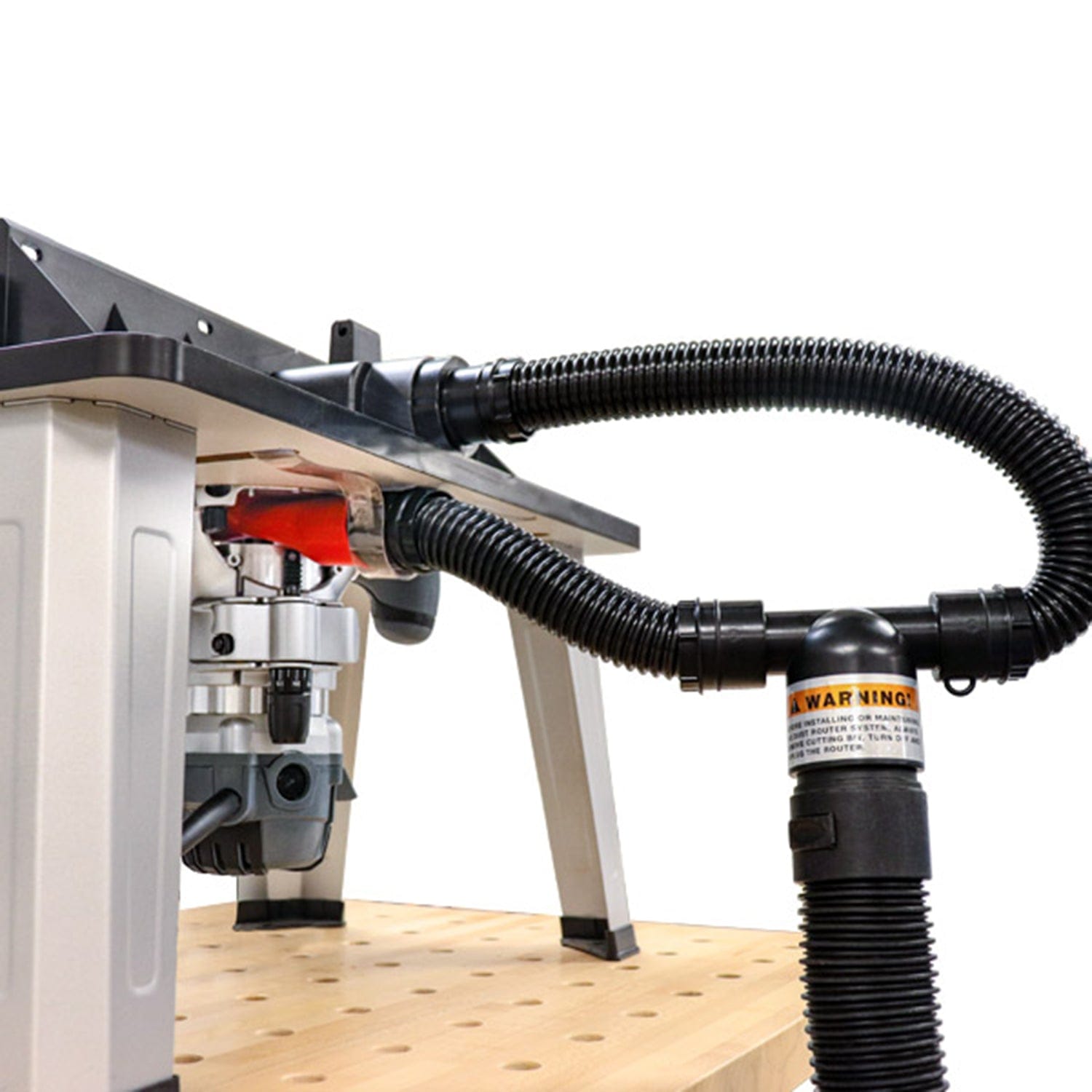

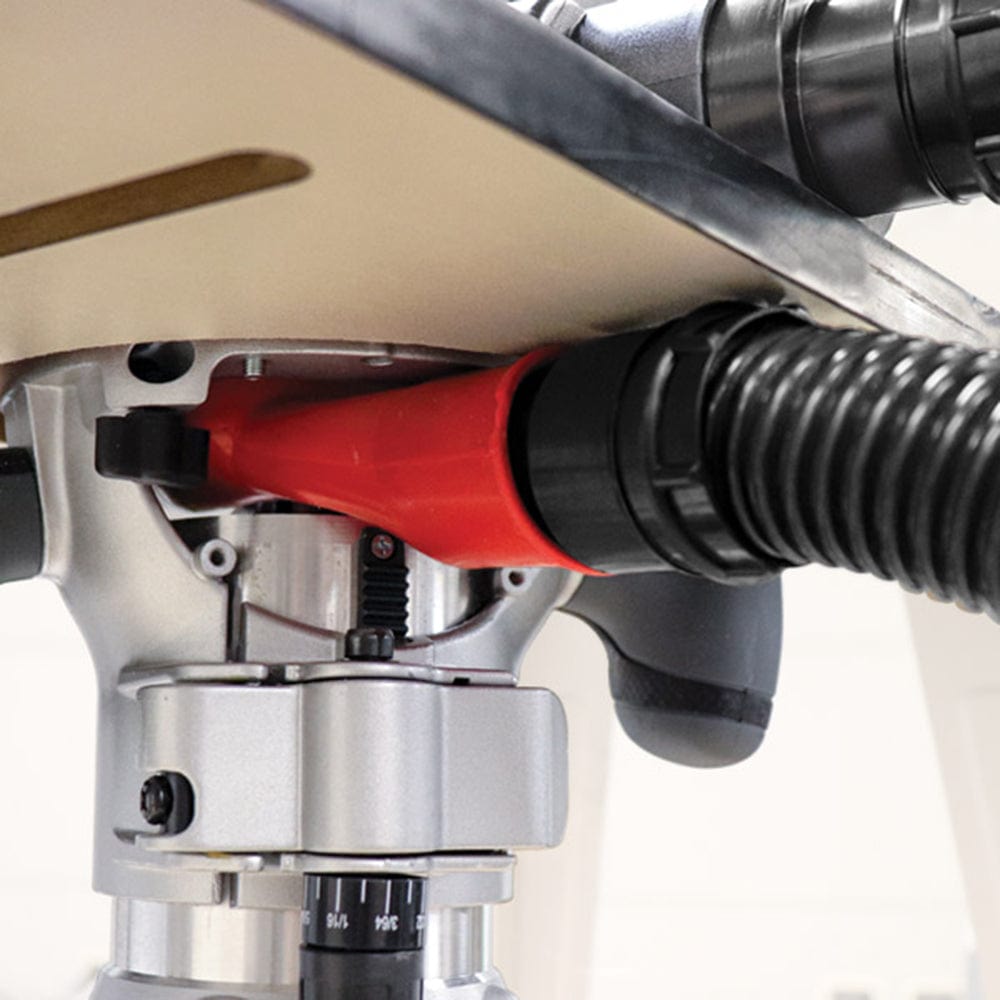

Now you can breathe easy with the Milescraft DustRouter. Install, connect, and cut dust by over 90 percent. The DustRouter can be mounted directly to your router table or insert plate, making it easy to adjust or change your tools. Enjoy maximum dust collection while edge trimming, cutting grooves, slots, dadoes, dovetails, and more.


Includes Dust Cup, 20" Dust Tube, 35" Dust Tube, Fence Connector, T-Connector with Plug, Cup Connector, Vinyl Strap, Hook and Loop Circle Pad (3), Mounting Screws, and Manual.


Features

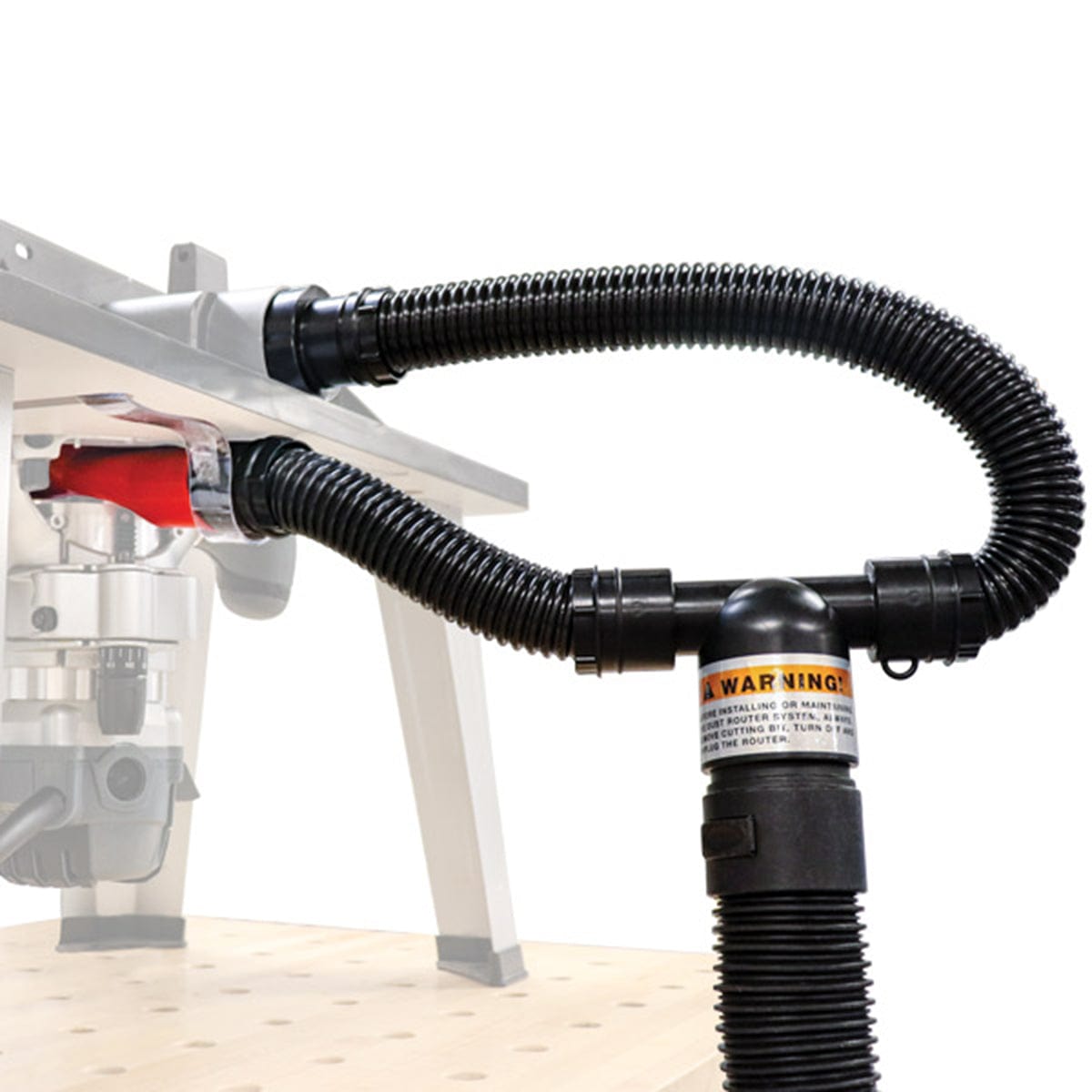

  • Dual Dust Collection
  • Use with or without the router table fence
  • Connect hoses from the dust port and dust cup with the vacuum source
  • Universal Fit
  • Easy to attach to most router tables for permanent or temporary use

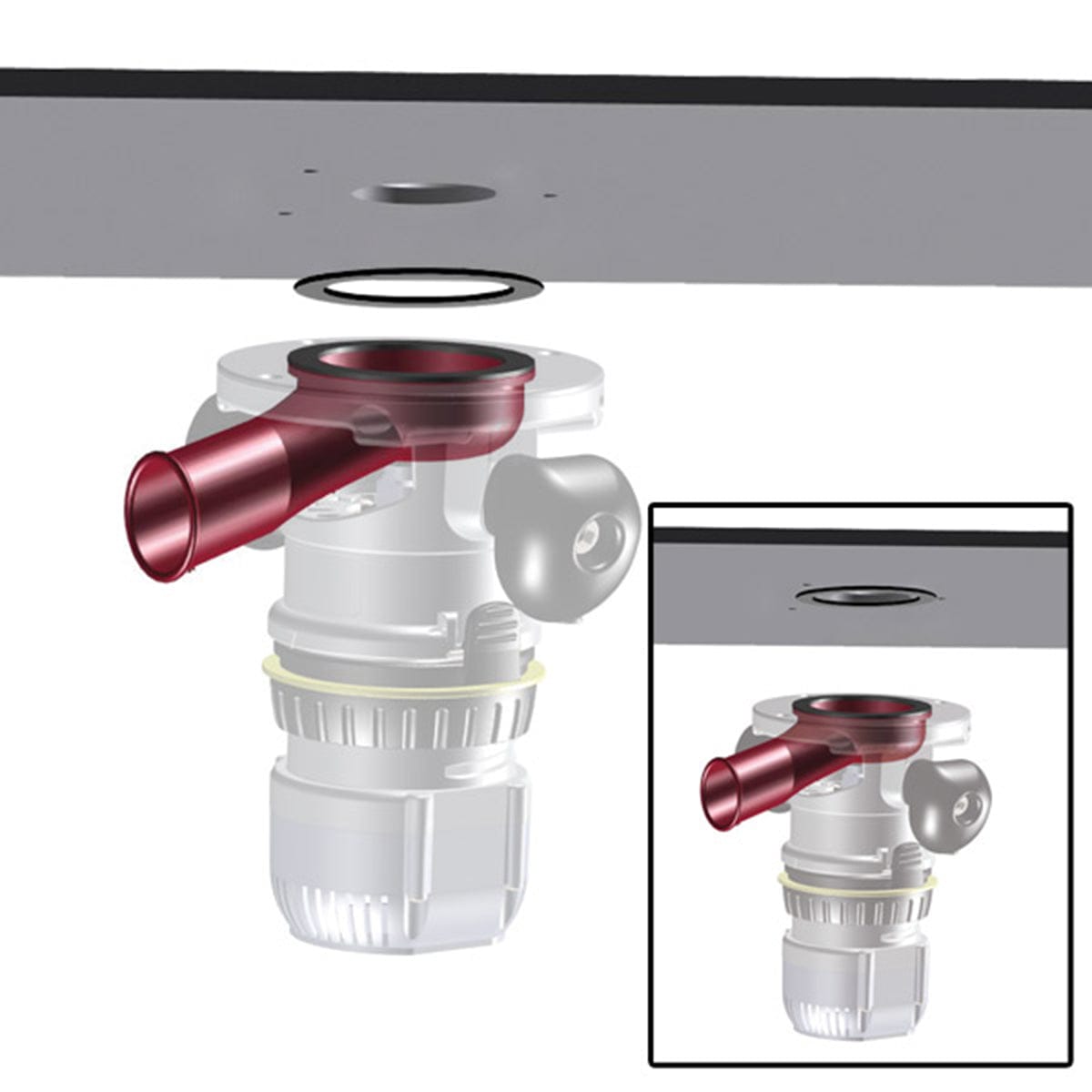

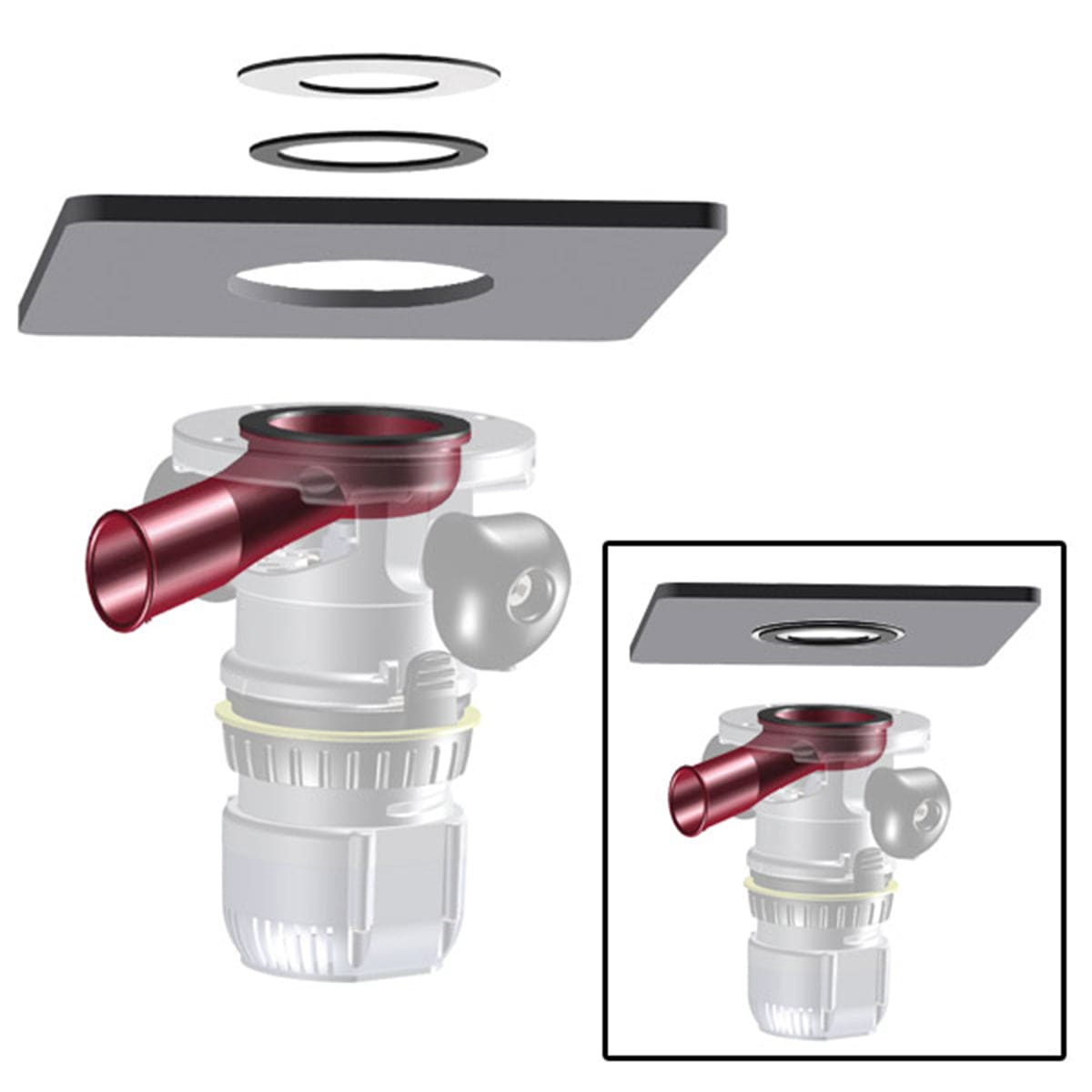

  • Hook and loop circle pads mount directly to your router table or insert plate
  • Standard hose size, 1-1/2" (38mm) diameter, attaches to workshop vacuums and dust collectors

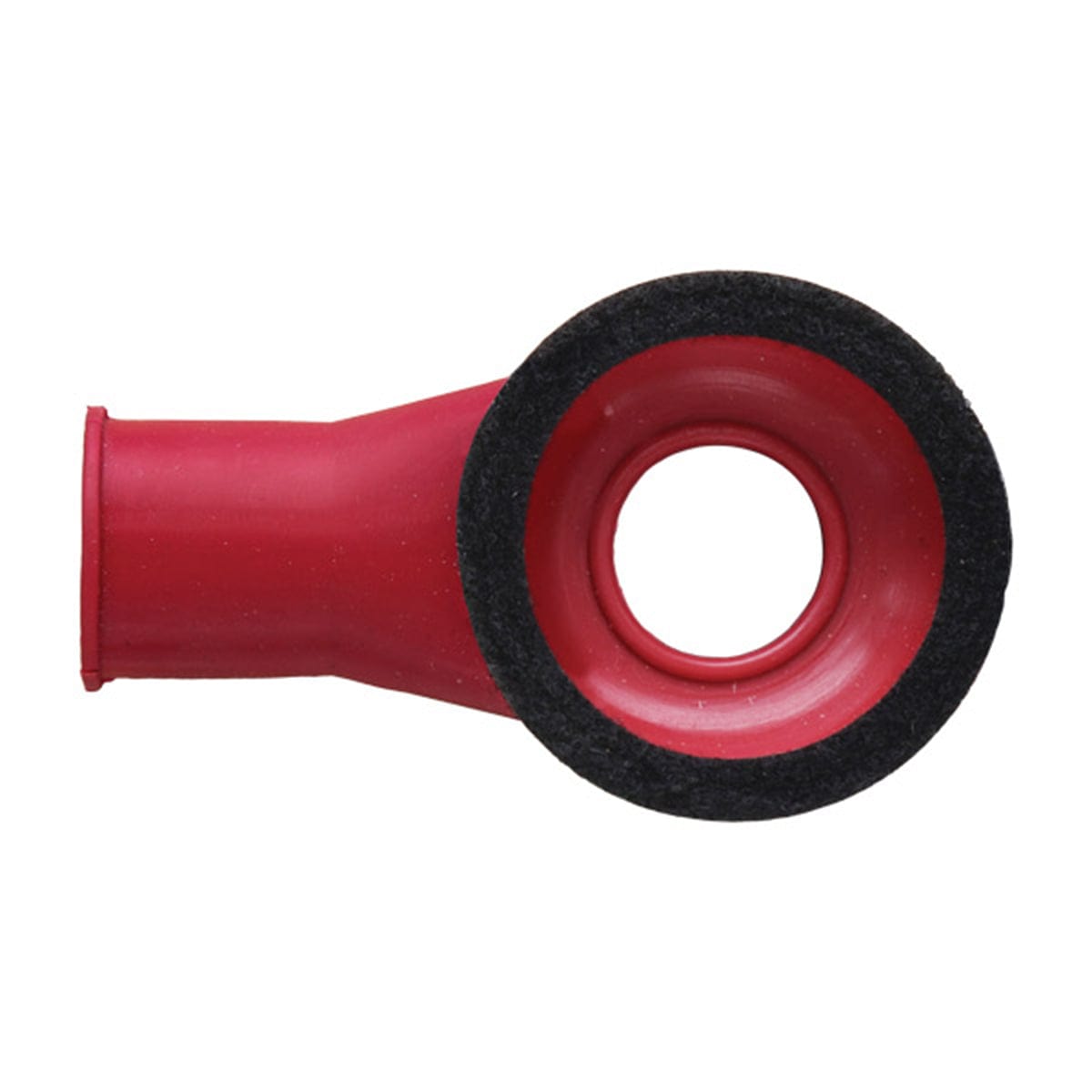

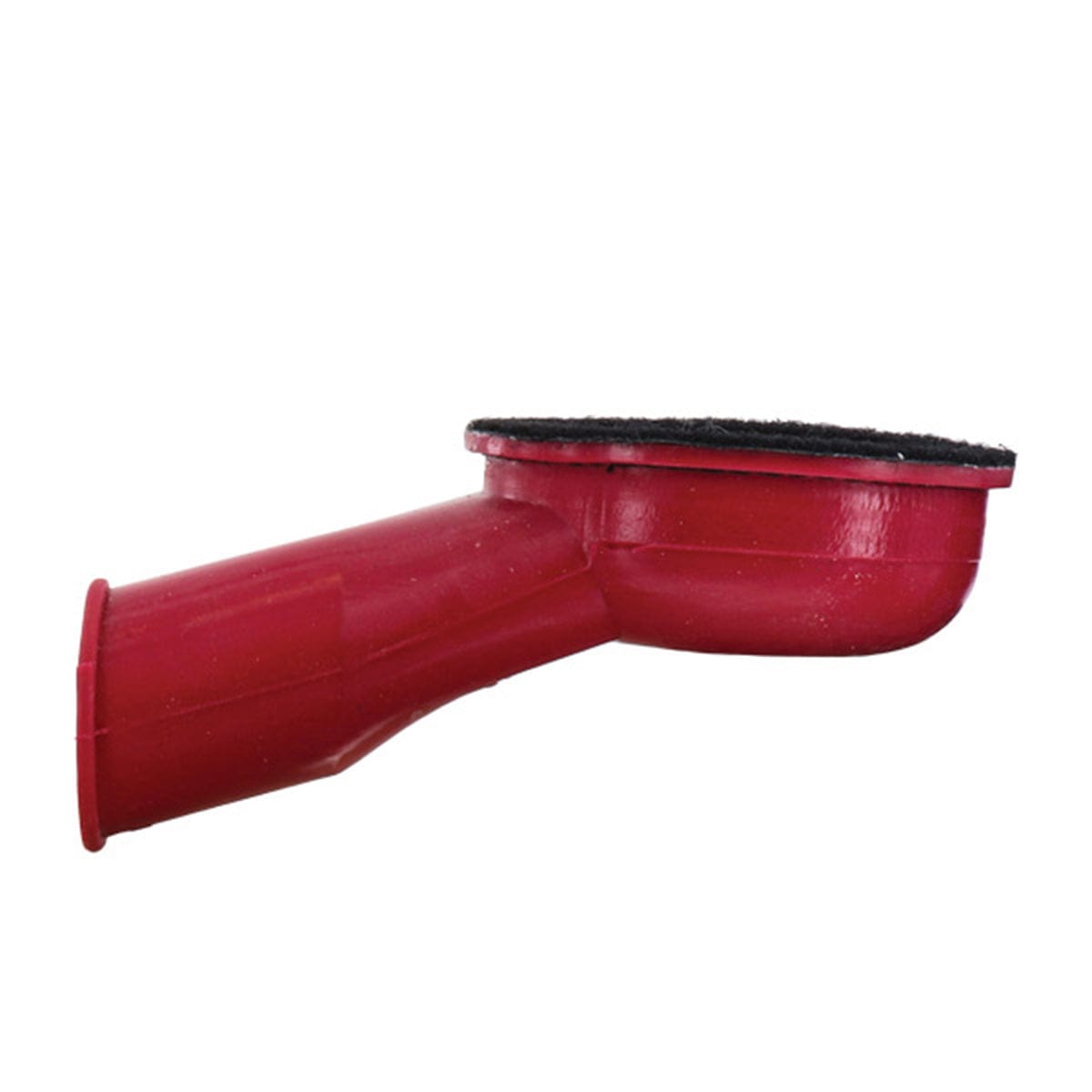

  • Flexible silicone dust cup with hook and loop attachment, fits most routers and lifts
  • Dust cup can be cut open along scissor line for easy exchange of router bits



Specifications



  • Dust Cup: 3-3/8” (35mm) Outside Diameter, 2-1/2” Inside Diameter
  • Cup Connector: Outside Diameter 3-3/8" (35mm)
  • Short Dust Tube: Length 20" (508mm), Diameter 1-1/2" (38mm)
  • Long Dust Tube: Length 35" (889mm), Diameter 1-1/2" (38mm)
  • Fence Connector: Outside Diameter: 2-1/4" (57mm)

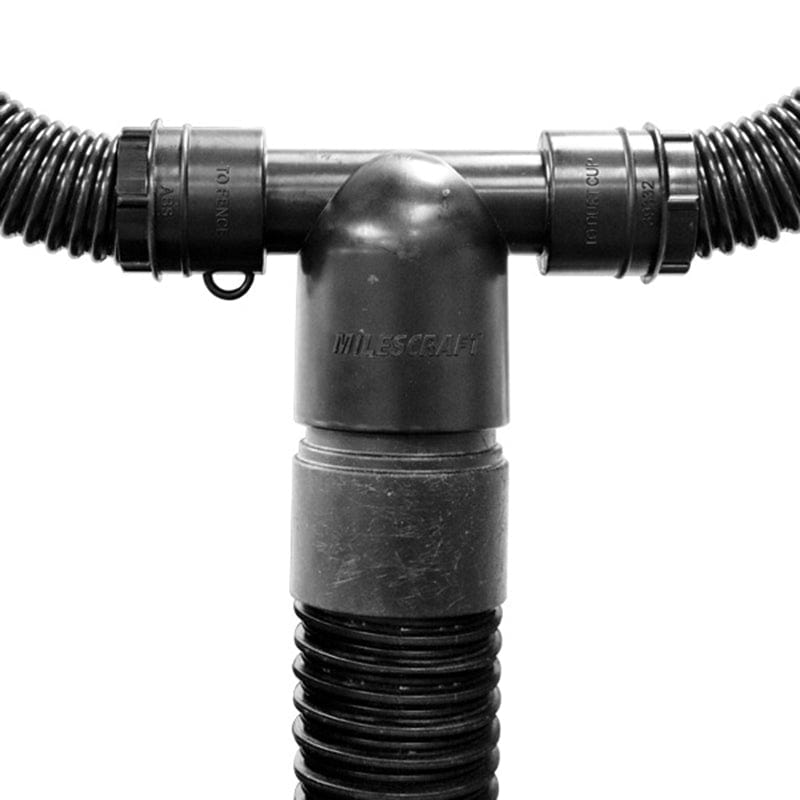

  • T-Connector Vacuum Connection: Inside Diameter: 2-1/4" (57mm)
  • Hook and Loop Circle Pad: Outside Diameter: 3-3/8" (35mm), Inside Diameter: 2-1/2" (64mm)
  • Largest Bit Possible: 2-1/4" (57mm) Diameter
