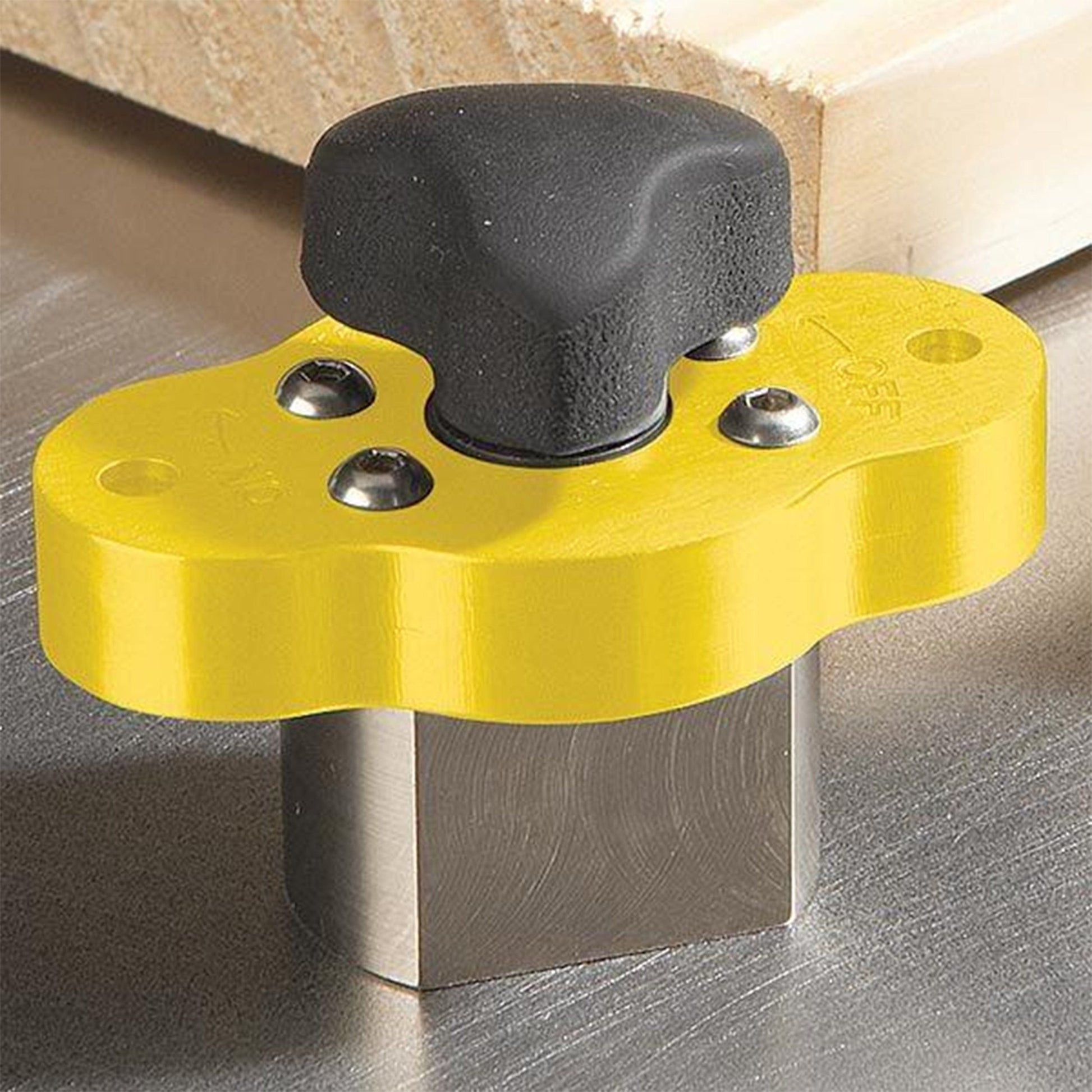

Features:

• 95 lbs. of holding force each; two or more MagJigs per fixture is ideal
• Rotate knob to engage the Magswitch; when you’re finished, turn the knob to disengage
• Fits perfectly in a 3/4"-thick material so the bottom of the magnet is flush to the table surface
• Screw holes provided to securely mount MagJig to your jig or fixture
• 30mm hole required for installation

Specifications:

• Max Breakaway: 95 lbs (43 kg)
• 2:1 Shear Working Load: 9 lbs (4 kg)
• Product Weight: 0.2 lbs (0.1 kg)
• Dimensions: 2.2 x 1.3 x 1.8 in (55.8 x 33 x 45.7 mm)
• Magnetic Pole Footprint: 30 mm x 21 mm (1.18 in x 0.82 in)

What Included:

• (1) MagJig 95 Switchable Magnet
