Laguna

Revo 12 I 16 Midi Lathe EVS

Item #873017 Model MLAREVO1216EVS
Regular price $999.00
Sale price $999.00 Regular price $999.00

This item has an additional shipping charge

With the unique outboard turning feature the Laguna Revo 1216 Midi Lathe allows turning of wood blanks up to 16”. Three speed ranges are easily c. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Ships from Manufacturer

Shipping Info

Items you may need

  • Revo 1216 Lathe Expansion Set

    Regular price $149.00
    Sale price $149.00 Regular price $149.00
    873014.0
  • Mobility Kit

    Regular price $149.00
    Sale price $149.00 Regular price $149.00
    854410.0
  • Industrial Flood Light for REVO 1836

    Regular price $149.00
    Sale price $149.00 Regular price $149.00
    421816.0

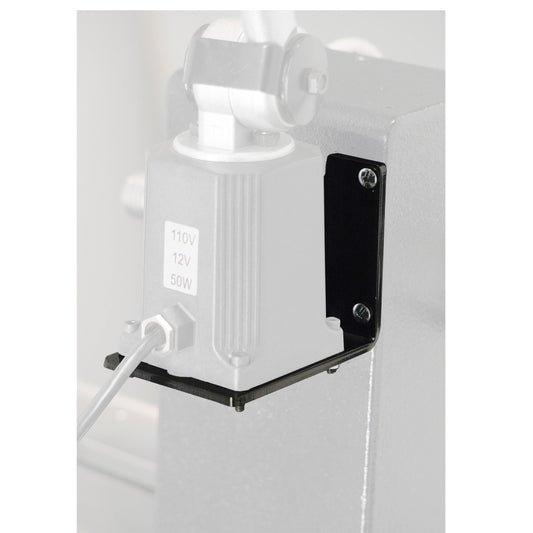

  • L-bracket for Laguna Revo 1216 Lathe

    Regular price $15.99
    Sale price $15.99 Regular price $15.99
    166204.0
  • Lathe Stand for Laguna Revo 1216

    Regular price $299.00
    Sale price $299.00 Regular price $299.00
    873015.0

Details

With the unique outboard turning feature the Laguna Revo 1216 Midi Lathe allows turning of wood blanks up to 16”.

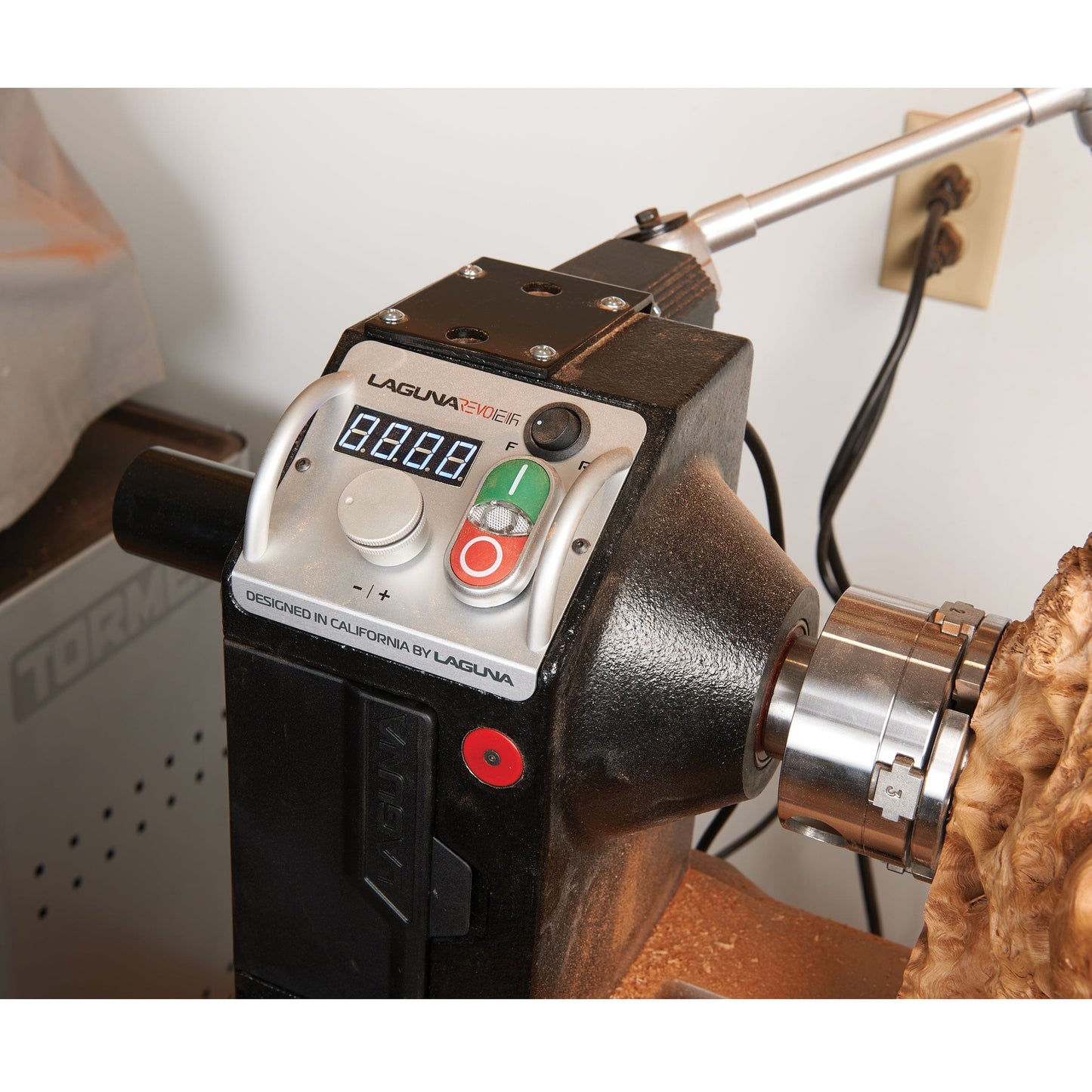

Three speed ranges are easily changed using the front access door – with no tools needed. A magnetic closure holds the door shut. Simply rotate the handle 90° to elevate the motor and lower the pulleys and then adjust the belt position. Turn the handle back to re-tension. Once a speed range (low, mid or high) is selected, you can dial into the exact speed you want using the silver knob. The bright blue digital display shows the selected speed.
The green (on) and red (off) buttons are big and easy to press. A forward-reverse toggle button allows you to change the direction of rotation.
A 24-position indexing plate allows the headstock to rotate in 15° increments. The headstock and tail stock accept an MT2 taper. A drive center and live center are included.
The PWM (Pulse Width Modulation) motor utilizes transistors for fast communication between the motor and controller. PWM controls stabilize the RPM and provide consistent torque (voltage) when using speeds at low RPM so you can turn with confidence at any speed on the Laguna Revo 1216 Midi Lathe EVS.
Includes lathe, face plate, drive center, live center, center knock out rod and face plate wrench.
Features
  • Bright blue digital display
  • Forward and reverse rotation
  • Pulse Width Modulation (PWM) motor provides consistent torque at low speeds
  • Simple speed change with front belt access and dial in knob
  • MT2 taper on both spindle and tail stock

Specifications
  • Motor: 1 HP DC Permanent Magnet Motor
  • Controller: Pulse Width Modulation (PWM)
  • Electrical Requirements: 110V-1PH-60HZ
  • Recommended Breaker Size: 110V - 15 AMP
  • Speed Range: 650 - 3500 RPM (high), 325 - 1750 RPM (mid), 50 - 525 RPM (low)
  • Distance Between Centers: 15.5” (394mm)
  • Swing Over Bed: 12-1/2” (318mm)
  • Swing Over Banjo: 9-1/2” (241mm)
  • Max. Outboard Swing: 16” (406.4mm)
  • Spindle Bore: 3/8” (9.5mm)
  • Spindle Taper: MT2
  • Spindle Thread: 1”x 8 TPI (both ends)
  • Indexing: 24 positions with Lock Drive belt
  • Tail stock quill travel: 2-1/2” (63.5mm)
  • Tail stock taper: MT2
  • Floor to bed height: 6.7” (170mm)
  • Floor to Spindle Center: 13” (328.75mm)
  • Bed Length 29.4” (746.8mm)
  • Tool Rest Length: 6” (152.4mm)
  • Tool Rest Post Diameter: 1” (25.4mm)
  • Faceplate Diameter: 3” (76.2mm)
  • Certification: CSA C/US 256540
  • Overall Size: 29.4” L x 8.9” W x 17.4” H (746.8mm x 226mm x 442mm)
  • Net Weight: 118 lb. (53.5kg)
  • Shipping Weight: 125 lb. (56.7kg)
  • Shipping Dimensions: 35.8” L x 14.6” W x 20.5” H


Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-21 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
  • Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time at no charge to you.

Return Information

Laguna does not accept returns. If your shipment was damaged, please refuse delivery, for defective items, please contact Woodcraft Supply customer service @ 1-800-535-4482.

Warranty Information

New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.

For warranty repair information, call 1-800-332-4094.
