Features:

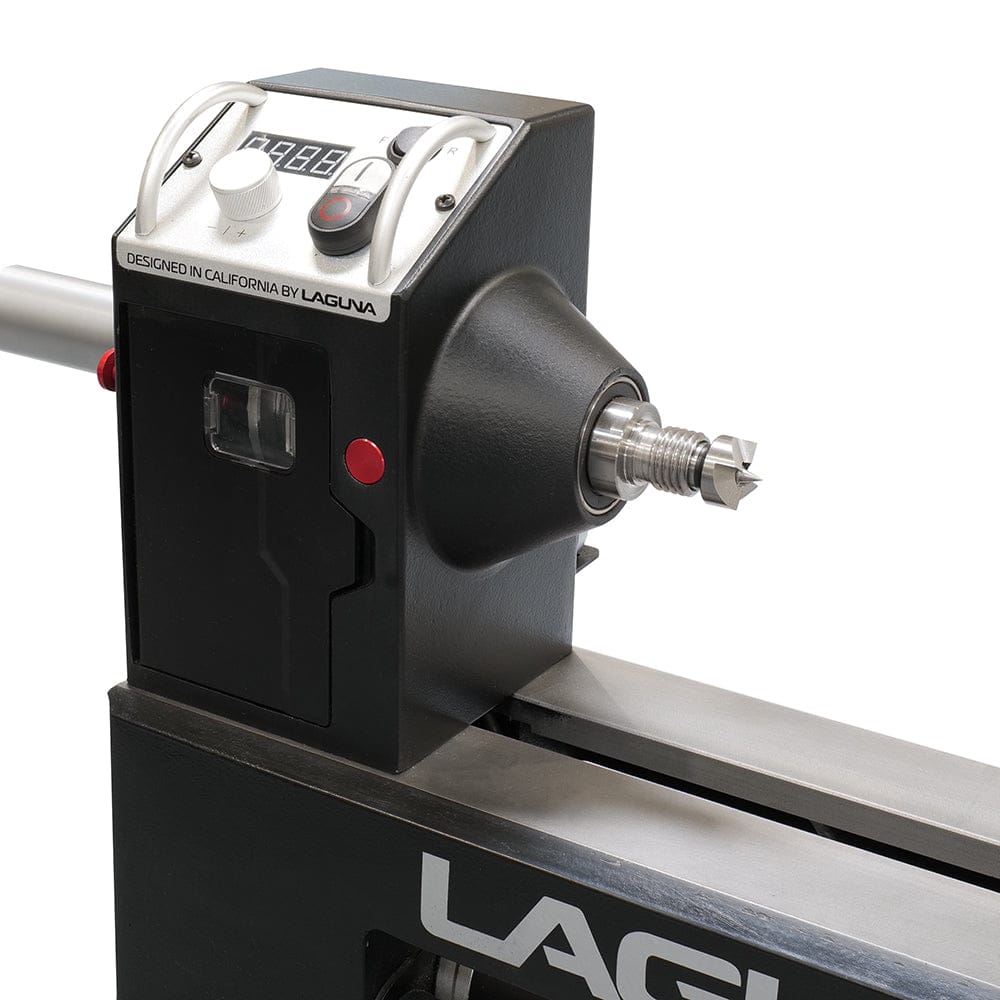

- Projected cast iron nose cone on headstock for wider bearing spacing and additional tool clearance around the workpiece.
- Best in class power with 1 HP PWM Induction Motor

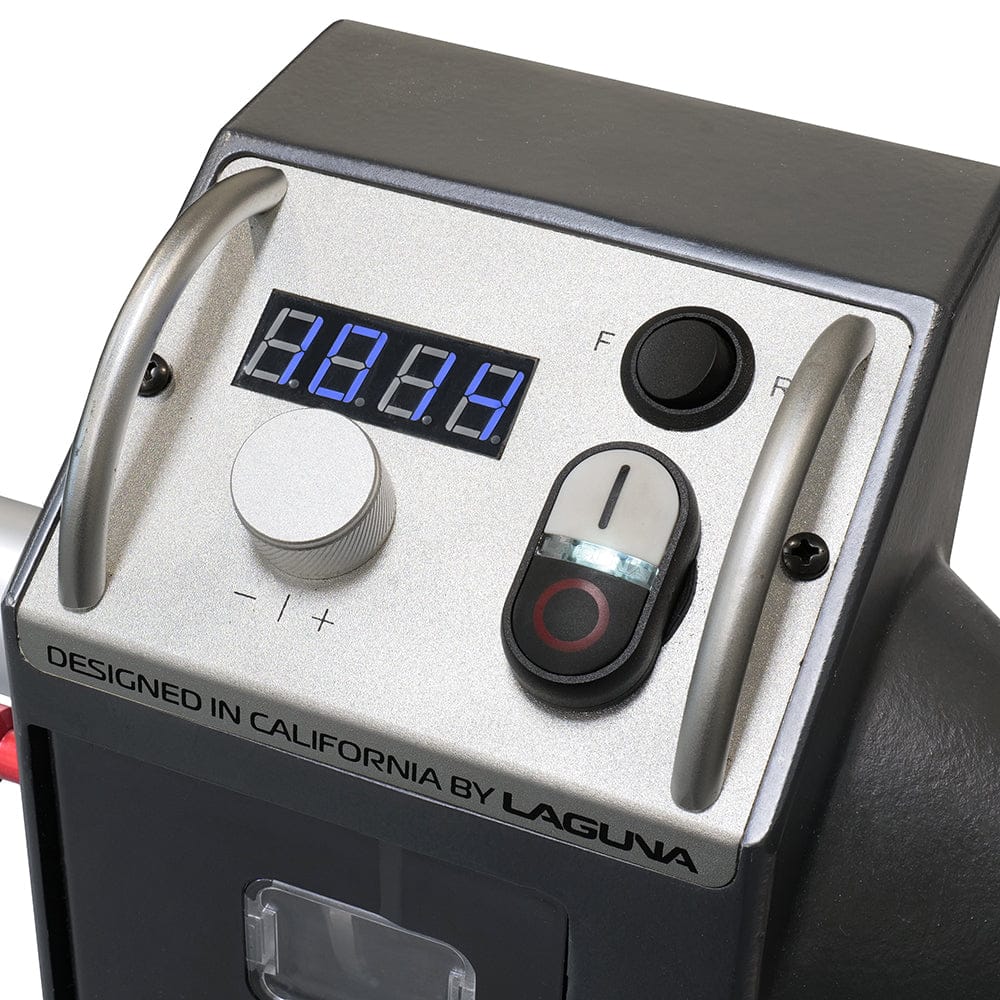

- Ergonomic control panel with digital readout and speed control
- Auxiliary 120 outlet and predrilled mounts for optional LED worklight.

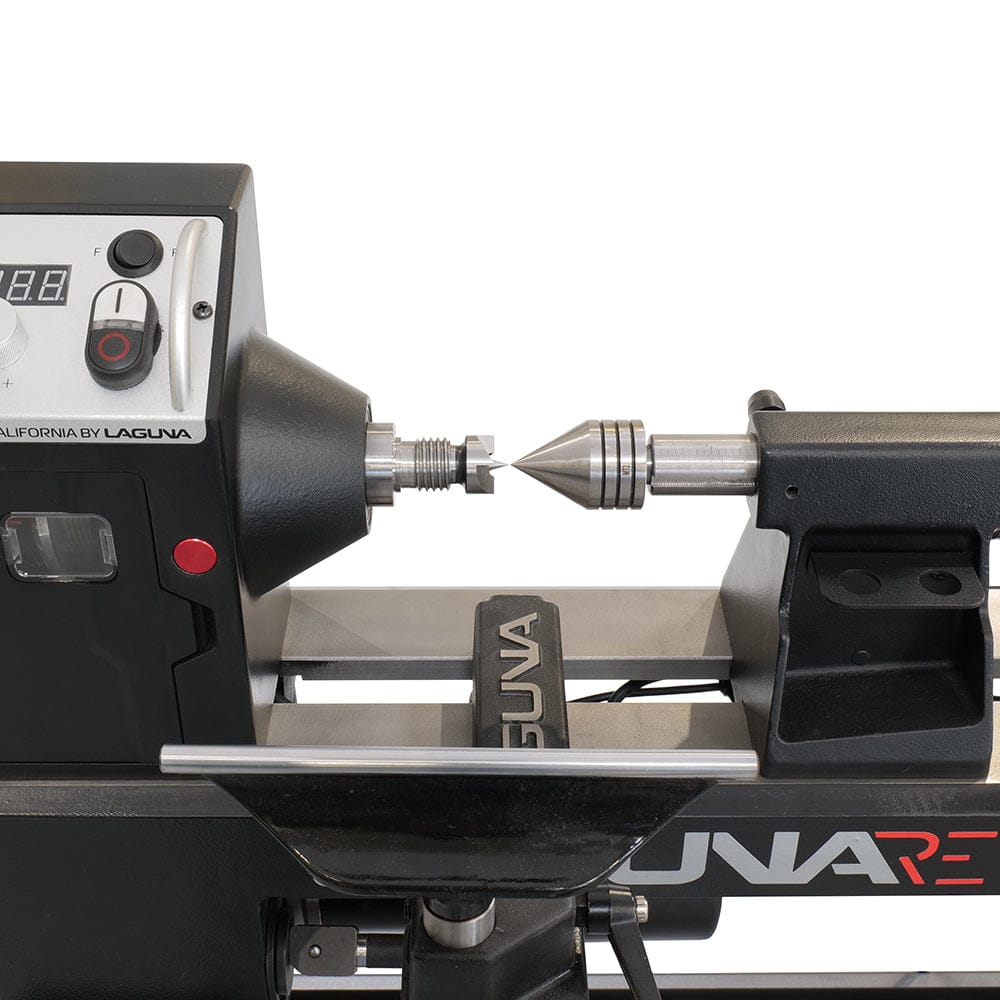

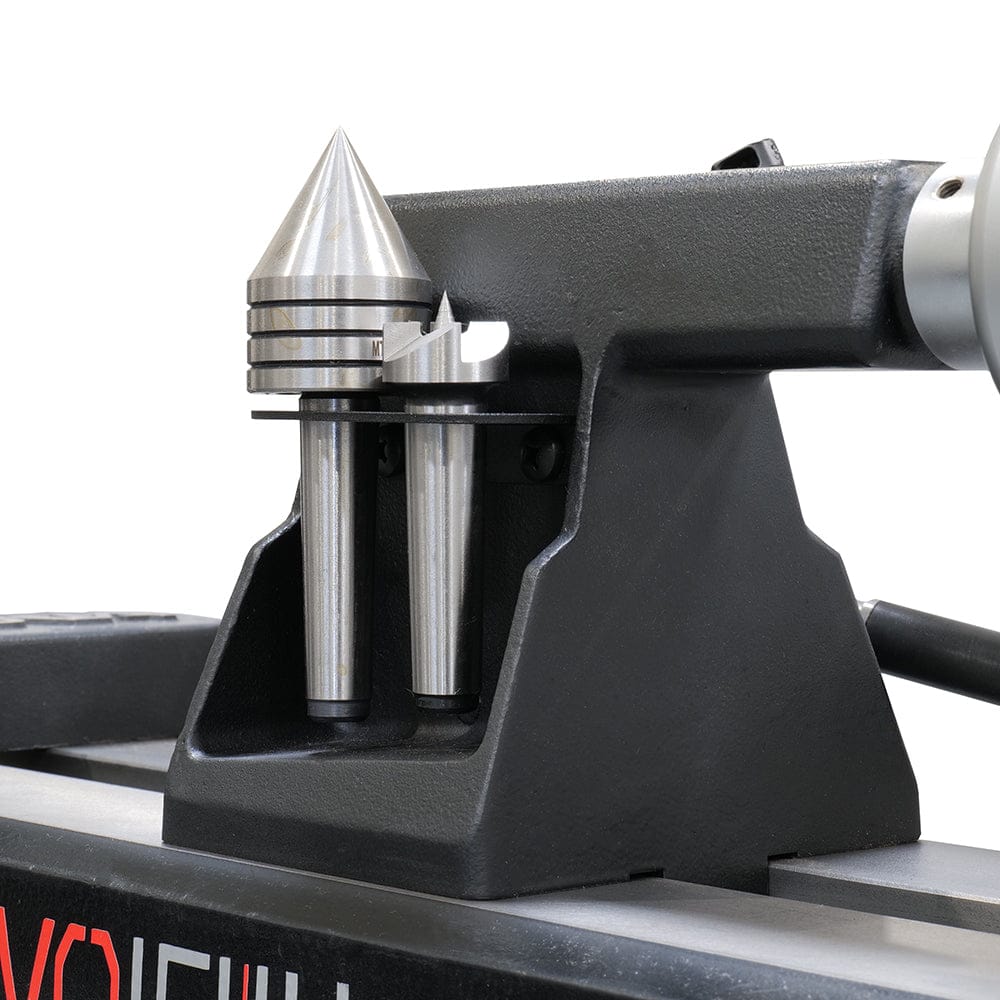

- Luxury Live Center and Spur Drive with on-board storage.

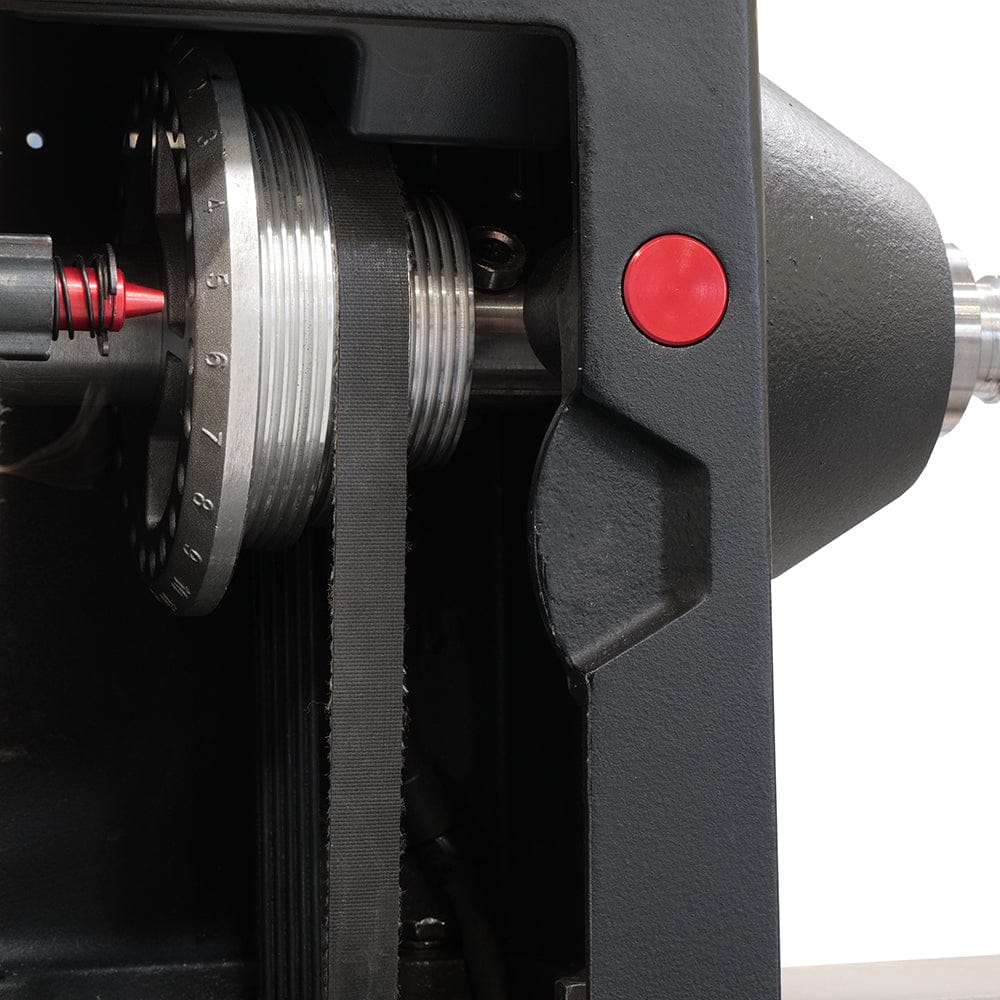

- 3 Pulley drive with poly-groove drive belt
- Window for belt position
- Forward and Reverse
- Electronic speed control with knob.
- Tool rest with hardened steel leading edge

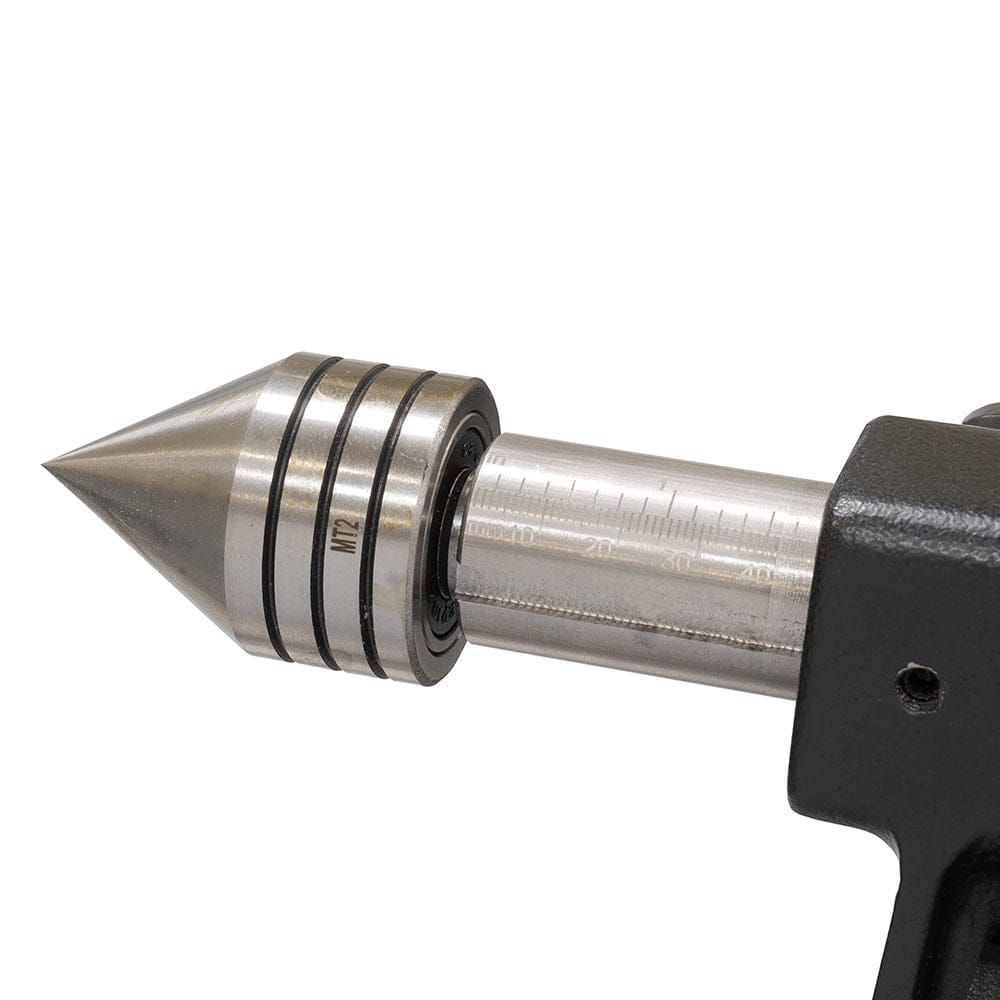

- Etched tailstock quill with inches and mm
- Quick belt tension release with dual door belt change
- Heat-treated spindle

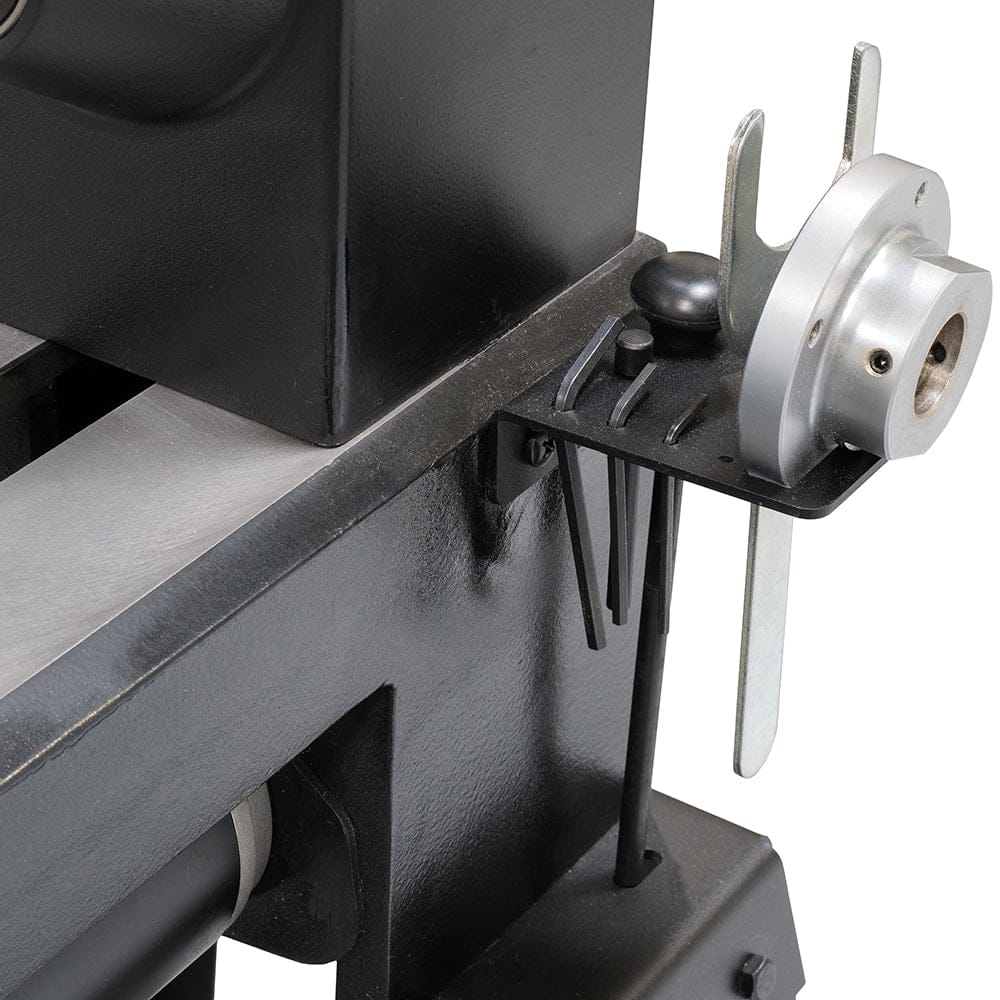

- On-board accessory tool storage.

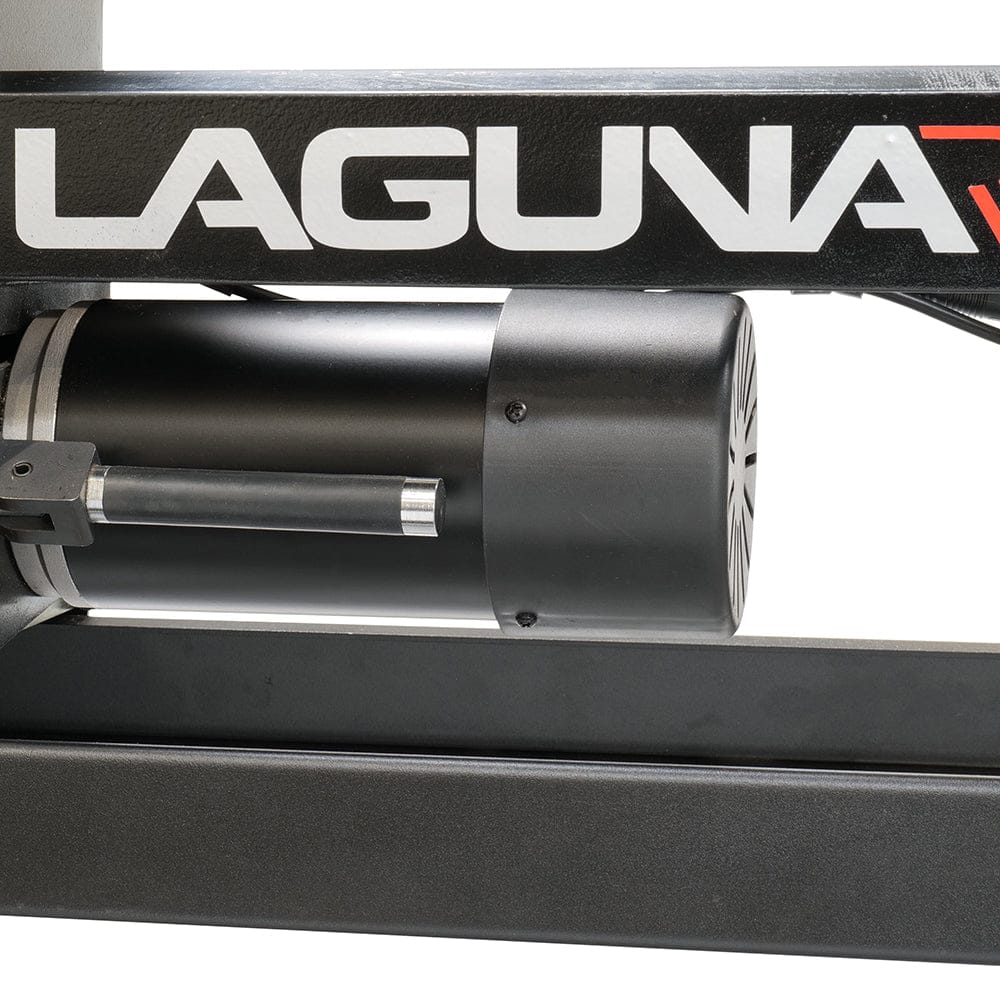

- Motor - 1 HP PWM Induction Motor (Pulse Width Modulated)
- Power - 120 Volt 60 Hz
- Turning Capacity - 10” Diameter - 14” Length (254 x 355 mm)
- Spindle Threads - 1” x 8 TPI
- Spindle Taper - #2 MT (Headstock and Tailstock)
- Tailstock Quill Travel - 3.5” (92 mm)
- Indexing - 24 position in-head indexing
- Spindle Lock - Push button lock
- Power Outlet - Built-in 120-volt outlet for optional LED light
- Tool Rest - 6” long, 1” diameter post, 6 mm hardened steel rod leading edge
- Headstock and Tailstock Bore - ⅜” (10 mm) through bore
- Dust Port Diameter - 2-1/2” x 2 (64mm)
- Speed Range - 950 - 3200 High, 430 - 1450 Mid, 250 - 850 Low RPM
- Overall Size - 30.75” x 13.4” x 15.6” (350 x 340x 396mm) LxWxH
- Weight - 95 lb (43 kg)
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 4 weeks.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
- Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time.
Return Information
Warranty Information
New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.
For warranty repair information, call 1-800-332-4094.
