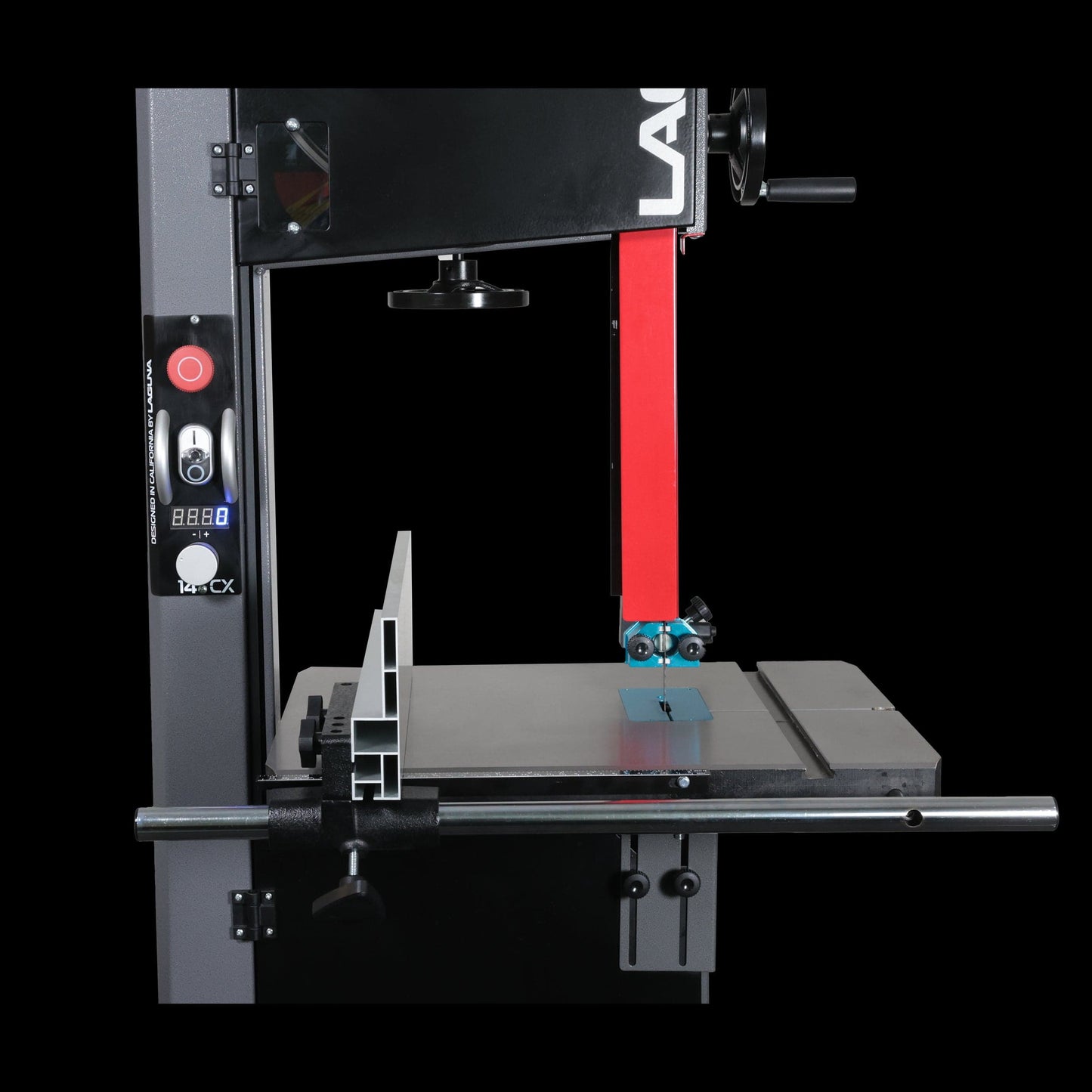

Metal & Woodworking 14|CX Bandsaw

• The cast-iron wheels are balanced and provide plenty of inertia to drive the blade through the material being cut. The flywheels are supported by oversized shafts with sealed bearings.
• The Laguna ceramic guides have a total of 10 contact points above and below the work piece for precise cuts. The ceramic inserts handle heat better than traditional metal bearings and are easily replaceable.
• The foot brake system uses a larger brake disc to provide more stopping power to handle the higher speeds and additional inertia of the heavier pulleys.
• The dual dust collection ports provide collection just under the table surface and lower guides as well as collection at the bottom of the cabinet to help keep the machine clean and ready for next use.
• The table tilts both toward the inside and the outside of the saw to make accurate beveled cuts in a wide range of materials. This helps fit materials when welding metal or making woodworking joints.
• The saw is fitted with clear windows to easily set blade tracking and blade tension.
• The magnetic tensioning indicator is easy to adjust to help accurately set blade tension for all types of blades.
• Blade tension is set by using the convenient handwheel. The blade tension quick-release handle de-tensions the blade when the saw is not in use.
• The Hi/Low fence is easily changed from the High Position (used for resawing and most thicker materials) and the Low Position (used for thinner stock or when making thin cuts). The ability to change from High to Low position provides better hand positioning when feeding stock through the saw for certain types of cuts.
• The worm-drive rack and pinion upper guidepost is easily positioned and locked in place to fit the size of the materials being cut.
• The saw is equipped to accept the optional work lights with a rear power outlet and two pre-drilled mounting locations.

• DRO - The digital readout provides a quick and easy reference for blade speeds. The DRO displays in "SFPM" (surface feet per minute). This is the speed that the teeth of the blade are moving. This number can be set by using a blade speed chart for the specific blade and material being used to achieve high quality cuts in a wide range of materials.
• 2 Speed Pulley - The 2-step pulley provides a mechanical High and Low range to keep the bandsaw in the correct torque range for the blade speed and materials being cut. The belt position should be set first and then the final speed should be set by turning the speed control knob. The pulleys use a poly-groove drive belt to prevent slipping even when cutting the toughest materials.
• Speed Control Knob - The speed control knob can be used to change the speed on the fly if needed, meaning that you can increase or decrease speed during the cut to optimize the performance of the blade in the specific material being cut. It is conveniently located on the control panel adjacent to the DRO display.
• PWM - Electronic speed control is provided by the PWM system (pulse width modulation) which uses an inverter to control the output to the powerful DC motor. This system has the added benefit of quickly stopping the motor and wheels when shut off.

• Motor: HP 1-3/4 HP
• Input Power: 110-120 Volt AC
• Recommended Breaker: 20 Amp
• Motor Input (inverter): 166 VDC
• Throat: 13-5/8" (346mm)
• Table - Cast Iron: 16" x 21-1/2" (406.4 x 546mm)
• Table Tilt: - 7 degrees + 45 degrees
• Miter Slot: 3/8" x 3/4" (9.525 x 19.05mm)
• Table Height: 38" (965mm)
• Blade Speed - High Range: 160 – 4400 FT/MIN
• Blade Speed - Low Range: 60 – 1600 FT/MIN
• Flywheels: Cast Iron
• Resaw Capacity: 13" (330.2mm)
• Blade Length: 115" (114-3/4" Min - 116" Max)
• Maximum Blade Width: 3/4" (19 mm)
• Minimum blade width: 1/8" (3 mm)*
• Guides: Laguna Ceramic
• Height: 70-1/2" (1,790mm)
• Machine Dimensions (L x W): 29-3/4" x 28" (755 x 712mm)
• Base Footprint: 22-11/16" x 17-9/16" (576 x 446mm)
• Weight: 258 lbs (117 kg)
• Shipping Weight: 280 lbs (127 kg)
• Package size (L x W x H): 73-1/8" x 26-1/2" x 24-5/16"
• Included:
• Comes standard with a Laguna Bi-Metal ½” x 10/14 Variable TPI Blade

New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.

For warranty repair information, call 1-800-332-4094.
