Laguna

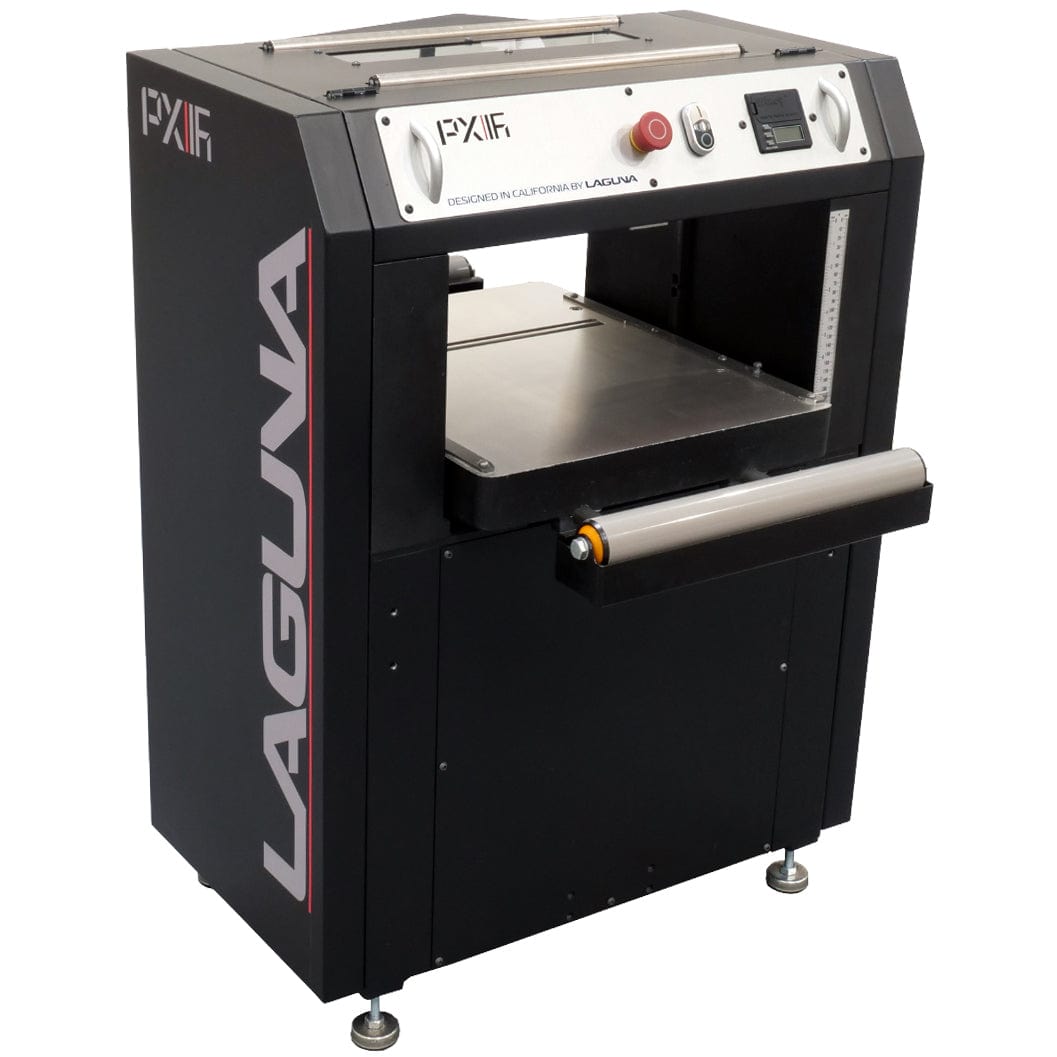

16" Planer ShearTec II

Item #178952 Model MPLANPX16-0130
$4,599.00
$4,599.00 $4,599.00

This item has an additional shipping charge

The Laguna PX|16 ShearTec II is loaded with great features to make planing safer and more enjoyable. The PX|16 features infeed and outfeed rollers to . . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Ships from Manufacturer

Shipping Info

Details

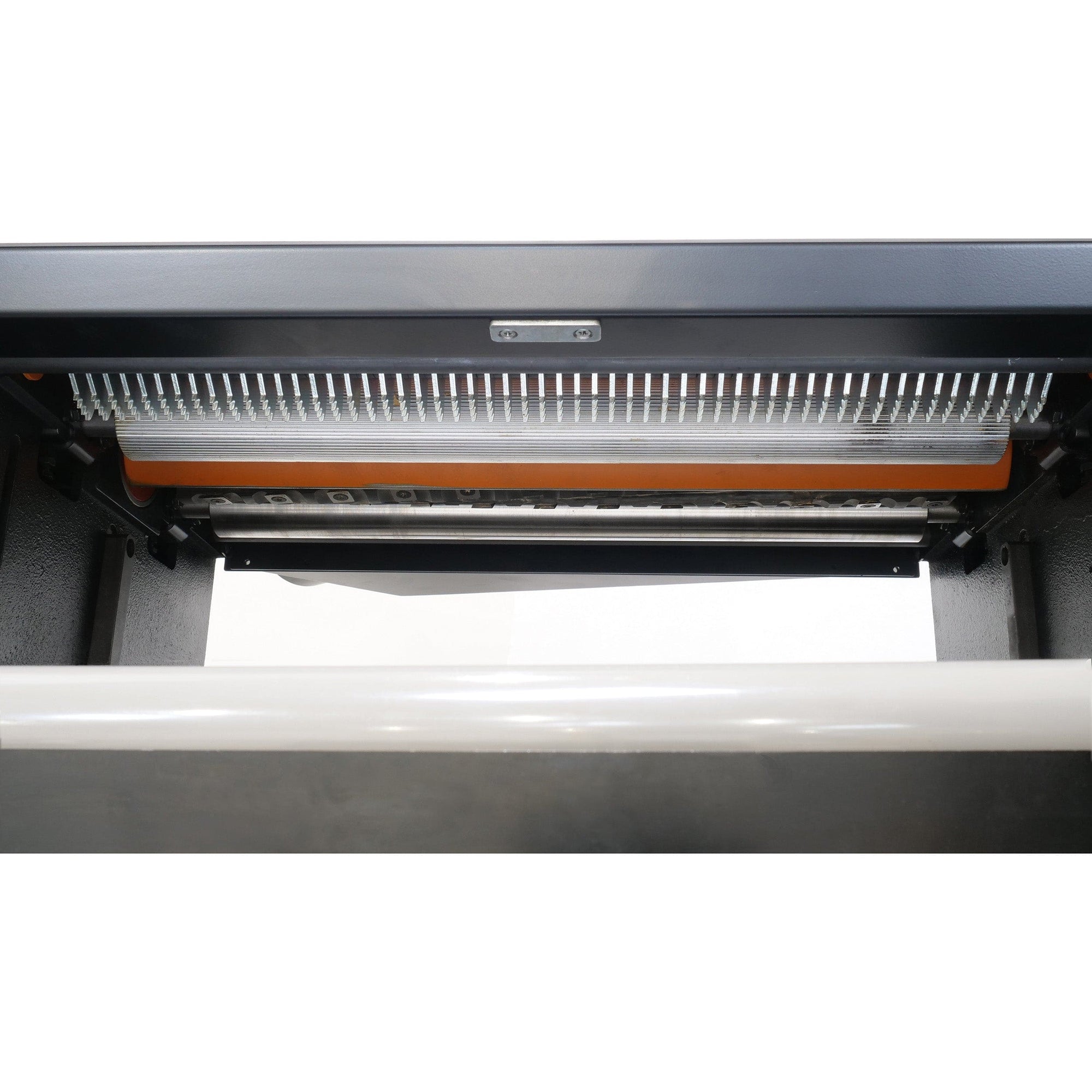

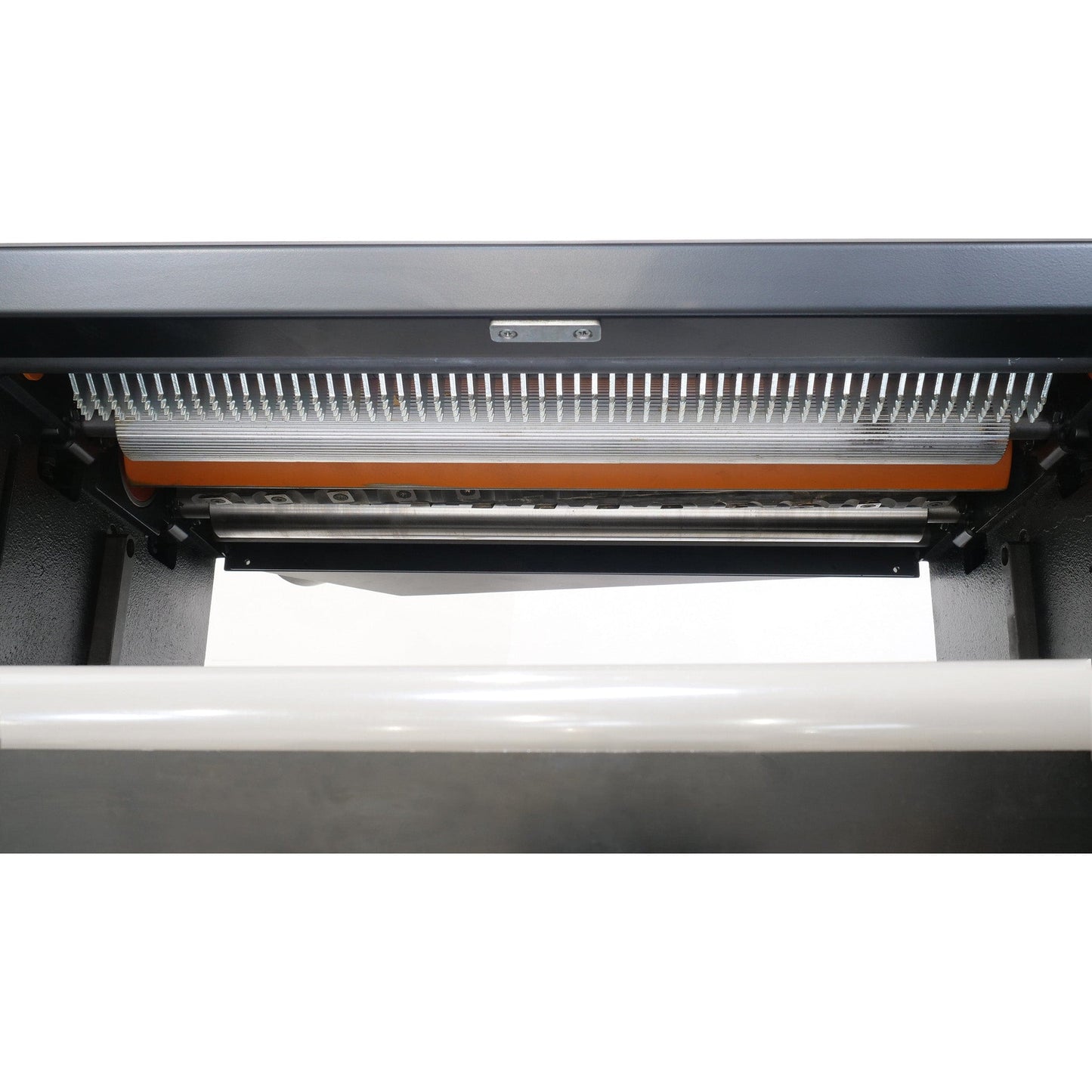

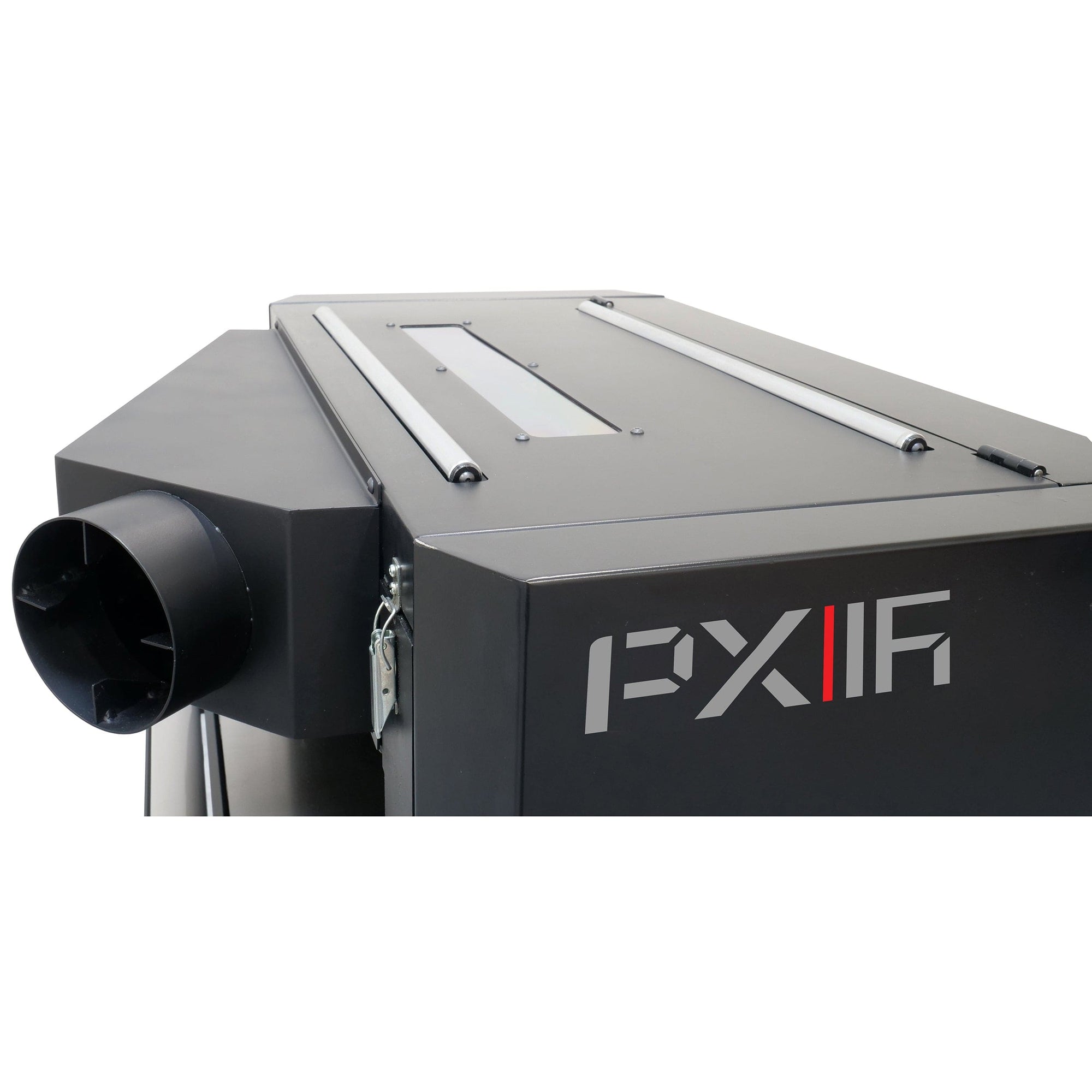

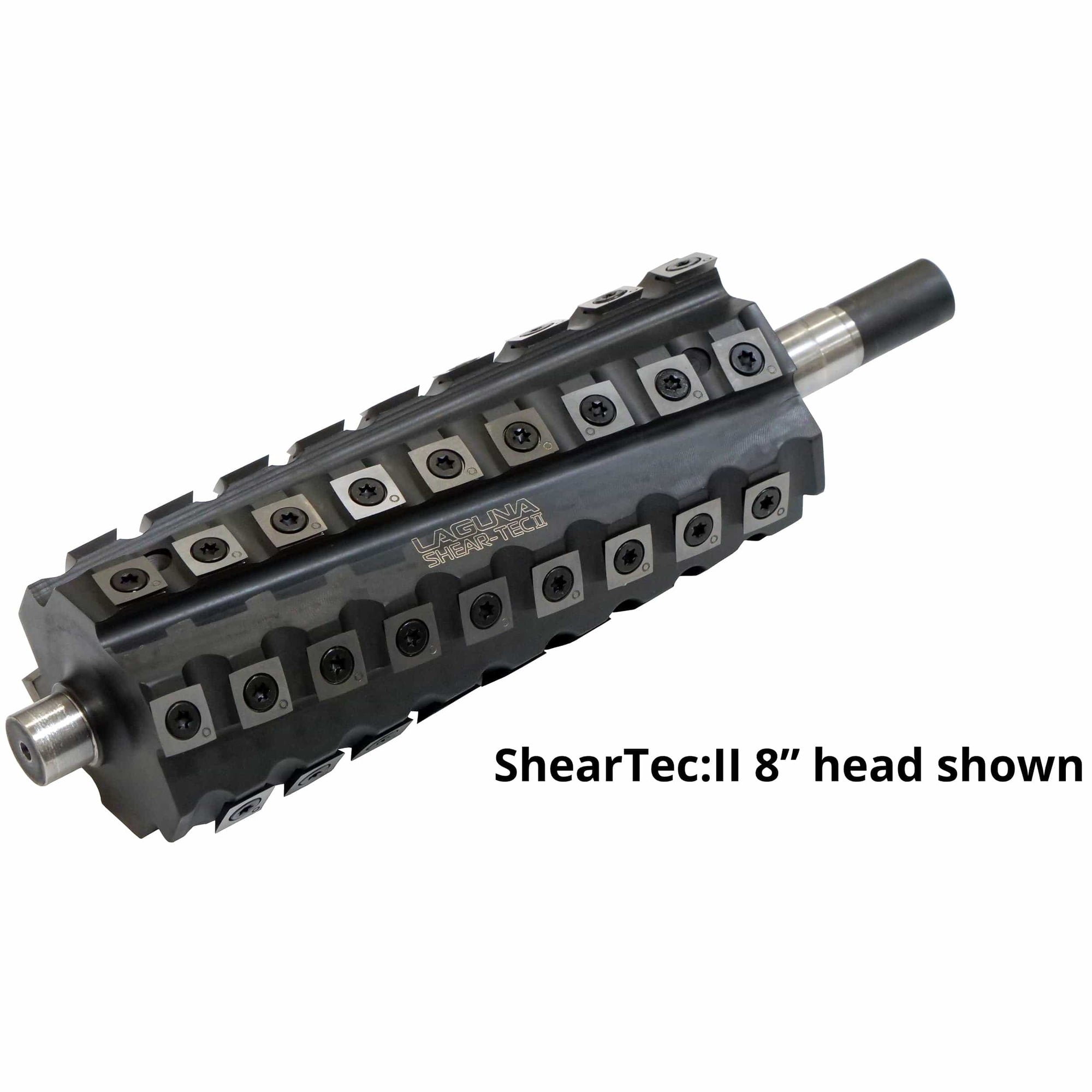

The Laguna PX|16 ShearTec II is loaded with great features to make planing safer and more enjoyable. The PX|16 features infeed and outfeed rollers to assist with material loading and feeding, while keeping a compact footprint. The Wixey Digital Readout and machine controls have been moved to the control panel to provide better ergonomics, visibility and to make precision settings easier. A 4"-diameter dust chute offers the option to point to right or left to optimize dust collection system layout, and the four-post bed support provides precise and consistent performance with every cut. The ShearTec II cutterhead comes as standard equipment on the PX|16 Planer, with its 6 rows of carbide inserts that produce a superior surface finish on all woods, including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives, preventing knife cracking and chatter, and to produce a shear cut for flawless results. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection, and the serrated infeed roller and pressure bar are mounted close to the cutterhead to virtually eliminate snipe.

Specifications
  • Motor: 220V, 5 HP, 1 ph, 60 HZ, 23 amp
  • CSA: Yes
  • Bed Size: 16" x 21-1/2"
  • Pullout Extension: 4"
  • Max. Depth of Cut: 1/4"
  • Max. Stock Thickness: 8"
  • Min. Stock Thickness: 1/4"
  • Min. Stock Length: 8"
  • Max. Stock Width: 16"
  • Feed Speed: 16 and 28 FPM
  • Dust Port Diameter: 4"
  • Number of Knives: 108 four-sided carbide knife inserts
  • Cutterhead RPM: 5,000
  • Cutterhead Diameter: 3"
  • Overall Dimensions: 33" x 36"
  • Shipping Dimensions: 38" x 30" x 46"
  • Net Weight: 493 lbs.
  • Shipping Weight: 597 lbs.

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-21 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
  • Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time at no charge to you.

Return Information

Laguna does not accept returns. If your shipment was damaged, please refuse delivery, for defective items, please contact Woodcraft Supply customer service @ 1-800-535-4482.

Warranty Information

New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.

For warranty repair information, call 1-800-332-4094.
