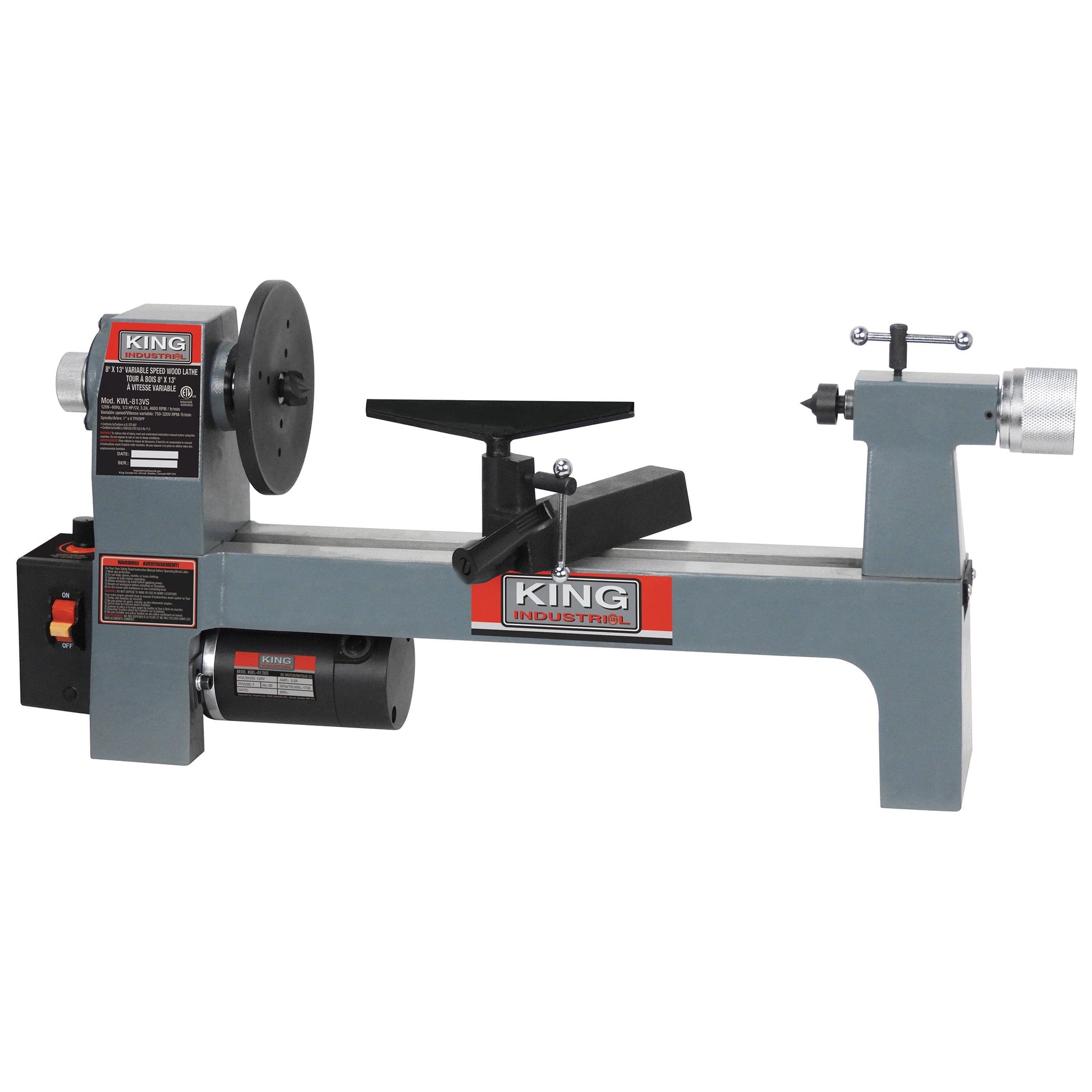

The King Industrial® Model KWL-813VS 8" x 13" Variable Speed Pen Lathe is a powerful and versatile tool, ideal for pen and small turnings, designed for woodworkers and hobbyists who need precision and accuracy in their projects. Easy to use and control, the KWL-813VS features several benefits that make it an excellent investment for any woodworker. For example, a 1/3 HP variable-speed motor and precision-machined cast-iron bed, headstock, and tailstock ensure stability and minimize vibration for smoother turning. Compact design makes storing in small spaces and moving around your workshop easy.

Features:

• 1/3 HP (300 watt) motor provides smooth and consistent power
• Variable speed control (range 750 – 3,200 RPM) allows you to adjust the speed of the lathe to suit your project needs
• 8" inboard swing for small bowl turning
• Maximum turning capacity of 13" between centers
• Precision-machined cast-iron bed, headstock, and tailstock
• Chrome-plated hand wheels on both the headstock and tailstock

Specifications:

• DC Motor: 1/3 HP, 3.2 Amp, 4,600 RPM
• Voltage: 120V, 1 Phase, 60 Hz
• Swing Over Bed: 8"
• Swing Over Tool Post Base: 5-1/4"
• Distance Between Centers: 13"
• Spindle Size: 1" x 8 TPI
• Spindle Bore: 3/8"
• Variable Speed Range: 750 – 3,200 RPM
• Headstock And Tailstock Taper: #1MT
• Tailstock Travel: 1-9/16"
• Assembled Dimensions (L x W x H): 27-3/4" x 10" x 12-1/4"
• Assembled Weight: 42 lbs.
• Package Dimensions (L x W x H): 28" x 13-1/4" x 7-5/8"
• Package Weight: 47 lbs.

What’s Included:

• (1) King Industrial® 8" x 13" Variable Speed Pen Lathe
• (1) 4-1/4" And 7" Tool Rests With 1/2" Post
• (1) 5-3/4" Faceplate
• (1) #1 MT Live Center
• (1) #1 MT Spur Center
• (1) Steel Knock-Out Bar
• (1) Wrench
