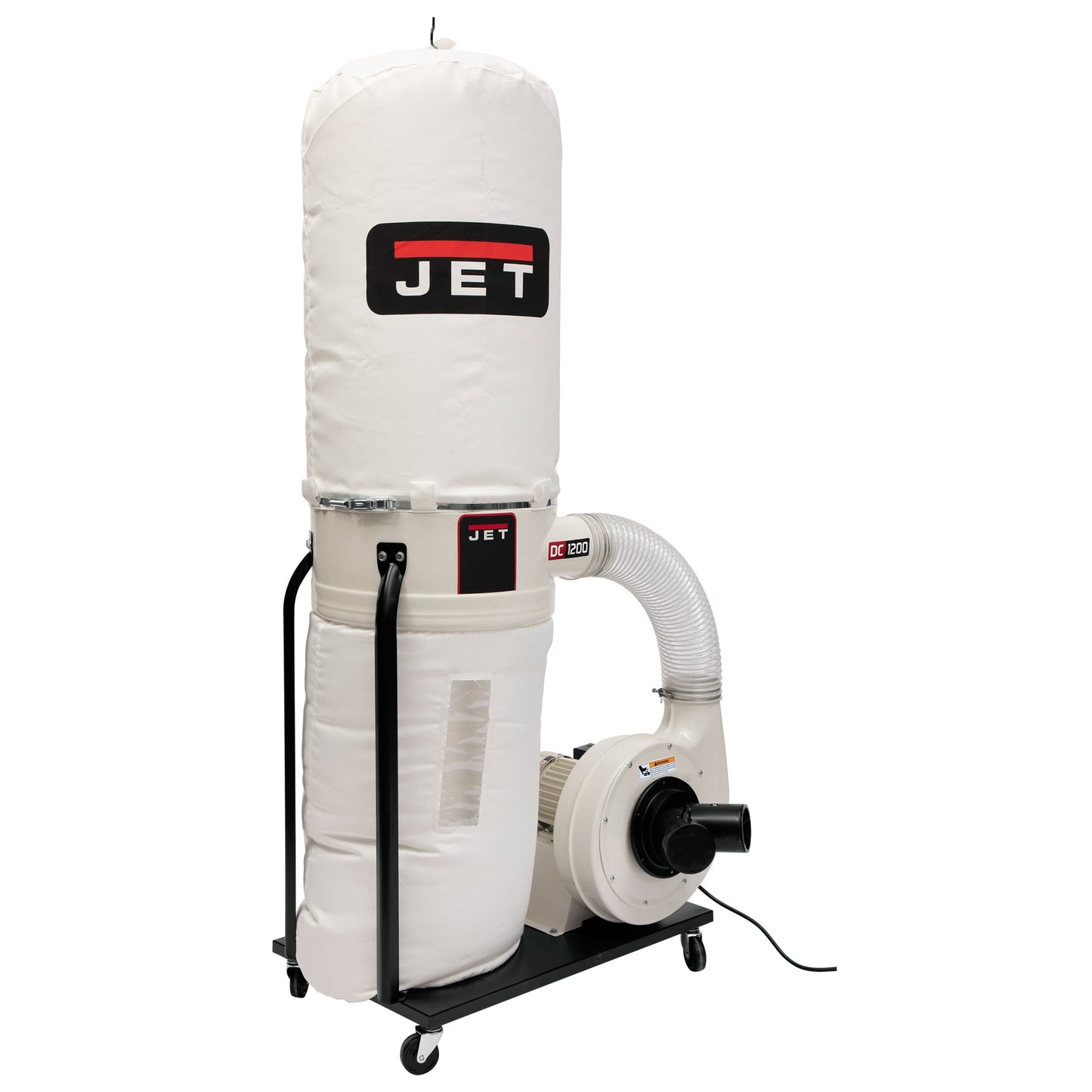

Jet - Vortex Cone Dust Collector, 2HP 3PH 230/460V, 30-Micron Bag Filter Kit, Model DC-1200VX-BK3
Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.
Items You May Need
Item 145982Model 3MSTP4VW
Item 849650Model 710701K
Item 412085Model 708642BK
Item 849643Model 708657K
Item 849651Model 710702K
Item 849644Model 708658K
Item 849653Model 710704K
Item 849645Model 708659K
Item 847118Model 60-200
Item 849658Model 1791078K
Item 866271Model MDCBF1110c1m
Item 849659Model 1791079K
Item 849663Model 1792074K
Prevention: Prevents the central airflow from floating chips into the filter chamber decreasing rapid performance drop due to premature clogging
Efficiency: Chips are better contained for increased packing density requiring fewer collection bag changes
- Vortex Cone improves chip separation and collector bag packing efficiency
- Eliminates premature filter clogging for sustained performance
- Single-stage design for economical and quiet operation
- Industrial controls designed for years of trouble-free use
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- High air velocity (CFM) design stands up to any competitive specifications
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Includes four casters for maneuverability and total portability
- Length : 37.5 inch
- Model Number: DC-1200VX-BK3
- Overall Dimensions: 34" x 20.5" x 96"
- Height: 18"
- Width: 22"
- Length: 37"
- Net Weight: 138 lbs
- Gross Weight: 150 lbs
- Sound Rating: 80 - 85 dB
- 1-Hose Connection Diameter: 6 "
- 2-Hoses Connection Diameter: 4 "
- Bag Diameter: 20 "
- Filter Bag/Canister: Length 32"
- Collection Bag Capacity: 5.3 cubic foot
- Collection Bag Length: 29"
- Air Flow @ 4": 1,200 cu.ft/min
- Static Pressure: 11-1/2 inch of water
- Particle Size (Micron): 96% of 30 micron particles
- Velocity @ 4": 13,745 foot per minute
- Air Inlet: (1) at 6" or (2) at 4"
- Impeller Diameter: 12"
- Impeller Material: steel
- Separator Tank Diameter: 20"
- Separator Tank Height: 10"
- Motor Power: 2 HP
- Motor Phase: 3 Ph
- Motor Voltage: 230 / 460 V
- Prewired Voltage: 230 V
- Motor Current: 6 / 3 A
