Item 861605
Model 719400

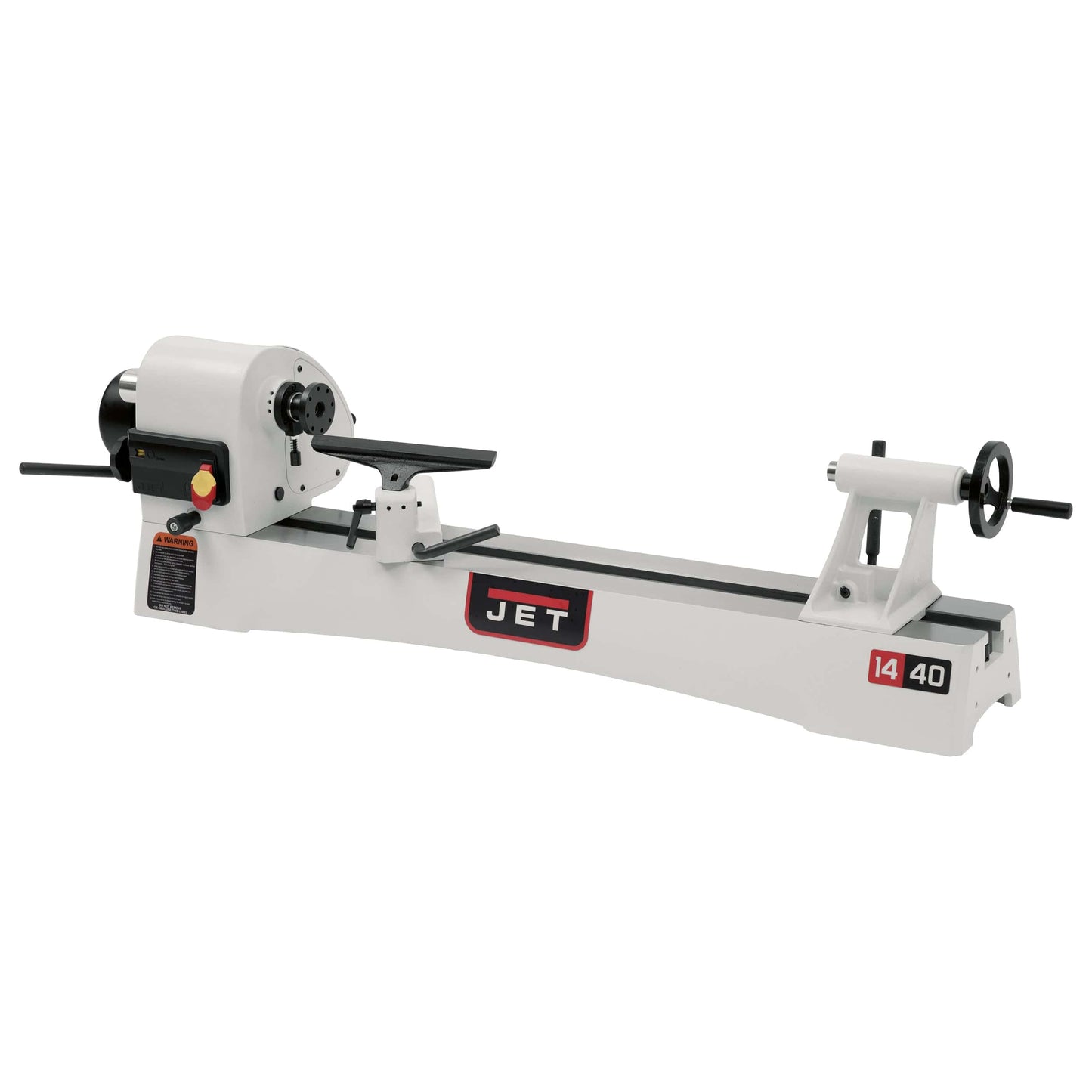

Jet - Jet 14 x 40 Benchtop Wood Lathe Model JWL-1440VS

$1,399.99

  • Ships for Free
  • - Not Available for Express and Overnight Shipping.

    Learn More
  • - Ships in 2-5 Business Days. Details Below.

Features:• Positive locking tool rest with redesigned clamping• Optional extension bed takes the capacity to 60 between centers• Acme thread in tailstock• Improved tailstock quill locking with...

You May Also Like

Details

Features:

• Positive locking tool rest with redesigned clamping

• Optional extension bed takes the capacity to 60 between centers

• Acme thread in tailstock

• Improved tailstock quill locking with anti-rotation key

• Easy-to-read RPM display

• CSA Certified

• Sliding headstock pivots 360 degrees with 7 positive locking positions at 0, 30, 60, 90, 120, 180, and 270 degrees for maximum variability and optimal user comfort


Specifications:

Motor: 1 HP, 1 Ph, 11/5.5 A, 115/230 V, Prewired 115V
Speed Range : 400-3000
Spindle Bore (In.) : 3/8
Spindle Speeds : Variable
Spindle Taper : MT2
Spindle Thread (In./TPI) : 1”/8 TPI
Swing Over Bed (In.) : 14-1/2
Swing Over Tool Rest Base (In.) : 11
Tailstock Bore : 5/16
Style (Type) : Benchtop
Bed Construction : Cast Iron
Sliding headstock pivots 360 degrees with 7 positive locking positions at 0, 30, 60, 90, 120, 180, and 270 degrees for maximum variability and optimal user comfort
Variable speed from 400-3000 RPM
Positive locking tool rest with redesigned clamping
Optional extension bed takes the capacity to 60 between centers
Acme thread in tailstock
Improved tailstock quill locking with anti-rotation key
Easy-to-read RPM display
CSA Certified
Assembled Machine Dimensions (In.) : 74L x 18W x 18.3H
Distance Between Centers (In.) : 40
Headstock Movement : Sliding/Pivoting
Number of Indexing Positions : 36
Outboard Turning : Yes
Quill Taper : MT2
Quill Travel (In.) : 4-1/4
Motor: 1 HP, 1 Ph, 11/5.5 A, 115/230 V, Prewired 115V
Speed Range : 400-3000
Spindle Bore (In.) : 3/8
Spindle Speeds : Variable
Spindle Taper : MT2
Spindle Thread (In./TPI) : 1”/8 TPI
Swing Over Bed (In.) : 14-1/2
Swing Over Tool Rest Base (In.) : 11
Tailstock Bore : 5/16
Style (Type) : Benchtop
Bed Construction : Cast Iron
Variable speed from 400-3000 RPM
Assembled Machine Dimensions (In.) : 74L x 18W x 18.3H
Distance Between Centers (In.) : 40
Headstock Movement : Sliding/Pivoting
Number of Indexing Positions : 36
Outboard Turning : Yes
Quill Taper : MT2
Quill Travel (In.) : 4-1/4
