Jet

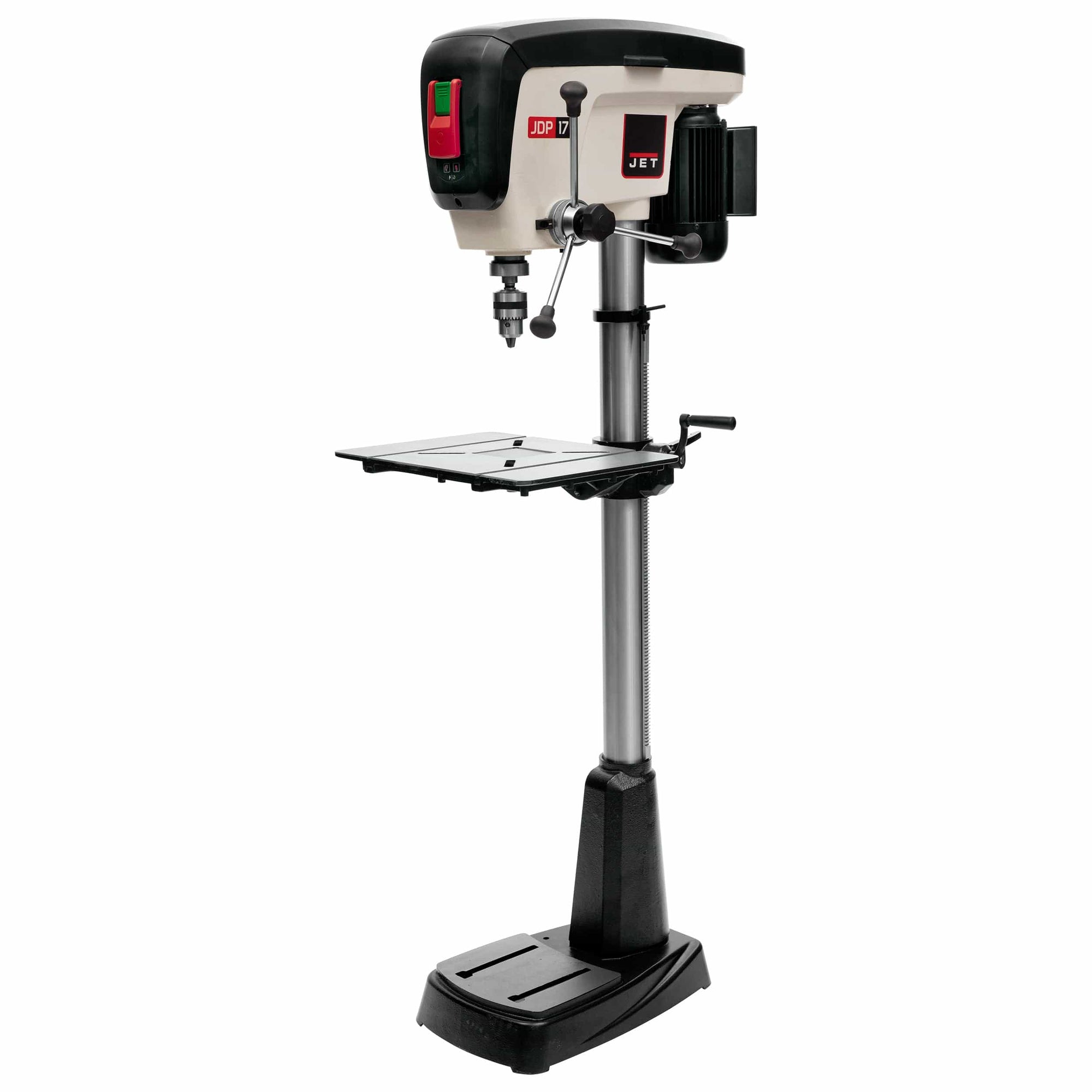

17" Floor Drill Press - 3/4 HP 1 Ph 115V - JDP-17

Item #861604 Model JT9-716300
Regular price $1,299.99
Sale price $1,299.99 Regular price $1,299.99

This item has an additional shipping charge

The Jet® JDP-17 Drill Press is a high-quality drilling machine designed for precision and accuracy in woodworking and metalworking applications. This drill press features. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • 6" Auto-Adjust Drill Press Clamp

    Regular price $46.99
    Sale price $46.99 Regular price $46.99
    6" Auto-Adjust Drill Press Clamp alt 0
  • Drill Press Table V-Block

    Regular price $39.99
    Sale price $39.99 Regular price $49.99
    Drill Press Table V-Block alt 0

Details

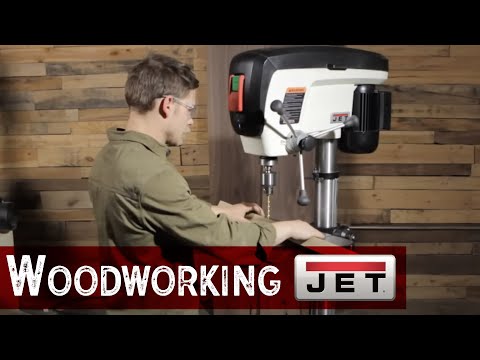

The JetĀ® JDP-17 Drill Press is a high-quality drilling machine designed for precision and accuracy in woodworking and metalworking applications. This drill press features a powerful 3/4 HP motor that delivers reliable performance for heavy-duty tasks and a 16-speed gearbox that allows for a wide range of drilling speeds, from 210 RPM to 3,580 RPM, ensuring you can work with a variety of materials. The large 14" x 19" worktable tilts up to 45 degrees, providing ample space for larger workpieces and greater versatility in drilling angles. The table is also height-adjustable, which enables you to position it at the perfect height for comfortable and efficient work. Additional features include an easy-to-read, laser-etched depth scale, allowing you to set your drilling depth accurately, and a convenient LED work light, illuminating the work area and making it easier to see your drilling target. Finally, the JDP-17 is designed to provide years of dependable service backed by a manufacturer's 5-year warranty making it an excellent investment for any workshop.

Features:

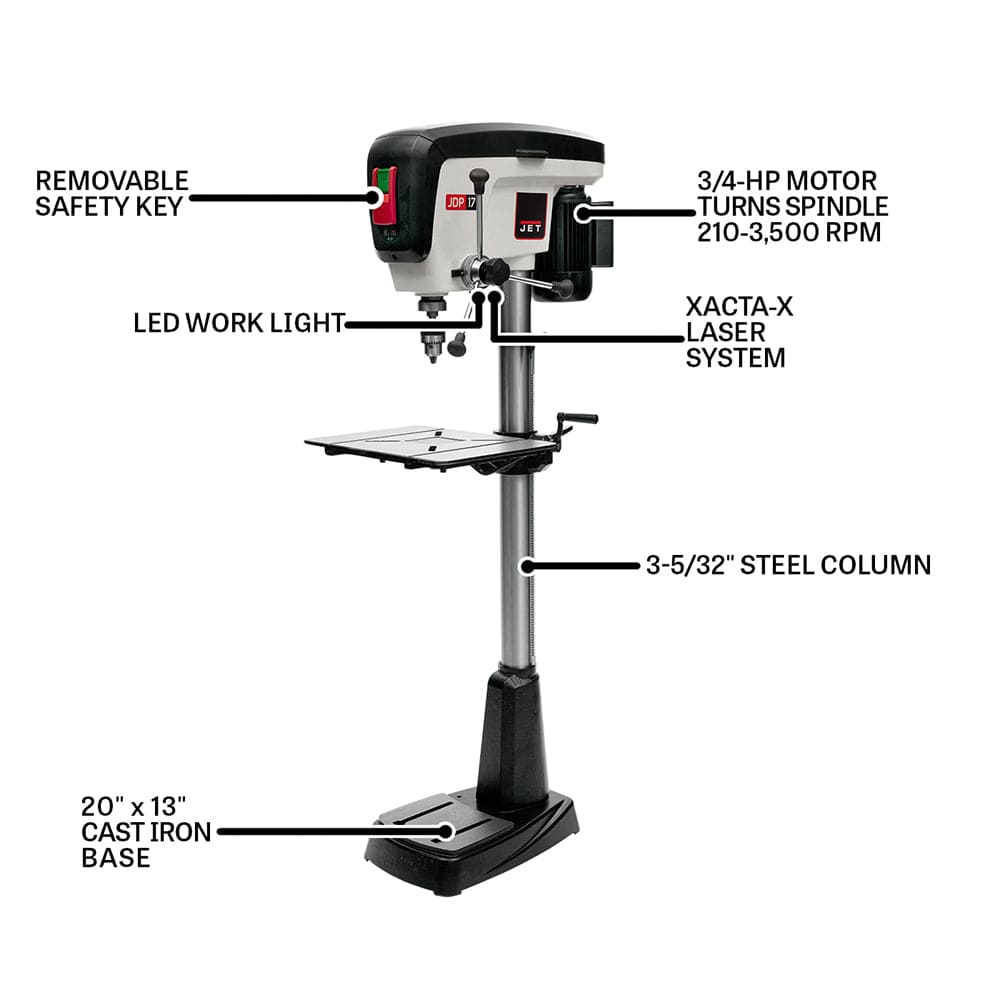

  • Rugged 3/4 horsepower motor with 16 speeds

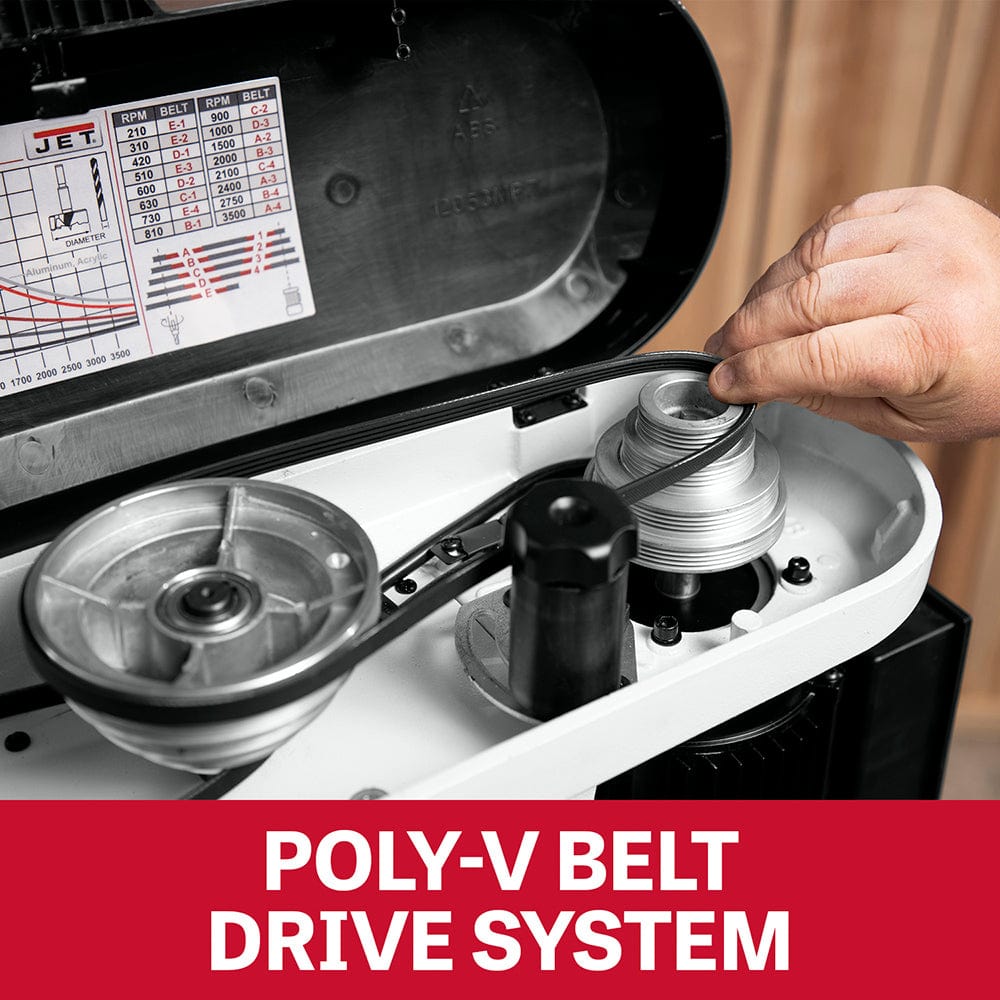

  • Poly-v belt drive system
  • Large cast iron base provides stability
  • One-handed belt tensioning allows for rapid speed changes
  • Large work table features twin T-slot grooves and 4 table slots to accommodate any project
  • Spindle travels a full 5ā€ with one revolution of the handle

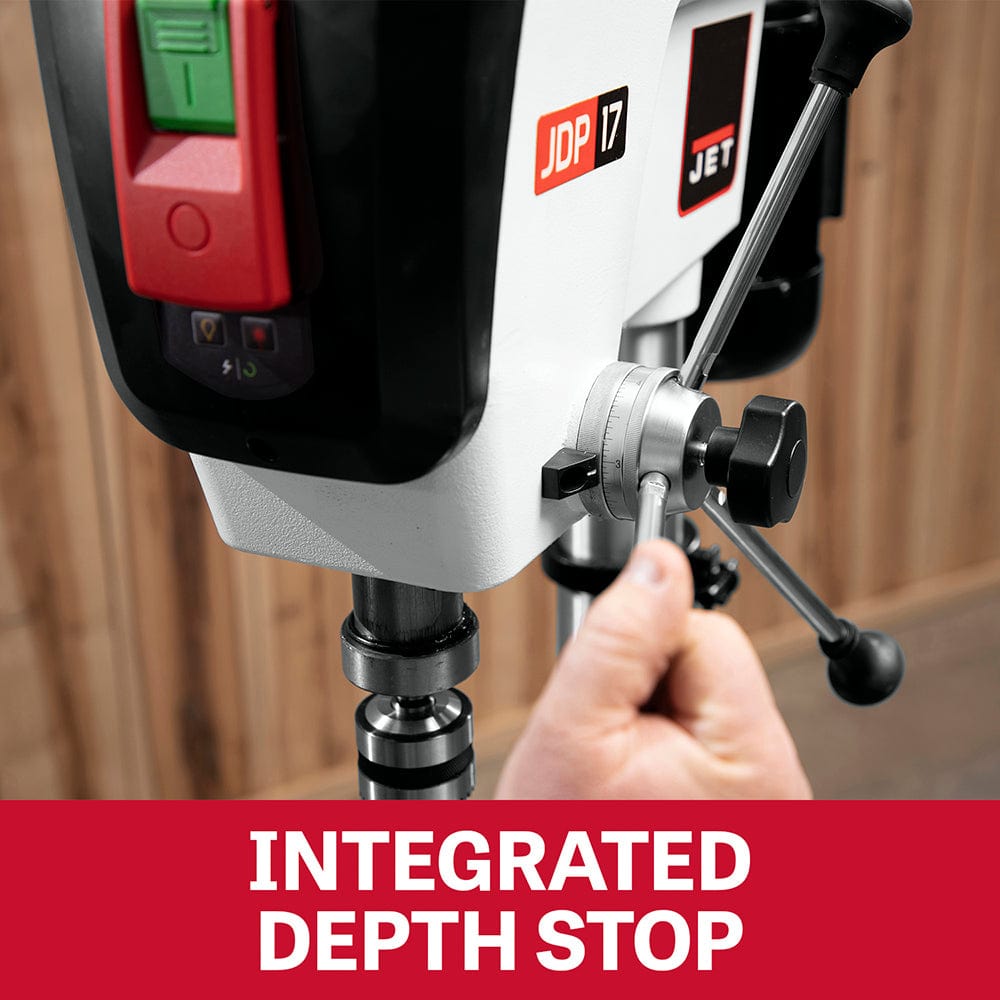

  • Integrated depth stop makes repetitive drilling quick and easy

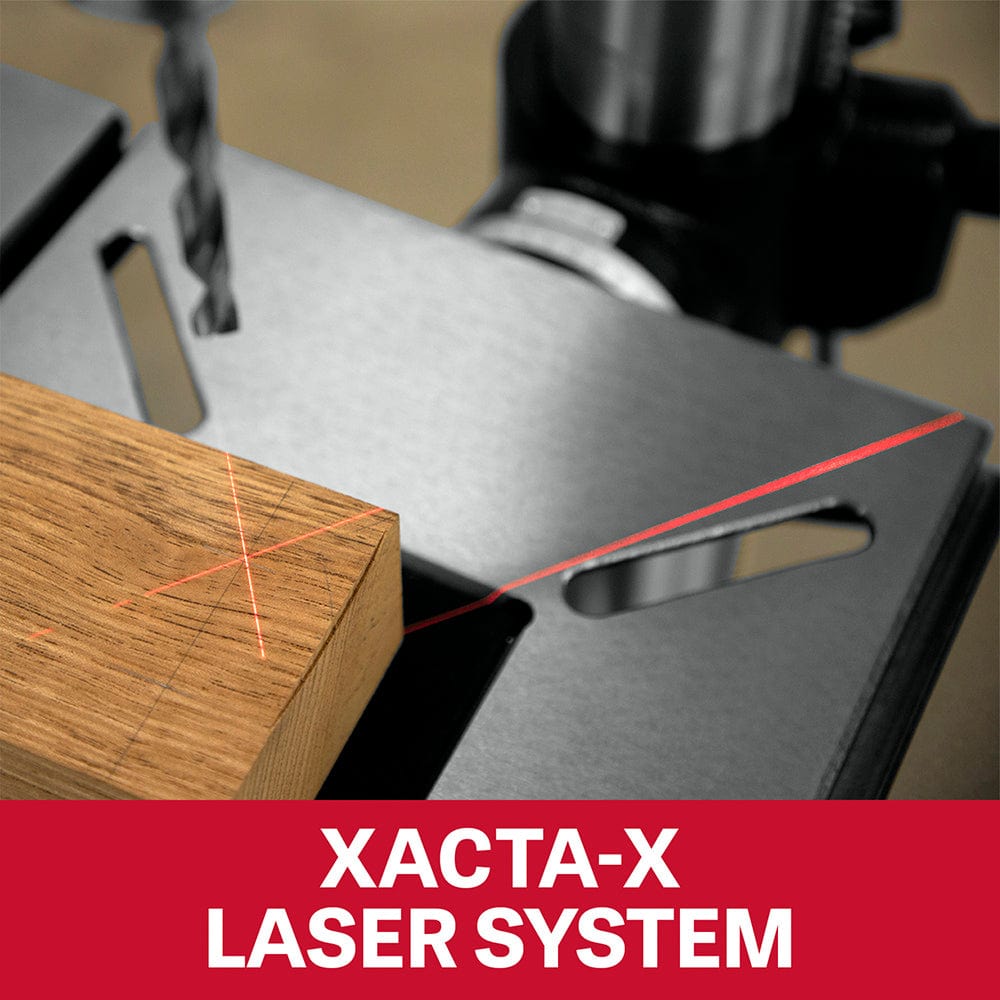

  • Xacta-X laser system easily identifies the drill center
  • Long-lasting, built-in LED work light reduces shadows
  • Table edge lip designed to make clamping easy
  • Power switch features a safety key and large, paddle-style off button

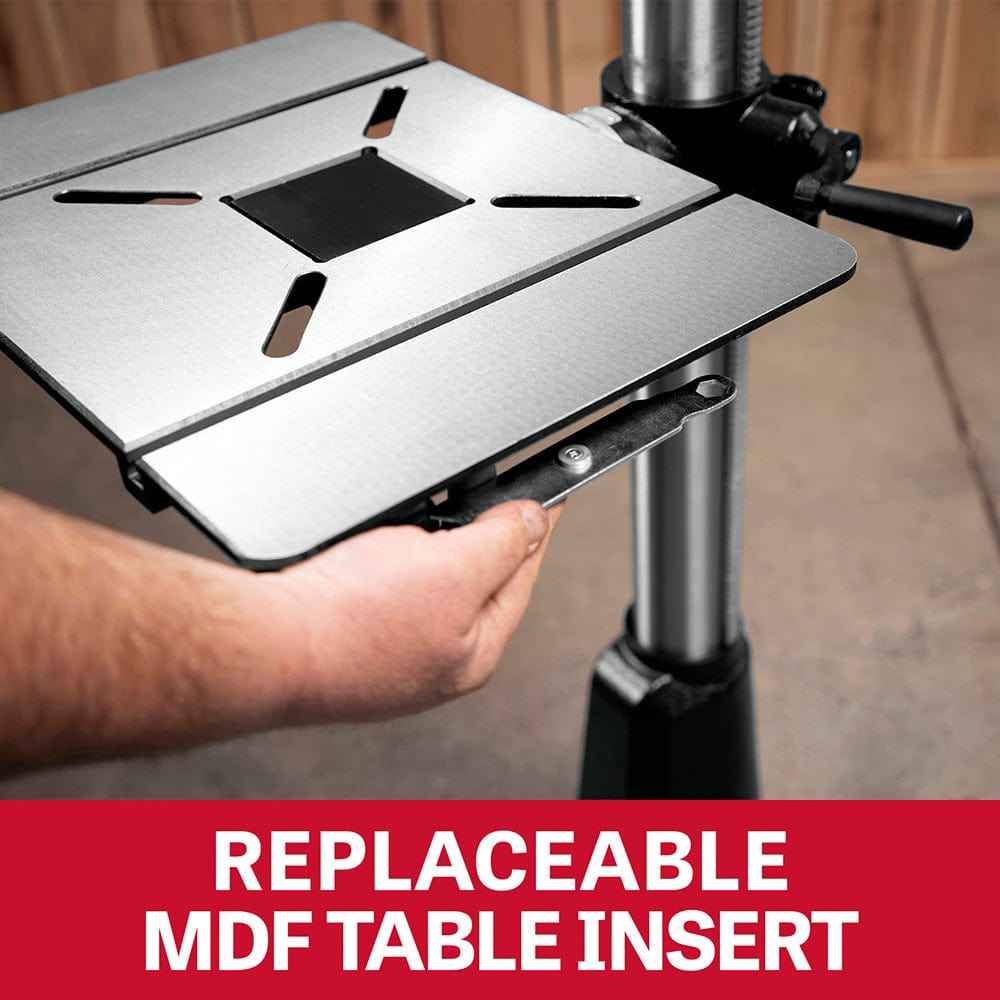

  • Replaceable MDF table insert
  • CSA Certified

Specifications:

  • Product: Drill Press
  • Style: Floor Model
  • Motor Type: TEFC
  • Power Transfer: 2 poly v-belts
  • Horsepower: 3/4 HP
  • Motor Phase: Single
  • Voltage: 115V
  • Motor Amperage: 6.8A
  • Recommended Circuit Size: 15A
  • Number of Spindle Speeds: 16
  • Maximum No-Load Spindle Speed Range: 210-3500 RPM
  • Swing: 16-7/8"
  • Maximum Spindle Travel: 5"
  • Maximum Spindle Distance to Table: 30"
  • Maximum Spindle Distance to Base: 46-1/2"
  • Spindle Taper: MT-2
  • Chuck Style: Keyed
  • Chuck Size: 5/8"
  • Chuck Arbor Taper: JT-3 to MT-2
  • Maximum Chuck Distance to Table: 25-7/8"
  • Maximum Chuck Distance to Base: 42-7/8"
  • Column Diameter: 3-5/32"

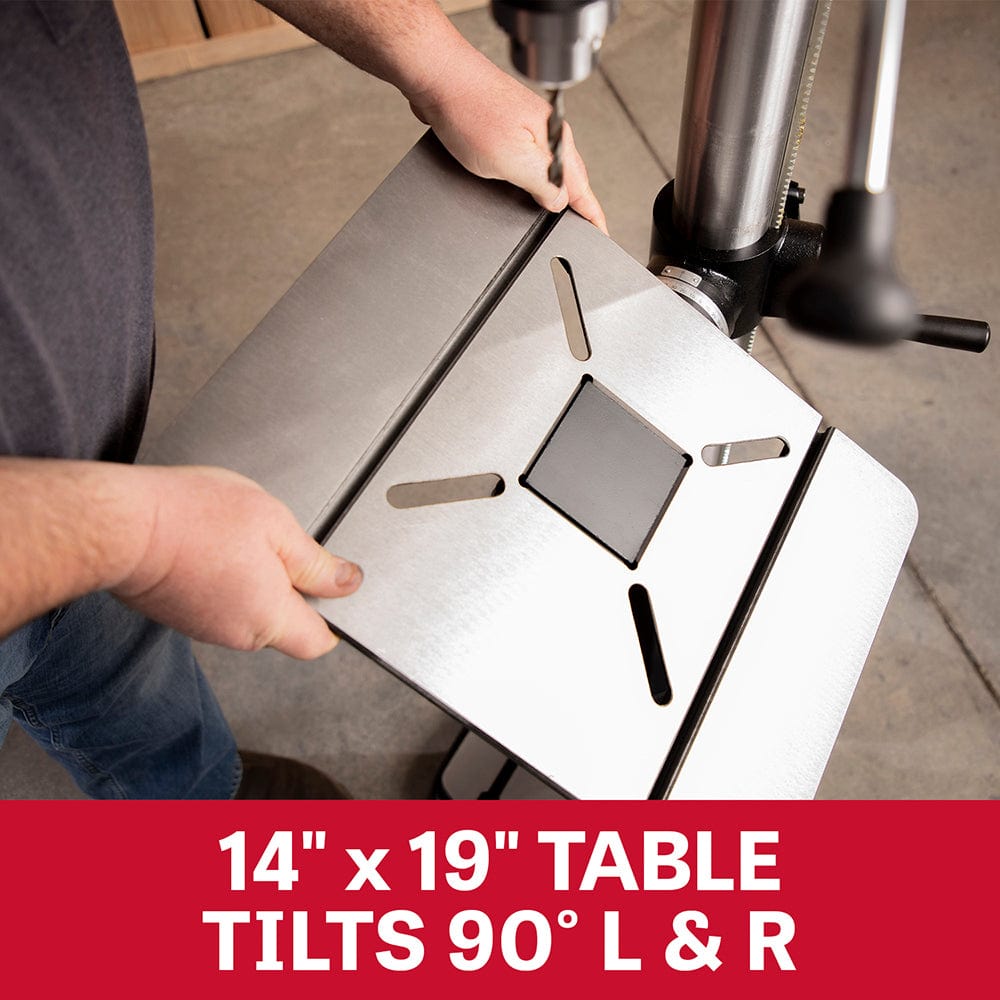

  • Table Size (L x W): 14" x 19"
  • Table Tilt: 90Ā° Left and Right
  • Base Size (L x W): 20" x 13"
  • Overall Assembled Dimensions (L x W x H): 28-1/2" x 19" x 66"
  • Work Lamp: Integrated, pivoting LED
  • Weight: 187 lbs.

What's Included:

  • (1) JetĀ® 17" Floor Drill Press - 3/4 HP 1 Ph 115V - JDP-17
