View a Larger Image of 17" Drill Press, Model JDP-17
  • View a Different Image of 17" Drill Press, Model JDP-17
  • Default
  • Default
  • Default
  • Default
  • Default
Item 861604
Model 716300

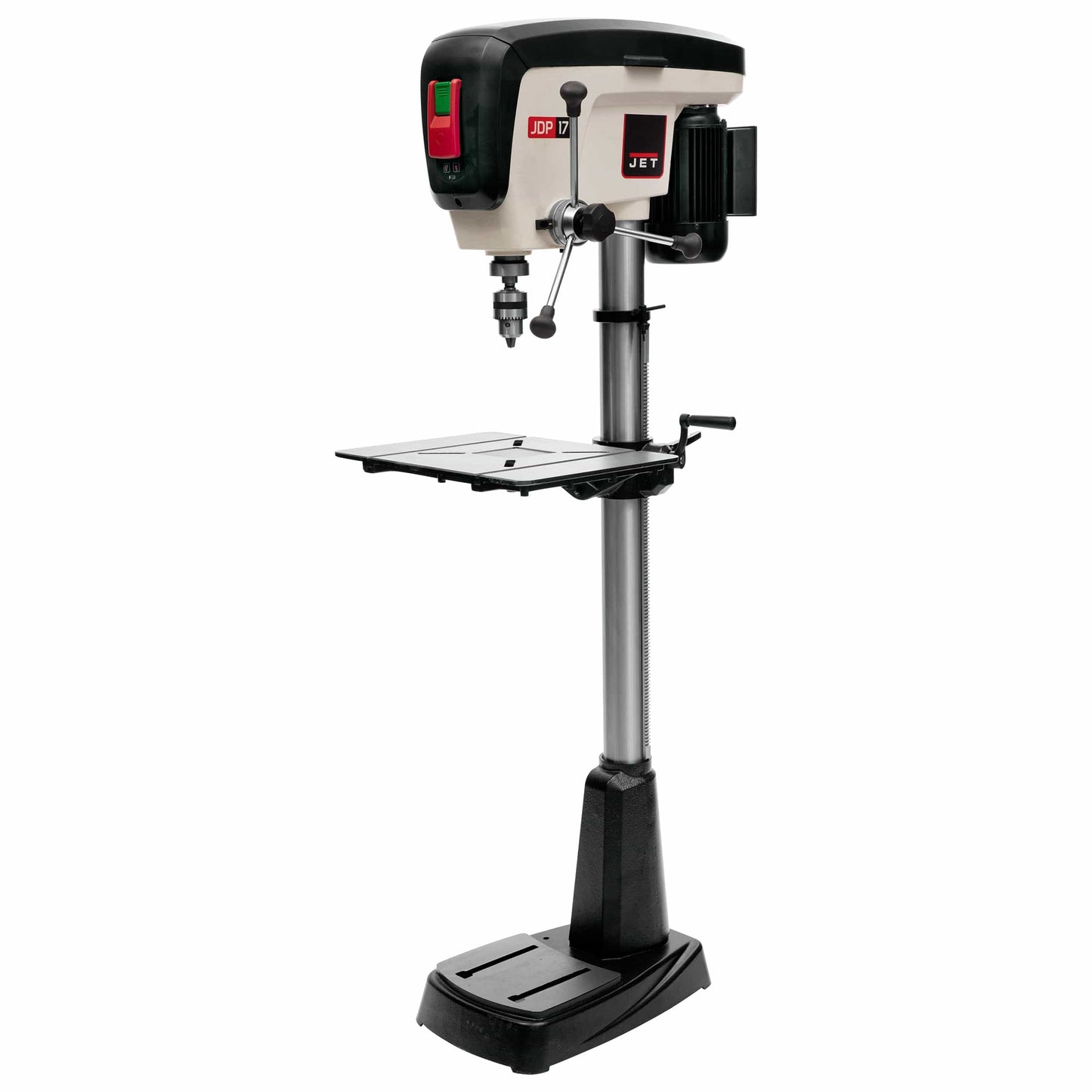

Jet - 17" Drill Press, Model JDP-17


  • Ships for Free
  • - Contiguous 48 States Shipping Only

    Learn More
  • - Ships from Manufacturer, Expedited Shipping Unavailable

    Learn More
  • - Not Available for Express and Overnight Shipping.

    Learn More
  • - Ships in approximately 5 business days

This item is now out of stock wth the Manufacturer. Order now for mid-August delivery.

Compare With


The JET JDP-17, 17” Drill Press. From a full 5” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping.

  • Table Size (L x W) (In.): 14 x 1
  • Motor 3/4 HP, 115 V, 1 PH, 6.8A
  • Table Tilt (Deg.): 90 Left and Right
  • Chuck Size (In.): 5/8
  • Spindle travels a full 5” with one revolution of the handle
  • Large 14 x 19" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project"
  • One-handed belt tensioning allows for rapid speed changes
  • Power switch features a safety key and large, paddle-style off button
  • Integrated depth stop makes repetitive drilling quick and easy
  • Xacta-X laser system easily identifies the drill center
  • Long-lasting, built-in LED work light reduces shadows
  • Table edge lip designed to make clamping easy
  • Replaceable MDF table insert
  • Large cast iron base provides stability
  • Poly-v belt drive system
  • CSA Certified
  • Chuck Distance to Table (In.): 25-7/8
  • Number of Spindle Speeds: 16
  • Spindle Travel (In.): 5
  • Column Diameter (In.): 3-5/32
  • Chuck Distance to Base (In.): 42-7/8
  • Spindle Distance to Table (Max.) (In.): 30
  • Base Size (In.): 20 x 13
  • Spindle Speed (RPM): 210 - 3500
  • Swing (In.): 16-7/8
  • Spindle Taper: JT-3 to MT-2
  • Recommended Circuit Size (Amps): 15
  • Weight (Lbs.): 187

Shipping / Billing Information

All shipments must be inspected and any damage reported within 3 days of receipt.

Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.

This product ships direct from the manufacturer:

  • Your order will ship in 5 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.

Warranty Information


Articles & Blogs


If you are like some of us who wait until the last possible minute to complete your gift shopping (ahem…), here’s a quick and easy DIY project that will surely please your recipients – personalized wood slice ornaments!

Read More >
Sld345 scroll saw damask kitty pattern2

As part of our Mother’s Day series, we will introduce you to several superstar moms (and grandmothers!) who combine their love of family with their love of woodworking. Meet Sheila Landry - a talented scroll saw artist who knows the value of quality tools.

Read More >


5.0 out of 5 stars
2 Reviews
  1. 5.0 out of 5 stars
    by on

    No buyer remorse

    I found that it was very easy to assemble. Fit and finish was fantastic. This is a first class piece of equipment and i find it hard to come up with any cons. Every aspect is just solidly put together and all the form is rounded. Very sleek looking and it runs as well as it looks. Great addition to my workshop.

  2. 5.0 out of 5 stars
    by on

    Good Value

    I purchased this drill press during a Jet 15% off promotion and it was delivered well packed and with no damage, fit and finish was excellent. Assembly was straight forward and well documented but does require two people to install the table and headstock. The table is excellent, it's large with flat edges for clamping and the built-in T-slots makes installing a fence easy. Speed changes are quick with the easy to release idler pulley. I found the depth stop and quill lock mechanisms easy to set and provide positive stops. Power seems adequate but I have not challenged it with any large bits. I do not have a gauge to test runout but I detect none at full extension. The LED light and laser are nice additions. I feel I got value for my money and would recommend it to others.
