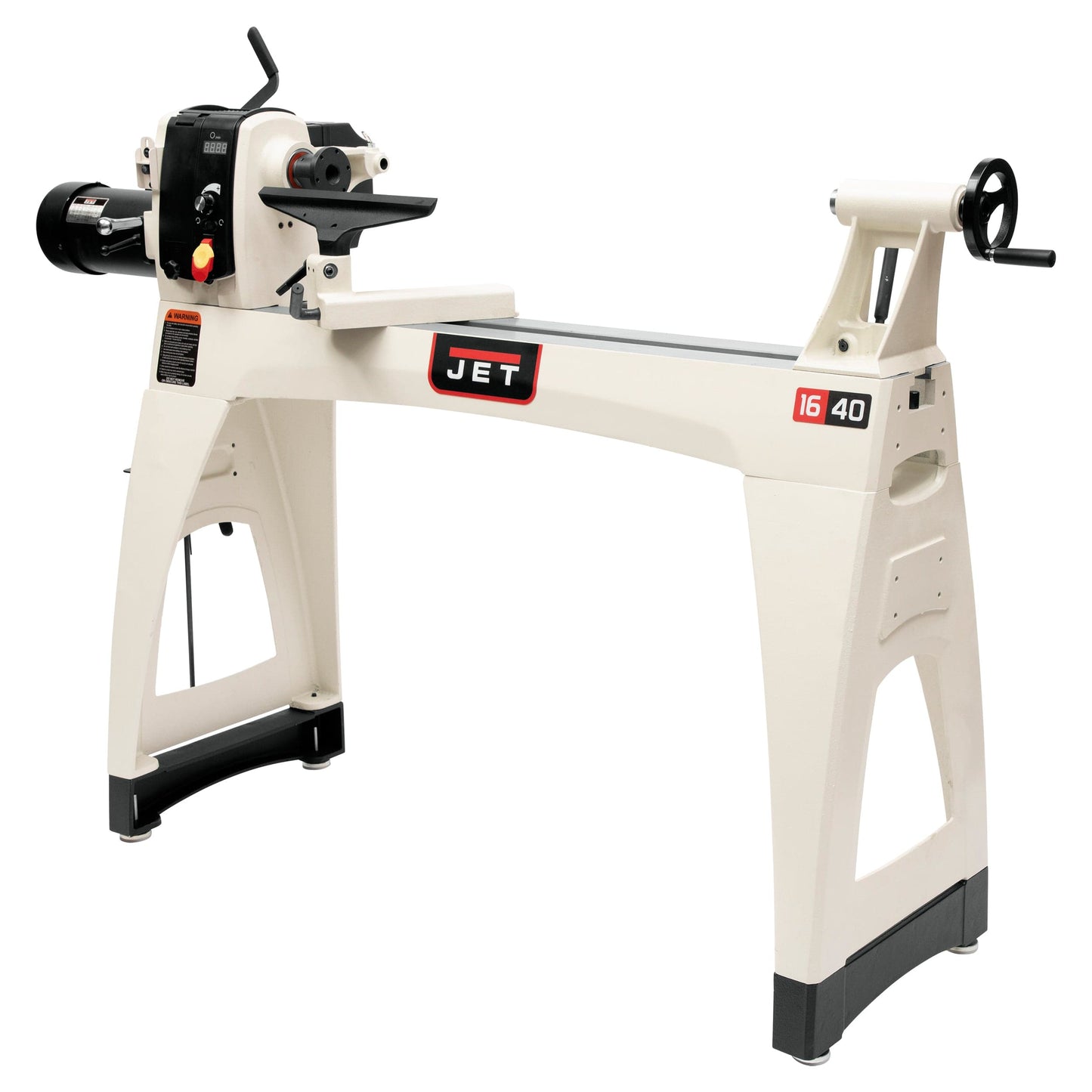

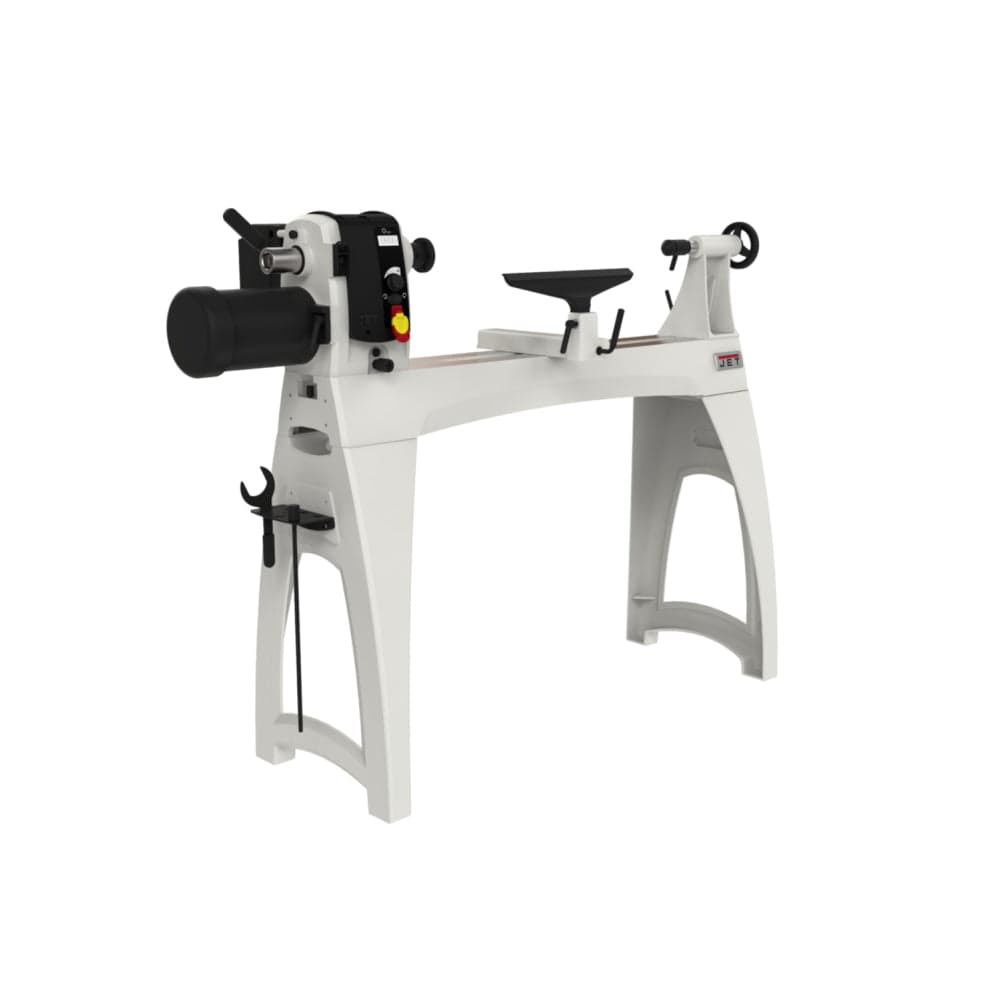

16" x 40" Electronic Variable Speed Wood Lathe - 1-1/2 HP 3 Ph 230V - JWL-1640EVS
Shipping Fee of $99.00
The Jet® JWL-1640EVS Wood Lathe is a powerful and versatile tool designed for precision and ease of use. A 1-1/2 horsepower motor delivers smooth and consistent performance, making the 1640 ideal for small and large projects. With its electronic variable speed control, heavy-duty...
Items You May Need
- Extended spindle nose houses dual headstock spindle bearings
- Improved tailstock quill locking mechanism incorporates an anti-rotation key
- Tailstock features Acme threads for smooth and durable movement
- Banjo uses non-marring, positive locking wedge system to securely hold tool post
- Tool post locking mechanism designed for years of consistent strength
- Spindle lock latch frees up both hands
- Electronic infinitely variable speed from 40 – 3200 RPM
- 36 integrated indexing positions
- Headstock locking handle is accessible from front of lathe
- Leg-mounted tool holder for convenience
- Inverter is enclosed for added protection
- E-Drive Inverter features a built in EMI filter
- Conveniently located digital readout
- Rubber tool mat on top of headstock
- Product: Wood Lathe
- Style: Floor Standing Model
- Motor Type: TEFC totally enclosed, fan-cooled; induction
- Power Transfer: V-belt
- Motor Power: 1-1/2 HP
- Motor Phase: 3 Ph
- Motor Voltage: 230V
- Motor Amps: 4.6A
- Motor Speed: 1720 RPM
- Prewired Voltage: 115V Input Only
- Recommended Circuit Size: 20A
- Swing Over Bed: 16-1/2"
- Swing Over Tool Rest Base: 12-7/8"
- Distance Between Centers: 40"
- Spindle Bore: 5/8"
- Tailstock Bore: 3/8"
- Spindle Taper: MT2
- Quill Taper: MT2
- Quill Travel: 4-1/4"
- Spindle Thread: 1-1/4" x 8 TPI
- Outboard External Threads: 3/4"-16 (LH)
- Spindle Speeds: High: 120-3200 RPM; Low: 40-1200 RPM
- Speed Range: 40-3200 RPM
- Number of Indexing Positions: 36
- Headstock Movement: Sliding
- Centerline of Spindle to Floor: 44-1/2"
- Outboard Turning: Yes
- Bed Construction: Cast Iron
- Assembled Machine Dimensions: 73" x 52-1/2" x 20"
- Net Weight: 377 lbs.
- (1) Jet® 16" x 40" Electronic Variable Speed Wood Lathe - 1-1/2 HP 3 Ph 230V - JWL-1640EVS
- (1) Tool rest
- (2) Legs
- (1) Spur center
- (1) Live center
- (1) Live cone center
- (1) Live cone center pin
- (1) Knockout rod
- (1) Faceplate (installed on lathe)
- (1) Faceplate wrench
- (4) Levelers
- (1) Tool shelf
- (1) Manual
